Advantech IDS-3215 15" Class XGA LCD Monitor
Advantech

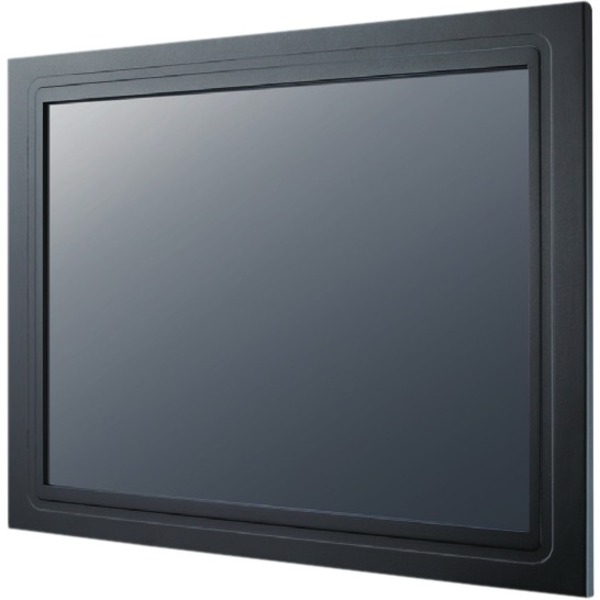

Advantech IDS-3215 15" Class XGA LCD Monitor

15" Viewable - LED Backlight - 1024 x 768 - 16.2 Million Colors - 500 Nit - 23 ms - DVI - VGA - VESA Mount Compatible

SKU
IDS-3215G-40XGA1E
Category
Monitors

Request pricing

Confirmed with stock and TAA status before any payment.

Request a quote

Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
IDS-3215G-40XGA1E
Category
Monitors

Overview

The Advantech IDS-3215 Embedded Industrial Panel Mount Monitor series offers flexible options for LCD, touchscreen, signal interface and chassis mounting. The series with standard integrated frame design, supports rear and VESA mounting which brings the benefits of easy installation and provides flexibility for different applications.

Highlights

  • 15" XGA LCD panel with LED backlight for 20% power saving and environmental protection
  • -20° ~ +60° C wide range operating temperature
  • 5-wire resistive touchscreen solution or tempered smudge resistant protected glass
  • Combo touch interface: RS-232 and USB
  • Dual signal interface with VGA & DVI
  • Standard integrated frame

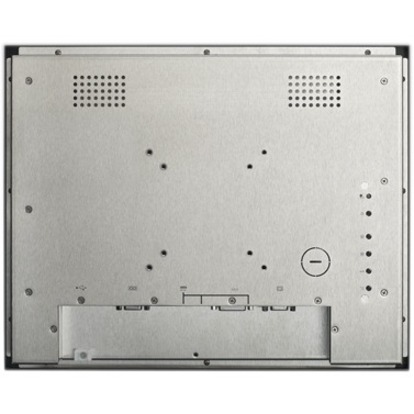

  • Versatile mounting methods for rear mounting and VESA mounting
  • Anti-Reflective treatment (optional)
  • Ultra high brightness solution of 1200 cd/m 2 for outdoor applications (optional)

Specifications

Package Contents
  • 15" XGA Industrial Panel Mount Monitor
  • 1 x VGA cable 15P(M) (180 cm)
  • 8 x clamper
  • 8 x clamper screw M4_25L
  • 1 x cable clamp
  • 1 x cable clamp screw
  • 1 x cable tie
Product TypeLCD Monitor
Manufacturer Part NumberIDS-3215G-40XGA1E
Response Time23 ms
Limited Warranty2 Year
Weight (Approximate)9.48 lb
Brightness500 Nit
Color Supported16.2 Million Colors
FeaturesAnti-reflective, On-screen Display (OSD), AutoTune, Power Switch
ManufacturerAdvantech Co., Ltd
Product ModelIDS-3215
Product Name15" XGA Industrial Panel Mount Monitor
Mount TypePanel-mountable, Rear Mount
Viewable Screen Size15"
Maximum Resolution1024 x 768
Brand NameAdvantech
Screen ModeXGA
Height11.5"
Width14.4"
Depth1.5"
Number of Screens1
Horizontal Viewing Angle176°
Vertical Viewing Angle176°
Environmentally FriendlyYes
USBYes
Backlight TechnologyLED
VESA Mount CompatibleYes
Native Contrast Ratio2,500:1
DVIYes
VGAYes
Number of USB Ports1
Screen Size Class15"
Glass Hardness3H
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
