Advantech IDS-3115N-K2XGA1E 15" Class XGA Open-frame LED Monitor
Advantech

Advantech IDS-3115N-K2XGA1E 15" Class XGA Open-frame LED Monitor

15" Viewable - LED Backlight - 1024 x 768 - 16.2 Million Colors - 1200 Nit - 23 ms - DVI - VGA - VESA Mount Compatible

SKU
IDS-3115N-K2XGA1E
Category
Monitors

$434.84

Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
IDS-3115N-K2XGA1E
Category
Monitors

Overview

Introduction

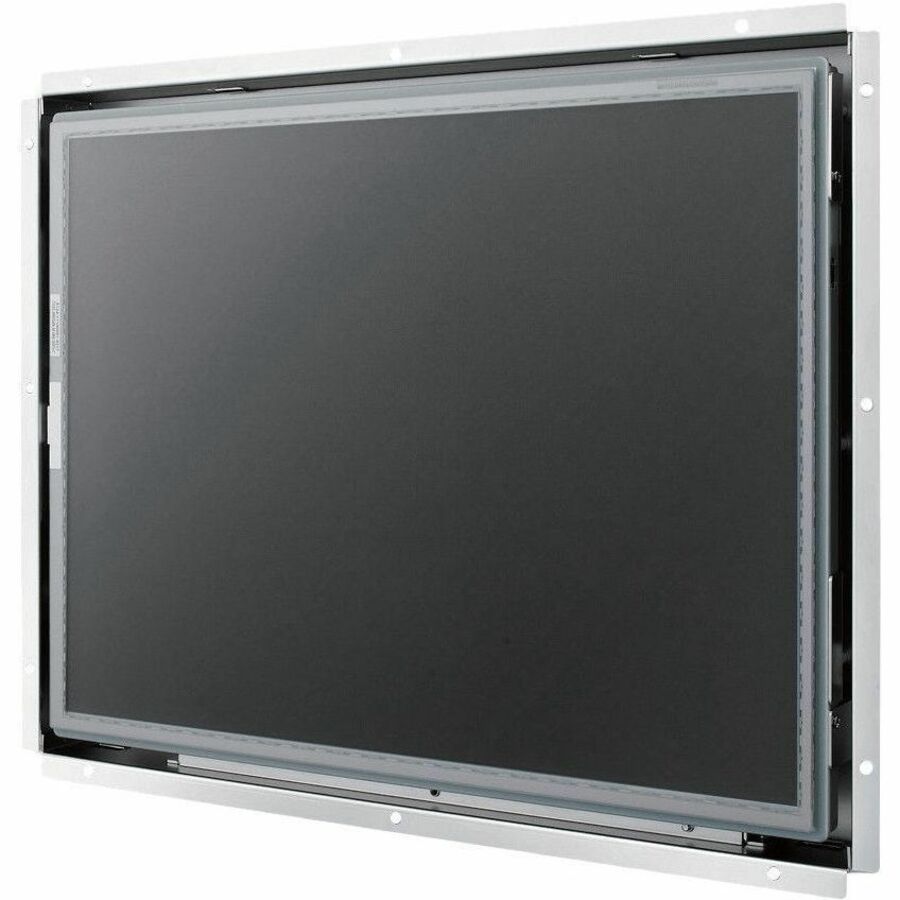

The Advantech IDS-3115 Embedded Open Frame Monitor series offers flexible options for LCD, touchscreen, signal interface and chassis mounting. The series supports rear and VESA mounting. The integrated brackets bring the benefits of easy installation and provide flexibility for different applications.

Highlights

  • 15" 1024 x 768 XGA LCD panel with LED backlight for 20% power saving and environmental protection
  • -20~ 60° C operating temperature support
  • 5-wires resistive and projected capacitive touchscreen solution
  • Combo touch interface of RS-232 and USB
  • Dual signal interface with VGA and DVI
  • Integrated bracket for easy installation

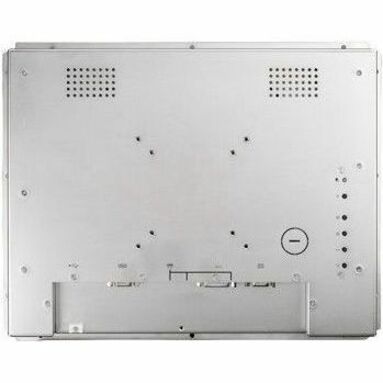

  • Versatile mounting methods for Rear mounting and VESA mounting
  • Anti-Reflective surface treatment for sunlight readable enhancement (optional)
  • Ultra high brightness solution of 1200 nits for outdoor application (optional)

Specifications

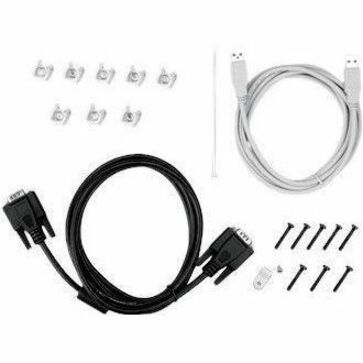

Package Contents
  • 15" XGA Industrial Open Frame Monitor
  • 1 x M Cable USB-A(M)/USB-A(M) 180 Cm
  • 1 x VGA Cable 15P(M) 180 Cm
  • 8 x Clamper
  • 8 x clamper Screw M4 25L
  • 1 x Cable Clamp
  • 1 x Cable Clamp Screw
Product TypeOpen-frame LED Monitor
Manufacturer Part NumberIDS-3115N-K2XGA1E
Response Time23 ms
Limited Warranty24 Month
Weight (Approximate)8.38 lb
Brightness1200 Nit
Color Supported16.2 Million Colors
FeaturesOn-screen Display (OSD), AutoTune, Color Temperature Selection
ManufacturerAdvantech Co., Ltd
Product ModelIDS-3115N-K2XGA1E
Product Name15" XGA Industrial Open Frame Monitor
Product SeriesIDS-3115
Viewable Screen Size15"
Maximum Resolution1024 x 768
Brand NameAdvantech
Screen ModeXGA
Height11.3"
Width14.3"
Depth1.3"
Number of Screens1
Horizontal Viewing Angle176°
Vertical Viewing Angle176°
Backlight TechnologyLED
VESA Mount CompatibleYes
Native Contrast Ratio2,000:1
DVIYes
VGAYes
Maximum Power Consumption60 W
Screen Size Class15"
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Operating Temperature Range-4°F (-20°C) to 140°F (60°C)
Operating Humidity Range5% to 95% (Non-condensing)
