Advantech IDS-3119 19" Class SXGA Open-frame LCD Monitor
Advantech

Advantech IDS-3119 19" Class SXGA Open-frame LCD Monitor

19" Viewable - LED Backlight - 1280 x 1024 - 16.7 Million Colors - 350 Nit - 5 ms - DVI - VGA - VESA Mount Compatible

SKU
IDS-3119N-35SXA1E
Category
Monitors

$494.85

Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
IDS-3119N-35SXA1E
Category
Monitors

Overview

The Advantech IDS-3119 Embedded Open Frame Monitor series offers flexible options for LCD, touchscreen, signal interface and chassis mounting. The series supports rear and VESA mounting. The integrated brackets bring the benefits of easy installation and provide flexibility for different applications.

Highlights

  • 19" SXGA LCD panel with LED backlight for 20% power saving and environmental protection
  • 0° C ~ +45° C operating temperature
  • 5-wire resistive touch screen solution
  • Combo touch interface of RS232 and USB
  • Dual signal interface with VGA & DVI
  • Integrated bracket for easy installation
  • Versatile mounting methods for rear mounting and VESA mounting
  • Anti-Reflective treatment (optional)
  • Ultra high brightness solution of 1200 cd/m2 for outdoor application (optional)

Specifications

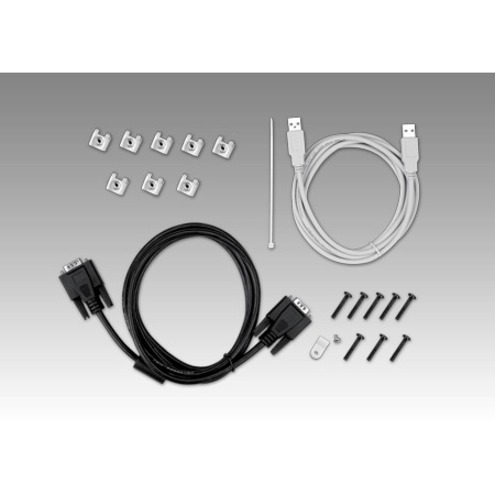

Package Contents
  • 19" SXGA 350nits Open Frame Monitor
  • 1 x VGA cable 15P(M) 1.8 meter
  • 8 x Clamper
  • 8 x Screw of clamper M4_25L
  • 1 x Cable clamp
  • 1 x Screw of cable clamp
  • 1 x Cable tie
Product TypeOpen-frame LCD Monitor
Manufacturer Part NumberIDS-3119N-35SXA1E
Response Time5 ms
Limited Warranty2 Year
Weight (Approximate)9.92 lb
Brightness350 Nit
Color Supported16.7 Million Colors
FeaturesAnti-reflective, On-screen Display (OSD), Power Switch, Multi Language Display, AutoTune
ManufacturerAdvantech Co., Ltd
Product ModelIDS-3119
Product Name19" SXGA 350nits Open Frame Monitor
Mount TypeRear Mount
Viewable Screen Size19"
Maximum Resolution1280 x 1024
Brand NameAdvantech
Screen ModeSXGA
Height14.6"
Width17.2"
Depth1.4"
Number of Screens1
Horizontal Viewing Angle170°
Vertical Viewing Angle160°
Environmentally FriendlyYes
USBYes
Backlight TechnologyLED
VESA Mount CompatibleYes
Native Contrast Ratio1,000:1
DVIYes
VGAYes
Number of USB Ports1
Screen Size Class19"
Glass Hardness3H
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
