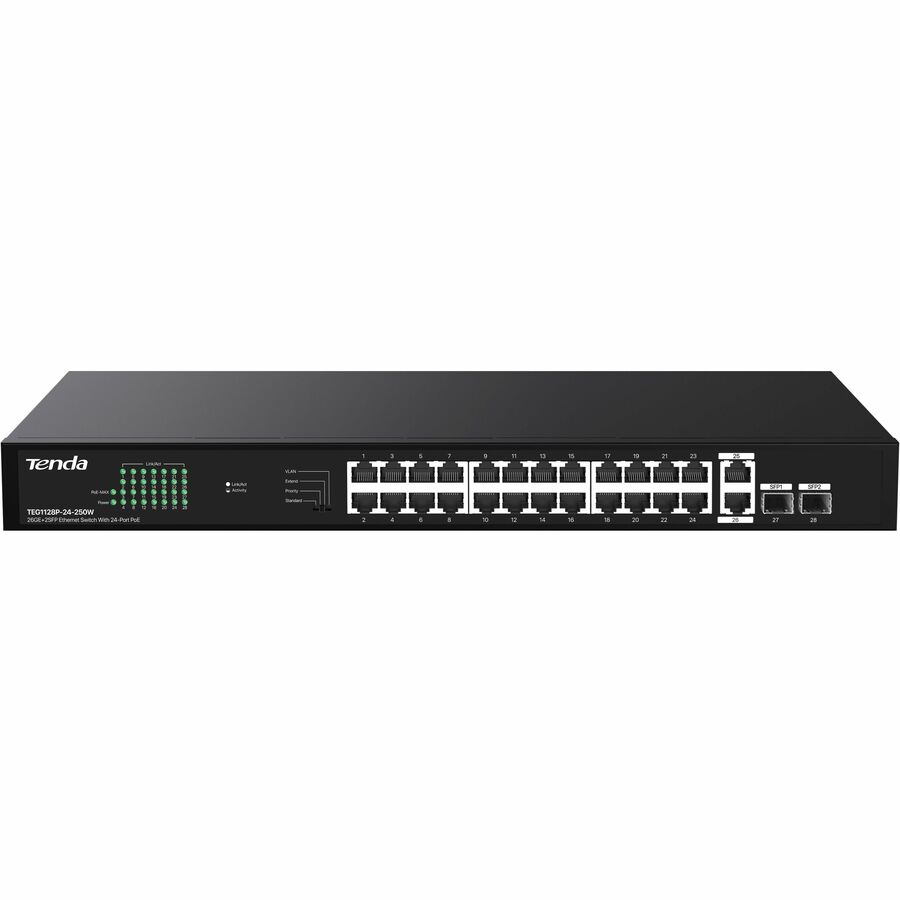

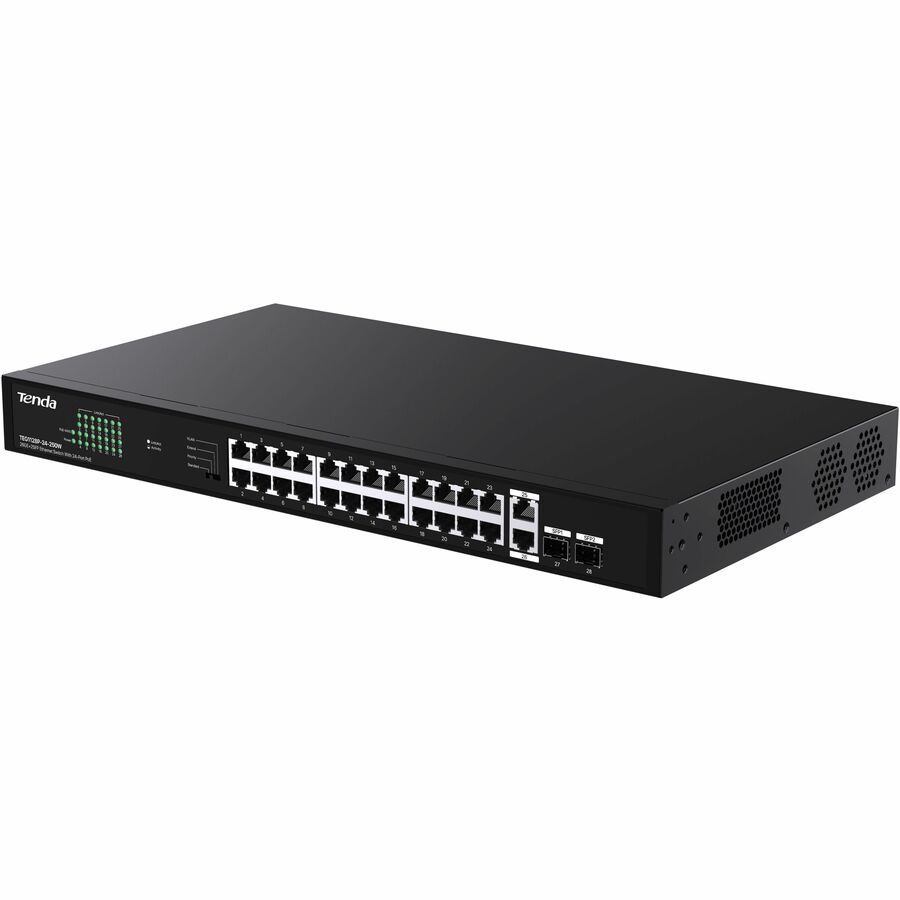

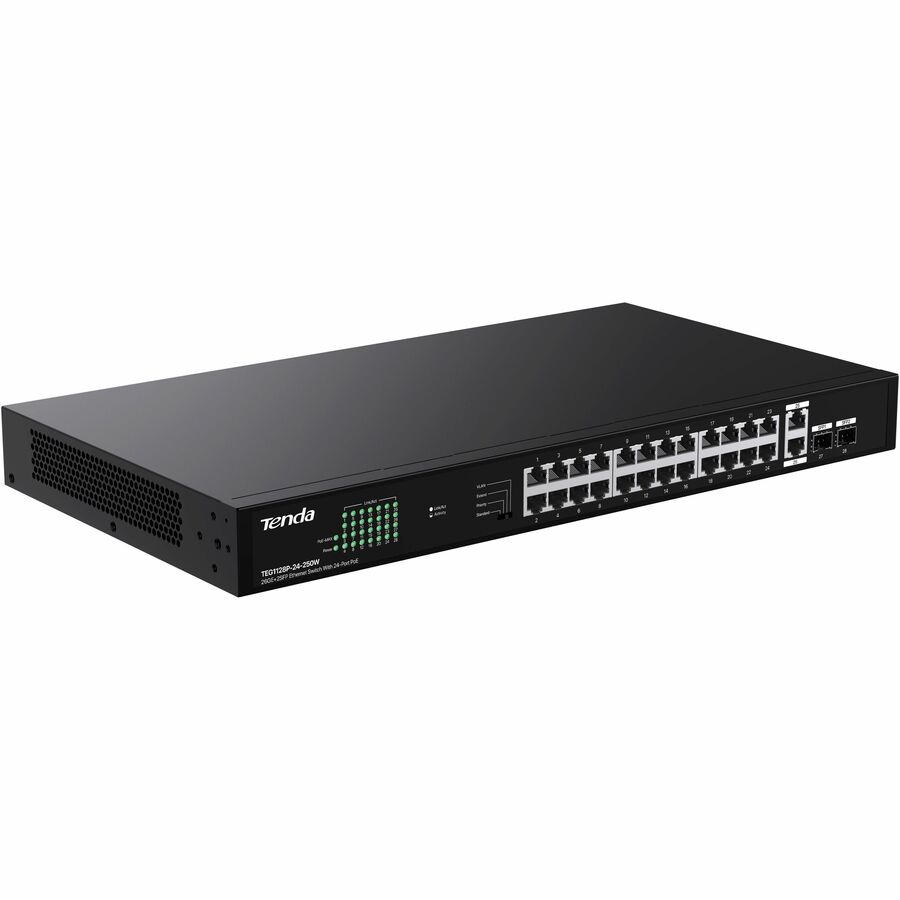

26 Ports - Gigabit Ethernet - 10/100/1000Base-T, 100/1000Base-X - 2 Layer Supported - 2 SFP Slots - 250 W Power Consumption - 230 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - 1U - Rack-mountable, Wall Mountable
MSRP$249.99
$207.81
Save 17%Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 26 and Nov 30, then process your delivery right after.
Genuine Tenda Technology through authorized distribution — NDAA §889 screened before checkout.
High speed network transmission, Experience extreme smoothness
Full gigabit ports , 56 Gbps non-blocking line speed forwarding, mprove the forwarding rate of large files, ensure smooth and stable transmission of large files and HD videos.
• Full gigabit ports
• 56 Gbps Switching capacity
GE and SFP Uplink Ports, Easier HD Monitoring
With two gigabit uplink port and two gigabit uplink optical fiber port, easily complete low-cost remote networking.
Smart PoE Power Supply, Stable Transmission
Providing 24 100/1000M PoE ports in accordance with the IEEE802.3AF / AT standard, the maximum PoE output of the whole machine is 250W, and of a single port is 30W. It can provide stable power supply and data transmission for HD PoE IP cameras, APs, etc.
4 Modes for More Scenarios, One-key To Change Smart and Easy
The switch supports 4 working modes of Standard, VLAN, Priority and Extend, realizing flexible network deployment in complex cases with lowered cost.
• Standard Mode
• Priority Mode
• Extend Mode
• VLAN Mode
Standard Mode
All ports can communicate with each other. It can be used as a common non-management PoE switch.
Priority Mode
Ports 1 to 8 are high-priority ports, which greatly reduce packet loss and congestion when the network is congested.
Extend Mode
The maximum transmission distance of the 17-24 ports of the switch can reach 250 meters, and all ports can communicate with each other.
VLAN Mode
Ports 1 to 24 cannot communicate with each other, but can communicate with ports 25, 26, SFP1 (27), and SFP2 (28), which can be used to isolate broadcast storms and DHCP conflicts.
Standard 19-inch metal body design
Quick and easy Internet settings, simple enough for you to set up office networking,19-inch body design, and support desktop, wall and rack mounting.
6KV Excellent Lightning Protection
The switch supports 6 kV lightning protection for ports and the power supply, reducing the risk of inductive lightning and ensuring stable operation even under thunderstorms.
| General Information | |
|---|---|
| Manufacturer | Tenda Technology Inc |
| Manufacturer Part Number | TEG1128P-24-250W |
| Brand Name | Tenda |
| Product Model | TEG1128P-24-250W |
| Product Name | TEG1128P-24-250W Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 26 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Port/Expansion Slot Details | 24 x 10/100/1000Base-T Gigabit Ethernet PoE RJ-45 Network Port, 2 x 10/100/1000Base-T Gigabit Ethernet RJ-45 Network Port, 2 x 100/1000Base-X SFP Expansion Slot |
| Management & Protocols | |
| Manageable | No |
| Media & Performance | |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T, 100/1000Base-X |
| Maximum Data Transfer Rate | 125 MB/s |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| Physical Characteristics | |
| Product Material | Metal |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable, Wall Mountable |
| Height | 1.7" |
| Width | 9.4" |
| Length | 17.3" |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 230 W |
| Input Voltage | 120 V AC, 230 V AC |
| Power Source | PoE |
| Power Consumption | 250 W |
| Technical Information | |
| Features | Plug and Play |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
| Miscellaneous | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
