Genuine Omnitron Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
6905-10-09Z
Category
Switches & Bridges
Overview

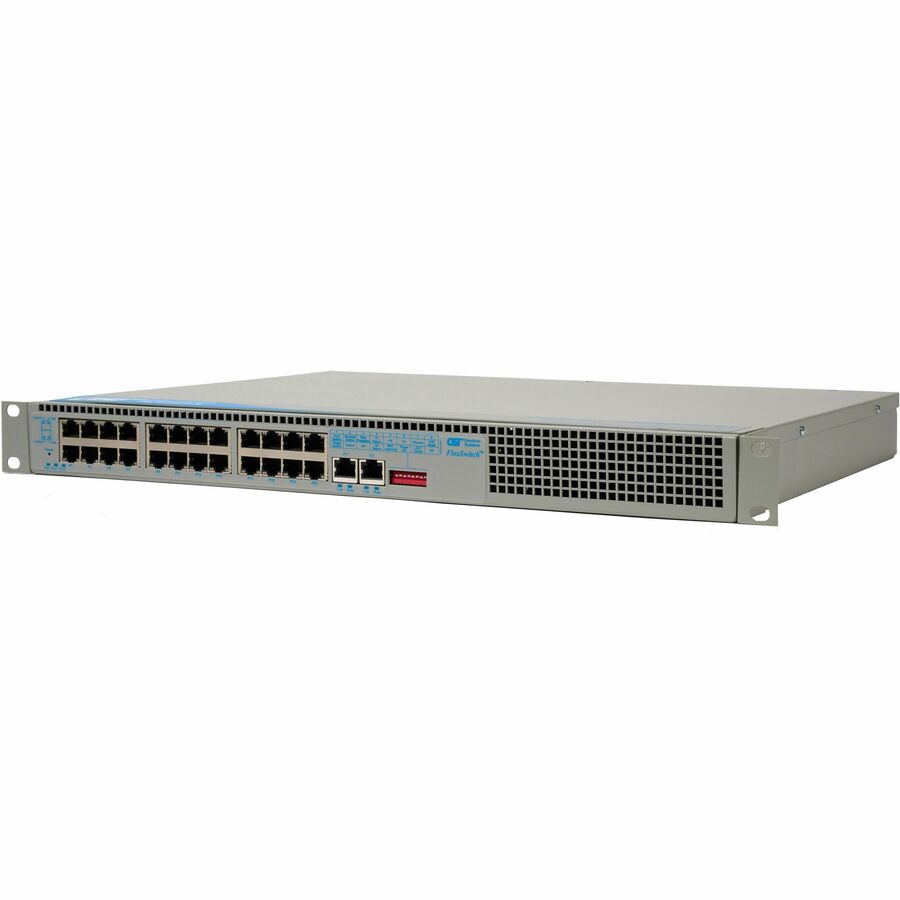

The FlexSwitch 10GR/Sx is an unmanaged Ethernet switch that features two 1/10G SFP/SFP+ or multi-gigabit/multi-rate RJ-45 uplink ports and twenty-four 10/100/1000 RJ-45 copper ports. This layer 2 switch is ideal for connecting computers and servers in a high density office environment.
The RJ-45 uplink ports support multi-gigabit/multi-rate speeds of 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps. The switch supports Dual Device mode, Directed Switch mode and Redundant Uplinks.
Dual Device mode enables the switch to operate as two independent and isolated switches. In Dual Device mode, the switch provides separate and independent traffic paths, each supporting one uplink port and twelve user ports. Directed Switch mode directs multicast traffic (such as video) only to the appropriate uplink port, preventing the multicast video traffic from flooding other network ports. Redundant fiber or copper uplinks provide protection and restoration for critical applications. In the event of a failure on the primary uplink port, the switch will failover to the secondary uplink port.
For daisy-chain applications, the second uplink port can be used to cascade multiple switches.
The mode of operation is configured using easily accessible DIP-switches. Each DIP-switch function is labeled on the front of the FlexSwitch for ease of identification and use.
The switches feature Small Form Pluggable (SFP) transceiver receptacle ports supporting a variety of copper and fiber transceivers. It supports multi-gigabit copper transceivers and 1G and 10G fiber transceivers in standard, CWDM and DWDM wavelengths.
An alarm relay is available to detect he status of the input power to the switch. The relay contact can be configured for normally open or normally closed operation. One alarm input is available for detecting external events such as door open or closed.
The switch can be 19" rack mounted using the attached rack-mount brackets. They are available with an internal 100 to 240V AC power supply or with a DC terminal connector.
Highlights
Effectively reduces downtime with improved network performance
Terminal Block plug/connector type for convenient Ethernet Switch usage with added power supply dependability
Lets you conveniently connect different networks to enable improved flexibility to your infrastructure
Features 26 networking ports to establish large network
With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
Rack mounting enables you to organize wires & secure cables for professional installation
The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
Gigabit Ethernet port for ultra-fast network speeds
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Specifications
Package Contents
FlexSwitch 10GR/Sx, 2x RJ-45, 24x RJ-45, 5 Year Warranty
User Manual
Product Type
Ethernet Switch
Input Voltage
12 V DC, 57 V DC
Manufacturer Part Number
6905-10-09Z
Packaged Quantity
1
Power Source
DC
Limited Warranty
5 Year
Layer Supported
2
Weight (Approximate)
8.90 lb
Features
IP20, Alarm Relay
Form Factor
Rack-mountable
Manufacturer
Omnitron Systems
Product Model
6905-10-09Z
Product Name
FlexSwitch 10GR/Sx, 2x RJ-45, 24x RJ-45, 5 Year Warranty
Network Technology
10/100/1000Base-T
Package Type
Retail
Product Line
FlexSwitch
Product Series
10GR/Sx
Brand Name
Omnitron Systems
Plug/Connector Type
Terminal Block
Country of Origin
United States
Height
1.8"
Width
17.4"
Depth
14"
Manageable
No
Maximum Data Transfer Rate
128 MB/s
Product Condition
New
Ethernet Technology
Gigabit Ethernet
Network (RJ-45)
Yes
Uplink Port
Yes
Media Type Supported
Twisted Pair
Total Number of Network Ports
26
PoE (RJ-45) Port
Yes
Port/Expansion Slot Details
24 x Gigabit Ethernet Network, 2 x Gigabit Ethernet PoE
Networking Standards
IEEE 802.3, IEEE 802.3bz
Environmental Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS)
