Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
PDX-915R
Category
PDUs
Overview

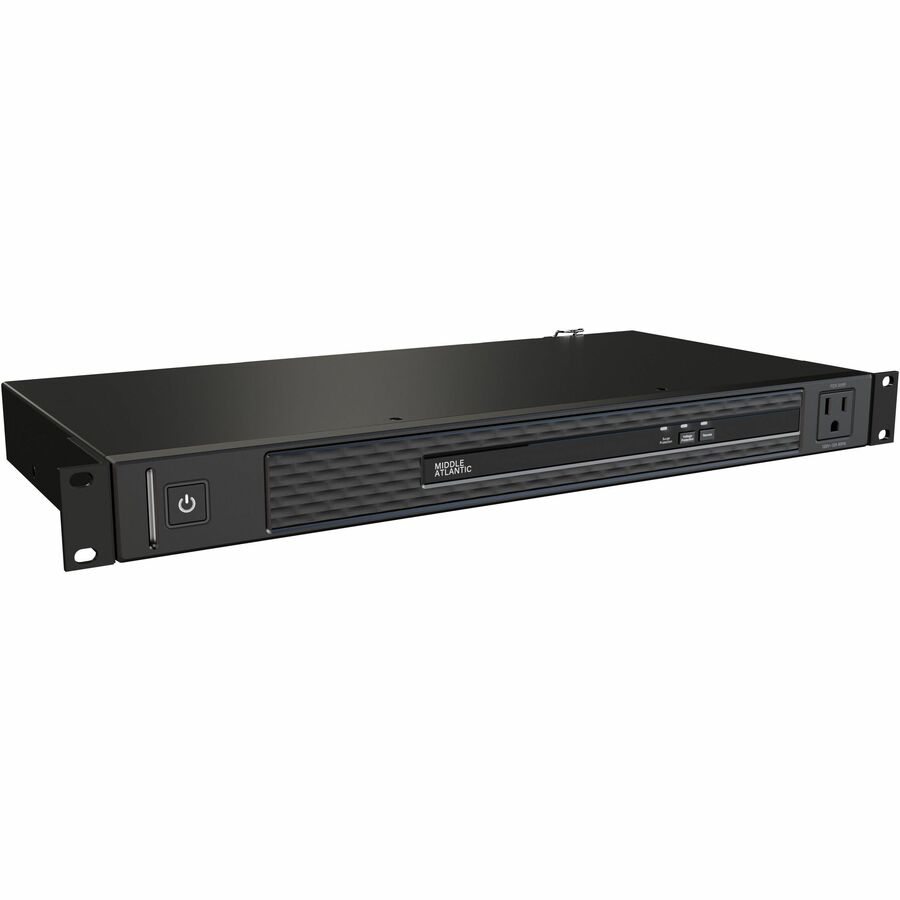

The Middle Atlantic PDX-915R is a 15A NEXSYS PDU featuring (9) NEMA 5-15R outlets, making it ideal for 'behind-the-display' applications such as digital signage. Its compact design includes two mounting options-a clamp and L-brackets-for flexible installation. These mounting solutions can be easily attached to a Lever Lock plate for tool-free mounting inside a rack, kiosk, or in-wall box. The PDU offers multi-stage surge protection and visual indicators of surge status on the front and side. It also includes selectable on/off voltage protection from the dry contact port, which safeguards sensitive equipment from over/under voltage scenarios by automatically turning off the outlets during such events and restoring them once the voltage is within the acceptable range. For cleaner cable management, you can select your desired length of power cord, with a standard 9ft cord included. The outlets are oriented to prevent blocked outlets, allowing you to use both outlets even with DC transformers (wall warts).
Warranty
Limited Warranty: 3 Year
About Legrand
Middle Atlantic Products designs and manufactures innovative foundational products like system enclosures, tech-enabled furniture, and power distribution and backup to support integrated systems for residential, commercial, broadcast, government, education and security applications. Since 1979 Middle Atlantic is what great systems are built on.
Highlights
Electric power fitted to racks of computers and networking equipment within a data center
NEMA 5-15R receptacle type to ensure maximum dependability and optimal performance
NEMA 5-15P plug/connector type for efficient connectivity and feasible power output
120 V AC input voltage for better reliance and maximum dependability
120 V AC output voltage for optimal performance with maximum feasibility
Specifications
General Information
Manufacturer
Legrand Group
Manufacturer Part Number
PDX-915R
Brand Name
Middle Atlantic
Product Line
NEXSYS
Product Model
PDX-915R
Product Name
NEXSYS Rack Mounted Power Distribution Unit - 15 Amp, 9 Outlet PDU
Product Type
PDU
Physical Characteristics
Mount Type
Rack-mountable
Form Factor
Rack
Rack Height
1U
Height
1.7"
Width
19"
Depth
8.7"
Power Description
Input Voltage
120 V AC
Output Voltage
120 V AC
Input Current
15 A
Technical Information
Plug/Connector Type
NEMA 5-15P
Receptacle Type
NEMA 5-15R
Receptacle Detail
9 x NEMA 5-15R
Protection Type
Surge Protection
Warranty
Limited Warranty
3 Year
Miscellaneous
Package Contents
NEXSYS Rackmount Power Multi-Stage Surge Protection - PDX-915R
