SKU
PDX-215C
Category
PDUs
Overview

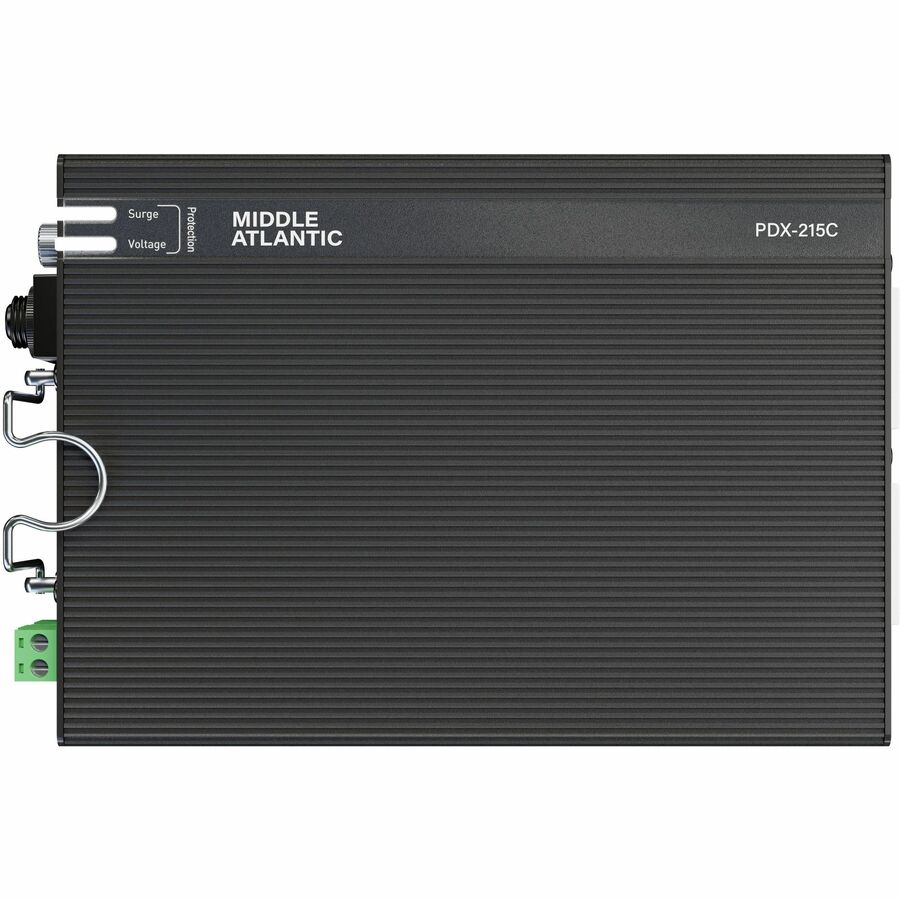

The Middle Atlantic PDX-215C is a compact NEXSYS PDU designed for 'behind-the-display' applications, particularly digital signage. It features (2) NEMA 5-15R outlets and operates at 15A. The PDU offers flexible mounting options with both clamp and L-brackets, which can be easily attached to a Lever Lock plate for tool-free installation inside a rack, kiosk, or in-wall box. It includes multi-stage MOV surge protection with 3 stages and visual indicators of surge status on the front and side. The selectable on/off voltage protection from the dry contact port helps safeguard sensitive equipment from over/under voltage scenarios by automatically turning off the outlets during such events and restoring them once the power is within the acceptable range. The PDU also supports cleaner cable management with a standard 2ft power cord and allows for the use of both outlets without obstruction, thanks to the orientation designed for easier plugging of DC transformers (wall warts).
Warranty
Limited Warranty: 3 Year
About Legrand
Middle Atlantic Products designs and manufactures innovative foundational products like system enclosures, tech-enabled furniture, and power distribution and backup to support integrated systems for residential, commercial, broadcast, government, education and security applications. Since 1979 Middle Atlantic is what great systems are built on.
Highlights
15A with (2) NEMA 5-15R Outlets
Oh Snap! It's Compact!
The compact design of this NEXSYS PDU is perfect for "behind-the-display" applications, especially digital signage.
It's very flexible.
The NEXSYS Compact PDU includes (2) mounting options for mounting flexibility, a clamp and L-brackets.
Easily attach both mounting solutions to a Lever Lock plate for tool-free mounting inside a rack, kiosk, in-wall box, etc.
Multi-stage MOV surge protection
3 stages of surge protection
Visual Indicators of surge status on the front and side of the PDU
Worried about the under/over voltage? Don't.
With the selectable on/off voltage protection from the dry contact port, it gives the option to protect sensitive equipment from over/under voltage scenarios.
If the voltage protection is on and an over or under voltage event happens the outlets will automatically be turned off to protect the equipment. Once the power restores within the acceptable voltage range the PDU will automatically turn the outlets back on.
IEC Inlet:
Allows for cleaner cable management by selecting your desired length of power cord.
A standard 2' cord is included with all models
Tired of blocked outlets?
You pay for 2 outlets and we think you should be able to use all 2 outlets! The outlets are oriented for easier plugging of DC transformers (wall warts) eliminating blocked outlets.
Specifications
General Information
Manufacturer
Legrand Group
Manufacturer Part Number
PDX-215C
Brand Name
Middle Atlantic
Product Line
NEXSYS
Product Model
PDX-215C
Product Name
NEXSYS Compact Power Distribution Unit - 15 Amp, 2 Outlet PDU
Product Type
PDU
Physical Characteristics
Mount Type
Rack-mountable, Wall-mountable
Form Factor
Rack
Rack Height
0U
Height
1.7"
Width
4.6"
Depth
6.5"
Power Description
Input Voltage
120 V AC
Output Voltage
120 V AC
Input Current
15 A
Technical Information
Plug/Connector Type
NEMA 5-15P
Receptacle Type
NEMA 5-15R
Receptacle Detail
2 x NEMA 5-15R
Protection Type
Surge Protection
Features
Compact
Warranty
Limited Warranty
3 Year
Miscellaneous
Package Contents
NEXSYS Compact Power Multi-Stage Surge Protection - PDX-215C
