Tripp Lite by Eaton PDU 2.4kW Single-Phase 120V Basic PDU 13 NEMA 5-15/20R Outlets NEMA L5-20P Input 15 ft. (4.57 m) Cord 1U Rack-Mount

Tripp Lite's PDU1220T AC power distribution unit offers 20 amp, 120 volt capacity in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for wallmount, under-counter or 1U/0U rackmount installation. Uses only 1 rack space (1U) when installed in any 19 inch rack, with the potential for 0U mounting in the cable management area of most rack enclosures. Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes. Attractive housing with 12 rear-facing outlets and one front-facing measures only 4.5 inches in depth. Unfiltered electrical pass-through without a power switch makes PDU1220T ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Includes 12 rear-facing NEMA5-20R outlets, 1 front-facing NEMA5-20R outlet, NEMAL5-20P twist lock plug, 15 ft. AC power cord, 20 amp circuit breaker, grounding lug and rugged all-metal case design. PLUG/OUTLETS - Input: NEMA L5-20P/Output: 13 NEMA5-20R (12 rear-facing, one front-facing)ELECTRICAL - 120V AC, 50/60Hz, 20A (Requires NEMA L5-20R wall receptacle)FORMAT - Supports 19 in. rackmount (1U/0U), wallmount, under-counter and more

More from the Manufacturer

Reliable IT Power Distribution and Versatile Installation Options

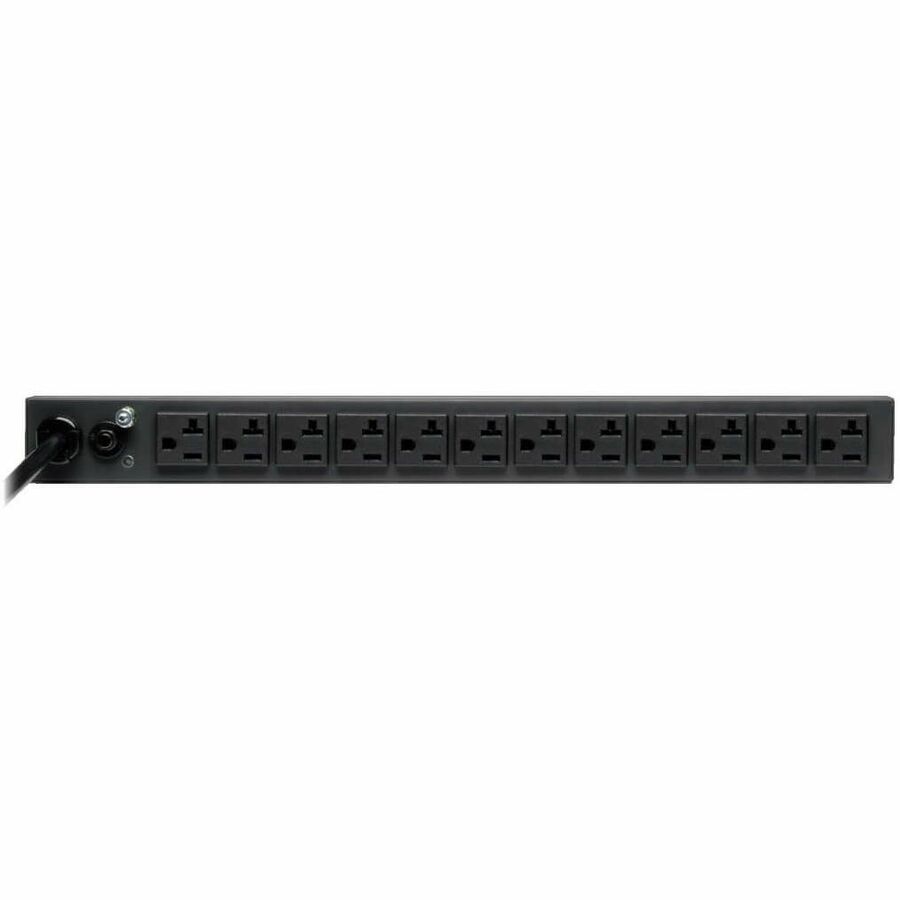

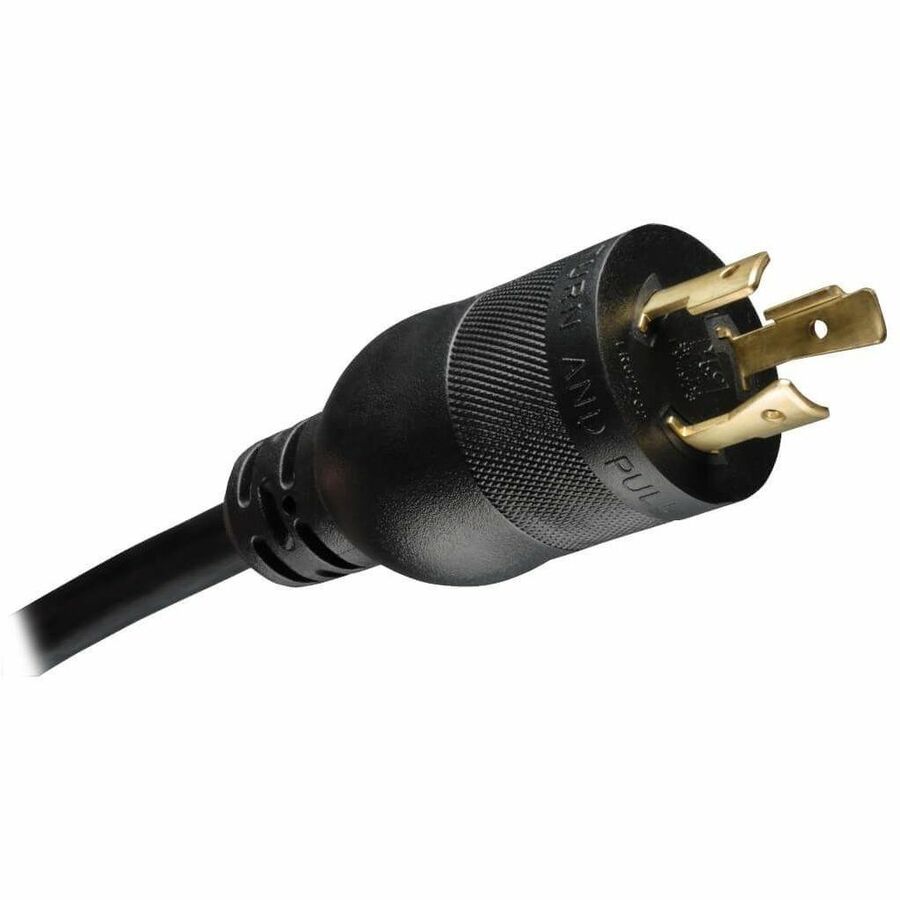

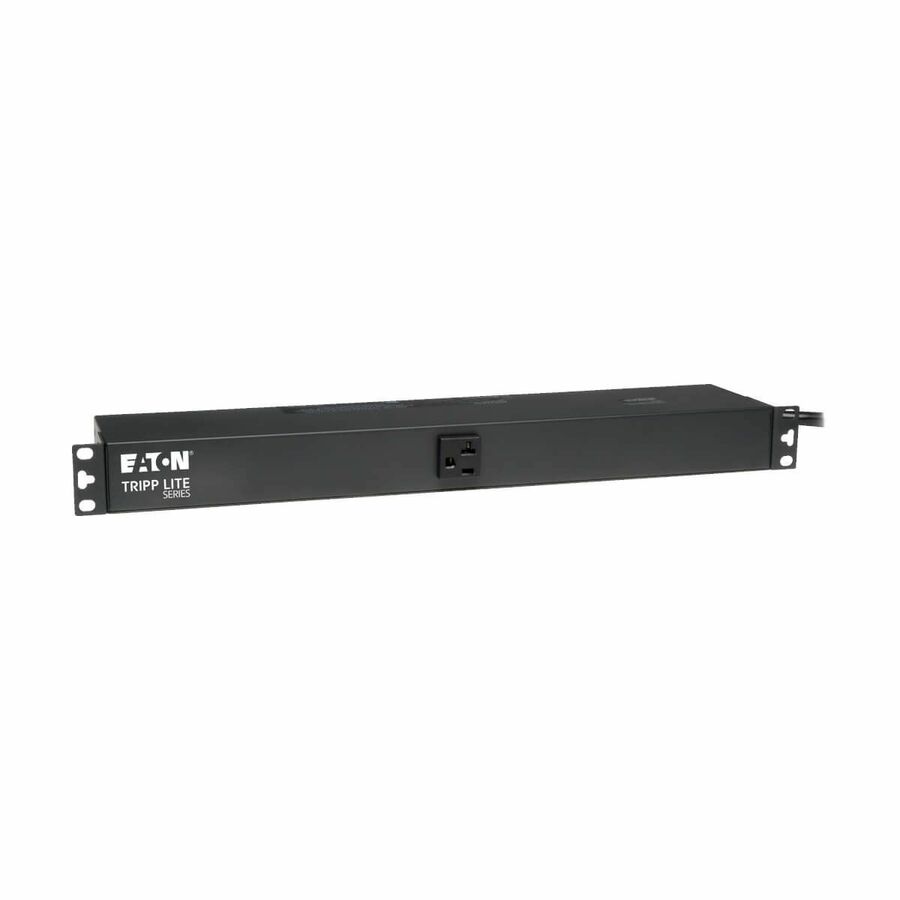

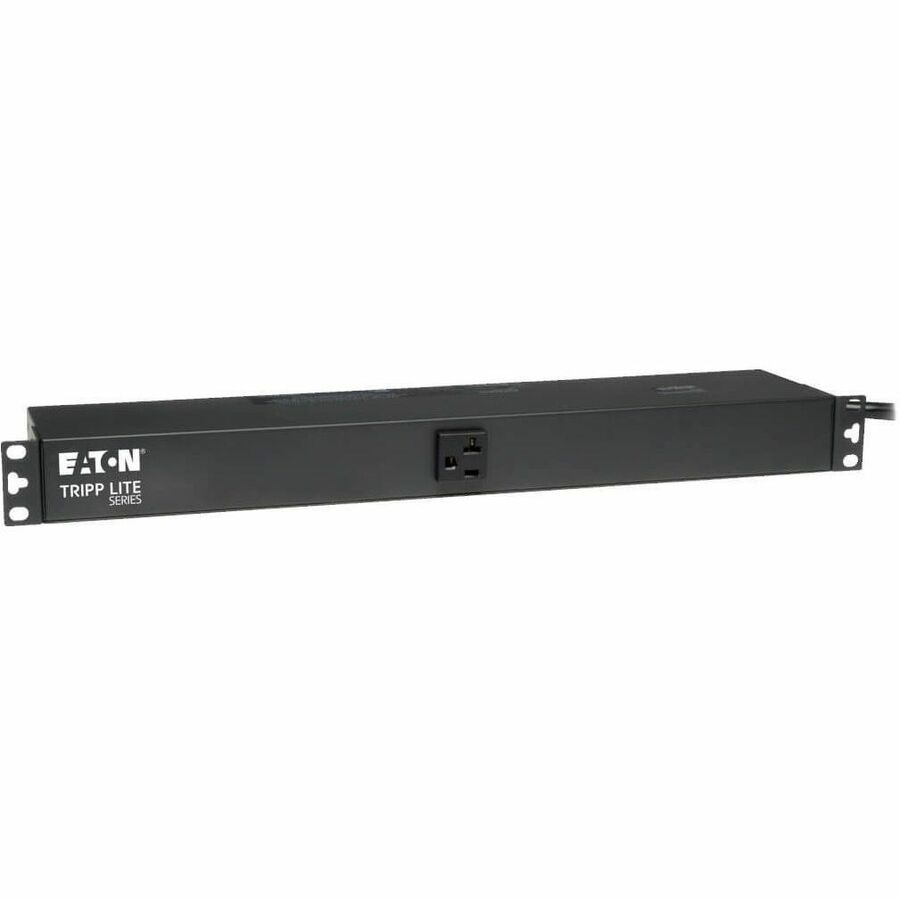

The PDU1220T provides reliable 120V power service via 13 5-15/20R outlets; one outlet is front-mounted and 12 are rear-mounted for flexibility when connecting equipment. An extra-long 15 ft. cord with L5-20P plug offers added convenience. Load capacity is 2.4kW.

It’s easy to integrate the PDU1220T with a wide range of network and industrial applications. Detachable flanges with access holes and adjustable-depth channels allow you to configure this PDU for dozens of mounting schemes, including 1U installation in standard 19-inch rack enclosures as well as wall-mount, workbench and under-counter installations. With an optional PDUSIDEBRKT accessory (sold separately), the PDU1220T is suitable for 0U vertical installation in the cable management area of many rack enclosures.

Premium Safety Features, 5-Year Warranty and Environmentally Responsible Design

The PDU1220T’s switchless design prevents accidental shutoff and safeguards against downtime due to human error. Additionally, a 20A circuit breaker protects against overloads by immediately shutting off AC input when it detects that connected equipment is drawing too much power.

The PDU1220T comes backed by a 5-year warranty and is manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
