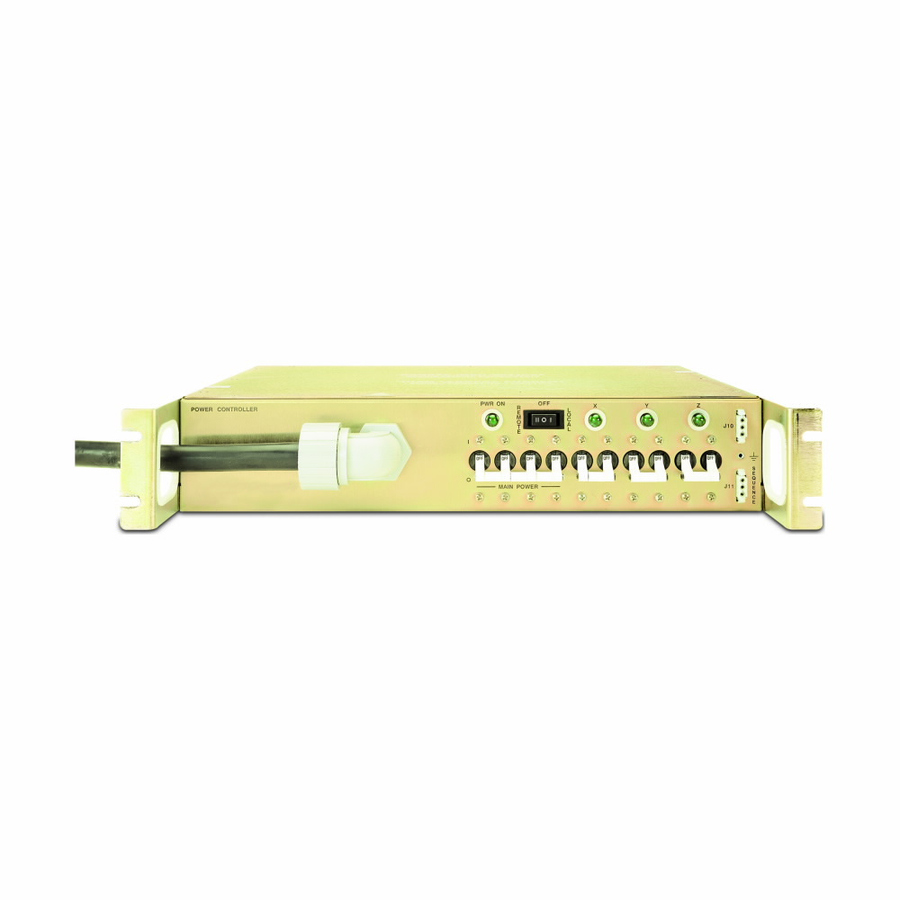

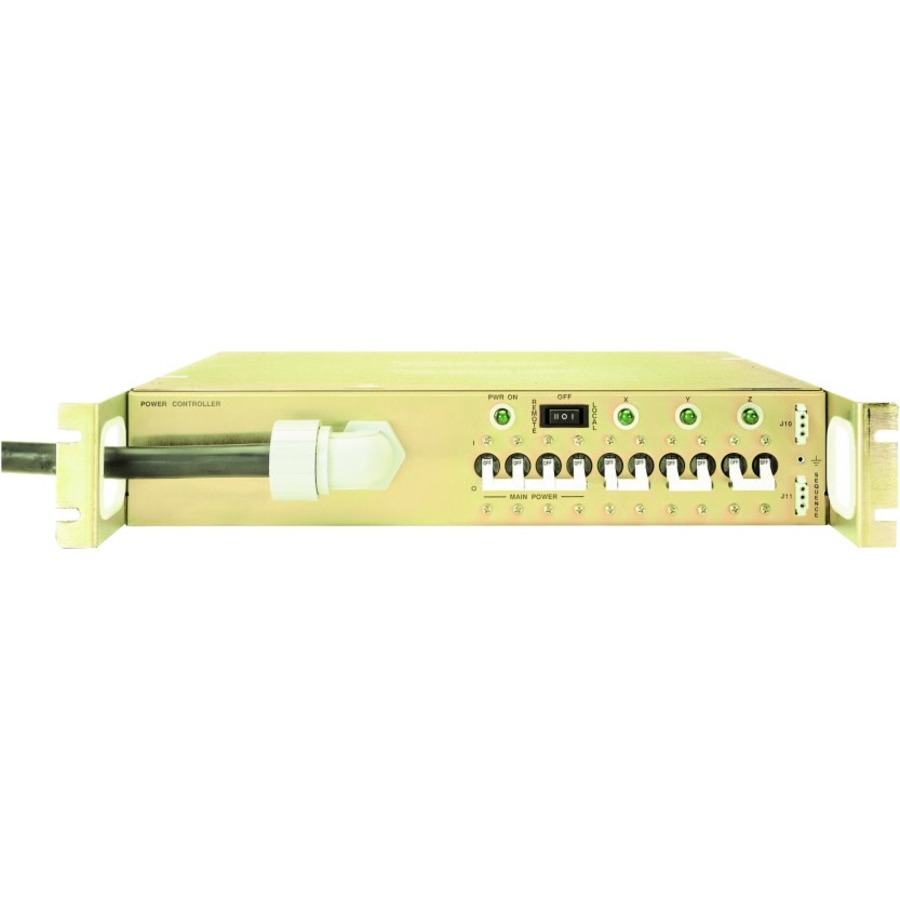

Eaton ePDU 8-Outlet PDU

NEMA L21-30P - 8 x NEMA 5-20R, 3 x NEMA L6-20R - 120 V AC, 230 V AC - 2U - Horizontal - Rack-mountable

SKU: PC975-R
Category: PDUs

Request pricing

Confirmed with stock and TAA status before any payment.

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU: PC975-R
Category: PDUs

Overview

Remote emergency power off (REPO) rack PDUs enable immediate and complete power off control from one button. These PDUs are hardwired and the power off switch can be housed anywhere in the data center for quick and easy access, should the need for immediate shutdown arise.

Take a look at the REPO access point

Interact with control panel

Avoid unintended activations The remote panel can be installed away from high risk areas.

3-year warranty

Comprehensive coverage and support for your PDU.

Warranty

Limited Warranty: 3 Year

About Eaton

We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works.

Highlights

PDU improves efficiency, uptime and growth of data centers
NEMA 5-20R receptacle type to ensure maximum dependability and optimal performance
Three Phase phase PDU provides optimal power output with added usability
NEMA L21-30P plug/connector type for better, dependable connectivity and desired power output
120 V AC input voltage for optimal performance with maximum usability

Specifications

Product Type	PDU
Input Voltage	120 V AC, 230 V AC
Manufacturer Part Number	PC975-R
Limited Warranty	3 Year
Weight (Approximate)	34 lb
Input Current	24 A
Manufacturer	Eaton Corporation
Product Name	ePDU 8-Outlet PDU
Mount Type	Rack-mountable
Product Line	ePDU
Protection Type	Circuit Protection, Single Pole
Rack Height	2U
Brand Name	Eaton
Plug/Connector Type	NEMA L21-30P
Country of Origin	United States
Height	3.4"
Width	14.5"
Depth	19"
Phase	Three Phase
Receptacle Type	NEMA 5-20R, NEMA L6-20R
Remote Outlet Switching	No
Mounting Orientation	Horizontal
Power Rating (Watt)	8640 W
Receptacle Detail	8 x NEMA 5-20R, 3 x NEMA L6-20R
