Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
PX3-1955V
Category
PDUs
Overview
Most Reliable
Rock Solid Uptime, No Compromises.
From the ground up, PX Intelligent PDUs are architected with components, features, and failsafes that ensure the most reliable infrastructure possible, both now and for years to come.
• Built-In Failover Power
• Advanced Alerting and Intelligence
• Circuit Breaker Trip Alarming
Built to Last
Prevent Outages Before They Occur
PX Intelligent PDUs help eliminate human error and can withstand the harshest environments. With monitoring features that spot problems in advance and physical design elements that adapt to the toughest conditions, our solution protects your critical load under any circumstances.
Easiest to Use
Simple to Deploy, Simple to Use.
Thoughtful design pays extraordinary dividends. Engineered with electricians, infrastructure managers, and IT experts in mind, PX Intelligent PDUs offer a simple user experience for seamless physical deployment, configuration, commissioning, monitoring, and power delivery.
Warranty
Limited Warranty: 2 Year
Highlights
PDU improves efficiency, uptime and growth of data centers
Before critical input source become overloaded always be warned with monitored PDUs
NEMA 5-20R receptacle type to ensure maximum productivity with added feasibility
Three Phase phase PDU for reliable performance with maximum productivity
NEMA L21-30P (4P5W) plug/connector type for better, dependable connectivity and desired power output
230 V AC input voltage for optimal performance with maximum usability
208 V AC output voltage for maximum dependability and added productivity
Specifications
General Information
Manufacturer
Legrand Group
Manufacturer Part Number
PX3-1955V
Brand Name
Raritan
Product Series
PX
Product Model
PX3-1955V
Product Name

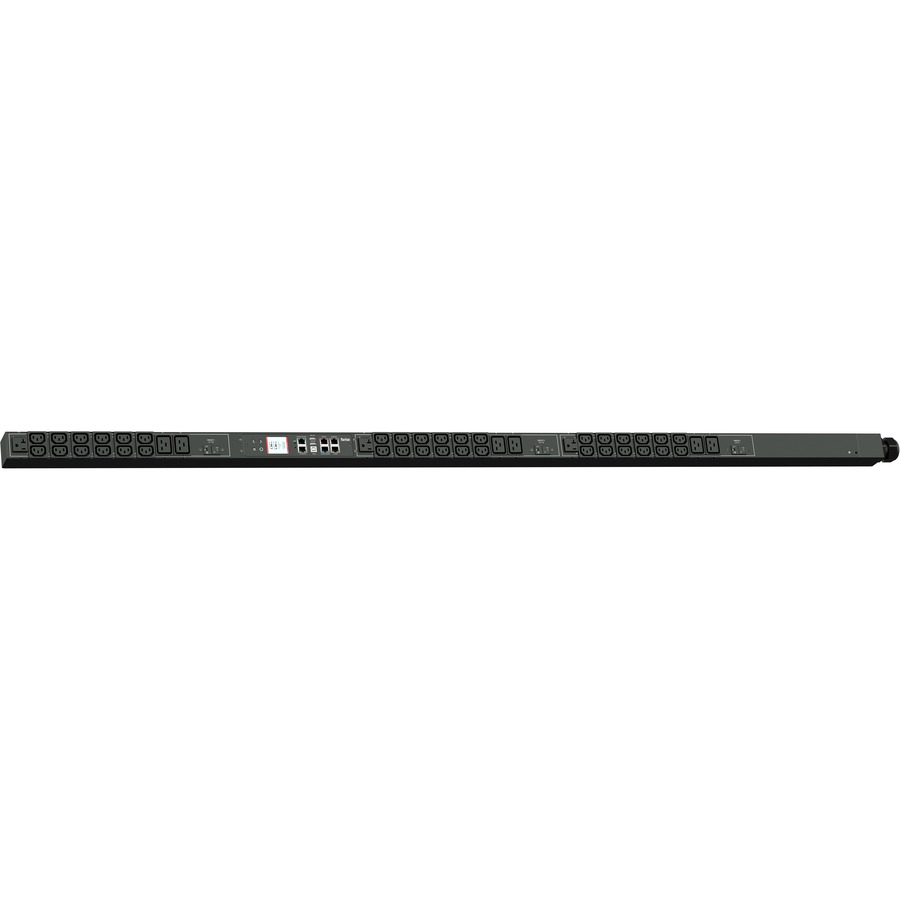

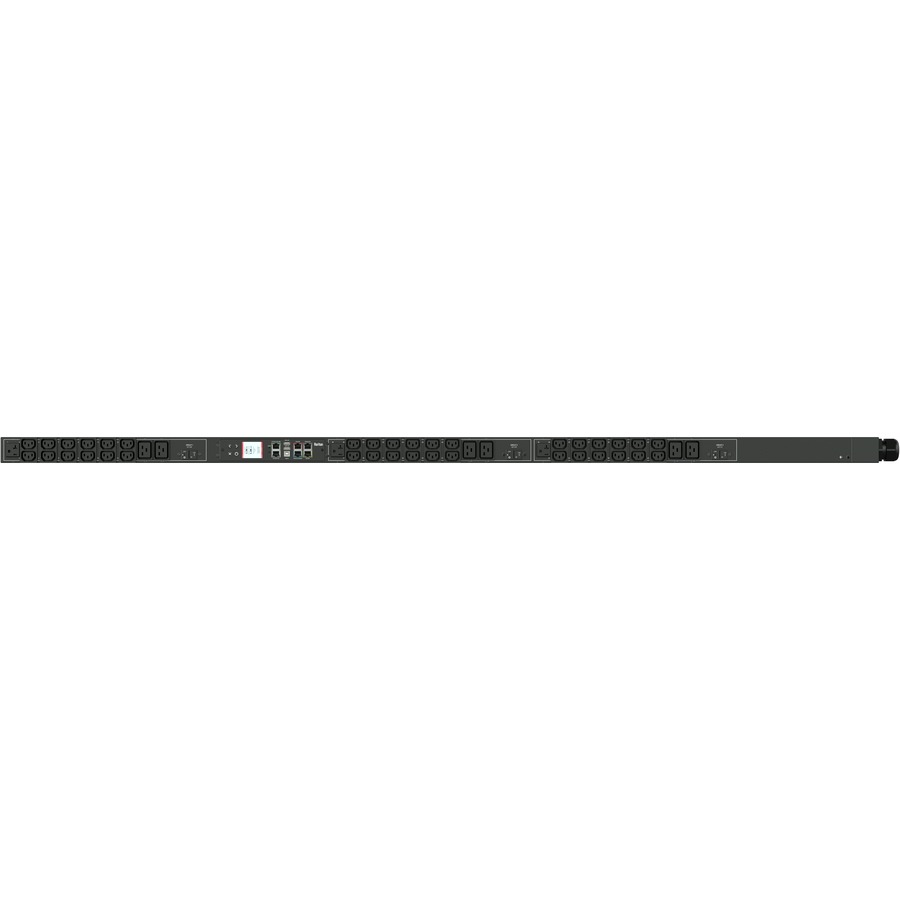

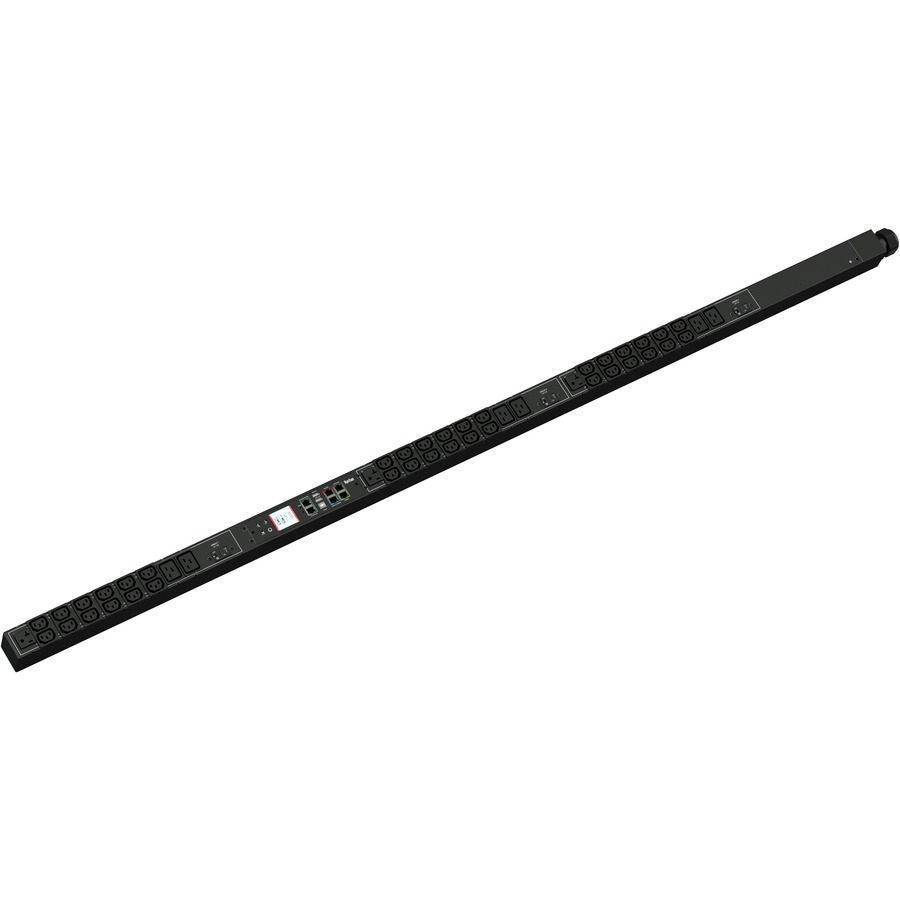

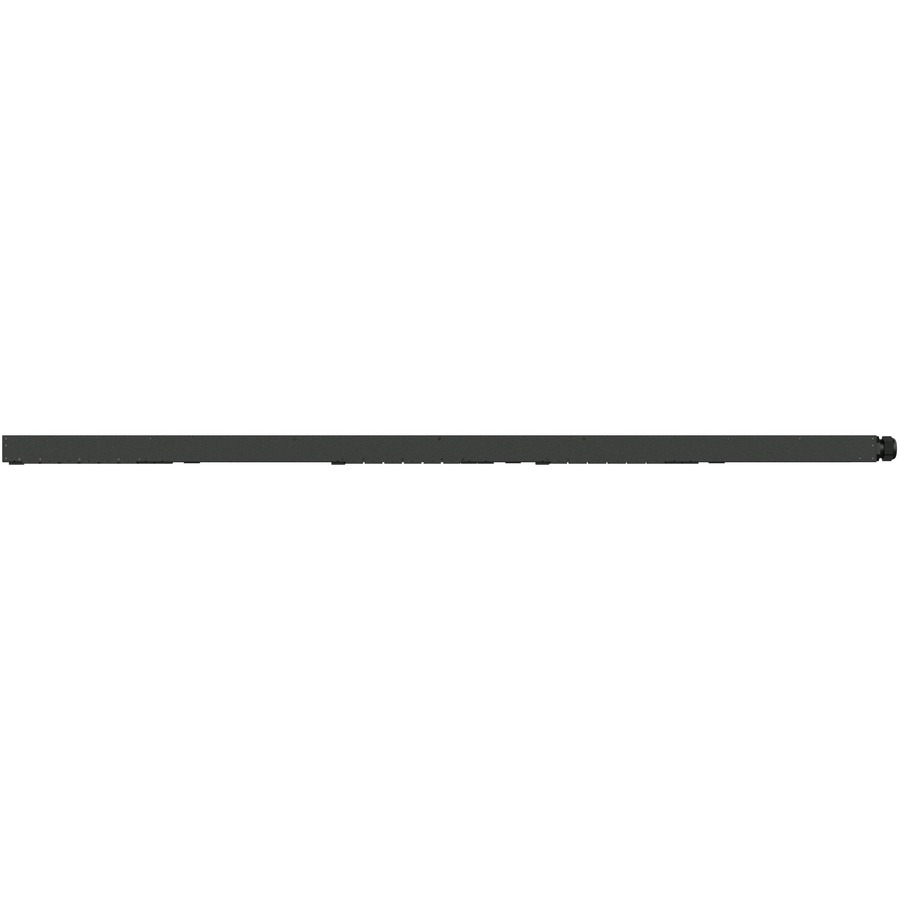

PX3-1955V 45-Outlet PDU
Product Type
PDU
Interfaces/Ports
Network (RJ-45)
Yes
Management
Management
Protocols: HTML JSON-RPC SSH Telnet MODBUS/TCP SNMPv3 TFTP DHCP/PXE SSH(CLI)
Physical Characteristics
Mounting Orientation
Vertical
Mount Type
Rack-mountable
Rack Height
0U
Height
70.1"
Width
2.1"
Depth
2.2"
Power Description
Input Voltage
230 V AC
Output Voltage
208 V AC
Power Rating (VA)
8600 VA
Input Current
30 A
Technical Information
PDU Type
Monitored
Phase
Three Phase
Plug/Connector Type
NEMA L21-30P (4P5W)
Receptacle Type
NEMA 5-20R, IEC 60320 C19, IEC 60320 C13
Receptacle Detail
3 x NEMA 5-20R, 6 x IEC 60320 C19, 36 x IEC 60320 C13
