10 Outlets, 10 ft, 2 x NEMA L5-20P, Horizontal, 1U, LCD, 3YR Warranty
MSRP$800.00
$577.40
Save 28%In stock: 3
Genuine CyberPower Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Ensure continued operation of critical devices with the CyberPower PDU24002 Metered ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable.

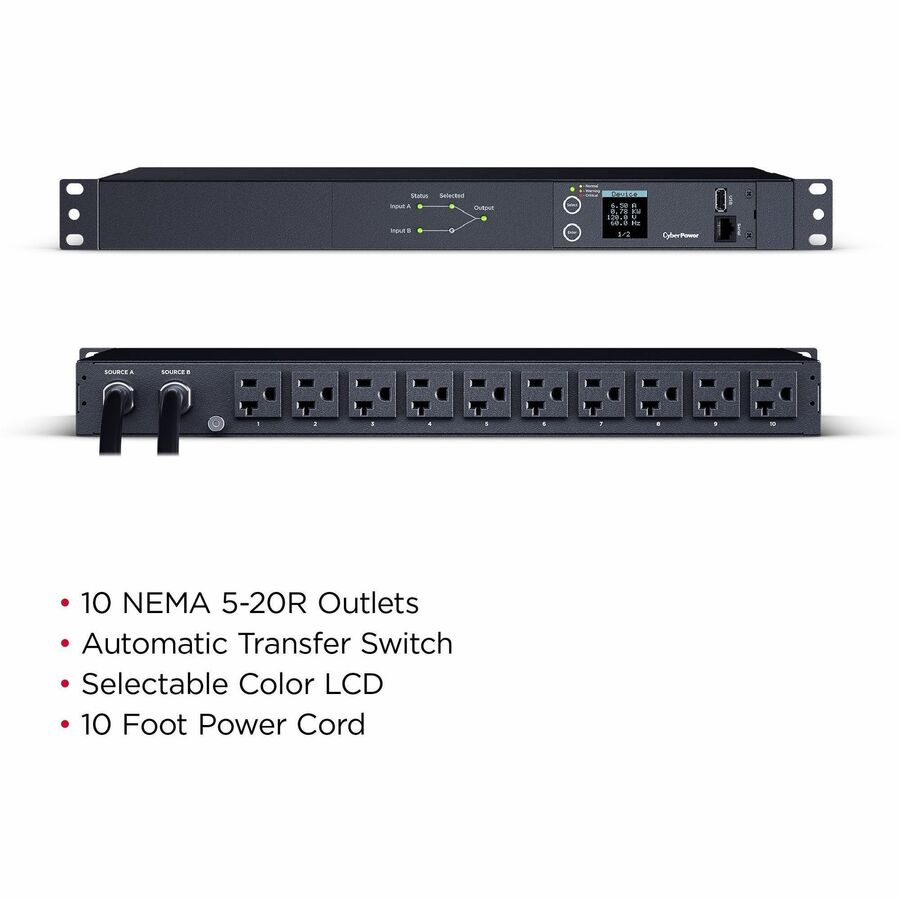

The PDU24002 supports inputs between 100-120V and includes (10) NEMA 5-20R outlets. Dual NEMA L5-20P (L5-20P to non-locking 5-20P adpaters included) power cords are plugged into separate power sources (A and B), and information about each power source is provided via LED indicator lights on the front of the unit. Other features include an LCD with selectable background color, ugradeable firmware, and network-grade plugs and outlets. The CyberPower PDU24002 is protected by a three-year limited warranty.
More from the Manufacturer
What does the PDU digital LCD screen display?
The digital display provides easy-to-read information about amperage, voltage, KW, frequency, and hardware version.
What is the operating temperature?
The operating temperature for the PDU24002 is 32°F to 113°F (0°C to 45°C).
Where are the outlets located?

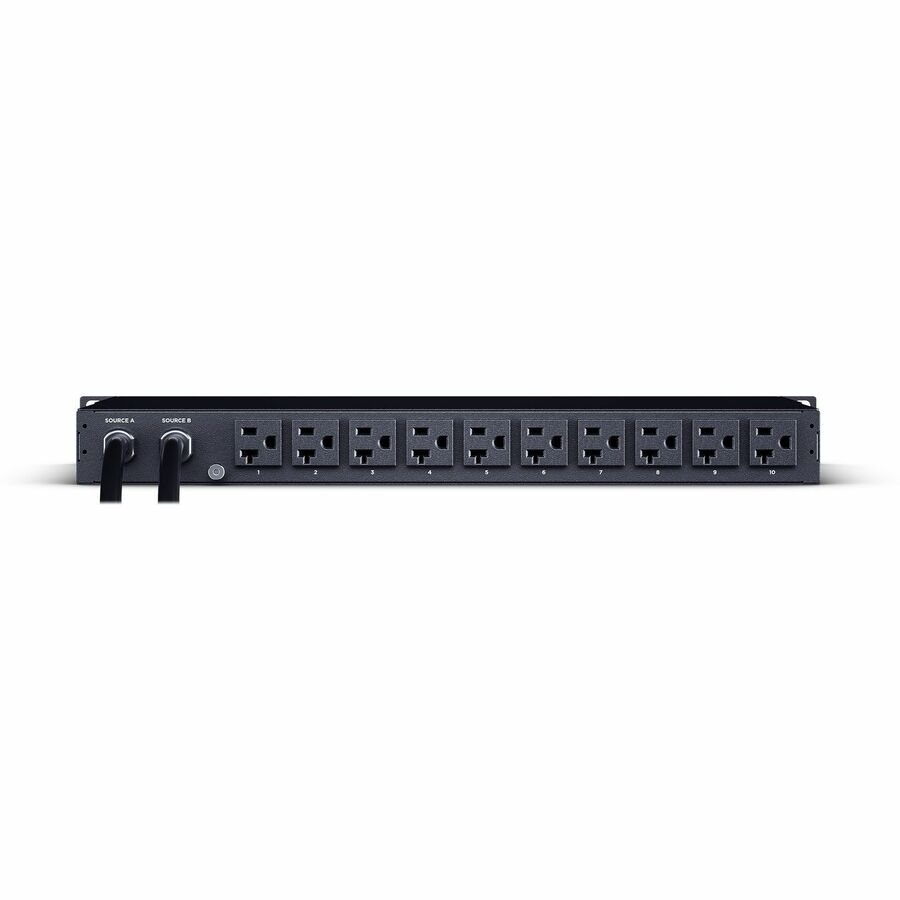

There are 10 NEMA 5-20R outlets located on the back of the unit.
How can this unit be mounted?
The PDU24002 comes with all necessary hardware for horizontal rack installation.
Does this unit include an adapter for use with a NEMA 5-20P outlet?
Yes, this unit includes an L5-20P to 5-20P adapter for versatile outlet connection.
Proposition 65 Warning
This product can expose you to chemicals including Styrene (ABS), which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Limited Warranty: 3 Year
Our Vision To be the first choice in power management solutions and the catalyst for advancing power innovation. Our Mission CyberPower designs, produces and services power management solutions. CyberPower has a proven reputation and commitment to excellence. Customers can be assured that CyberPower is the smart choice for power protection reliability, quality and value.
| Environmental Conditions | |
|---|---|
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 113°F (45°C) |
| Minimum Storage Temperature | 5°F (-15°C) |
| Maximum Storage Temperature | 131°F (55°C) |
| General Information | |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PDU24002 |
| Brand Name | CyberPower |
| Product Series | Metered ATS PDU |
| Product Model | PDU24002 |
| Product Name | PDU24002 |
| Product Type | PDU |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Management | |
| Management | Protocols: IPv4 TCP IP UDP SNMPv1 HTTP NTP DNS Telnet DHCP SMTP FTP IPv6 SNMPv3 HTTPs SSH SSL TLS LDAP(S) RADIUS Syslog CLI Windows AD SNMP |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Metal |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Form Factor | Rack |
| Rack Height | 1U |
| Cord Length | 10 ft |

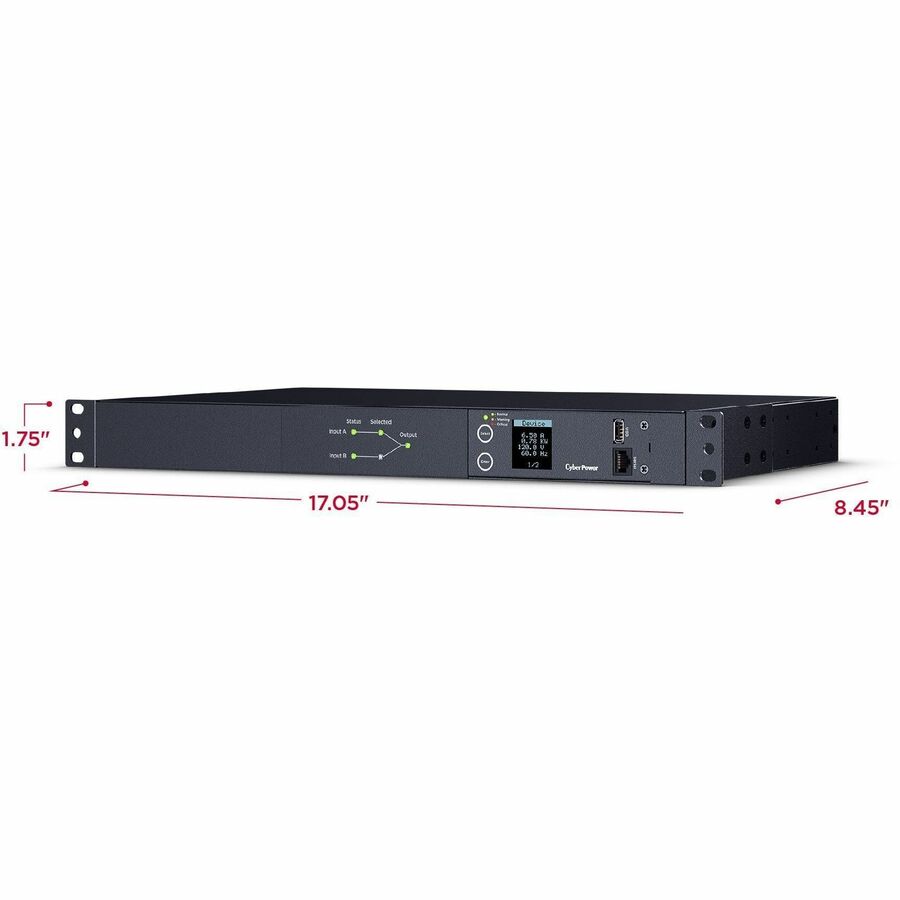

| Height | 1.8" |
| Width | 17.1" |
| Depth | 8.5" |
| Weight (Approximate) | 10.60 lb |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Voltage Range | 100 V AC - 120 V AC |
| Output Voltage | 120 V AC |
| Output Voltage Range | 100 V AC - 120 V AC |
| Input Current | 20 A |
| Input Frequency | 60 Hz |
| Technical Information | |
| PDU Type | Metered |
| Design | Modular |
| Phase | Single Phase |
| Plug/Connector Type | NEMA L5-20P |
| Plug/Connector Detail | 2 x NEMA L5-20P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 10 x NEMA 5-20R |
| Locking Receptacles | Cord Retention Tray |
| Features | LCD Display |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Data Center, Network Closet |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
