120 VAC 30A Switched PDU
16 Outlets, 12 ft, NEMA L5-30P, Horizontal, 2U, SNMP, 3YR Warranty
MSRP$1,500.00
$995.91
Save 34%In stock: 2
Genuine CyberPower Systems through authorized distribution — NDAA §889 screened before checkout.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.

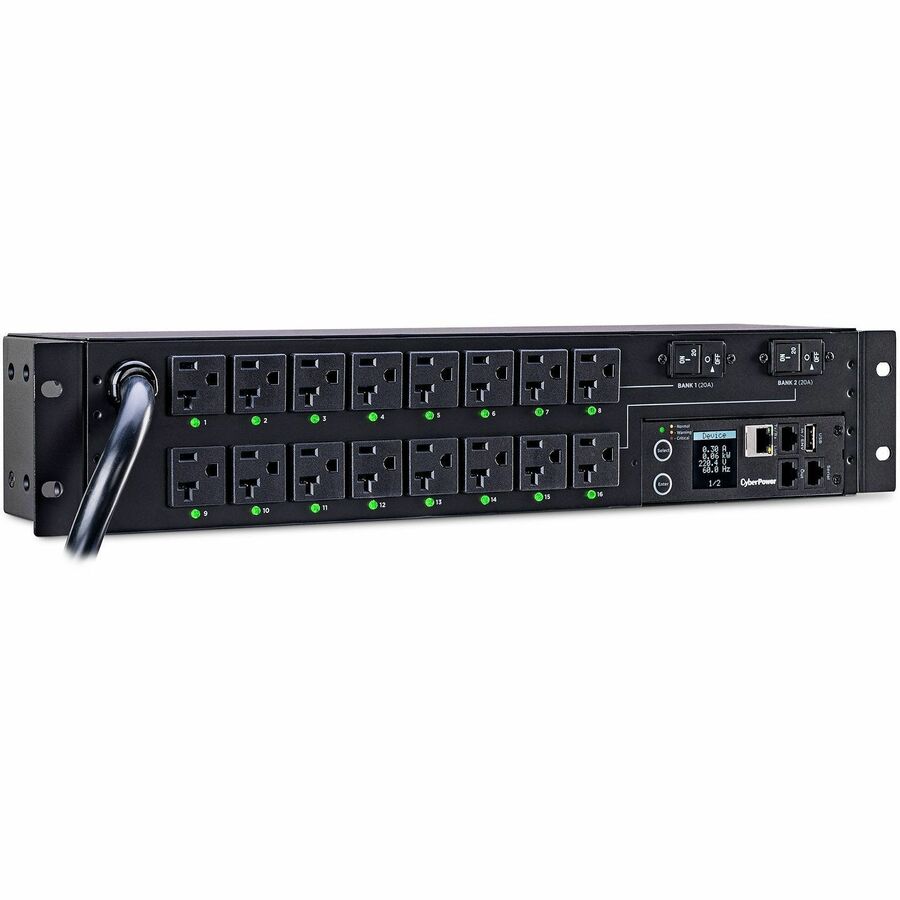

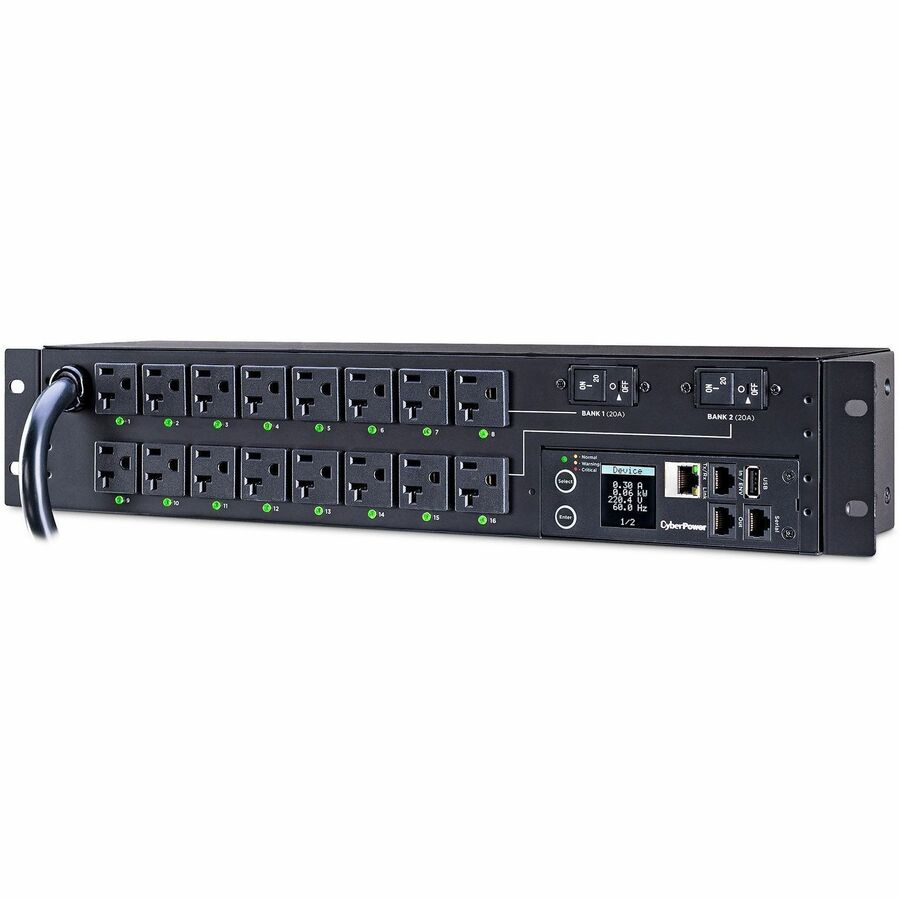

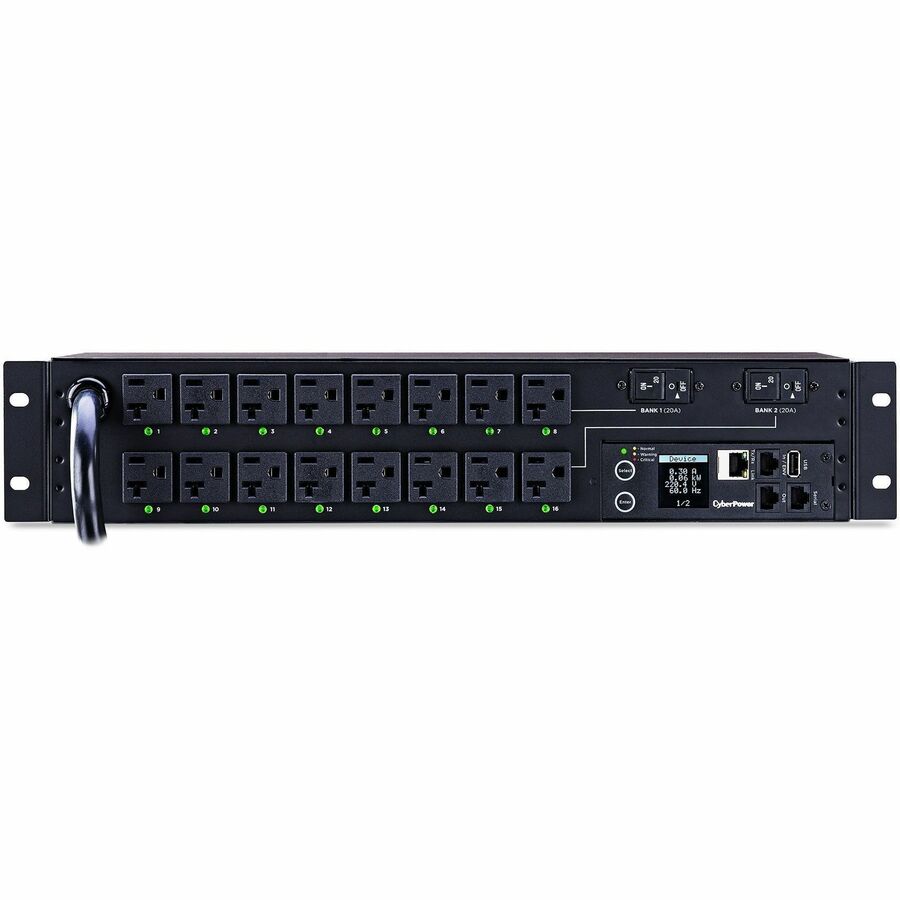

The CyberPower PDU41003, a 2U rackmount, monitored power distribution unit (PDU) provides 100-120Vac, 30A output via sixteen (16) NEMA 5-20R receptacles from a single NEMA L5-30P input power plug. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally from the Power Control Display. More from the Manufacturer
What does the PDU digital LCD screen display?
The digital display provides easy-to-read information about amperage, voltage; KW, IP address, and other vital PDU information.
What is the operating temperature?
The operating temperature for the PDU41003 is 32°F to 113°F (0°C to 45°C).
Where are the outlets located?
There are 16 NEMA 5-20R outlets located on the front of the unit.
How can this unit be mounted?
The PDU41003 comes with mounting brackets allowing the PDU to be installed in a rack or horizontally or vertically, under a counter or via wall mount.
Can this unit receive automatic event notifications?
Yes, the PDU41003 provides immediate updates to the user about power events via email, SMS text, or SNMP traps.
Proposition 65 Warning
This product can expose you to chemicals including Styrene, which are known to the State of California to cause cancer, and Bisphenol A (BPA), which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Limited Warranty: 3 Year
Our Vision To be the first choice in power management solutions and the catalyst for advancing power innovation. Our Mission CyberPower designs, produces and services power management solutions. CyberPower has a proven reputation and commitment to excellence. Customers can be assured that CyberPower is the smart choice for power protection reliability, quality and value.
CyberPower Switched PDU41003 16 Outlets PDU
| Environmental Conditions | |
|---|---|
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | 5°F (-15°C) |
| Maximum Storage Temperature | 149°F (65°C) |
| General Information | |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PDU41003 |
| Brand Name | CyberPower |
| Product Series | Switched PDU |
| Product Model | PDU41003 |
| Product Name | PDU41003 |
| Product Type | PDU |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Management | |
| Management |
|
| Remote Outlet Switching | Yes |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Metal |
| Mounting Orientation | Horizontal/Vertical, Horizontal |
| Mount Type | Wall-mountable, Rack-mountable |
| Form Factor | Rack |
| Rack Height | 2U |
| Cord Length | 12 ft |
| Height | 3.5" |
| Width | 17.1" |
| Depth | 4.4" |
| Weight (Approximate) | 7.30 lb |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Voltage Range | 100 V AC - 120 V AC |
| Output Voltage | 100 V AC, 120 V AC |
| Output Voltage Range | 100 V AC - 120 V AC |
| Input Current | 30 A |
| Input Frequency | 60 Hz |
| Technical Information | |
| PDU Type | Switched |
| Design | Non-Modular |
| Phase | Single Phase |

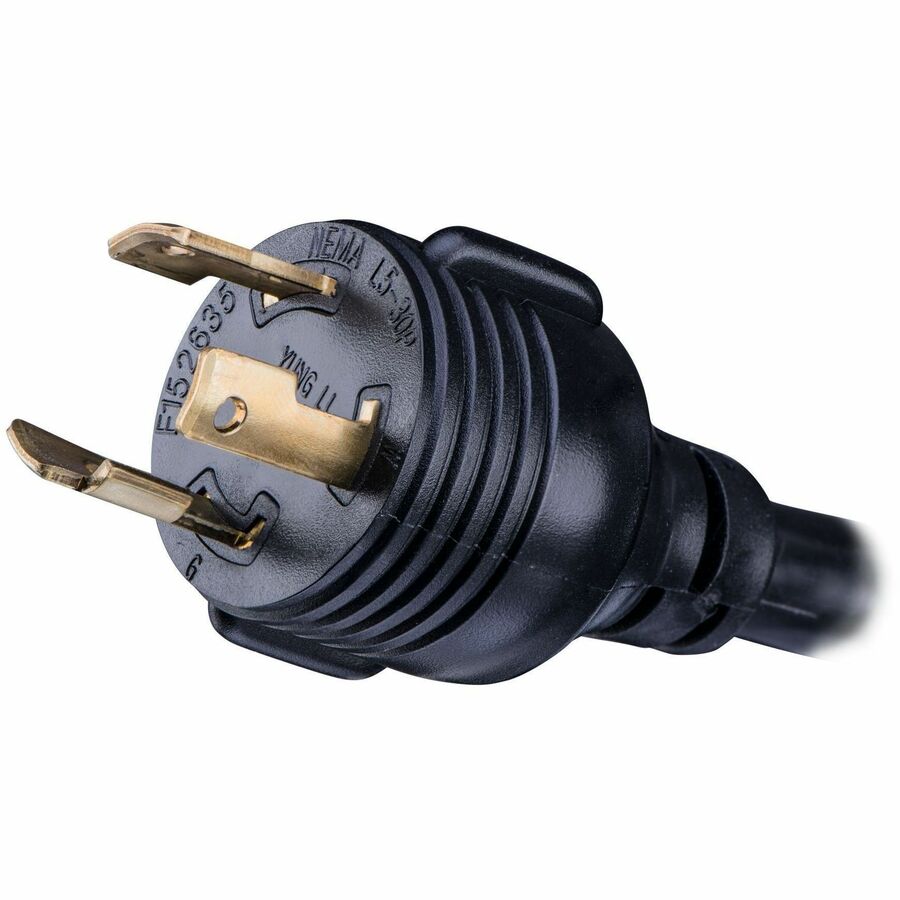

| Plug/Connector Type | NEMA L5-30P |
| Plug/Connector Detail | 1 x NEMA L5-30P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 16 x NEMA 5-20R |
| Protection Type | Overload Protection |
| Locking Receptacles | Cord Retention Tray |
| Features | LED Status Indicator, LCD Display |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Application/Usage | Network Device, Server |
| Energy Star | No |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| UL Listed | Yes |
