CyberPower PDU20MVT26F 100 - 125 VAC 20A Metered PDU
CyberPower Systems

CyberPower PDU20MVT26F 100 - 125 VAC 20A Metered PDU

26 Outlets, 10 ft, NEMA L5-20P, Vertical, 0U, Lifetime Warranty

SKU
PDU20MVT26F
Category
PDUs

MSRP$362.95

$202.41

Save 44%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine CyberPower Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
PDU20MVT26F
Category
PDUs

Overview

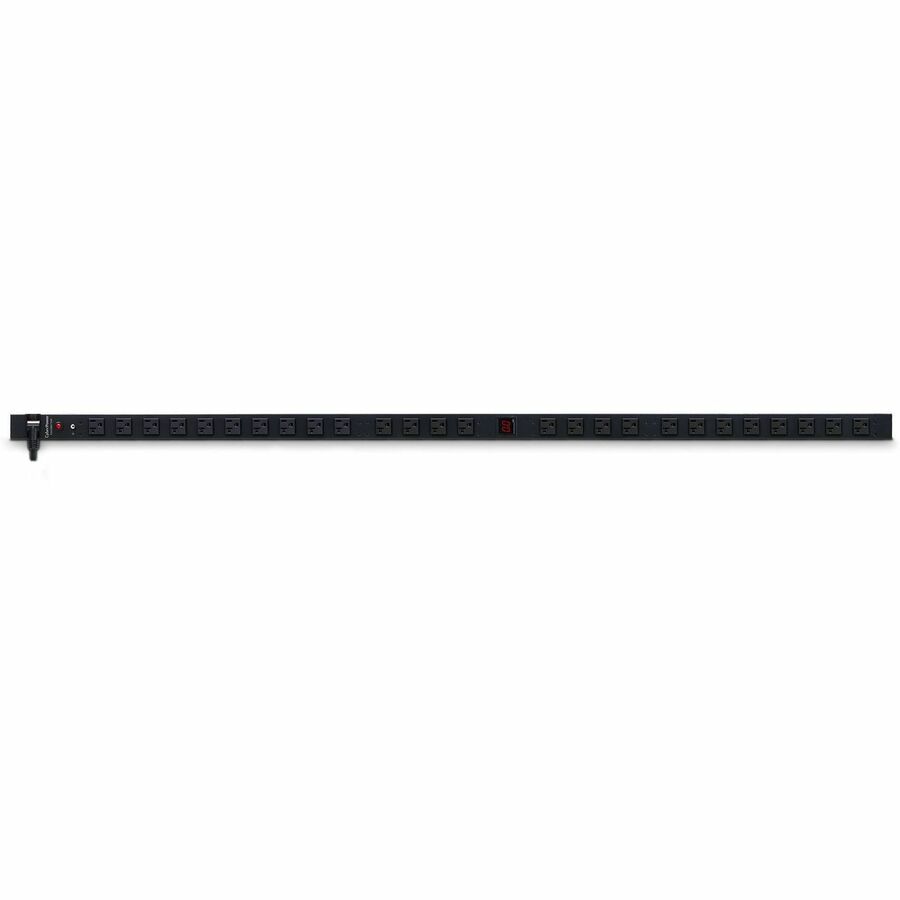

The CyberPower PDU20MVT26F, a 26-outlet (front), 0U vertical rackmount metered power distribution unit (PDU), provides 100 ? 125 V 20A output. It distributes power to 26 NEMA 5-20R receptacles from a single NEMA L5-20P twist lock plug with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring.

Highlights

  • Digital meter: Displays Amperage
  • Phase: Single
  • Amps: 20A (Derated to 16A)
  • Volts: 100 - 125 V
  • Frequency: 50Hz/60Hz
  • Plug type: NEMA L5-20P
  • Outlets: 26 NEMA 5-20R
  • Size: 0U Rackmount
  • Dimensions (in.): 1.75W x 60H x 2.25D
  • Cord length (ft.): 10
  • Warranty: Limited lifetime

Specifications

Package Contents
  • Metered PDU20MVT26F 26-Outlets PDU
  • Cord Retention Tray
Product TypePDU
Input Voltage120 V AC
Manufacturer Part NumberPDU20MVT26F
Limited WarrantyLifetime
Output Voltage120 V AC
Weight (Approximate)10.26 lb
ManufacturerCyberPower Systems, Inc
Product ModelPDU20MVT26F
Product NamePDU20MVT26F 100 - 125 VAC 20A Metered
Mount TypeRack-mountable
Protection TypeOverload Protection
Brand NameCyberPower
Plug/Connector TypeNEMA L5-20P
Height60"
Width1.8"
Depth2.3"
Receptacle TypeNEMA 5-20R
Environmentally FriendlyYes
Mounting OrientationVertical
Receptacle Detail26 x NEMA 5-20R
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
