CyberPower PDU20M2F8R 100 - 125 VAC 20A Metered PDU
CyberPower Systems

CyberPower PDU20M2F8R 100 - 125 VAC 20A Metered PDU

10 Outlets, 15 ft, NEMA 5-20P, Horizontal, 1U, Lifetime Warranty

SKU
PDU20M2F8R
Category
PDUs

MSRP$253.00

$176.33

Save 30%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine CyberPower Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
PDU20M2F8R
Category
PDUs

Overview

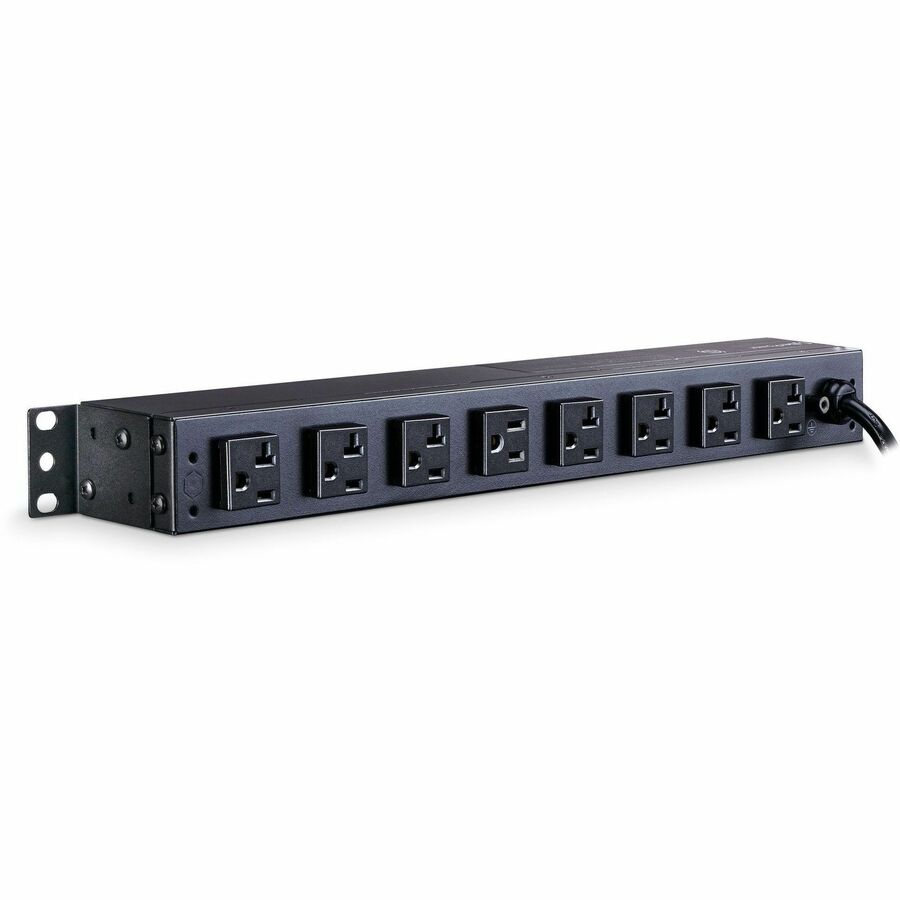

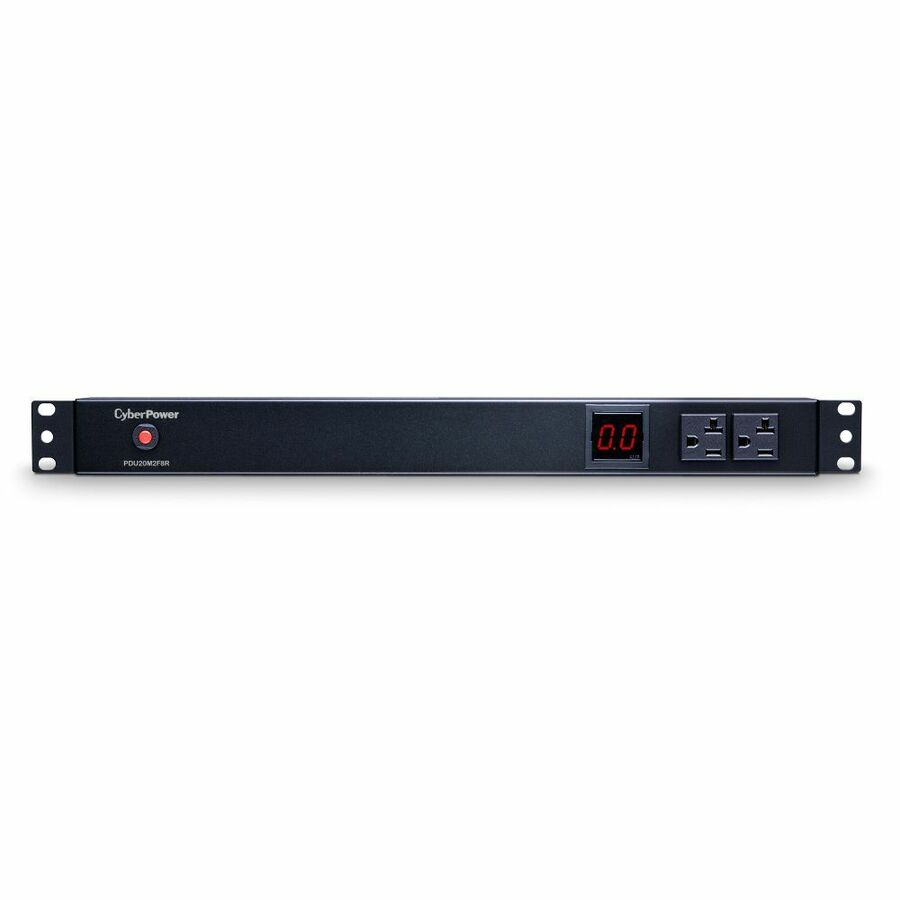

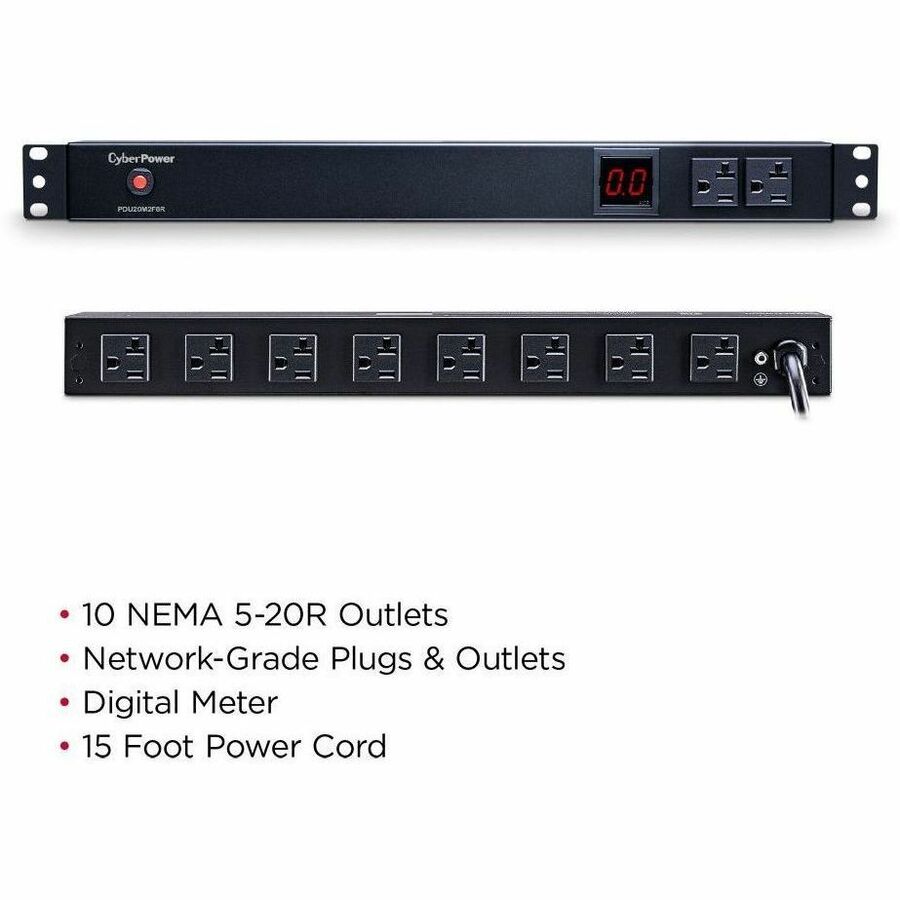

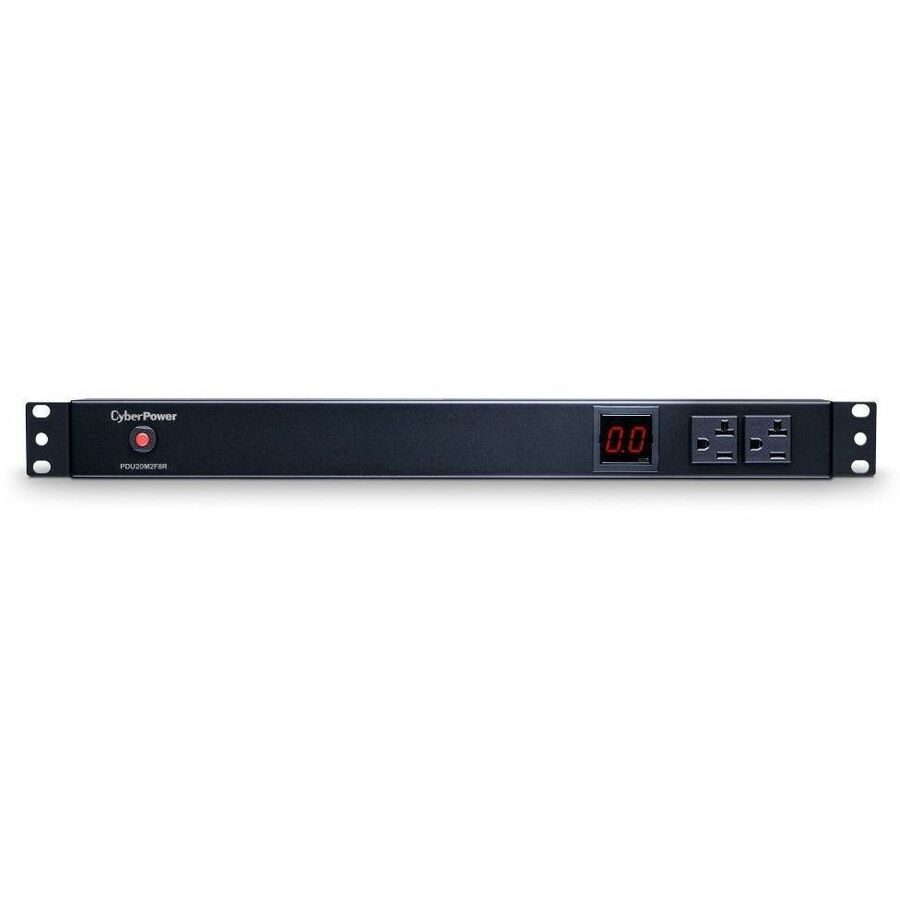

The CyberPower PDU20M2F8R, a 10-outlet (2 front, 8 rear), rackmount metered power distribution unit (PDU), provides 100 ? 125 V 20A output. It distributes power to 10 NEMA 5-20R receptacles from a single NEMA 5-20P input with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring.

Highlights

  • Digital meter: Displays Amperage
  • Phase: Single
  • Amps: 20A (Derated to 16A)
  • Volts: 100 - 125 V
  • Frequency: 50Hz/60Hz

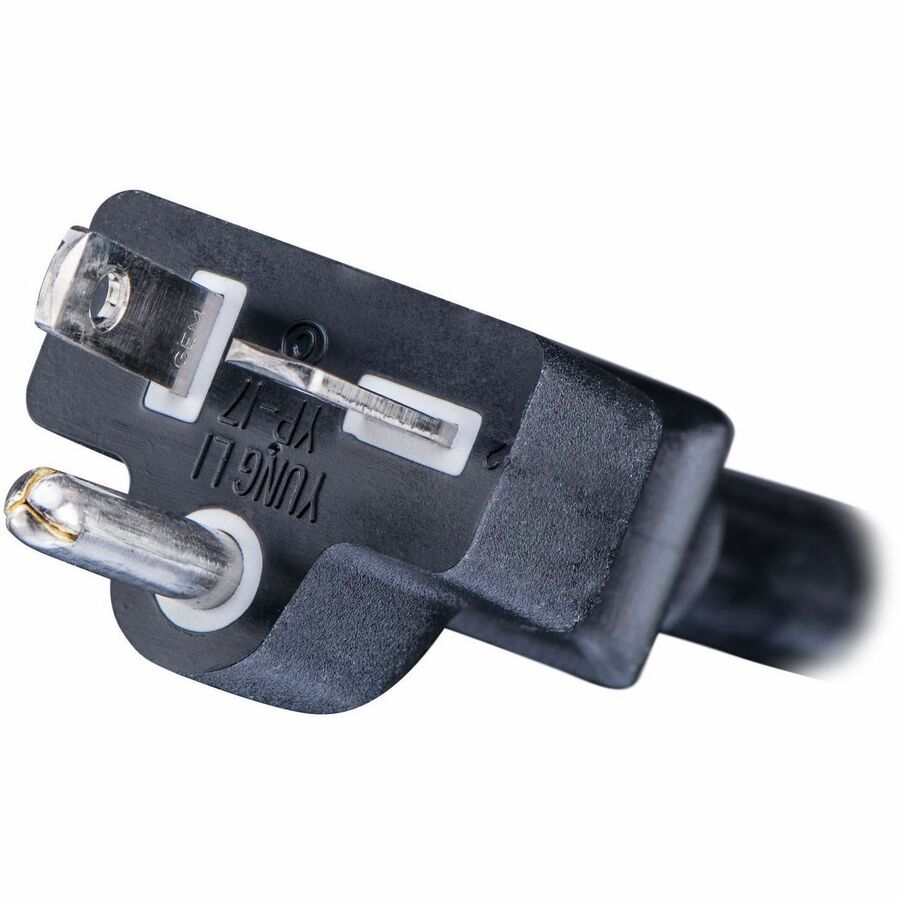

  • Plug type: NEMA 5-20P
  • Outlets: 10 NEMA 5-20R
  • Size: 1U Rackmount

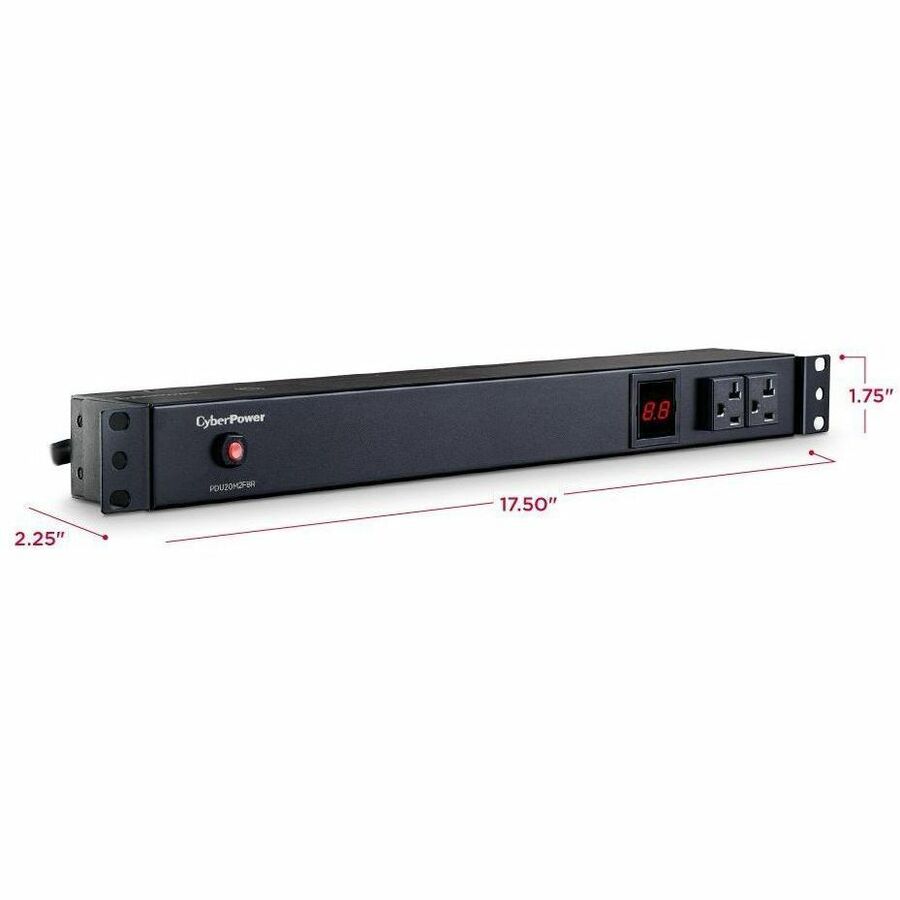

  • Dimensions (in.): 17.5W x 1.75H x 2.25D
  • Cord length (ft.): 15
  • Warranty: Limited lifetime

Specifications

Package Contents
  • Metered PDU20M2F8R 10-Outlets PDU
  • Cord Retention Tray
  • User Manual
  • Screw Kit
  • Cord Clip Kit
  • Horizontal Mounting Brackets
  • Vertical Mounting Brackets
  • Product Registration Card
Product TypePDU
Input Voltage120 V AC
Manufacturer Part NumberPDU20M2F8R
Limited WarrantyLifetime
Weight (Approximate)5 lb
Input Current20 A
ManufacturerCyberPower Systems, Inc
Product ModelPDU20M2F8R
Product NamePDU20M2F8R 100 - 125 VAC 20A Metered
Mount TypeRack-mountable
Protection TypeOverload Protection
Product SeriesMetered PDU
Rack Height1U
Brand NameCyberPower
Plug/Connector TypeNEMA 5-20P
Input Voltage Range100 V AC - 125 V AC
Height1.8"
Width17.5"
Depth2.3"
PhaseSingle Phase
Receptacle TypeNEMA 5-20R
Environmentally FriendlyYes
Output Voltage Range100 V AC - 125 V AC
Energy StarNo
PDU TypeMetered
Mounting OrientationVertical
Receptacle Detail10 x NEMA 5-20R
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
