CyberPower PDU20BVT28F 100 - 125 VAC 20A Basic PDU
CyberPower Systems

CyberPower PDU20BVT28F 100 - 125 VAC 20A Basic PDU

28 Outlets, 10 ft, NEMA L5-20P, Vertical, 0U, Lifetime Warranty

SKU
PDU20BVT28F
Category
PDUs

Request pricing

Confirmed with stock and TAA status before any payment.

Request a quote

Genuine CyberPower Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
PDU20BVT28F
Category
PDUs

Overview

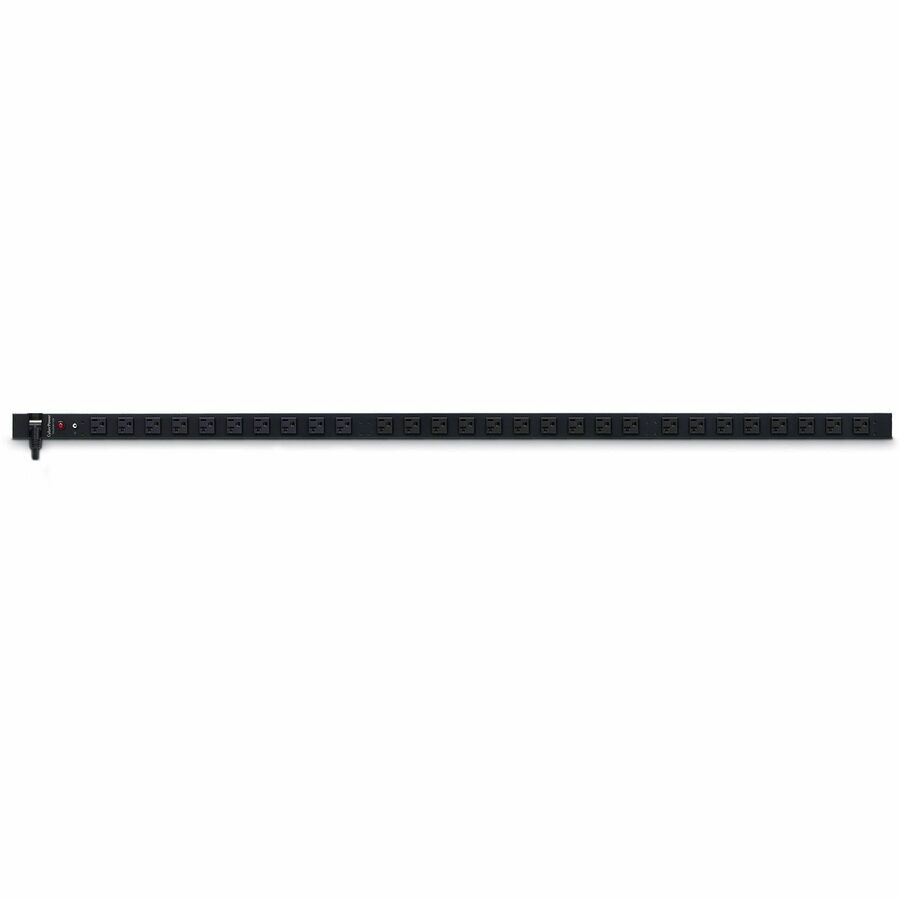

The CyberPower PDU20BVT28F, a 28-outlet (front), 0U vertical rackmount basic power distribution unit (PDU), provides 100 ? 125 V 20A output. It distributes power to 28 NEMA 5-20R receptacles from a single NEMA L5-20P twist lock plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU20BVT28F has rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal, and wall mount installation, includes a cord retention tray, and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.

Highlights

  • Phase:
  • Single
  • Amps:
  • 20A (Derated to 16A)
  • Volts:
  • 100 - 125 V
  • Frequency:
  • 50Hz/60Hz
  • Plug type:
  • NEMA L5-20P
  • Outlets:
  • 28 NEMA 5-20R
  • Size:
  • 0U Rackmount
  • Dimensions (in.):
  • 1.75W x 60H x 1.5D
  • Cord length (ft.):
  • 10
  • Warranty:
  • Limited lifetime

Specifications

Package Contents
  • Basic PDU20BVT28F 28-Outlets PDU
  • Cord Retention Tray
Product TypePDU
Input Voltage120 V AC
Manufacturer Part NumberPDU20BVT28F
Limited WarrantyLifetime
Output Voltage120 V AC
Weight (Approximate)8.86 lb
ManufacturerCyberPower Systems, Inc
Product ModelPDU20BVT28F
Product NamePDU20BVT28F 100 - 125 VAC 20A Basic
Mount TypeRack-mountable
Protection TypeOverload Protection
Brand NameCyberPower
Plug/Connector TypeNEMA L5-20P
Height60"
Width1.8"
Depth1.5"
Receptacle TypeNEMA 5-20R
Environmentally FriendlyYes
PDU TypeBasic
Mounting OrientationVertical
Receptacle Detail28 x NEMA 5-20R
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
