Overview

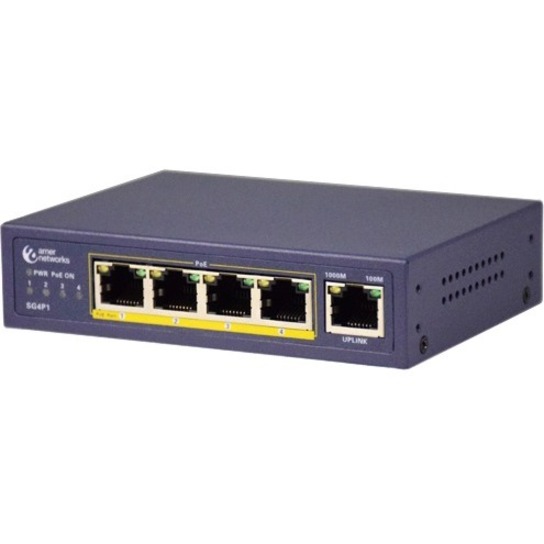

Designed for use with Power over Ethernet (PoE) devices, the SG4P1 switch provides up to 15.4W of power to 802.3af PoE compatible devices connected to the switch's PoE ports. The Switch allows these devices to draw power from the switch and remove the need for a power adapter. Some devices that may have support for 802.3af are Wireless Access Points, IP Phones and IP Cameras. The Ethernet ports automatically negotiate between 10BASE-T and 100BASE-TX network speeds, as well as between full and half duplex modes, so any port can connect to a Fast Ethernet or Ethernet network. The ports also support Auto MDIX, allowing the automatic detection of a straight through or cross-over cable, this feature reduces support problems commonly caused by incorrect cable usage.
Warranty
Limited Warranty: 3 Year
Highlights
4 x 1 Gigabit PoE Ethernet Ports plus 1 Gigabit Ethernet Uplink Port
Standard IEEE802.3af support
Metal Chassis Construction
Wall and Desktop Mounting
RJ-45 Port Alignment
Specifications
General Information
Manufacturer
Amer Networks, Inc
Manufacturer Part Number
SG4P1
Brand Name
Amer
Product Model
SG4P1
Product Name
5 Port 10/100/1000 Desktop Switch with 4 PoE ports
Packaged Quantity
1
Product Type
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports
5
Uplink Port
Yes
Modular
No
Stack Port
No
Port/Expansion Slot Details
4 x Gigabit Ethernet Network, 1 x Gigabit Ethernet Uplink
Management & Protocols
Manageable
No
Media & Performance
Media Type Supported
Twisted Pair
Ethernet Technology
Gigabit Ethernet
Network Technology
10/100/1000Base-T
Network & Communication
Layer Supported
2
Physical Characteristics
Product Color
Blue
Form Factor
Desktop, Wall Mountable, Under Table
Height
1.1"
Width
3.4"
Length
4.7"
Weight (Approximate)
10.88 oz
Power Description
Power Source
Power Adapter
Warranty
Limited Warranty
3 Year
Miscellaneous
Package Contents
5 Port 10/100/1000 Desktop Switch with 4 PoE ports
