Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Sep 29 and Nov 3, then process your delivery right after.
Genuine Allied Telesis through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
Category
Switches & Bridges
Overview
Allied Telesis GS980M Series switches provide an excellent access solution for today's networks, supporting Gigabit to the desktop for maximum performance. Deploying the GS980M as an AMF edge node when an AMF Master switch is available in the network, helps reduce network running costs by automating and simplifying many day-to-day administration tasks. 48 Gigabit ports and 4 SFP uplinks enable high-density and secure connectivity at the network edge, and the PoE+ model can supply up to 30 Watts to powered end-points
Highlights
Ethernet Switch provides reliable, efficient connectivity to ensure maximum feasibility
Conveniently lets you connect two standard Ethernet ports to ensure maximum efficiency
Quickly and easily set up a wired network with 48 networking ports
Supports layer 3 switching for enhanced performance and usability
Rack mounting enables you to organize wires & secure cables for professional installation
Management capability provides control over setup and configuration of your network
Gigabit Ethernet port for ultra-fast network speeds
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Specifications
General Information
Manufacturer
Allied Telesis, Inc
Manufacturer Part Number
AT-GS980M/52PS-10
Brand Name
Allied Telesis
Product Series
GS980M
Product Model
GS980M/52PS
Product Name
48 10/100/1000T-POE+ Switch With 4 SFP Slots
Product Type
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports
48
Uplink Port
Yes
Modular
Yes
Port/Expansion Slot Details
48 x Gigabit Ethernet PoE+, 4 x Gigabit Ethernet Expansion Slot
Management & Protocols
Manageable
Yes
Media & Performance
Media Type Supported
Twisted Pair, Optical Fiber
Ethernet Technology
Gigabit Ethernet
Network Technology
10/100/1000Base-T, 1000Base-X
Network & Communication
Layer Supported
3
Physical Characteristics
Compatible Rack Unit
1U
Form Factor
Rack-mountable
Height
1.7"
Width
17.4"
Depth
14.1"
Weight (Approximate)
12.79 lb
Power Description
Power Source
Power Supply
Power Consumption
48 W
I/O Expansions
Total Number of Expansion Slots
4.0
Expansion Slot Type
SFP (mini-GBIC)
Shared SFP Slot
No
Number of SFP Slots
4
Miscellaneous
Package Contents
48 10/100/1000T-POE+ Switch With 4 SFP Slots

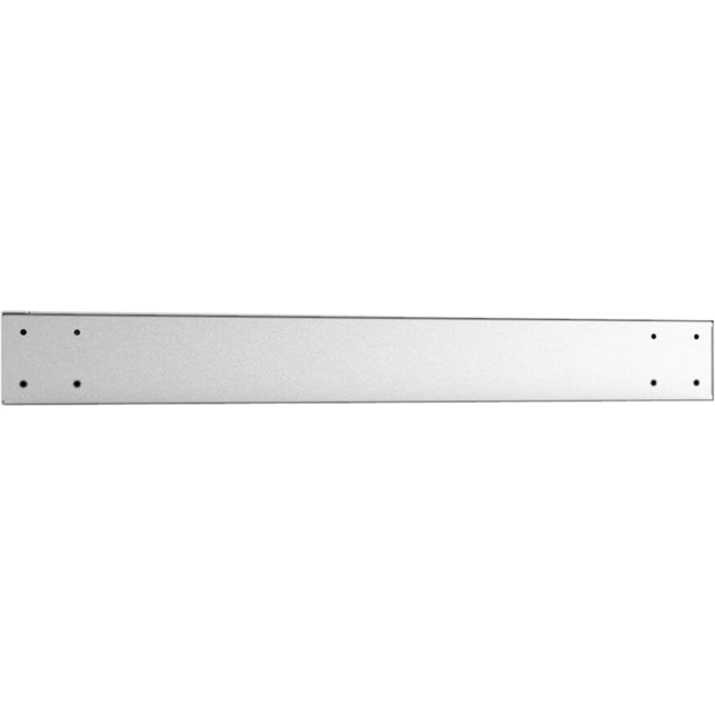

19 inch Rack-Mount Brackets
US Power Cord
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), China Restriction of Hazardous Substances (China RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE)
