SKU
AO-GES-42-S
Category
Switches & Bridges
Overview

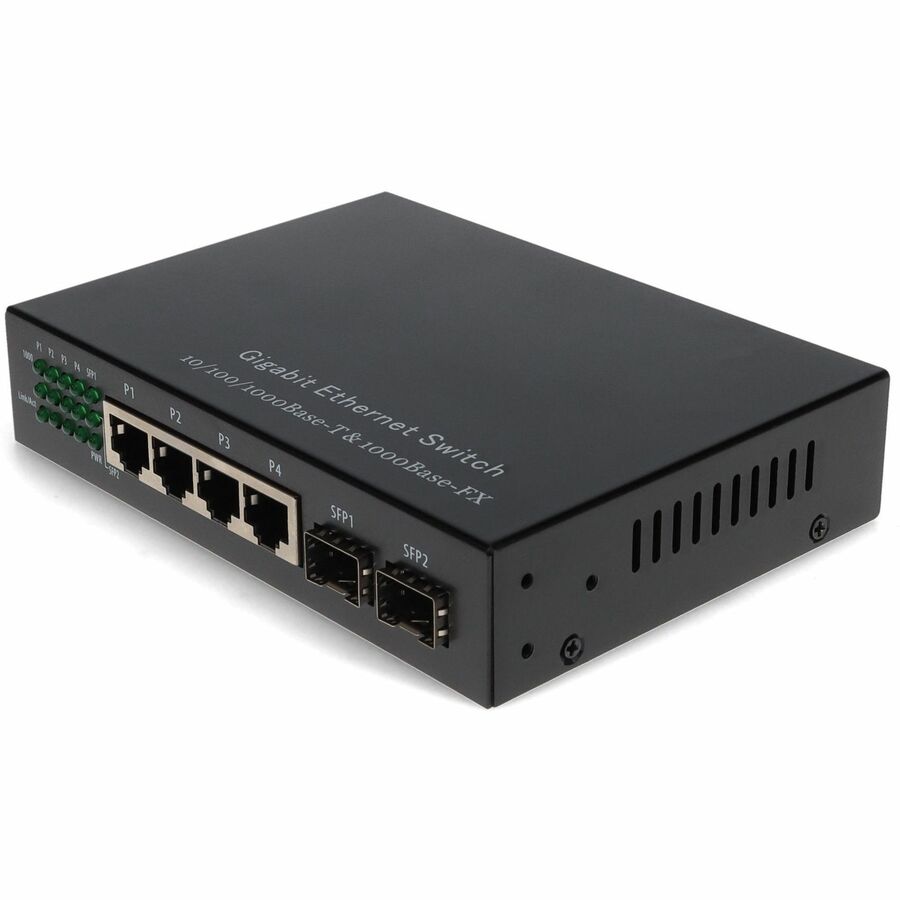

This is an unmanaged four port RJ-45 to two port SFP switch. It is designed with a switch controller and buffer memory that connects two types of media. The UTP port supports all 10/100/1000 Mbps RJ-45 half and full duplex modules, and the SFP port supports only 1000Mbps and full-duplex modules. This can extend your fiber footprint or convert fiber runs from short multi-mode links to extended single-mode links. Our media converters and switches are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs. With our certification test program, we can guarantee your product will work right the first time.
Highlights
Effectively reduces downtime with improved network performance
Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 4 ports
Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Specifications
Package Contents
Gigabit Ethernet Switch 4 RJ-45 and 2 SFP ports
Power Adapter
Installation Guide
Product Type
Ethernet Switch
Input Voltage
5 V DC
Manufacturer Part Number
AO-GES-42-S
Packaged Quantity
1
Power Source
AC/DC, Power Adapter
Limited Warranty
Lifetime
Layer Supported
2
Weight (Approximate)
3 lb
Manufacturer
AddOn
Product Model
AO-GES-42-S
Product Name
Gigabit Ethernet Switch 4 RJ-45 and 2 SFP ports
Network Technology
10/100/1000Base-TX
Brand Name
AddOn
Expansion Slot Type
SFP (mini-GBIC)
Height
4.5"
Width
3.5"
Depth
0.7"
Manageable
No
Maximum Data Transfer Rate
128 MB/s
Ethernet Technology
Gigabit Ethernet
Network (RJ-45)
Yes
Number of SFP Slots
2
Modular
Yes
Media Type Supported
Twisted Pair, Optical Fiber
Fiber Mode Supported
Single-mode, Multi-mode
Total Number of Network Ports
4
PoE (RJ-45) Port
No
Port/Expansion Slot Details
4 x Gigabit Ethernet Network, 2 x Gigabit Ethernet Expansion Slot
