HDMI Over Cat6 Extender - Extends HDMI audio/video signals up to 197ft over Cat6 cable. Supports 720p/1080i/1080p at 60Hz resolutions, PoC, HDCP1.4, 3D, Mountable Metal Housing Design
MSRP$52.99
$42.81
Save 19%In stock: 42
Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Easily extend HDMI audio/video signals over a cost effective Cat5e/6 network cable, while maintaining signal strength and superior quality and supports up to 1080p resolution and extends transmission distance up to 164ft (50m) with nearly zero latency
Extend Distance
This Full HD HDMI Extender with IR designed to extends/splits HDMI signals up to 164ft (50m) through RJ45 network to a remote HDMI display for reliability transmission
IR Extension
Built-in on way IR signal extension modules allows remote controlling the HDMI source device at the receiver and playback at the distant display. Supports an IR signal in the 20-60KHz carrier frequency
Note: Remote controller should be used within 15 feet of transmitter to send signal to the receiver. The best result for the sensor is to point directly
High Performance
Offers a true 10.2Gbps video bandwidth and supports pure unaltered uncompressed 7.1-ch. surround sound from HDMI
Full HD Video Resolution
Supports video resolution up to 1080p (1920x1080) @60Hz YUV 4:4:4 8-bit, HDCP 1.2 to deliver a clear picture quality and allows EDID auto-learning for remote and local displays
Multiple Connectivity Ports
• Comes with one HDMI video input port, one HDMI video output port, two RJ45 network ports, one 3.5mm IR emitter port, one 3.5mm IR receiver port, two reset buttons, two DC power jacks (5V/1A)
More from the Manufacturer
Overview
Extends HDMI audio/video signals up to 197ft over Cat6 cable. Supports 720p/1080i/1080p at 60Hz resolutions, PoC, HDCP1.4, 3D, Mountable Metal Housing Design
Features
Extending HDMI Signals up to 197ft
Easily extend HDMI audio/video signals over a single Cat6 network cable, while maintaining signal strength and superior quality and extends transmission distance up to 197ft (60m)
Power over Cable (PoC)
Utilizes Power over Cable technology, allowing a single power supply connected to the transmitter (TX) to power the receiver (RX) over the Cat 6/7 cable, simplifies installation and reduces the need for additional power outlets or adapters at the receiver end, saving wiring space and cost
High Performance
Offers a true 10.2Gbps video bandwidth and supports LPCM 2.0 audio, delivering high-quality sound and video
Full HD Video Resolution
Supports video resolution up to 1080p (1920x1080) @60Hz YUV 4:4:4 8-bit, HDCP 1.4 to deliver a clear picture quality, supports 3D video formats

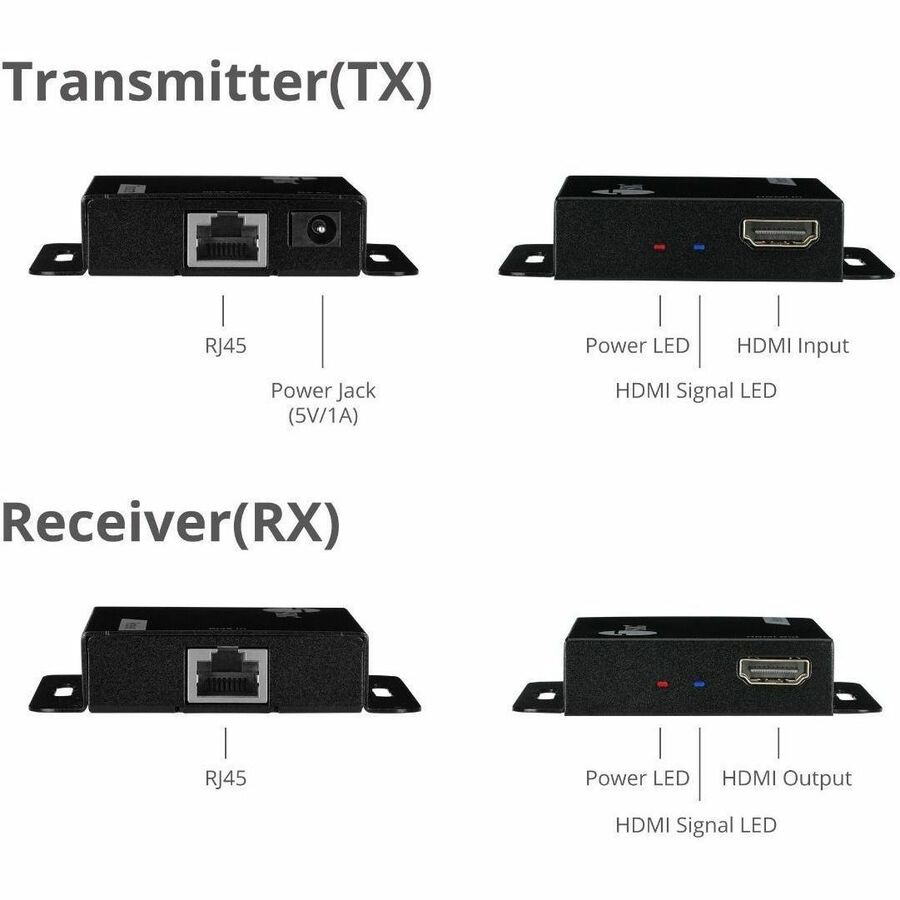

Multiple Connectivity Ports
Comes with one HDMI video input port, one HDMI video output port, two RJ45 network ports, one DC power jack (5V/1A)

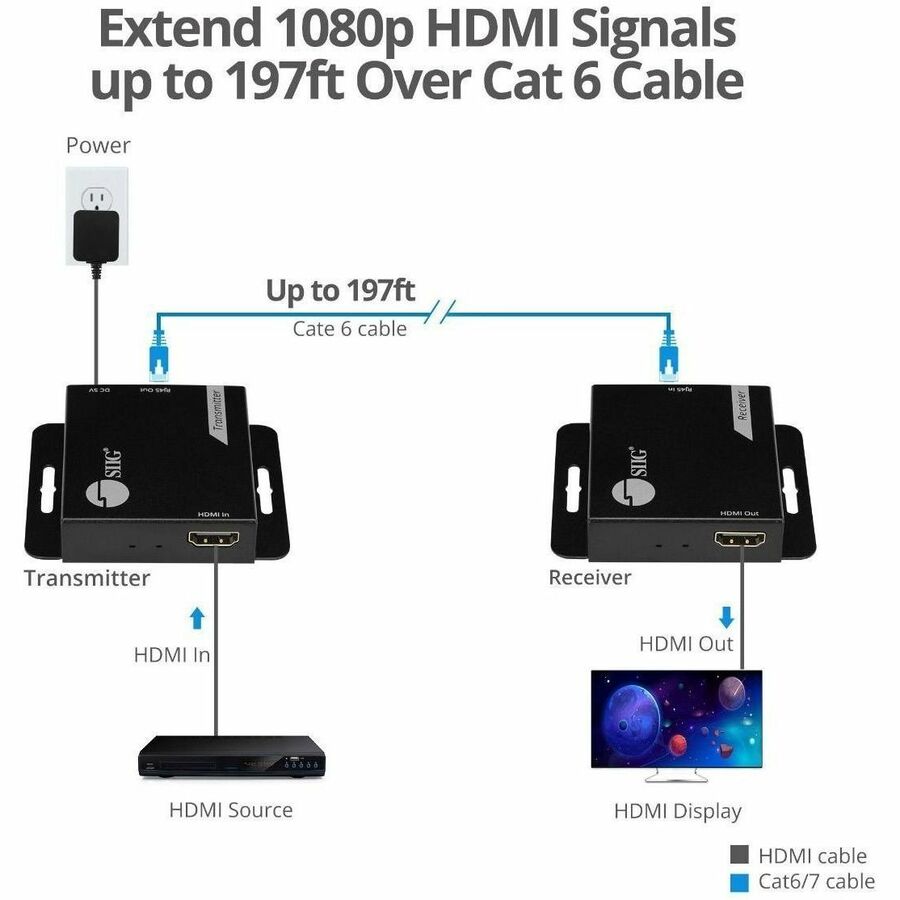

Connection
Mountable Metal Housing Design
Features a mountable metal housing design for durability and ease of installation. The robust construction ensures long-term reliability and performance, even in demanding environments
Applications
SIIG's HDMI Over Cat6 Extender - 60m is designed to provide seamless transmission of HDMI signals over long distances using standard Cat6 network cables. Ideal for use in a variety of settings, such as corporate environments, educational institutions, and home entertainment setups
Business Presentations:
In large conference rooms or showrooms, you can place a video source (such as a computer or media player) on a conference table or console and extend the signal to a display far away from the source device with this HDMI extender on a screen or projector. This not only keeps the presentation area tidy, but also ensures that the video signal is clear and stable
Home Theater:
In a home theater system, you can place your multimedia player or set-top box in a cabinet, living room or other location, and use this extender to transmit HDMI signals to a TV or projector that is far away. This way, you can arrange the components of your home theater system however you like without worrying about the length of your HDMI cable
Educational Environment:
In a classroom or training room, teachers can place the video source (such as a computer or laptop) on the teaching desk and transmit the signal through this extender to a distant monitor or whiteboard so that all students can clearly see the presentation content
Surveillance System:
In a security surveillance system, you can place the video recorder or video processing equipment in the control room, and transmit the video signal to a monitor or monitoring screen far away from the control room through an HDMI extender to facilitate real-time monitoring and video playback
Limited Warranty: 2 Year
About Us Since 1985, SIIG Inc. lead the way in connectivity solution you can trust for IT and AV. Built on core values of professional integrity with customer satisfaction as the focus point, we are committed to providing excellent service, support, and solutions. We want to enhance your audiovisual and information technology experience with innovative product solutions. © 2020 SIIG Inc., All rights reserved.
| General Information | |
|---|---|
| Manufacturer | SIIG, Inc |
| Manufacturer Part Number | CE-H3EX01-S1 |
| Brand Name | SIIG |
| Product Name | Full HD HDMI Extender with IR |
| Product Type | Video Extender Transmitter/Receiver |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| HDMI Out | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Remote (IR) Input | 1 |
| Remote (IR) Output | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 6e, Category 5e |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Transmitter Height | 0.97" |
| Transmitter Width | 2.60" |
| Transmitter Depth | 2.80" |
| Receiver Height | 0.97" |
| Receiver Width | 2.60" |
| Receiver Depth | 2.80" |
| Form Factor | Wall Mountable |
| Transmitter Weight (Approximate) | 3.04 oz |
| Receiver Weight (Approximate) | 2.88 oz |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 164 ft |
| Video | |
| Supported Video Modes | 1080p, 1080i, 720p, 480i, 480p |
| Maximum Video Resolution | 1920 x 1080 |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |
| Package Contents | Full HD HDMI Extender with IR 1 x 3.5mm IR Emitter Extension Cable 1 x 3.5mm IR Receiver Extension Cable 2 x DC Power Adapter, 5V/1A 1 x User Reference Guide |
| Application/Usage | Home Theater, Lecture Hall, Digital Signage System, Educational Facilities, Surveillance System, Library, Control Center, Shopping Center, Office, Restaurant, Conference Room, Hospital, Showroom, Church, Display, Computer, Monitor, Desktop PC |
| Country of Origin | China |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2, Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS) |
