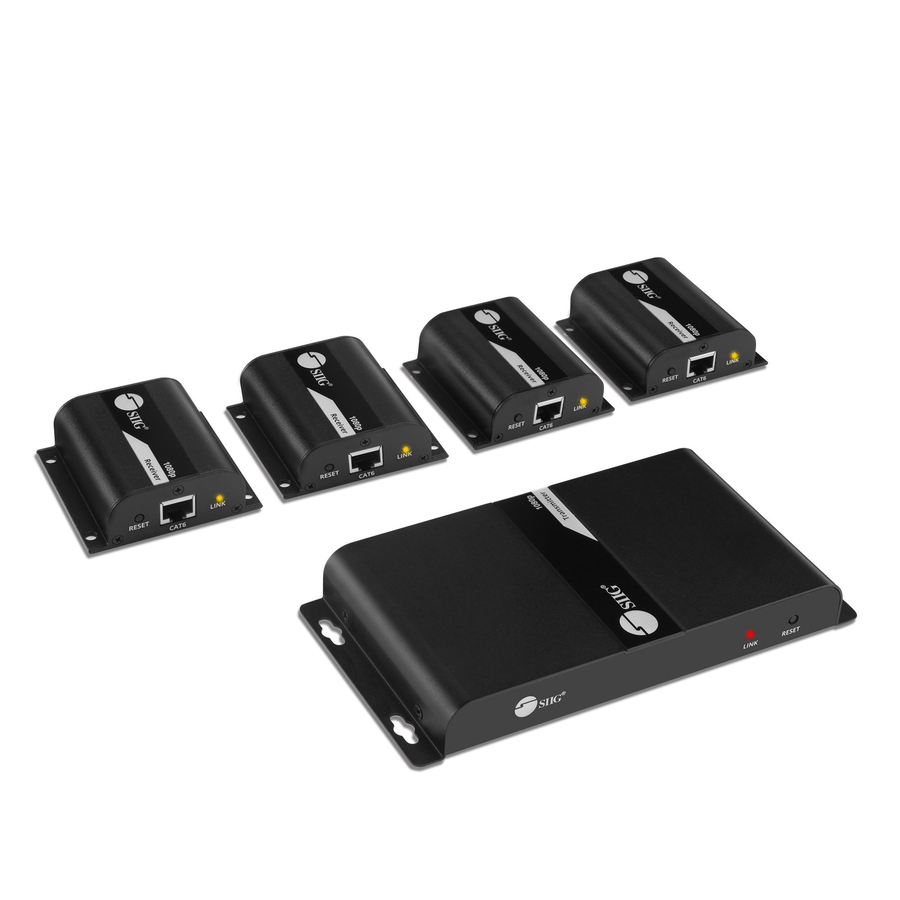

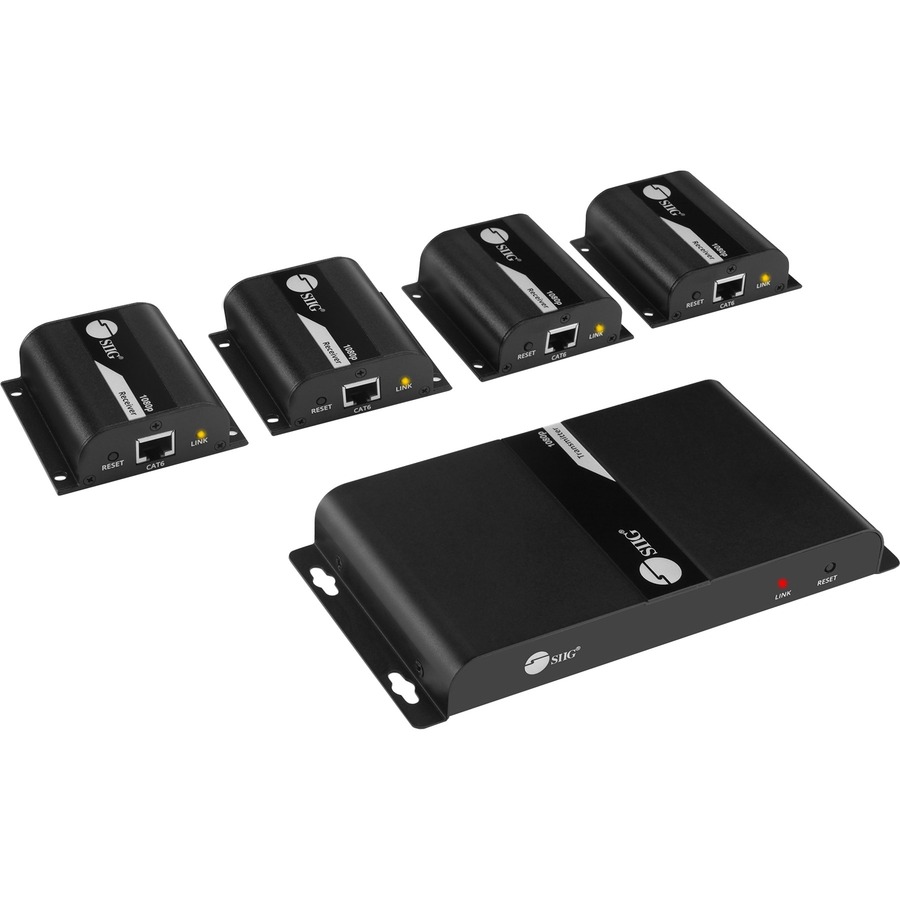

SIIG 4 Port HDMI Splitter over Cat6 Extender with IR - 40m

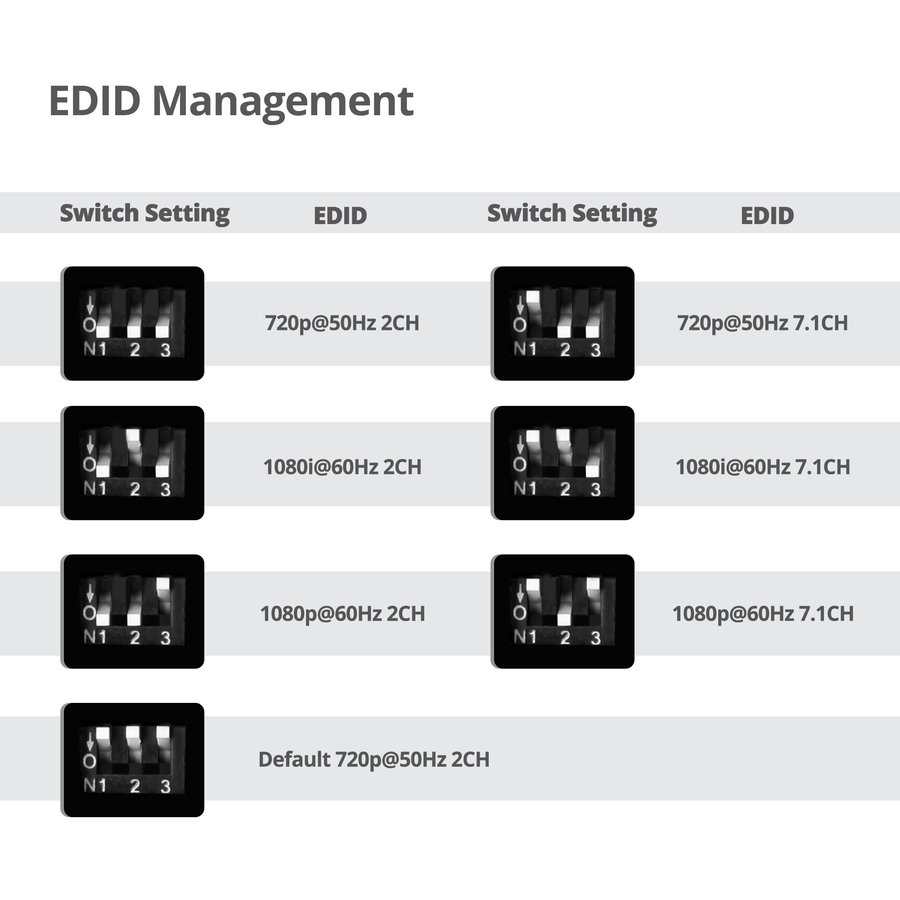

Full HD 1080p - 1x4 HDMI Extender up to 130ft (40m) - HDR / HDCP 1.2- HDMI 1080p Splitter with EDID management - full frequency IR signal from 20KHz to 60KHz - 4 Port HDMI Splitter 1 in 4 out - 7.1-channel PCM/DTS/AC3 Audio- 1TX 4 RX HDMI Splitter - Aliminum Metal Housing - Power/Link LED Indicator - Reset Button - Wall Mountable - 2 years warranty
- SKU
- CE-H23U11-S1
- Category
- Audio & Video Consoles/Extenders
MSRP$419.99
$321.48
Save 23%In stock: 13
Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- CE-H23U11-S1
- Category
- Audio & Video Consoles/Extenders
Overview

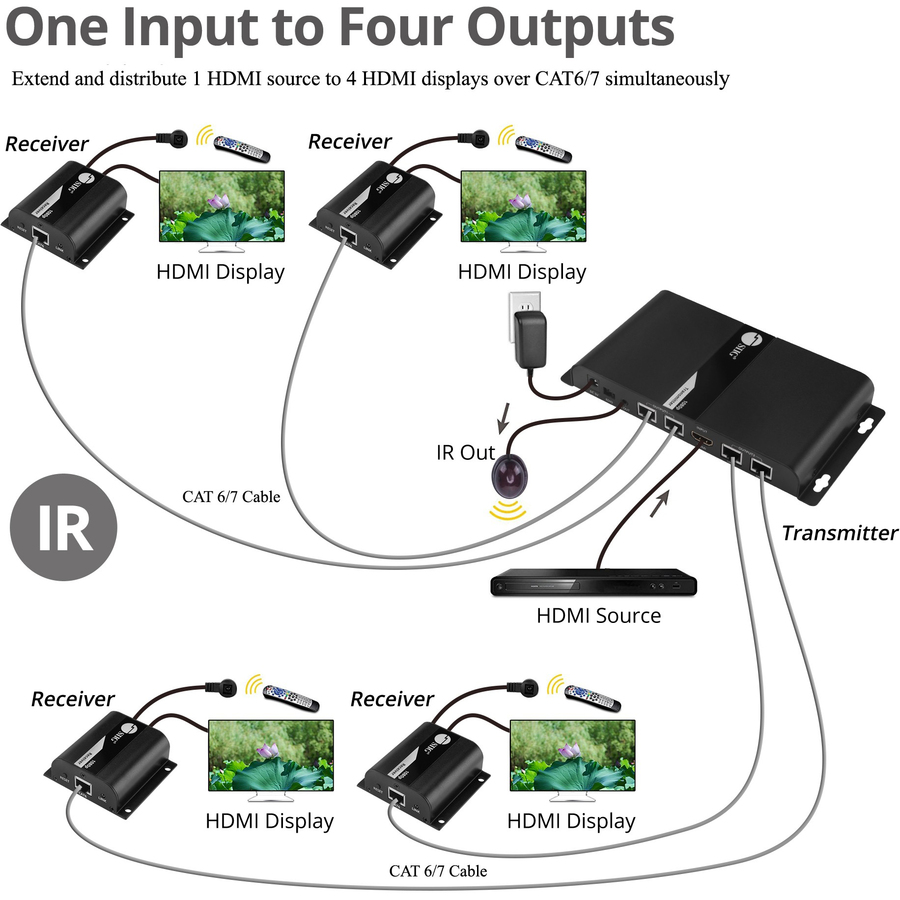

Extends HDMI signals to four HDMI displays over single Cat6 cable up to 130 feet (40 meters)
• Extends HDMI signals up to 130ft (40m) over economical Cat6 cabling to up to 4 displays
• Delivers crystal clear Full HD content up to 1080p@60Hz resolution
• IR remote control through Cat6 cable allows you to control the HDMI source device at the remote display location
• High quality durable metal housing with ventilation panels provides excellent heat dissipation to ensure reliable performance and system stability during long hours of operation
• Plug-n-Play installation, no software installation required
Highlights
- Video Extender Transmitter/Receiver is all you need for dependable and productive audio/video transmission
- 1920 x 1080 maximum video resolution for a spectacular, sharp display with added reliability
- HDMI in allows convenient transfer of content and data to video extender transmitter/receiver to ensure maximum dependability
- HDMI out enables you to transfer data from your devices to video extender transmitter/receiver with added efficiency
- Twisted pair media type helps minimize electromagnetic radiation and it also effectively resist external interference
- 1 input devices supported to better accommodate your specific requirements
- 4 output devices supported to better accommodate your specific requirements
- 131.23 ft maximum operating distance to allow efficient coverage and maximum usability
- Full HD graphics mode provides optimal video output with remarkable picture clarity
Specifications

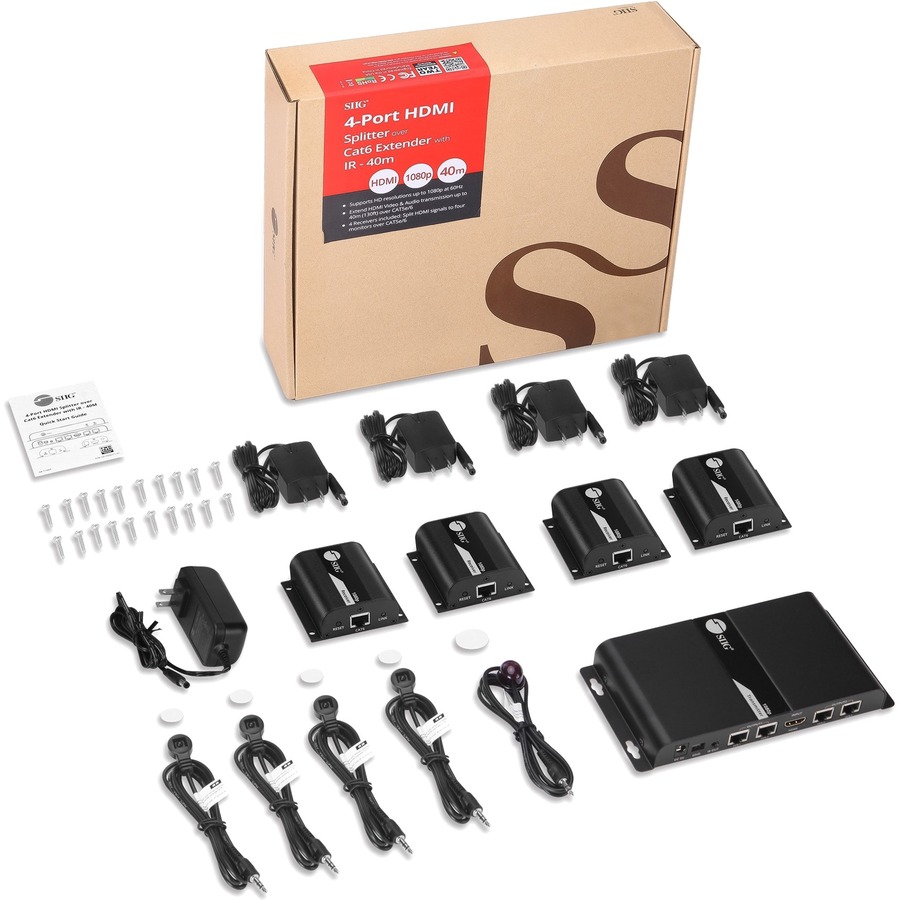

| Package Contents |
|
|---|---|
| Product Type | Video Extender Transmitter/Receiver |
| Manufacturer Part Number | CE-H23U11-S1 |
| Limited Warranty | 2 Year |
| Connectivity Technology | Wired |
| Manufacturer | SIIG, Inc |
| Product Name | 4-Port HDMI Splitter over Cat6 Extender with IR - 40m |
| Brand Name | SIIG |
| Country of Origin | Switzerland |
| Graphics Modes | Full HD |
| Environmentally Friendly | Yes |
| Maximum Video Resolution | 1920 x 1080 |
| Twisted Pair Cable Standard | Category 7 |
| Maximum Operating Distance | 131.23 ft |
| Number of Network (RJ-45) Ports | 8 |
| Network (RJ-45) | Yes |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 4 |
| HDMI In | Yes |
| HDMI Out | Yes |
| Media Type Supported | Twisted Pair |
| Number of Output Devices Supported | 4 |
| Number of Input Devices Supported | 1 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
