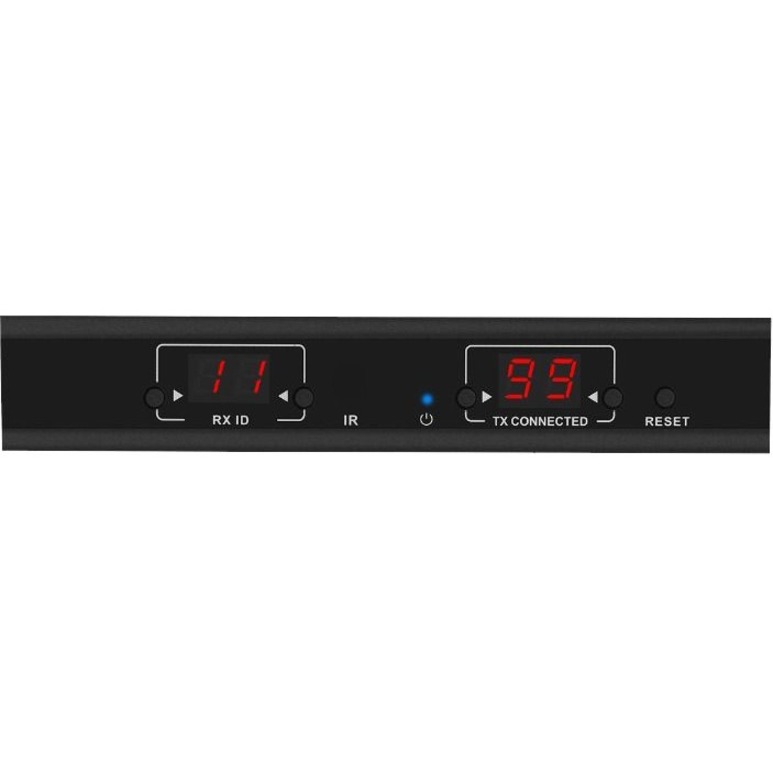

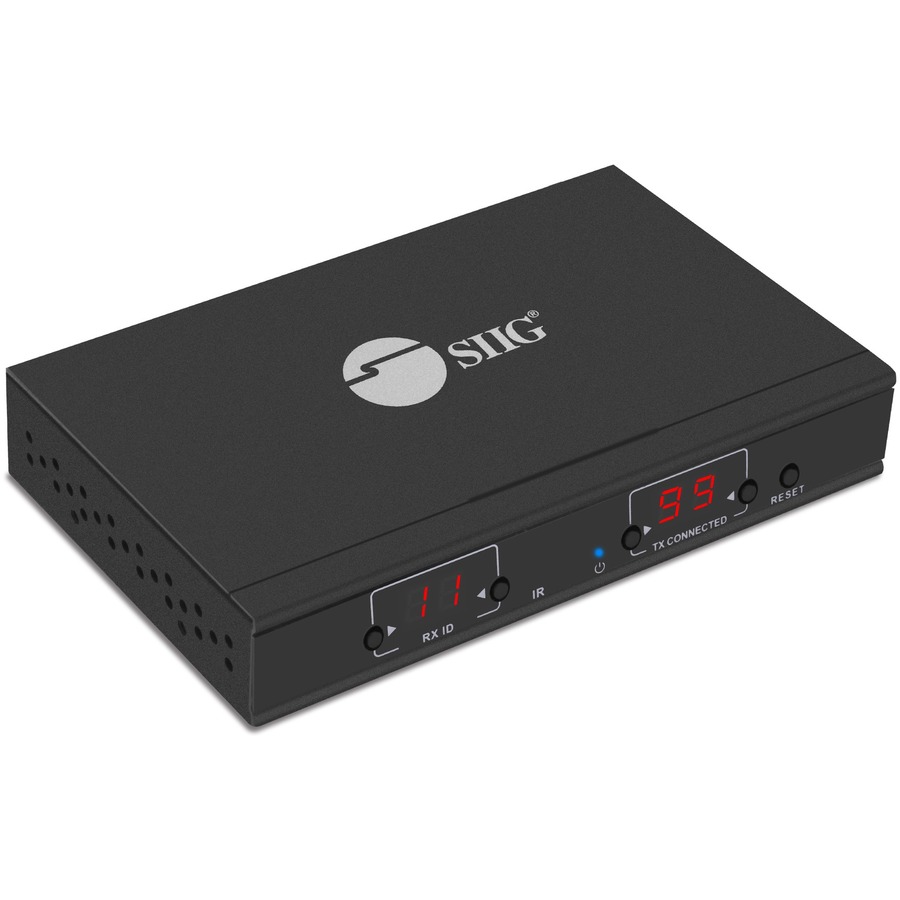

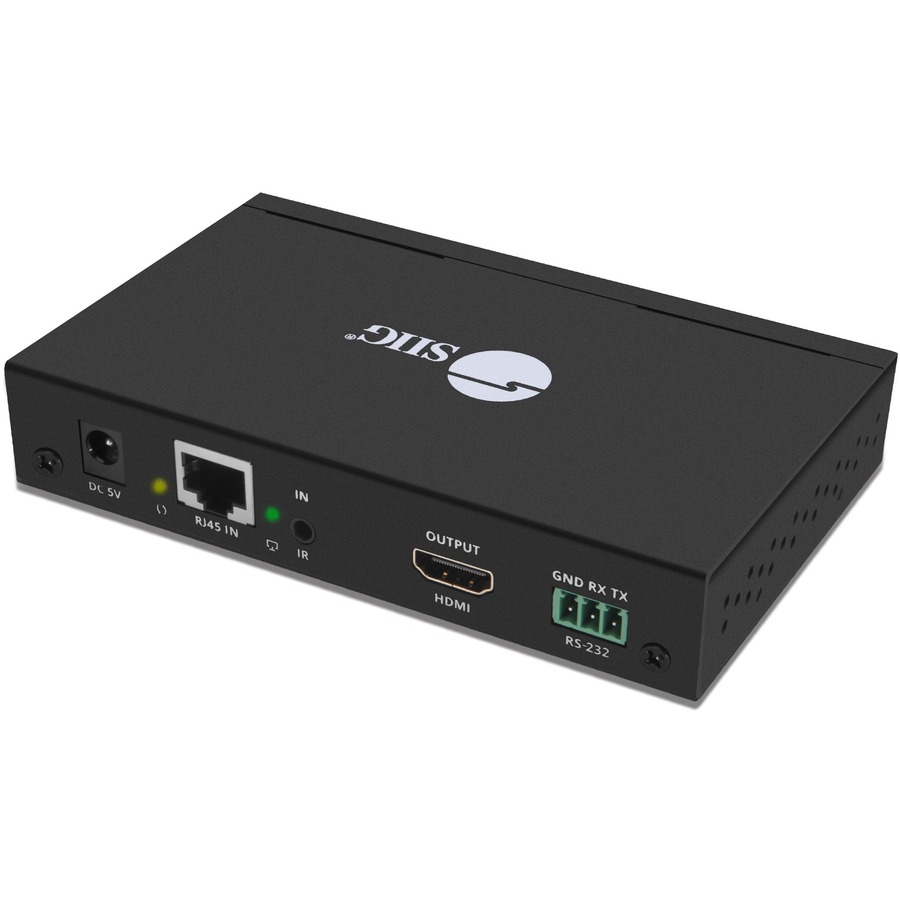

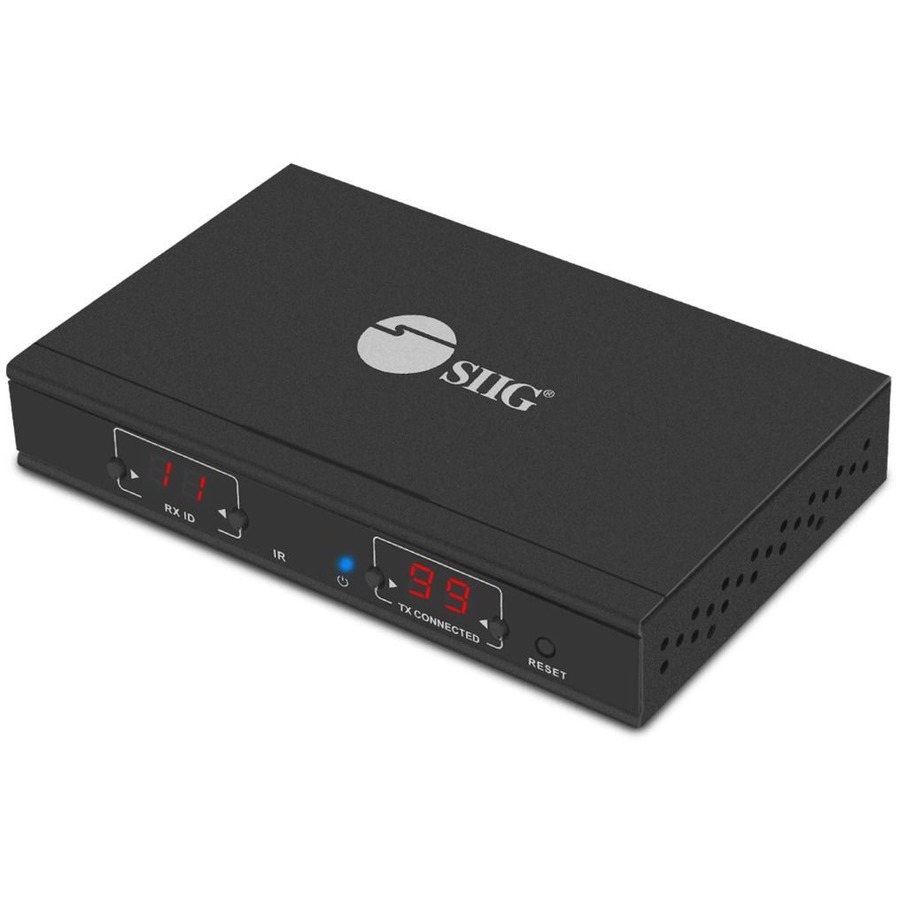

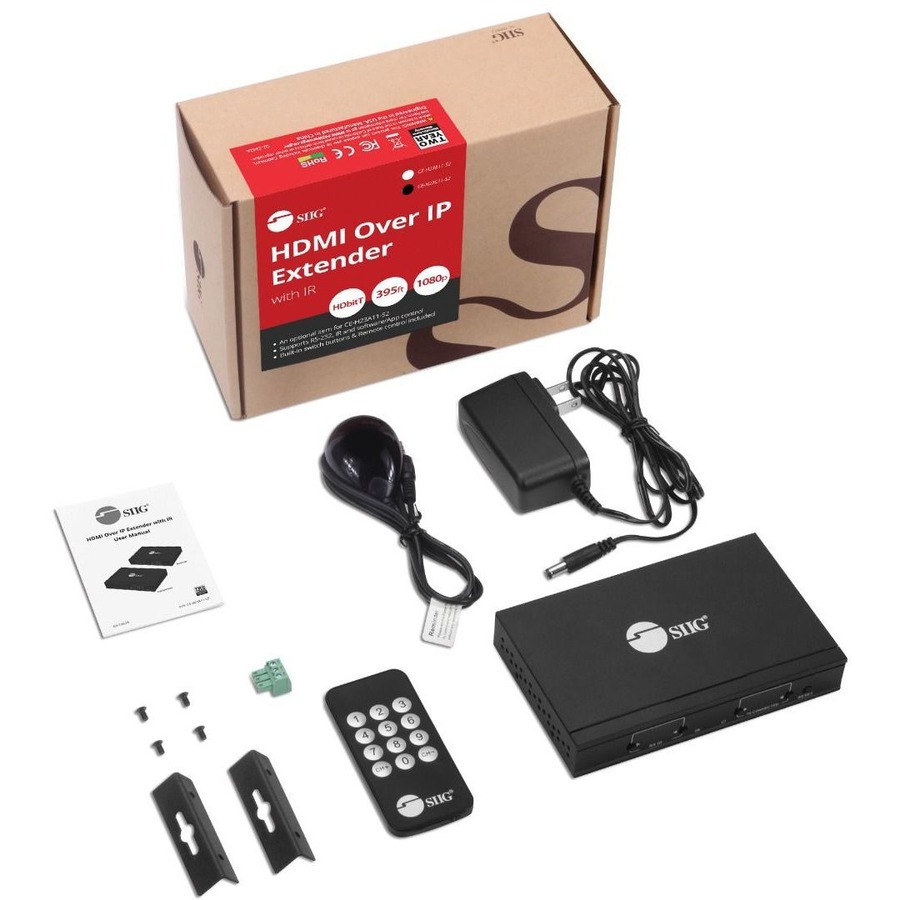

SIIG 1080p HDMI Over IP Extender with IR - Decoder (RX)
120M - HDMI Over IP Networks for Cat5e/6 - One to Many/Many to Many - Multi-casting connection - HDMI over HDBitT - Support distance up to 394ft (120M) - H.264 compression - Works with IGMP Network switch - Allows up to 256 total units - resolution up to 1080p 60Hz - HDCP 1.4 - IR pass-through feature - RS-232 Control - LED digital channel buttons or Remote control - Metal housing - 2 years warranty - work for Encoder (TX) (CE-H23B11-S2)
Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
CE-H23C11-S2
Category
Audio & Video Consoles/Extenders
Overview
Features
• Receives HDMI signals with stereo audio over UTP CAT5e/6 cabling up to 120 meters away, requires HDMI Over IP Extender with IR - Encoder (TX)(part # CE-H23B11-S2) sold separately
• Works as a scalable TX/RX Matrix over dedicated IP network, allows up to 256 total units, limited to 100 transmitters. Additional encoder (TX)units (part# CE-H23B11-S2) and decoder (RX)units (part# CE-H23C11-S2) sold separately
• Supports up to 1080p @60Hz video resolution to deliver stunning and crystal clear imagesSupports IR pass back function to control the source device from RX location
• Supports computer control software to select and switch between source devices (Matrix only)
• Supports HDbit-T protocol with H.264 compression over IP
• HDMI output on the transmitter allows you to monitor the HDMI signal at the source location
• RS-232 pass-through connection to control RS-232 enabled devices at either direction
Highlights
Video Extender Receiver is all you need for dependable and productive audio/video transmission
480p supported video mode for pleasurable viewing and dependable usage
1920 x 1080 maximum video resolution for stunning, lively result with optimal viewing usability
HDMI out enables you to transfer data from your devices to video extender receiver with added efficiency
Twisted pair media type is very easy to connect and can carry both analog and digital data at the same time for maximum connection efficiency
The CE-H23C11-S2 video extender receiver provides plenty of freedom with wired connectivity
1 output devices supported to better accommodate your specific requirements
393.70 ft maximum operating distance to allow efficient coverage and maximum usability
Full HD graphics mode provides optimal video output with remarkable picture clarity
Video Extender Receiver efficiently decodes audio video signals from the input device and sends them to the receiver to enable the display on your office projector for convenient conference setup
