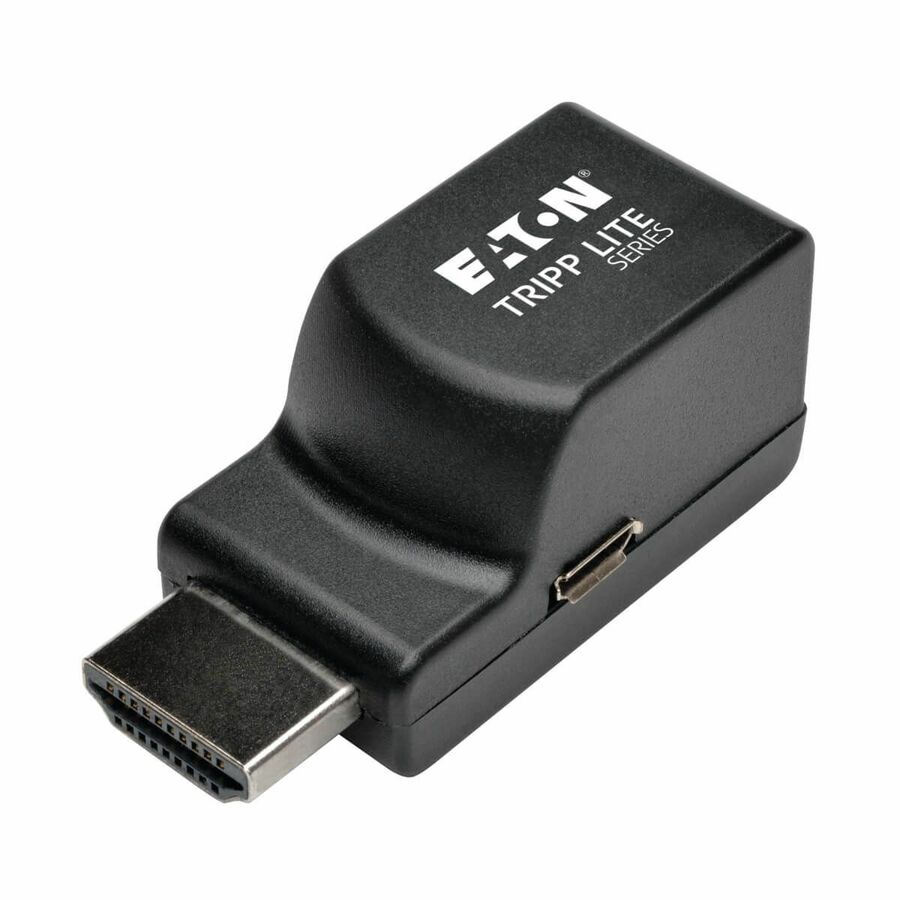

Eaton Tripp Lite Series HDMI over Cat5/6 Passive Extender, Low-Profile Remote Receiver for Video/Audio, Up to 100 ft. (30 m), TAA

The B126-1P0-MINI HDMI over Cat5/Cat6 Passive Extender, Low-Profile Remote Receiver works with Tripp Lite's B126-002 and B126-004 transmitters (sold separately) to extend an HDMI signal to multiple projectors, monitors or televisions in a chain. It's recommended for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow.

The compact, low-profile design helps hide the unit from view. The B126-1P0-MINI's built-in HDMI male connector plugs directly into the monitor. The unit can extend a 1080i (@ 60 Hz) signal up to 100 feet (30.5 m) or a 1080p (@ 60 Hz) signal up to 50 feet (15.2 m) with a single Cat5e/6 cable. For best results, use 24 AWG solid-wire Cat5e/6 cable (such as Tripp Lite's N202-Series) between this unit and the transmitter.

In addition to crystal-clear video, the B126-1P0-MINI delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio when paired with a B126-002 or B126-004 transmitter. Supports 24-bit True Color (8 bits per channel) and HDCP compatibility. Easy to set up with no software, drivers or external power supply required.

Features

Extends High-Definition Signals

• Works in tandem with Tripp Lite's B126-002 and B126-004 transmitter units (sold separately)

• Extends a 1080i (@ 60 Hz) signal up to 100 ft. (30.5 m)

• Extends a 1080p (@ 60 Hz) signal up to 50 ft. (15.2 m)

• Connects to transmitter with one Cat5e/6 cable

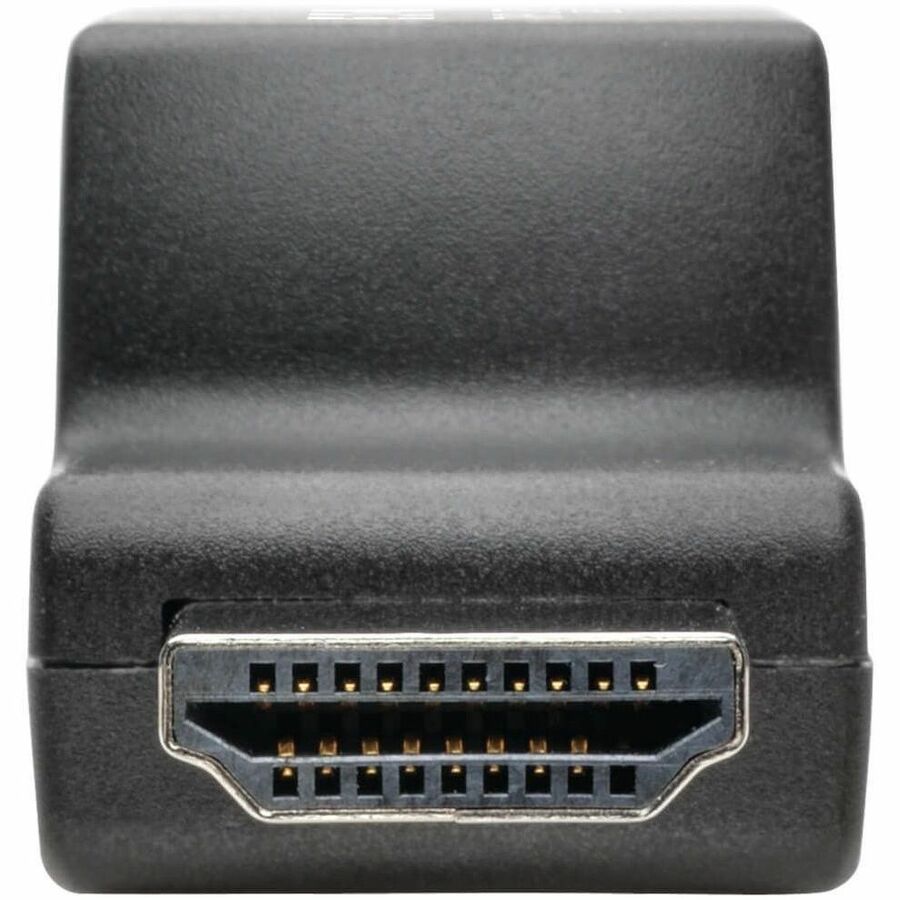

• Built-in HDMI male connector plugs directly into monitor

Supports the Latest Video and Audio Resolutions

• Works with all operating systems and HDMI video sources

• Supports stereo and 7.1-channel surround sound (multi-channel or PCM) when paired with B126-002 or B126-004

• Supports 24-bit True Color (8 bits per channel) and HDCP

Easy to Set Up and Use

• Plug-and-play engineering-no software or drivers necessary

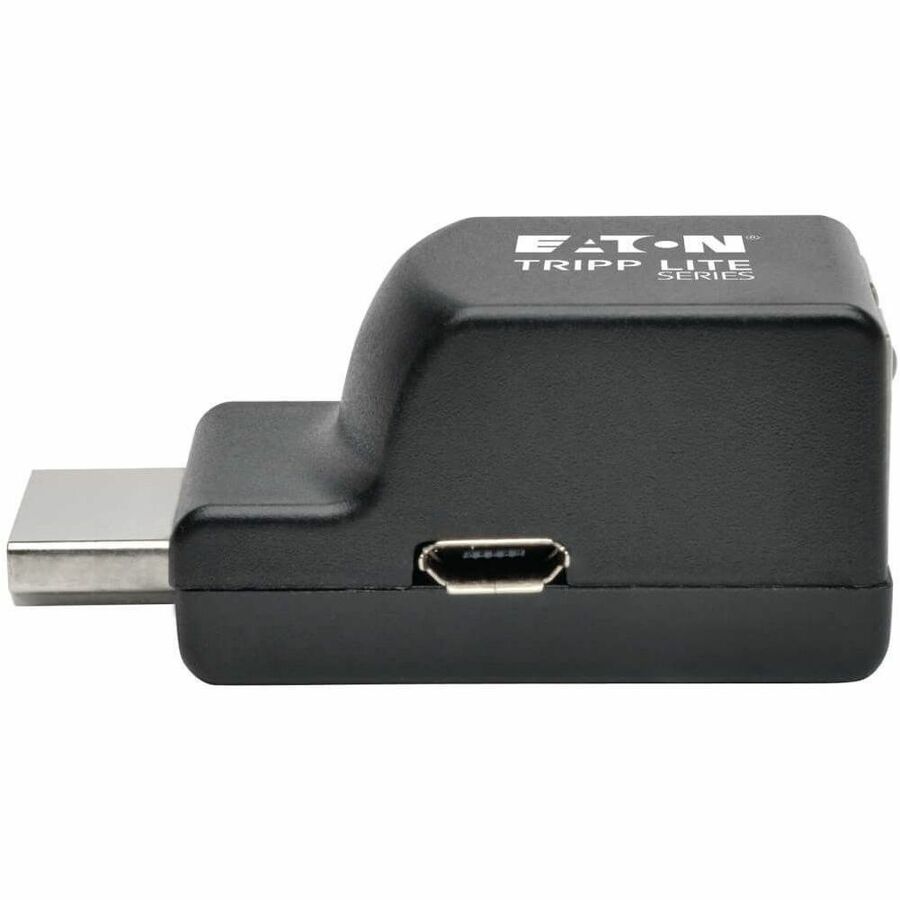

• No external power required; included USB Micro-B cable provides extra power when necessary

TAA-Compliant

• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

More from the Manufacturer

Extends an HDMI Signal Up to 100 Ft.

Tripp Lite’s B126-1P0-MINI Compact HDMI over Cat5e/6 Passive Receiver works with Tripp Lite’s B126-002 or B126-004 transmitters (sold separately) to extend an HDMI video and audio signal up to 100 ft. from the source via Cat5e/6 cable. It’s the perfect solution for digital signage applications in schools, churches, convention centers, retail environments, and other locations where the video source is located farther than conventional cables allow.

Typical Applications

Streaming audio/video signals to HDTVs or monitors in another room

Video-conferencing in meeting rooms, offices and classrooms

Displaying industrial and marketing videos at trade shows

Ideal for any home, business or retail application requiring a professional, low-profile look

Stays Hidden from View for a Sleek, Professional Look

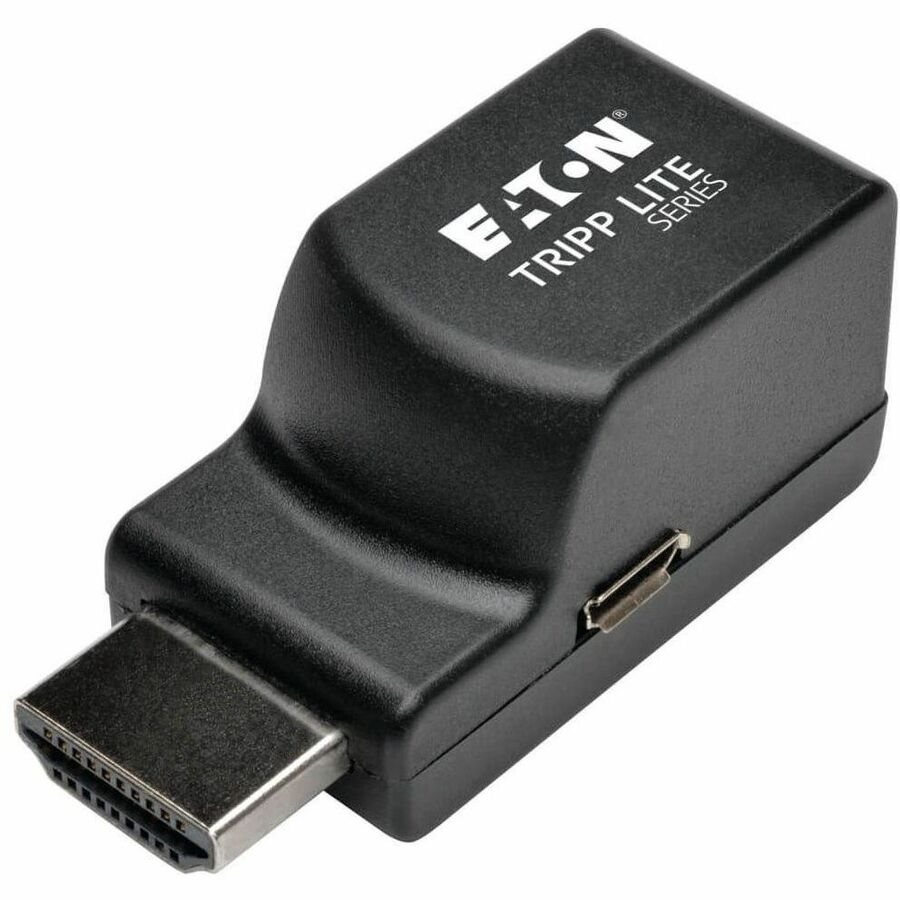

The B126-1P0-MINI’s compact, low-profile design plugs directly into the monitor to hide the unit from view.

Delivers Superior Signal Quality with Crystal-Clear Video and 7.1-Channel Surround Sound

When paired with a B126-002 or -004 transmitter, this compact, box-style receiver can extend a high-definition 1080i (60 Hz) signal up to 100 ft. and a 1080p (60 Hz) signal up to 50 ft. In addition to crystal-clear video, including 24-bit True Color (8 bits per channel) and HDCP, the B126-1P0-MINI delivers full, rich stereo and 7.1-channel surround sound.

Uses Inexpensive Cat5e/6 Cables

One low-cost, user-supplied Cat5e/6 cable connects the transmitter and receiver. For best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite’s N202-Series.

Easy to Set Up and Use

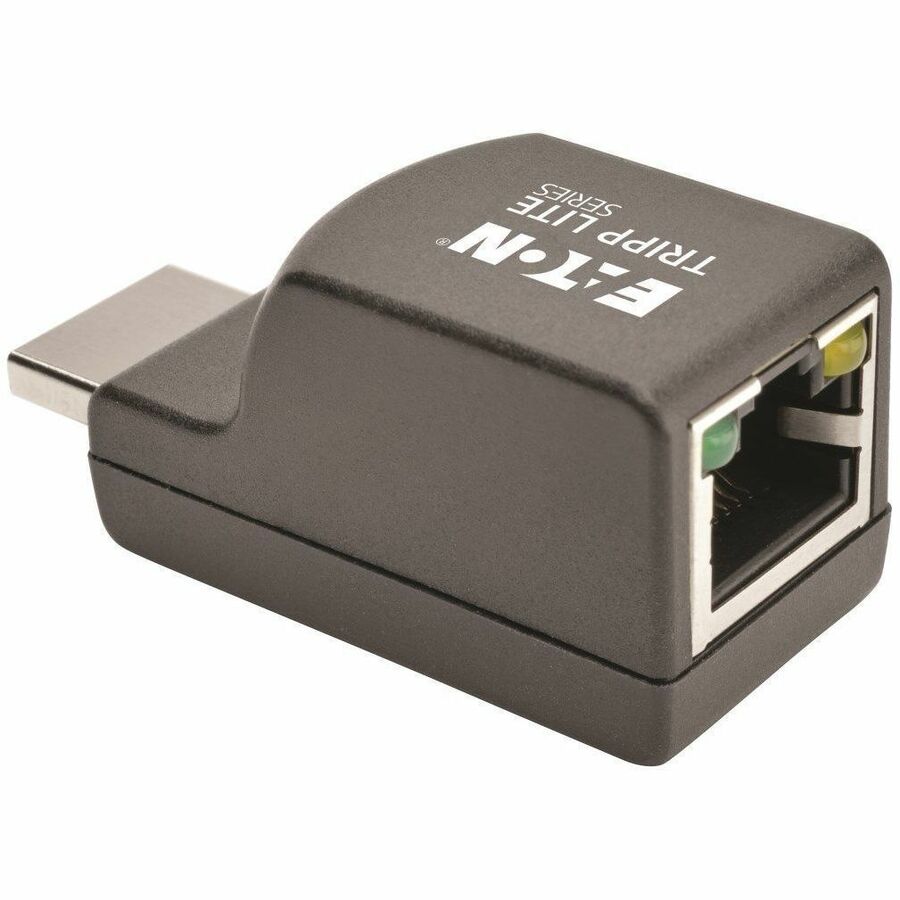

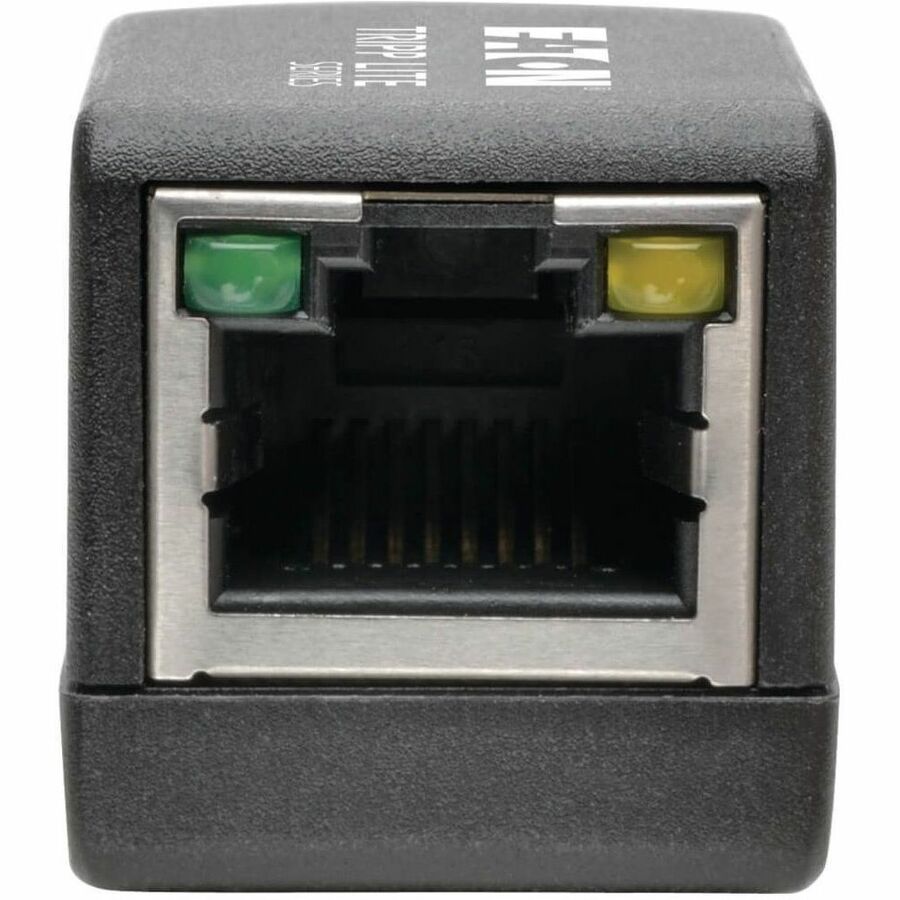

With no software or drivers to install, the B126-1P0-MINI plug-and-play setup gets your application up and running quickly. LEDs light up to show when the unit is receiving power and sharing a signal. No other external power supply is needed, but for instances when an additional boost is required, a USB Micro-B cable is included.

TAA-Compliant for GSA Schedule Purchases

The B126-1P0-MINI is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

One-Year Warranty and Environmentally Responsible Design

The B126-1P0-MINI comes backed by a one-year warranty. As part of Tripp Lite’s commitment to environmental responsibility, it is manufactured according to strict RoHS specifications.

Tripp Lite B126-1P0-MINI Product Summary

Extends an HDMI signal up to 100 ft. from the source

Works in tandem with a Tripp Lite B126-002 or B126-004 transmitter unit

Extends a 1080i (60 Hz) signal up to 100 ft. or a 1080p (60 Hz) signal up to 50 ft.

Supports 24-bit True Color (8 bits per channel) and HDCP

Supports stereo and 7.1 channel surround sound

Plug-and-play convenience—no drivers or software to install

TAA-compliant for GSA Schedule purchases

One-year warranty

What’s in the Box

B126-1P0-MINI Compact HDMI over Cat5e/6 Passive Receiver

USB-A to USB Micro-B Cable, 1 ft.

Owner's Manual
