Eaton Tripp Lite Series DVI over Cat5/6 Active Extender Kit, Box-Style Transmitter/Receiver for Video, Up to 200 ft. (60 m), TAA

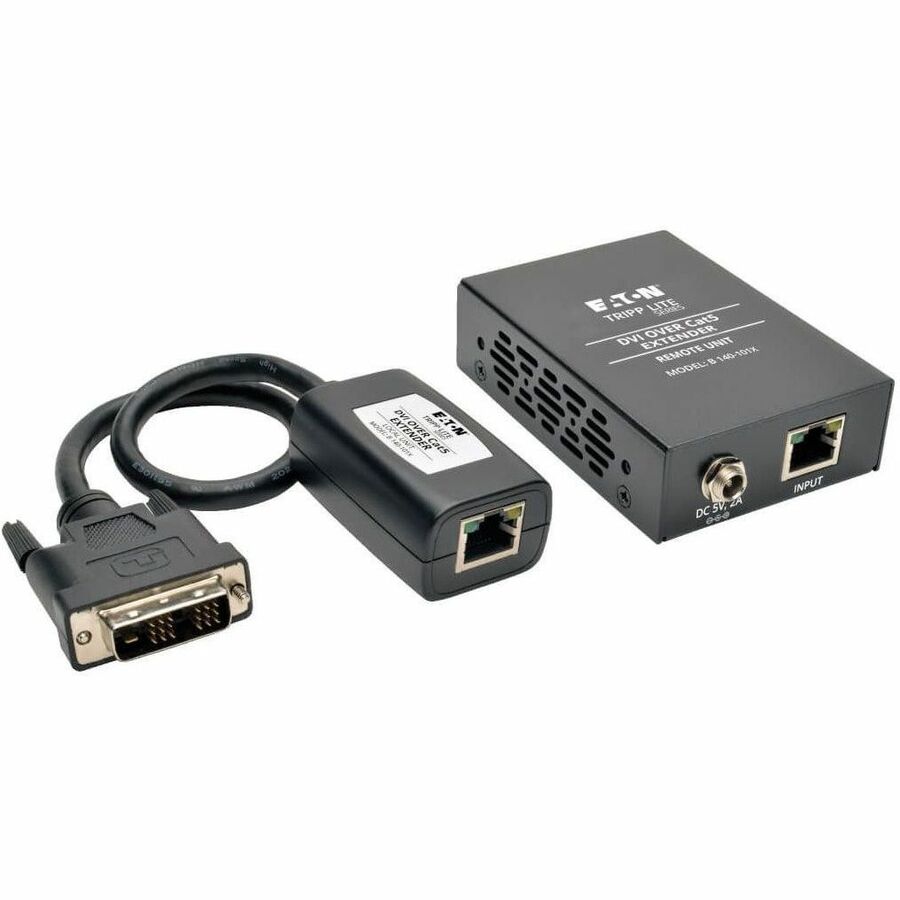

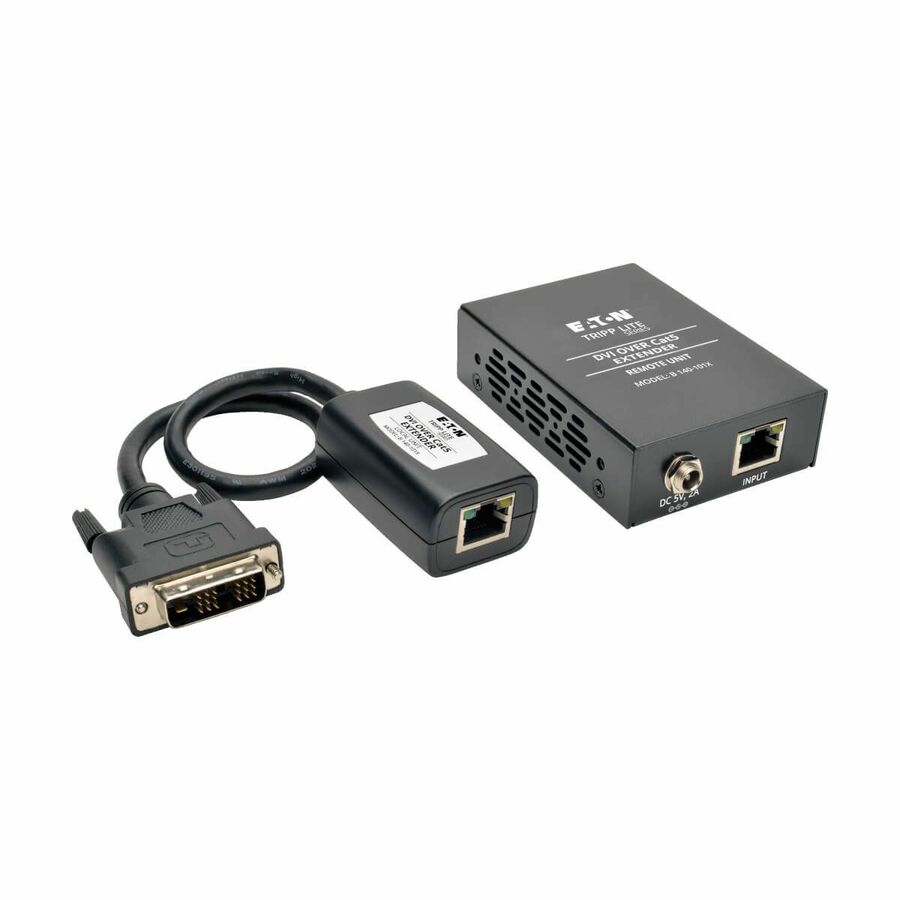

The B140-101X is a DVI Over Cat5 Active Extender Kit that comes with both transmitter and receiver units. It transmits a DVI-D Single-Link signal up to 200 ft. away using a single Cat5e/6 patch cable. To achieve maximum distance and resolution, use 24AWG Solid Wire Cat5e/6 cable (Tripp Lite's N202-Series). The B140-101X is compatible with all operating systems, and is plug and play, with no software or drivers required. It features a built-in Equalization control for adjustment of the video image. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

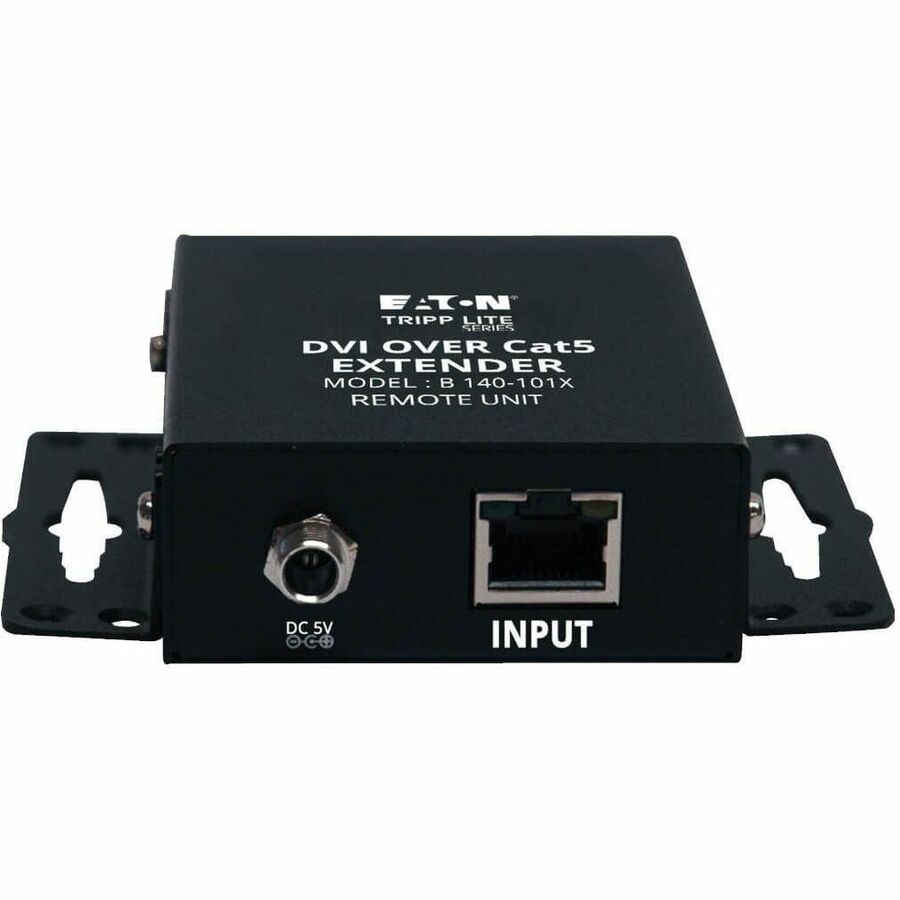

Installation is simple. Connect a the built-in DVI connector on the transmitter unit to a DVI source. Connect the receiver unit to a display using a Tripp Lite P561-Series DVI cable (not included). Finally, the RJ45 ports on the transmitter and receiver units are connected using a single Cat5e/6 cable. A 1920 x 1080 @ 60Hz signal can be extended up to 150 ft. from the source,, or a 1024 x 768 @ 60Hz signal up to 200 ft..

Further expand the range and number of monitors by using a B140-110 repeater unit. Add up to four remote units (three repeaters and one active receiver) in a single chain, for a total of 4 displays. (An active receiver should be the last unit in a chain) A 1920 x 1080 @ 60Hz signal can be extended up to 125 ft. from each repeater to the next unit in the chain, or a 1024 x 768 @ 60Hz signal can be extended up to 175 ft..

More from the Manufacturer

Perfect for Digital Signage Applications and Plug-and-Play Setup

This Tripp Lite DVI over Cat5/Cat6 Active Extender Kit extends digital video two hundred feet away from the source, making it the ideal solution for digital signage applications like schools, churches, retail displays, trade show presentations and restaurants. The B140-101X allows the video source to be in a secure, remote location for controlled access while still delivering a signal to TVs, projectors and other devices in another area. This kit includes units for both the source and display side of your application.

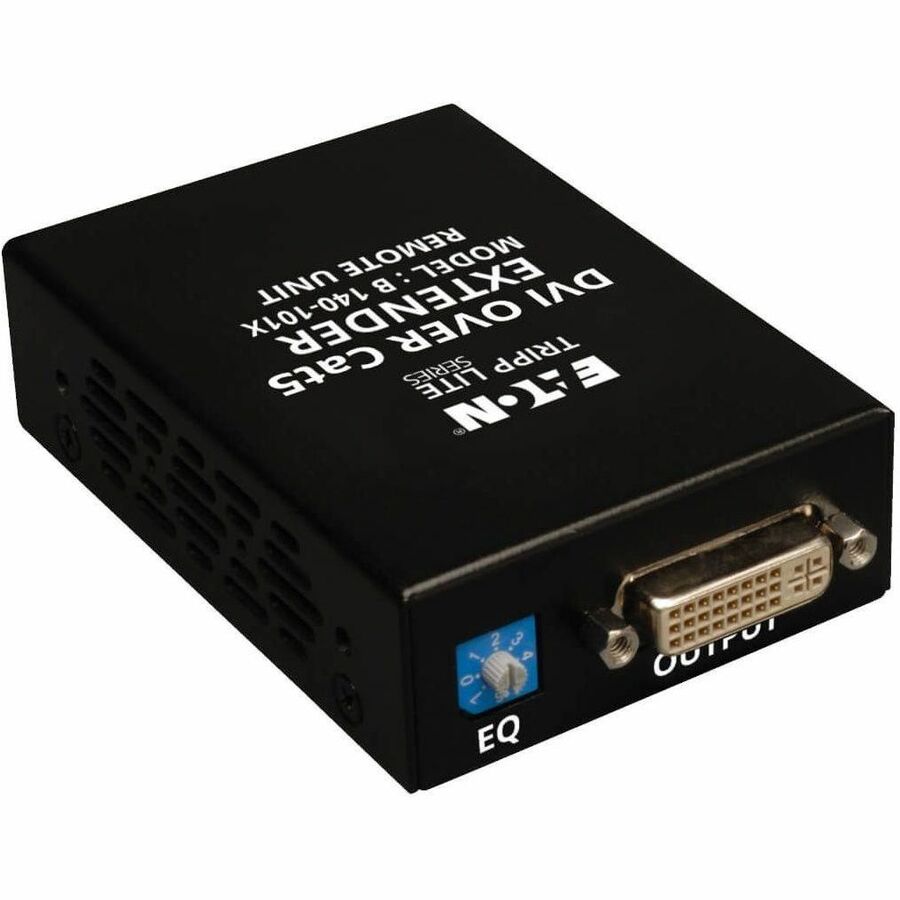

With no software or drivers to install, the B140-101X's plug-and-play setup gets your application up and running faster. Simply connect the local unit to the video source, the remote unit to the display and connect the units to each other with cost-effective Cat5/Cat6 cable to start watching as the B140-101X provides crystal-clear resolution. The built-in image equalization allows for total control over image quality at every point of your application.

Versatile Installation Options and 1-Year Warranty

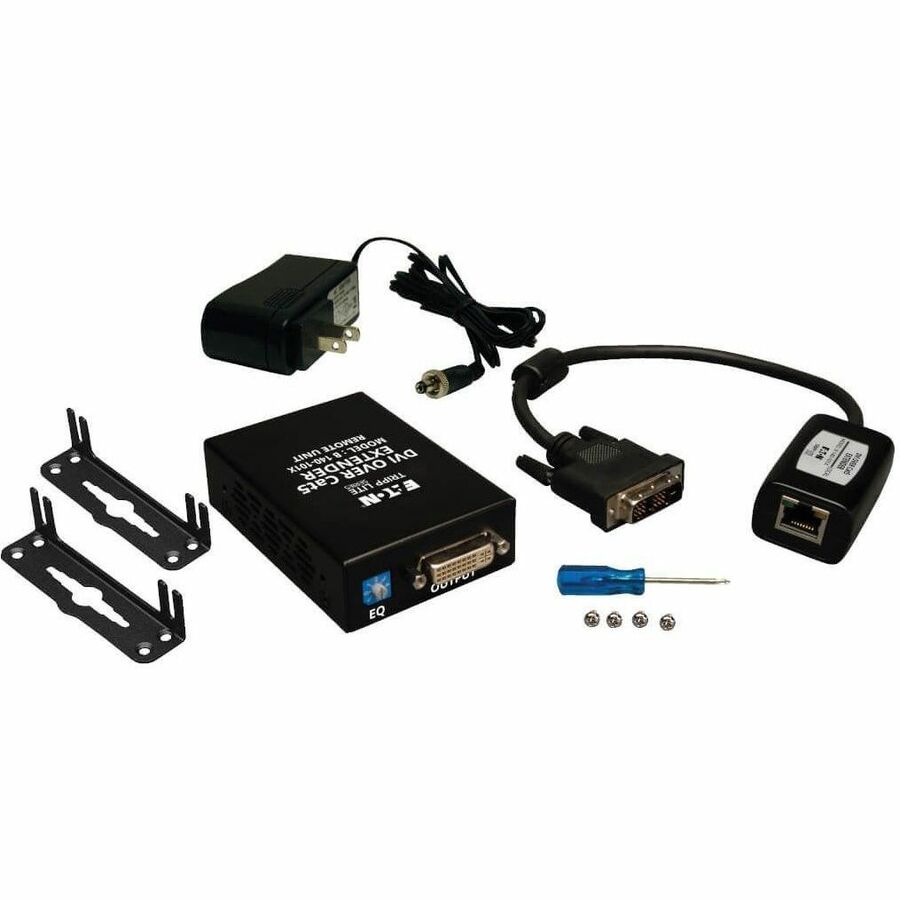

The B140-101X includes mounting hardware enabling it to be installed in any venue. Mounting options include wall-mount, rackmount and pole mount.

The B140-101X is backed by a 1-year limited warranty. The B140-101X features a green, RoHS-compliant design that limits the use of hazardous materials in its construction. It is also compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
