Eaton Tripp Lite Series 2-Port HDMI over Cat5/6 Active Extender/Splitter, Remote Receiver for Video/Audio, Up to 150 ft. (45 m), TAA

The B126-2A0 HDMI over Cat5/Cat6 Active Remote Receiver works with Tripp Lite's B126-002 or B126-004 transmitter to extend an HDMI signal and split it to two projectors, monitors or televisions. It's ideal for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow or that require multiple displays connected to one source.

The receiver uses HDMI cable (see Tripp Lite's P568-Series) to connect to the monitors and Cat5e/6 cable to receive the signal from the transmitter or a remote repeater in the chain (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series).

The B126-2A0 can extend a 1080i (60 Hz) signal up to 200 feet, a 1080p (60 Hz) signal up to 150 feet and a 3D signal up to 125 feet. You can connect up to three B126-110 remote repeaters in the chain for a maximum of six HDMI displays and full signal extension of 700 feet (1080i), 500 feet (1080p) or 400 feet (3D).

In addition to crystal-clear video, the B126-2A0 delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio when paired with a B126-002 or B126-004 transmitter. Built-in equalization control lets you fine-tune the image quality at each remote display. Supports 24-bit True Color (8 bits per channel) and HDCP compatibility. Easy to set up with no software or drivers to install. Mounts to a wall, rack or pole using the included hardware.

Features

Extends High-Definition Signals

• Works in tandem with Tripp Lite's B126-002 or B126-004 transmitter unit

• Extends a 1080i (60 Hz) signal up to 200 ft., a 1080p (60 Hz) signal up to 150 ft. and a 3D signal up to 125 ft.

• Connect up to 3 B126-110 remote repeaters to the chain for maximum signal range of 700 feet (1080i), 500 feet (1080p) and 400 feet (3D)

• Connects to previous link in the chain with one Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series)

Supports the Latest Video and Audio Resolutions

• Works with all operating systems and HDMI video sources

• Supports HD resolutions up to 1080p (60 Hz)

• Supports stereo and 7.1-channel surround sound (multi-channel or PCM) audio when paired with a B126-002 or B126-004 transmitter

• Supports 24-bit True Color (8 bits per channel) and HDCP

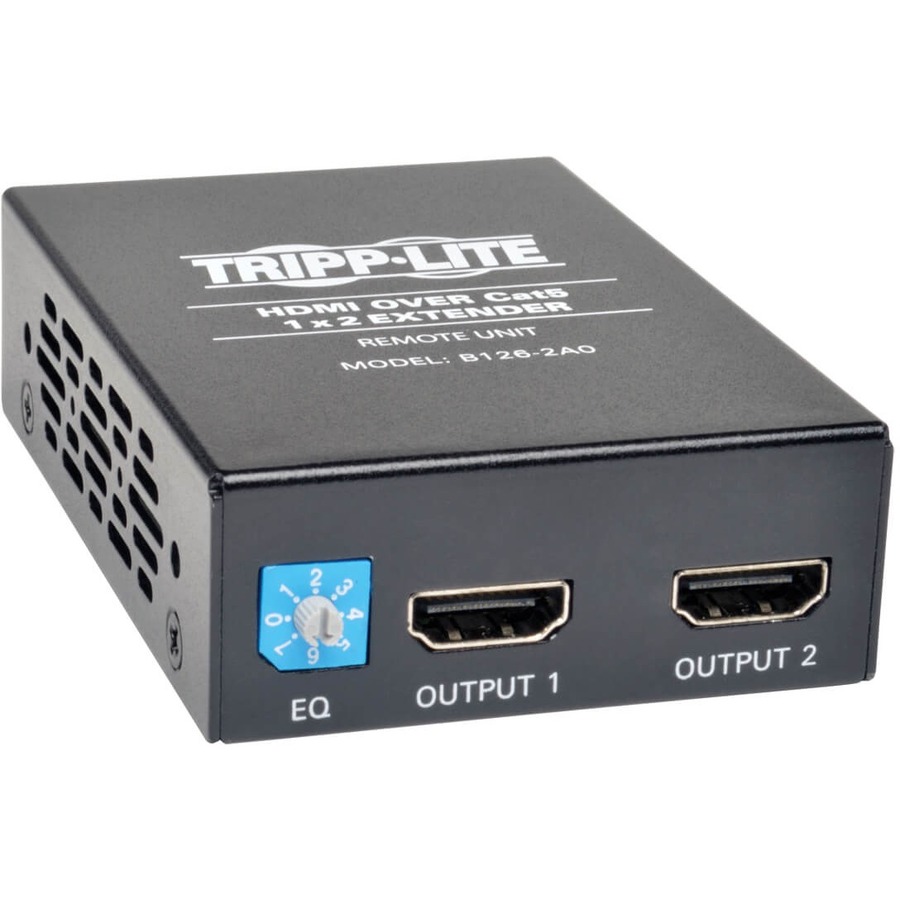

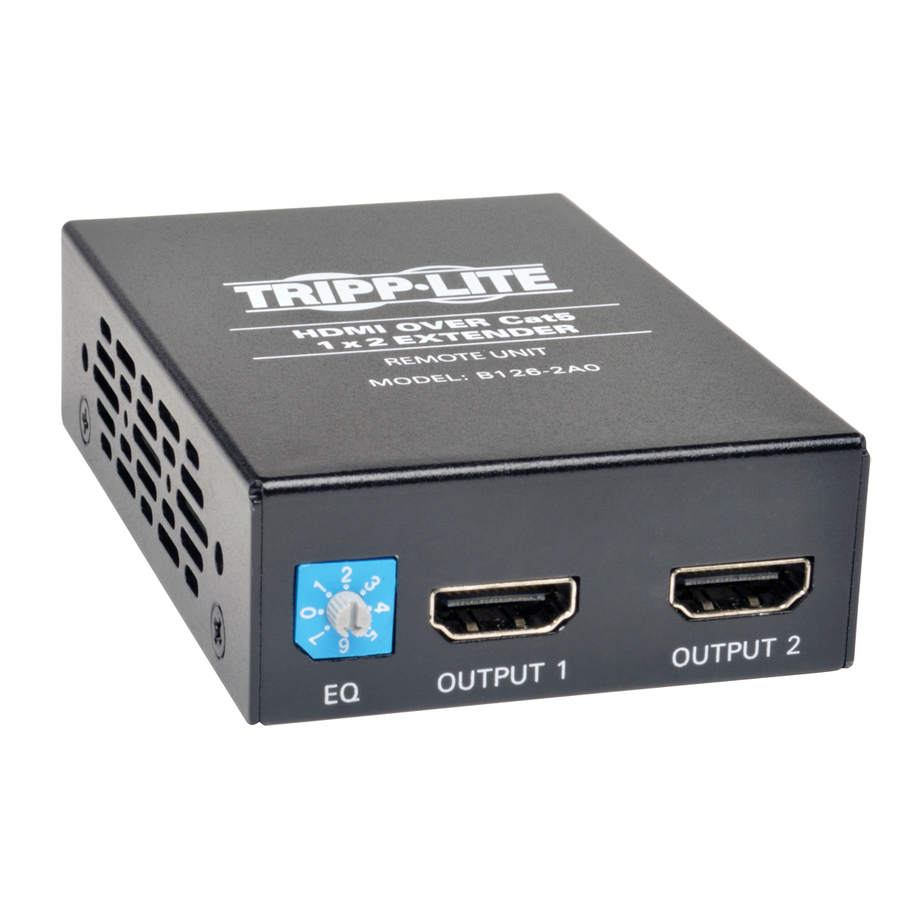

• Built-in equalization control lets you adjust the image on the local monitor

Easy to Set Up and Use

• Plug-and-play engineering-no software or drivers to download and install

• Connects quickly to monitors with HDMI cable, such as Tripp Lite's P568-Series

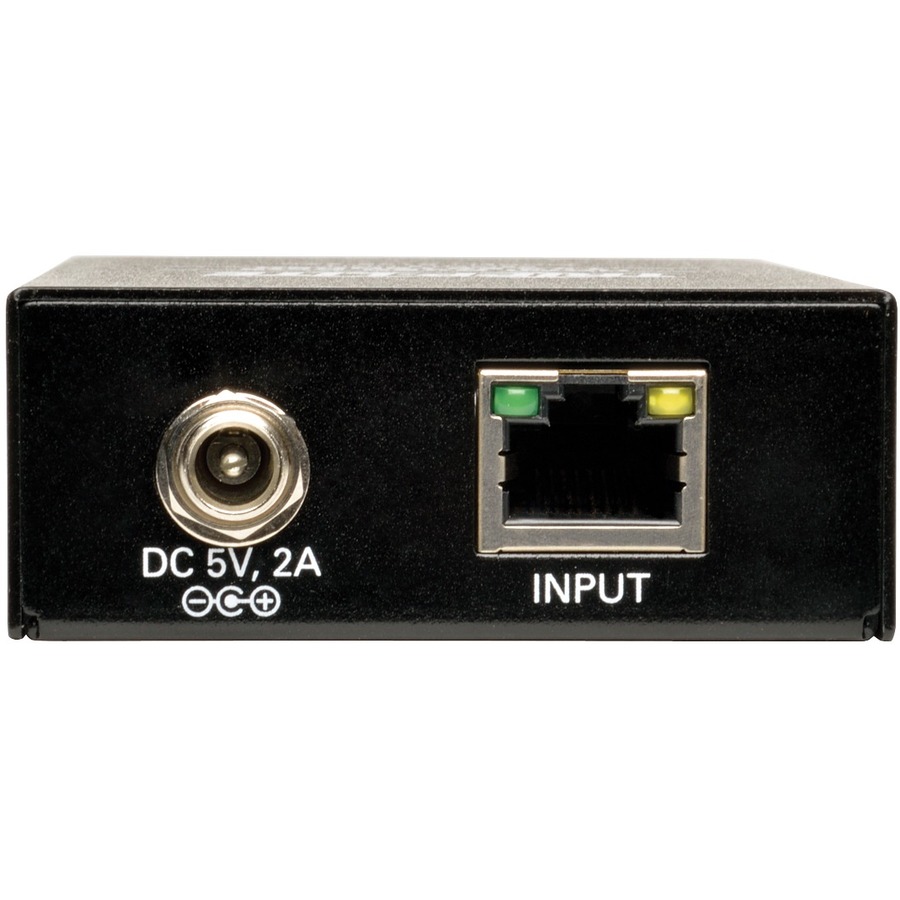

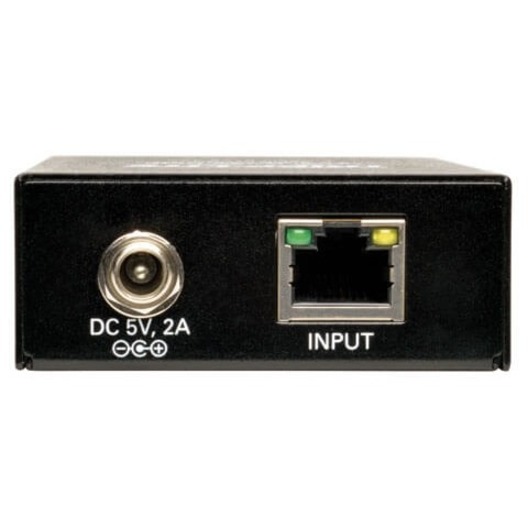

• LEDs indicate at a glance when the unit is receiving power and a signal from the previous link in the chain

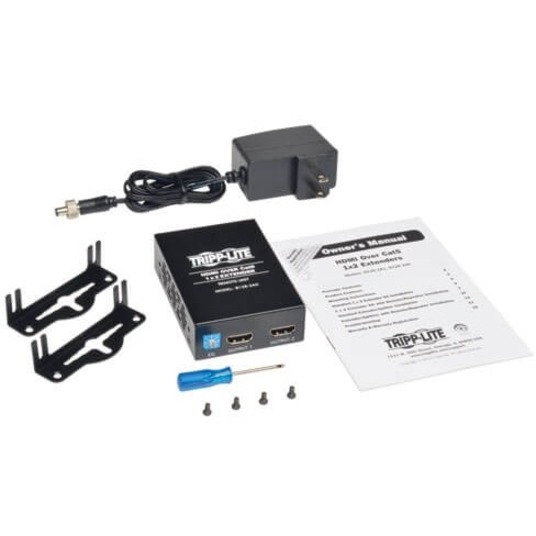

• Included mounting hardware lets you install the unit on a wall, rack or pole

TAA-Compliant

• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

More from the Manufacturer

Smart Solution for Digital Applications and Greater Distance

The B126-2A0 extends an HDMI signal up to 200 ft., making it ideal for digital signage applications requiring distance between the video source and monitors, such as retail and point-of-sale displays and trade show presentations. The B126-2A0 allows the video source to be in a secure, remote location for controlled access while still delivering a signal to devices in another area.

The B126-2A0 extends an HDMI signal beyond the 15-ft. (5-meter) distance limitation. It can extend a 1080i (60Hz) signal up to 200 ft., a 1080p (60Hz) signal up to 150 ft., and a 3D signal up to 125 ft. You can add up to three B126-110 repeater units on each Cat5e/6 channel for a total of 4 displays per channel (an active remote receiver should be the last unit in a channel). For each repeater added into a channel, a 1080i (60Hz) signal can extend up to 175 ft. and a 1080p (60Hz) signal can extend up to 125 ft. Additionally, the B126-2A0 is compatible with both stereo and 7.1 channel surround sound audio, delivering premium sound quality to every point of your application. For optimal distance and resolution, use 24 AWG solid-wire Cat5e/6 cable (Tripp Lite N202-series).

Premium Stereo Audio, Plug and Play and One-Year Warranty

The B126-2A0 is compatible with both stereo and 7.1 channel surround sound (7.1 channel surround sound signal will be Multi-Channel or PCM). This delivers premium sound quality to every point of your application and adds greater functionality to your displays.

With no software or drivers to install, the B126-2A0 has plug-and-play convenience to get your application up and running faster. Connect your transmitter to an HDMI source using HDMI cable (Tripp Lite P568 series), connect the B126-2A0 to the RJ45 port on the transmitter using a Cat5e/6 cable, and connect the B126-2A0 to your two displays using HDMI cable (Tripp Lite P568 series). The B126-2A0 is compatible with all HDMI video sources and operating systems.

The B126-2A0 is manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility. It is also TAA-compliant for GSA schedule purchases. For peace of mind, the B126-2A0 comes backed by a one-year warranty.
