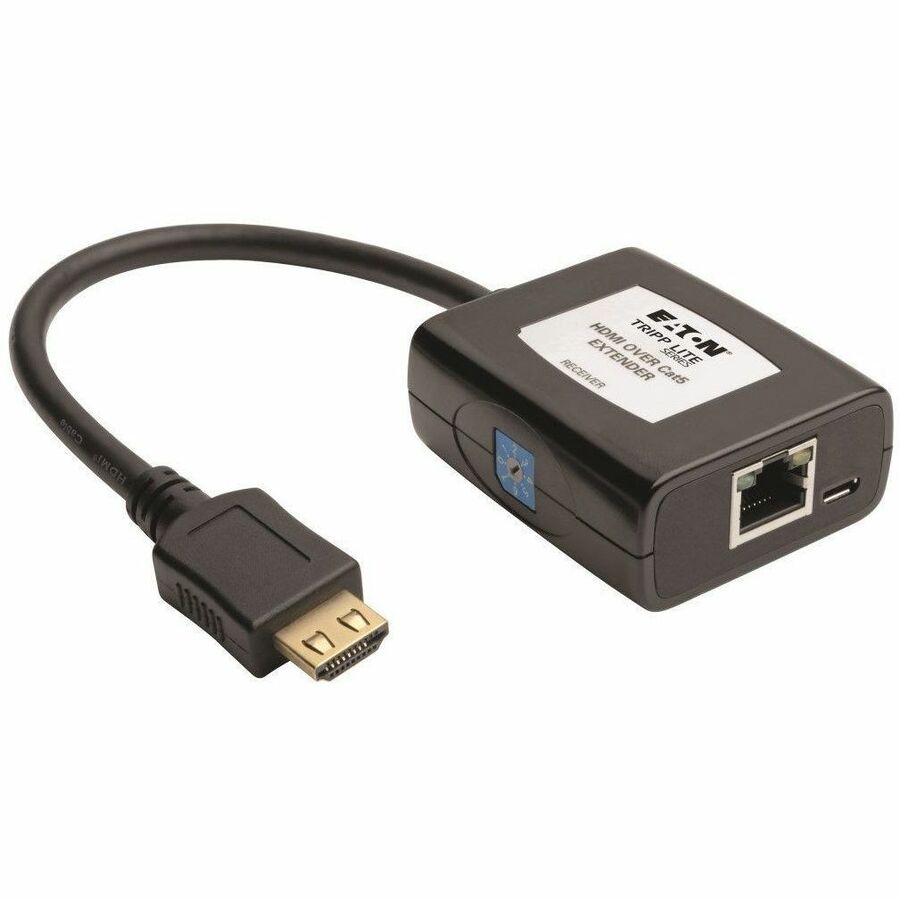

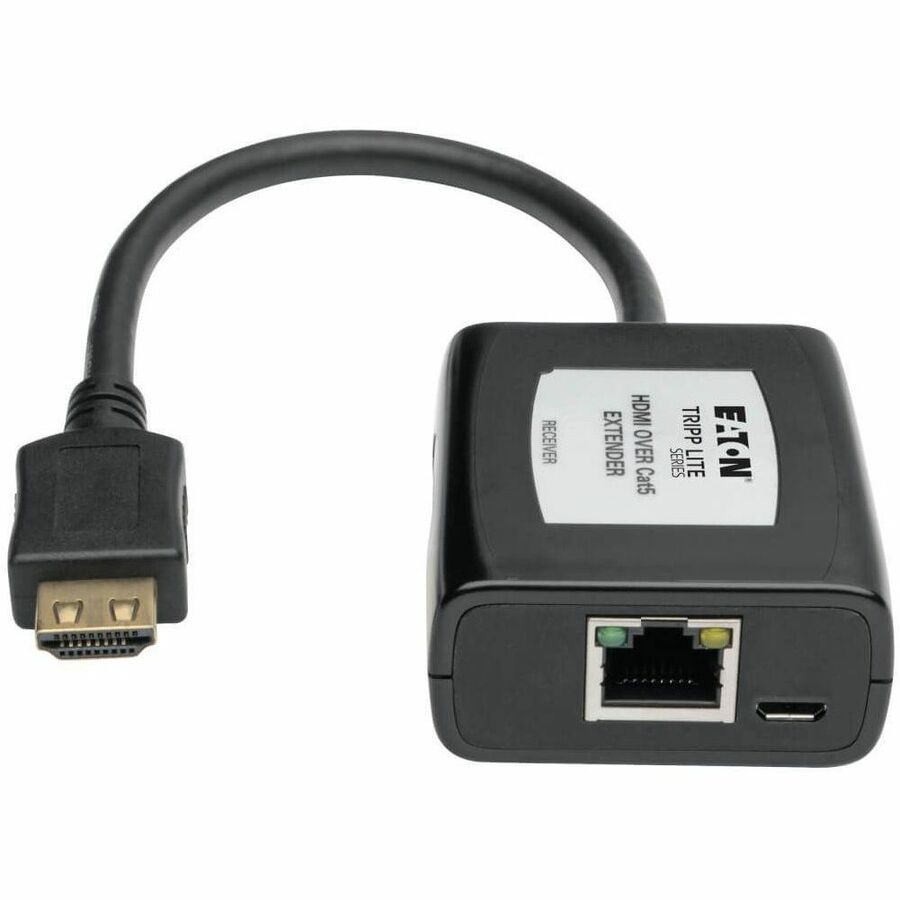

Eaton Tripp Lite Series HDMI over Cat5/6 Extender, Pigtail-Style Receiver for Video/Audio, USB Powered, Up to 125 ft. (38 m), TAA

The B126-1A0-U HDMI over Cat5/Cat6 Active Extender works with Tripp Lite's B126-002 or B126-004 transmitter to extend an HDMI audio/video signal to an HDMI projector, monitor or television. It's ideal for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow.

The receiver's built-in HDMI cable connects to the display. Cat5e/6 cable connects the receiver to the B126-Series transmitter(for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series). Power is supplied by the included USB Micro-B to USB-A cable, which connects between the receiver and a USB port on the display or a USB wall charger.

The B126-1A0-U can extend a 1080p(@ 60 Hz) signal up to 125 feet with full, rich stereo. Built-in RJ45 LEDs indicate the units are receiving power and a signal from the source. Built-in equalization control lets you fine-tune the image quality at the display. Easy to set up with no software or drivers to install. Works with all operating systems and HDMI sources.

Features

Extends HDMI Audio/Video Signals to an HDMI Display

• Extends a 1080p (@ 60 Hz) signal up to 125 ft.

• Ideal for digital signs, trade shows, presentations, classrooms, churches and retail settings

• Connects to transmitter with one Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series)

• Supports stereo audio and HDCP

• Built-in equalization control lets you adjust the image

Easy to Set Up and Use

• Plug-and-play engineering-no software, drivers or external power supply

• Powered via included USB cable

• Connects quickly to display with built-in HDMI cable

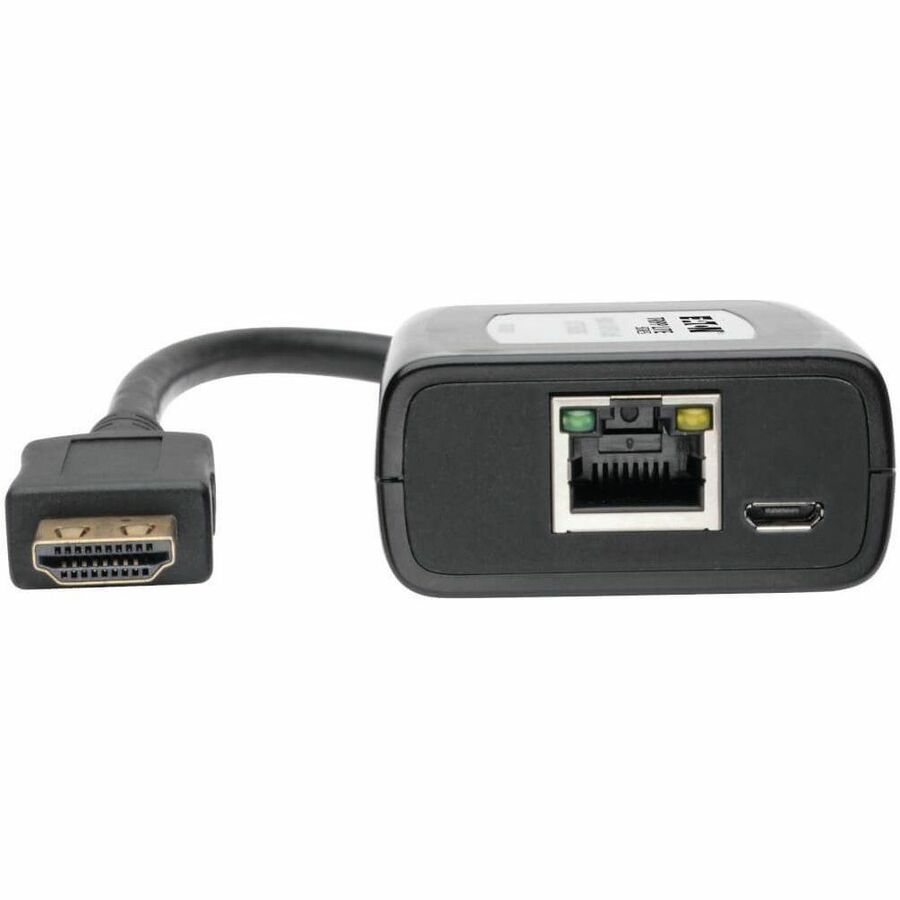

• LEDs indicate when units are receiving power and a signal from the source

• Works with all operating systems and HDMI sources

TAA-Compliant

• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

System Requirements

• Display with HDMI port

More from the Manufacturer

Extend an HDMI Signal Up to 125 ft. Using Cat5e/6 Cable

Tripp Lite’s B126-1A0-U HDMI over Cat5/Cat6 Active Extender is a pigtail-style receiver that works with a Tripp Lite B126-Series transmitter (sold separately) and inexpensive Cat5e/6 cable to extend an HDMI audio/video signal up to 125 ft. from the source. This receiver is powered by an included USB Micro-B to USB-A cable with no other external power supply required. Because of its affordability and ease of use, it’s perfect for digital signage, trade show presentations, conference rooms, lecture halls, retail environments, churches and schools.

Deliver High-Definition Video and Rich, Full Sound

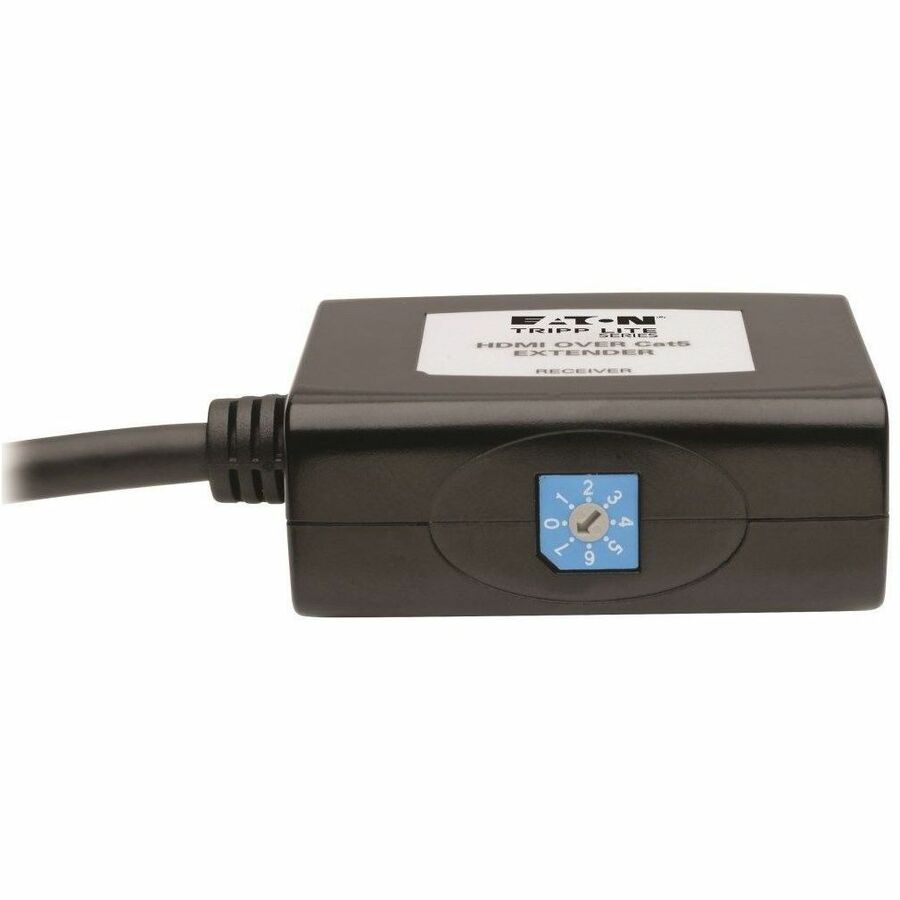

The B126-1A0-U supports HD video resolutions up to 1080p (@ 60 Hz) as well as stereo audio and 3D formatting. It’s also HDCP-compliant so you can rest assured that all transmitted digital content will be protected from interception. Additionally, a built-in equalization control lets you fine-tune the image quality on the remote display using an included screwdriver.

Plug-and-Play Setup with a Latching HDMI Connector

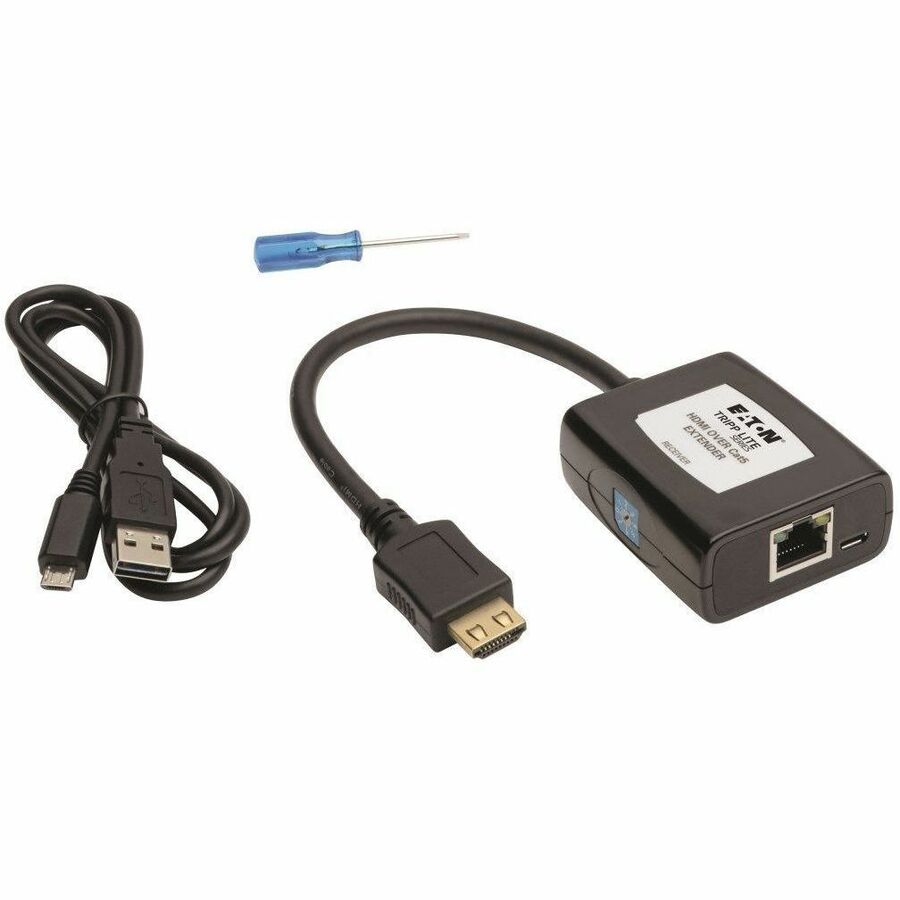

With no software or drivers to install, the B126-1A0-U’s plug-and-play setup gets your application up and running quickly, no matter what operating system you use. Connect a B126-Series transmitter to the unit using Cat5e/6 cable (for best results, use 24 AWG solid-wire cable, such as Tripp Lite’s N202-Series). Next, use the receiver’s built-in HDMI cable to connect the unit to your display. The cable’s latching connector will ensure that it stays connected. To power the receiver, use the included USB Micro-B to Type-A cable. Simply plug its Micro-B connector into the corresponding port on the receiver, then connect its Type-A end to a USB port on the display or a wall charger. Built-in LEDs indicate the unit is receiving power and a signal from the source.

One-Year Warranty and Environmentally Responsible Design

For peace of mind, the B126-1A0-U comes backed by a one-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.

TAA-Compliant for GSA Schedule Purchases The B126-1A0-U is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
