Genuine Black Box through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
VX-HDMI-HDIP-RX
Category
Audio & Video Consoles/Extenders
Overview
Scalable HD Video Distribution Over Your Existing IP Network
The MediaCento IPX HD is a robust and flexible solution for distributing High Definition (1080p) HDMI video and audio over your existing, standards-based Gigabit Ethernet network using TCP/IP protocols. Its primary benefit is enabling scalable video extension in applications like digital signage, corporate training, classroom streaming, and control room video sharing. It supports both basic point-to-point and large-scale point-to-multipoint configurations, utilizing a multicast setup where one transmitter can drive many receivers without placing extra burden on the network.
Simplified Setup
Setup is significantly simplified by its plug-and-play nature and its PoE power support, which eliminates the need for separate external power supplies. The system ensures excellent picture quality with 1080p HD resolution, an EDID copy function for optimal PC-to-screen performance, and is HDCP 2.2 compliant. It also allows for the creation of video walls up to 8x8 displays and extends signals far beyond the standard 328 feet (100 m) point-to-point distance when network switches are introduced.
Warranty
Limited Warranty: 3 Year
About Black Box
For over forty years, Black Box has been a world-leading provider of premier IT infrastructure solutions. Today, we continue to design and manufacture award-winning products for Pro AV, KVM, cabling and networking known for their advanced functionality, flawless performance, outstanding reliability and fail-safe security. Our solutions are used every day in government, education, commercial enterprises and any other organization that requires the utmost quality and performance from their IT infrastructure.
On top of creating industry-leading products, Black Box demonstrates every day a complete commitment to providing our customers with the best technical support and service in the industry. Our award-winning, dedicated support staff works around the clock to ensure our customers’ systems are always up and running optimally. They are truly as important to the successful IT, communications and business operations of our customers as the powerful products and solutions we deliver.
Highlights
Supports up to 1080p HD
Setup units using only the front panel interface, no additional configuration required
Intercompatible with the MediaCento 4k
Any source to any screen, over IP
Extend HDMI video signals over a Gigabit Ethernet network
Create eye-catching video walls of up to 8x8 displays
PoE power eliminates external power supplies
Use with the MediaCento Controller for matrix switching and video wall control
Maximum latency 2 frames or 33ms
Specifications
General Information
Manufacturer
Black Box Corporation
Manufacturer Part Number
VX-HDMI-HDIP-RX
Brand Name
Black Box
Product Line
MediaCento
Product Name

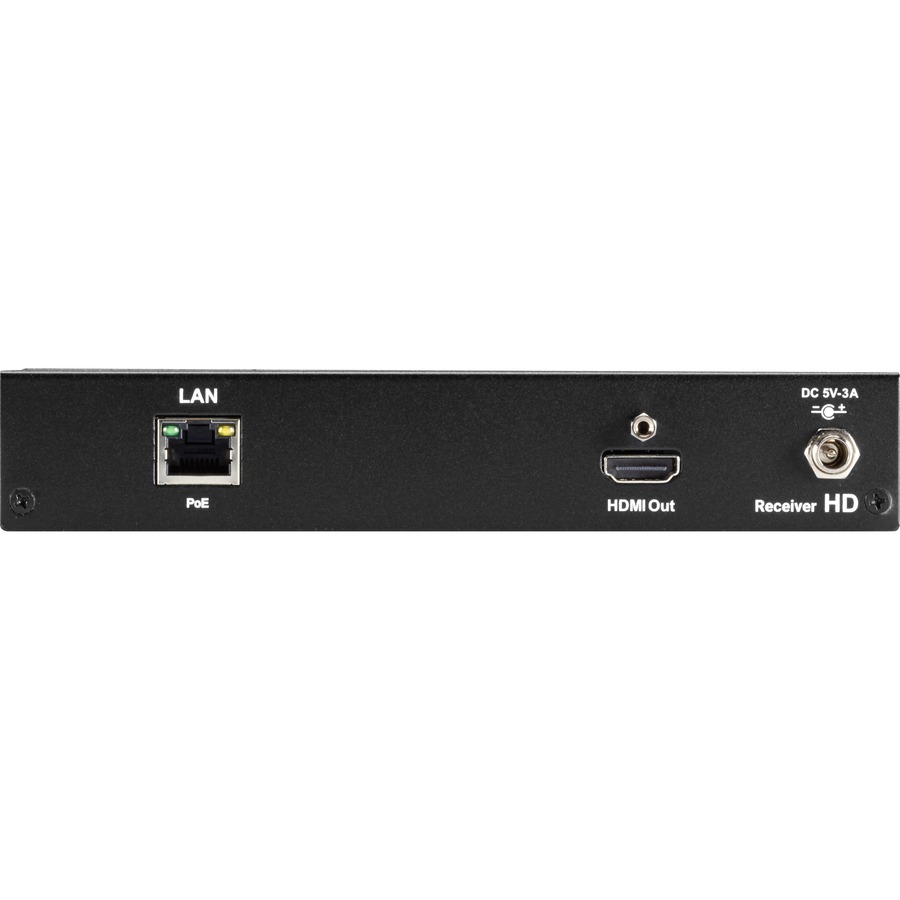

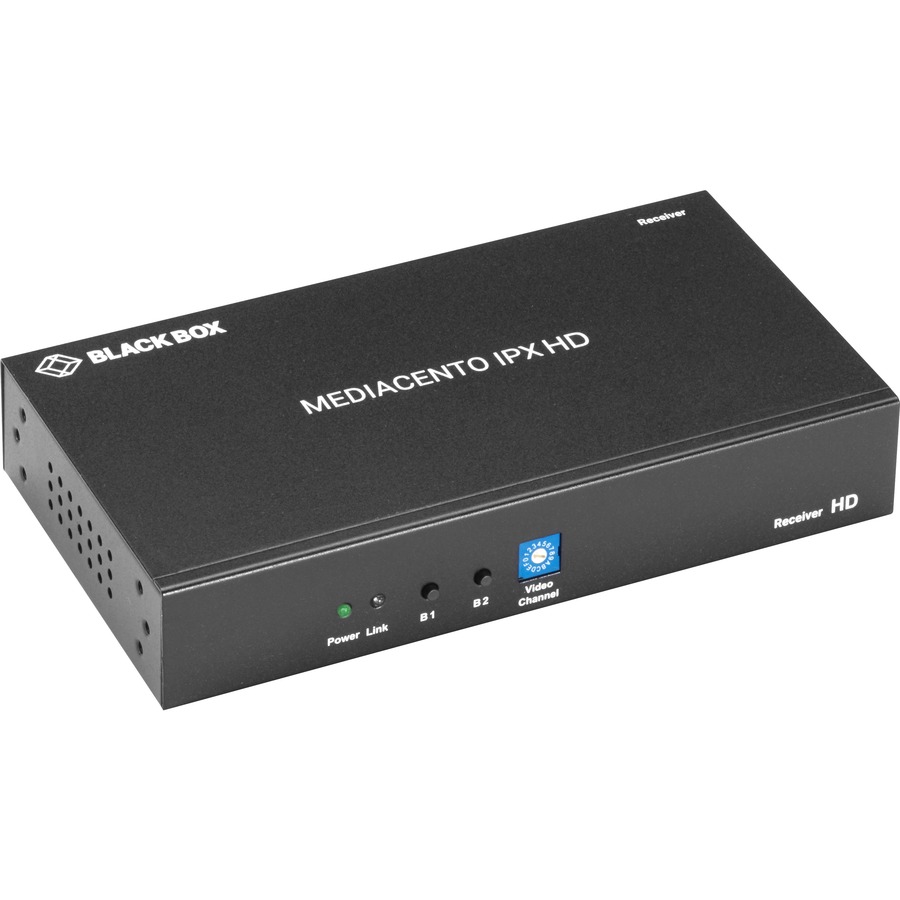

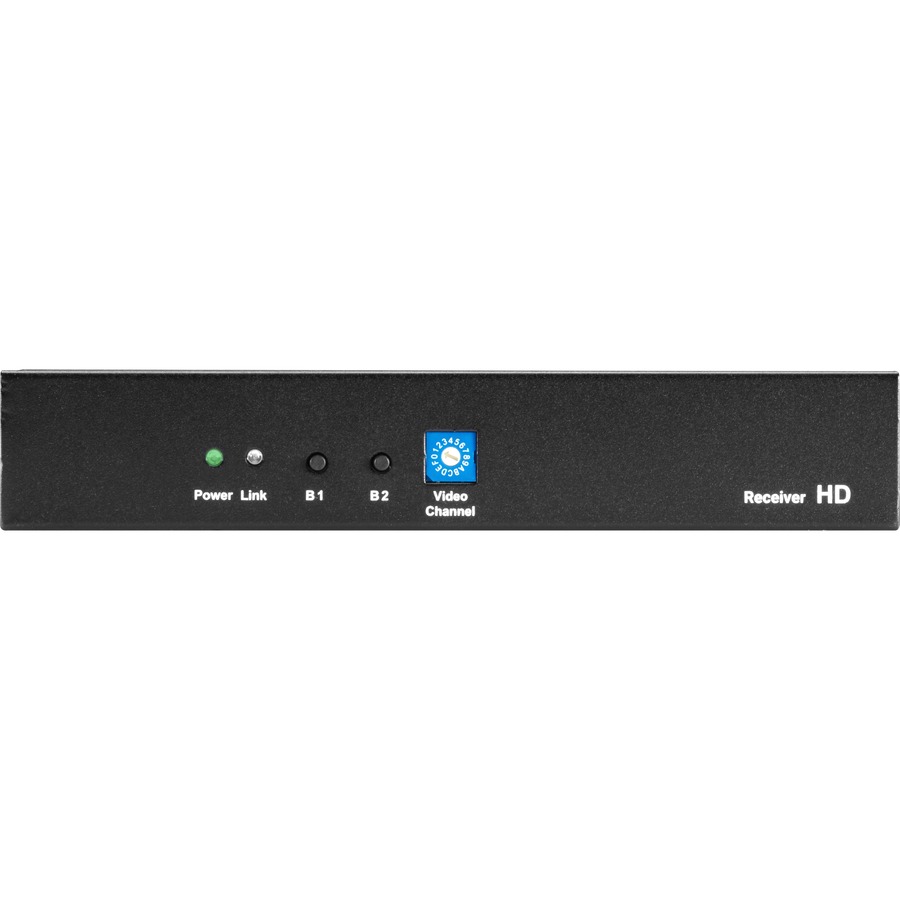

MediaCento IPX HD Extender Receiver - HDMI-over-IP
Product Type
Video Extender Receiver
Interfaces/Ports
Network (RJ-45)
Yes
HDMI Out
Yes
Number of Network (RJ-45) Ports
1
Number of HDMI Outputs
1
Media & Performance
Media Type Supported
Twisted Pair
Physical Characteristics
Receiver Height
1.26"
Receiver Width
7.09"
Receiver Depth
3.86"
Receiver Weight (Approximate)
1.04 lb
Technical Information
Connectivity Technology
Wired
Number of Output Devices Supported
1
Maximum Operating Distance
328.08 ft
Video
Graphics Modes
Full HD
Maximum Video Resolution
1920 x 1080
Warranty
Limited Warranty
3 Year
Miscellaneous
Package Contents
MediaCento IPX HD Extender Receiver - HDMI-Over-IP
1 x 5-VDC, 3-A Power Supply
1 x Quick Start Guide
Country of Origin
Taiwan
TAA Compliant
Yes
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS) 2
