SKU
AVX-HDMI2-FO-HDB
Category
Audio & Video Consoles/Extenders
Overview
Send higher-quality video and audio signals further with this HDMI 2.0 Extender. This extender kit distributes UHD video, audio, RS232 or IR up to 1000 feet (300 meters) over fiber optic cable. The bi-directional RS-232 or IR ports to control AV devices are easy to choose by the slide switch on the rear panels. Control sources and displays from either the transmitter or receiver end using either RS232 or IR signals. The extender supports duplex fiber up to 1000 feet (300 meters).
Extend signals over duplex fiber up to 1000 feet (300 meters) while maintaining:
• Higher resolutions
• Higher frame rates
• Multiple full HD streams in the same pipe
• 21:9 aspect ratio
Warranty
Limited Warranty: 3 Year
About Black Box
For over forty years, Black Box has been a world-leading provider of premier IT infrastructure solutions. Today, we continue to design and manufacture award-winning products for Pro AV, KVM, cabling and networking known for their advanced functionality, flawless performance, outstanding reliability and fail-safe security. Our solutions are used every day in government, education, commercial enterprises and any other organization that requires the utmost quality and performance from their IT infrastructure.
On top of creating industry-leading products, Black Box demonstrates every day a complete commitment to providing our customers with the best technical support and service in the industry. Our award-winning, dedicated support staff works around the clock to ensure our customers’ systems are always up and running optimally. They are truly as important to the successful IT, communications and business operations of our customers as the powerful products and solutions we deliver.
Highlights
Supports up to 4K @ 60 4:4:4 8 bit HDMI signal transmission
Locking HDMI ports
HDCP 22 compliant
Supports HDR
Transmits 4K @ 60 4:4:4 signals up to 1000 ft via multimode OM3 cable with 10 Gbps multimode SFP+ modules (SFP+ modules are included)
Video transmission is compressed when the data rate is above 3 Gbpss
Video transmission is uncompressed when data rate 3 Gbps or lower (eg 4K @ 30 Hz 4:4:4)

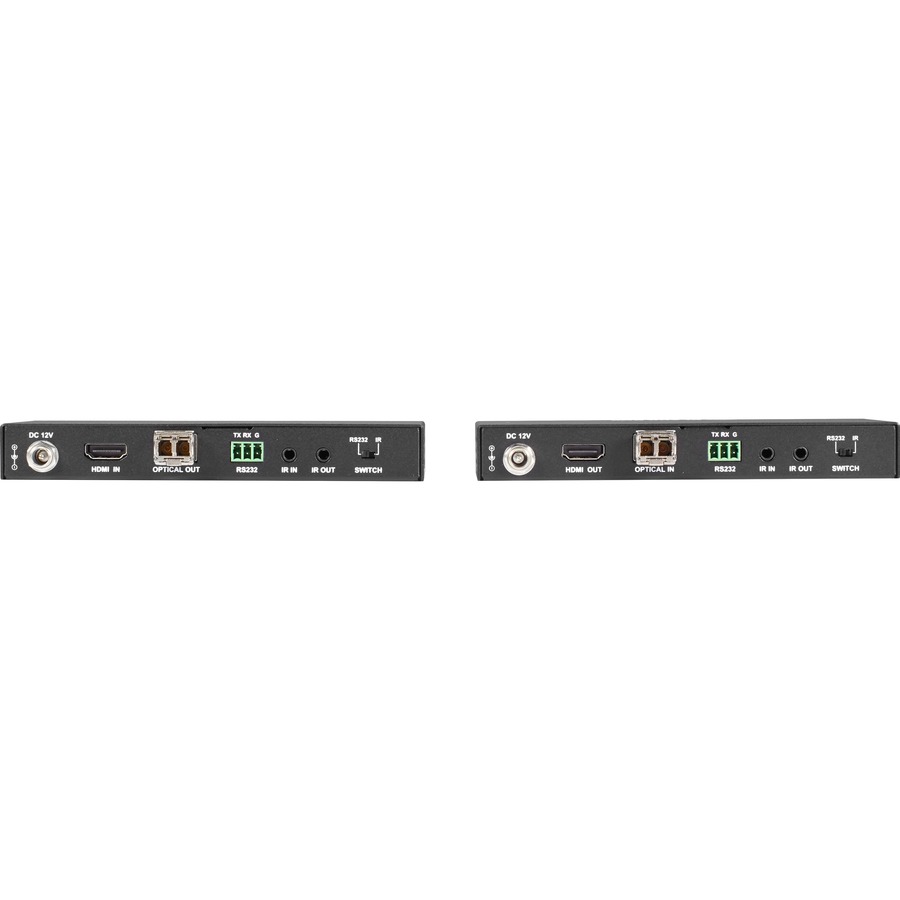

Bi-directional IR or RS232 passthrough to allow different types of displays or sources
Specifications
General Information
Manufacturer
Black Box Corporation
Manufacturer Part Number
AVX-HDMI2-FO-HDB
Brand Name
Black Box
Product Model
AVX-HDMI2-FO-HDB
Product Name
HDMI 2.0 Extender over Fiber
Product Condition
New
Product Type
Video Extender Transmitter/Receiver
Interfaces/Ports
HDMI In
Yes
HDMI Out
Yes
Number of HDMI Inputs
1
Number of HDMI Outputs
1
Media & Performance
Media Type Supported
Optical Fiber
Physical Characteristics
Transmitter Height
3.50"
Transmitter Width
5.25"
Transmitter Depth
8.25"
Receiver Height
3.50"
Receiver Width
5.25"
Receiver Depth
8.25"
Transmitter Weight (Approximate)
10.56 oz
Receiver Weight (Approximate)
10.56 oz
Technical Information
Connectivity Technology
Wired
Number of Input Devices Supported
1
Number of Output Devices Supported
1
Maximum Operating Distance
1000 ft
Video
Graphics Modes
4K
Warranty
Limited Warranty
3 Year
Miscellaneous
Country of Origin
China
Environmentally Friendly
Yes
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS)
