Black Box KVX KVXLCDPF-200 Video Extender Transmitter/Receiver
Black Box

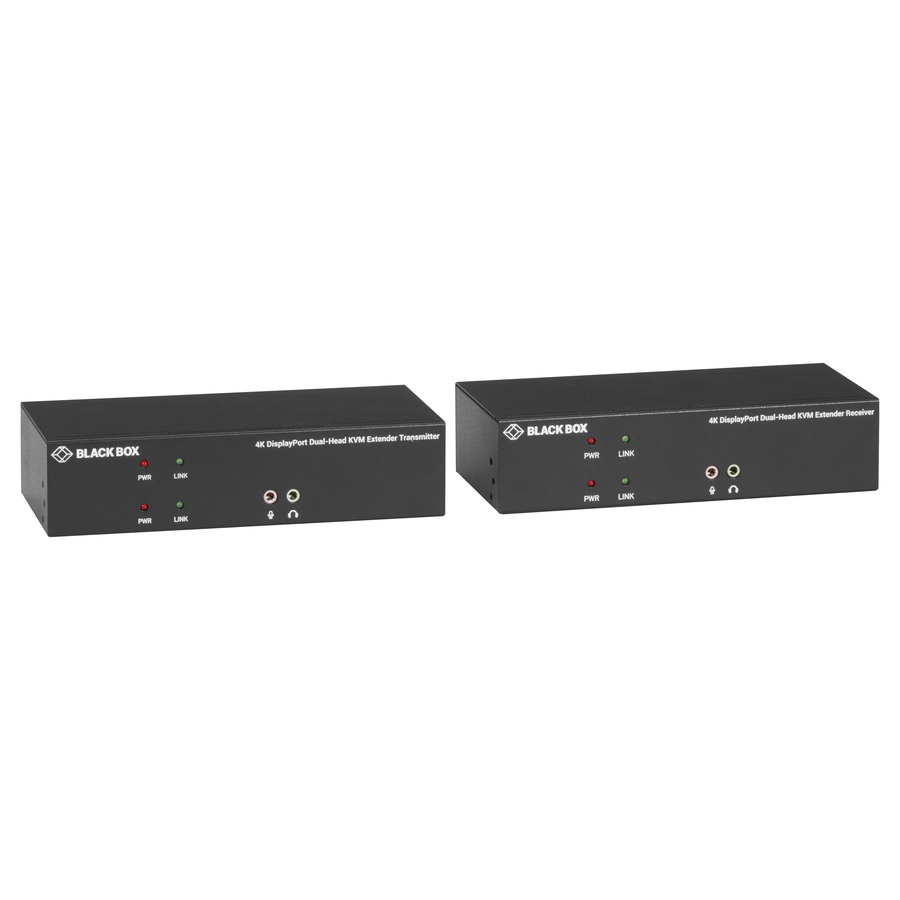

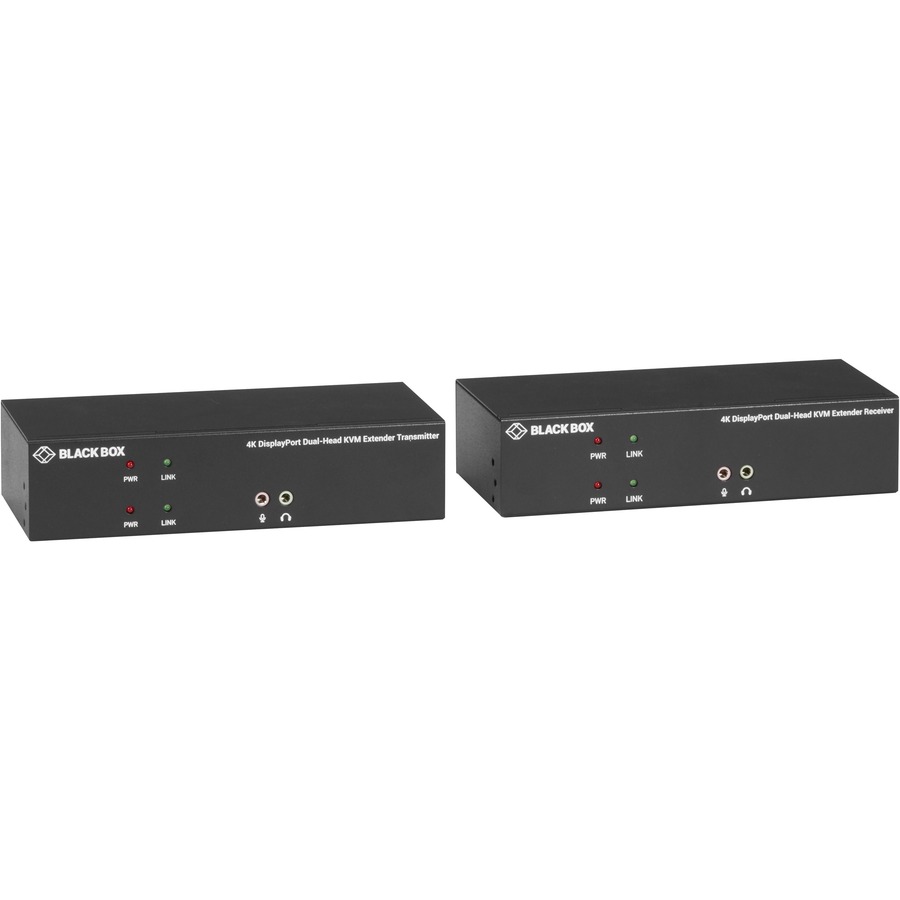

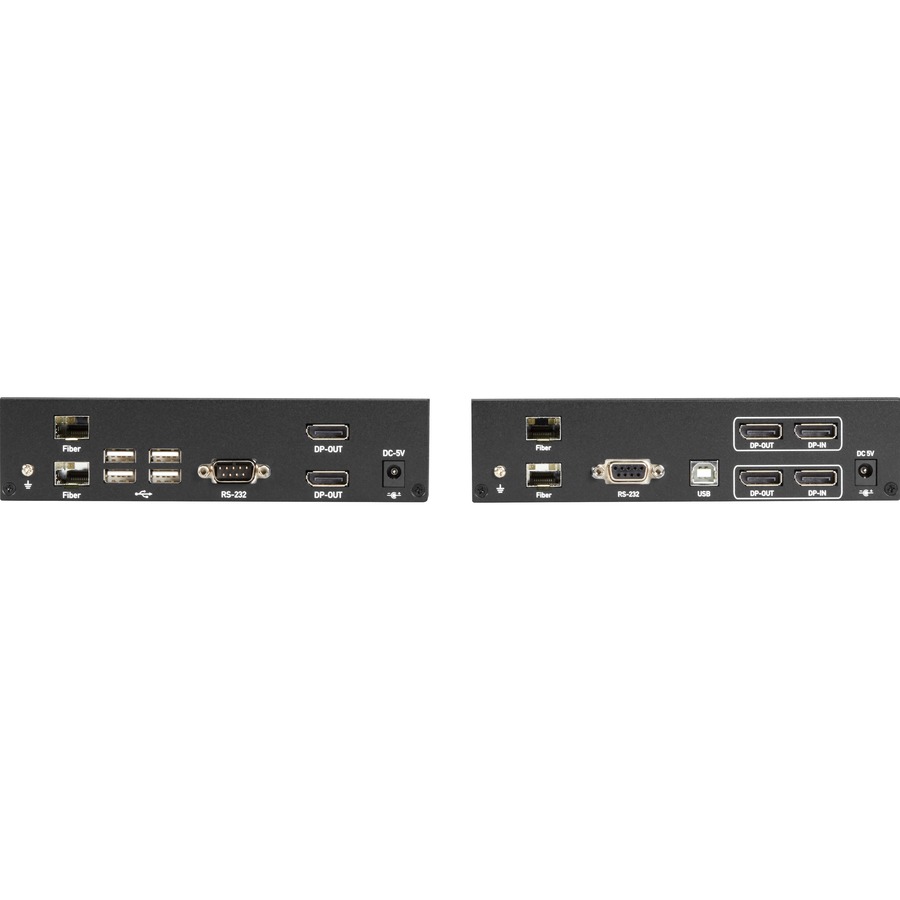

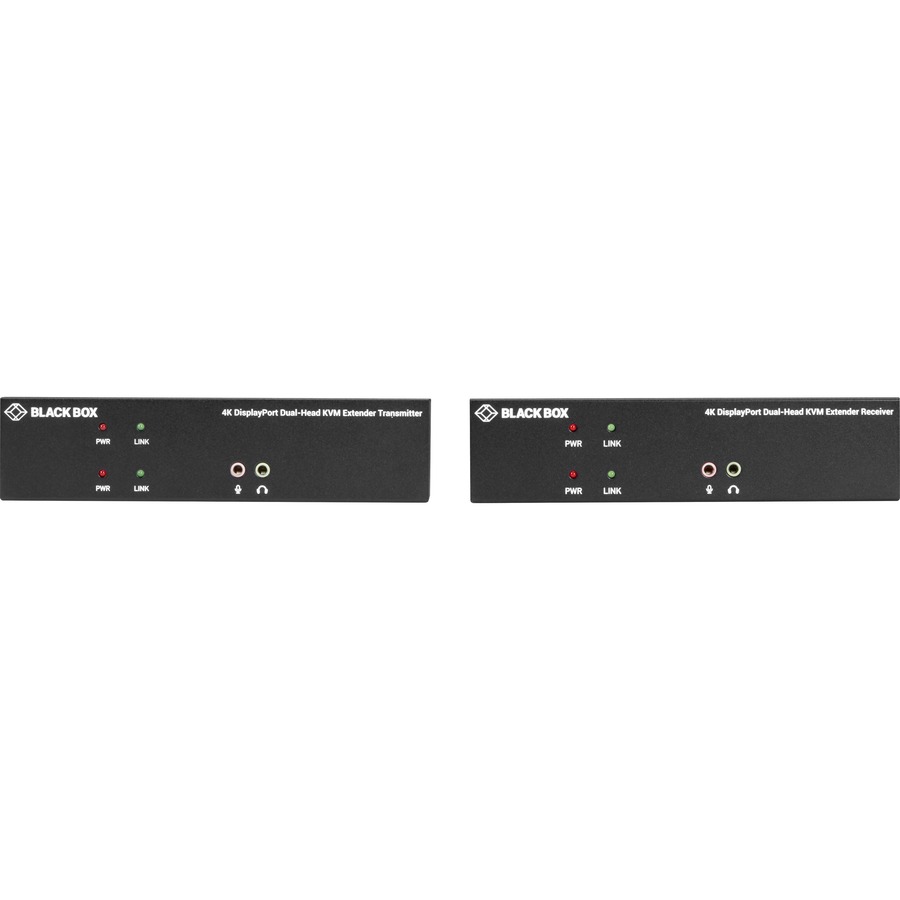

Black Box KVX KVXLCDPF-200 Video Extender Transmitter/Receiver

2 Input Device - 2 Output Device - 98425.20 ft Range - 5 x USB - DisplayPort - 4K UHD - 3840 x 2160 - Optical Fiber - TAA Compliant

SKU
KVXLCDPF-200
Category
Audio & Video Consoles/Extenders

MSRP$1,835.88

$1,437.53

Save 22%

In stock: 22

Get a quote

Genuine Black Box through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
KVXLCDPF-200
Category
Audio & Video Consoles/Extenders

Overview

The KVX Dual Head KVM Extender lets you control a server or computer over a single-mode or multimode cable at distances of up to 10 km (depending on the SFP used, fiber type, and fiber bandwidth). This extender also supports 4K video. PC connection cables are included with this product, making it a solution that is ready to use right out of the box.

You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console. KVX Dual Head is the perfect low-cost solution for transportation control centers, medical facilities, industrial warehouses, and extended workstations.

KVX Dual Head is equipped with an RS-232 serial channel that connects to a serial terminal or to serial devices, such as touchscreens and barcode scanners. It eliminates the need for traveling back and forth between the local computer and remote console, making it an efficient and flexible solution.

KVX Dual Head also includes local video, allowing access to an additional monitor at the transmitter side. It's perfect for any situation that requires monitoring of connected PCs. This extender is TAA compliant and backed by free lifetime technical support.

KVX Dual Head is ideal for applications that require the console to be in a conveniently accessible location while the system equipment needs to reside in a safe place - away from dust, dirt, and harsh environmental influences. It also provides a cost-effective way of keeping sensitive data, such as financial and personal information, safe in a heavily secured data center while still allowing remote access to users.

Highlights

  • DisplayPort dual-head 4K transmission up to 30 km over singlemode cable
  • Local and remote units connect at distances of up to 10 km using SFP below 1250 Mbps
  • Supports DisplayPort UHD video resolution up to 3840x2160 at 30Hz
  • Transparent USB 2.0 extension supports HID devices, mass storage devices
  • Supports RS-232 peripheral (serial) devices
  • Bi-directional audio via speaker/mic connection
  • Local video port loopback for monitoring on transmitter (TX) unit

Specifications

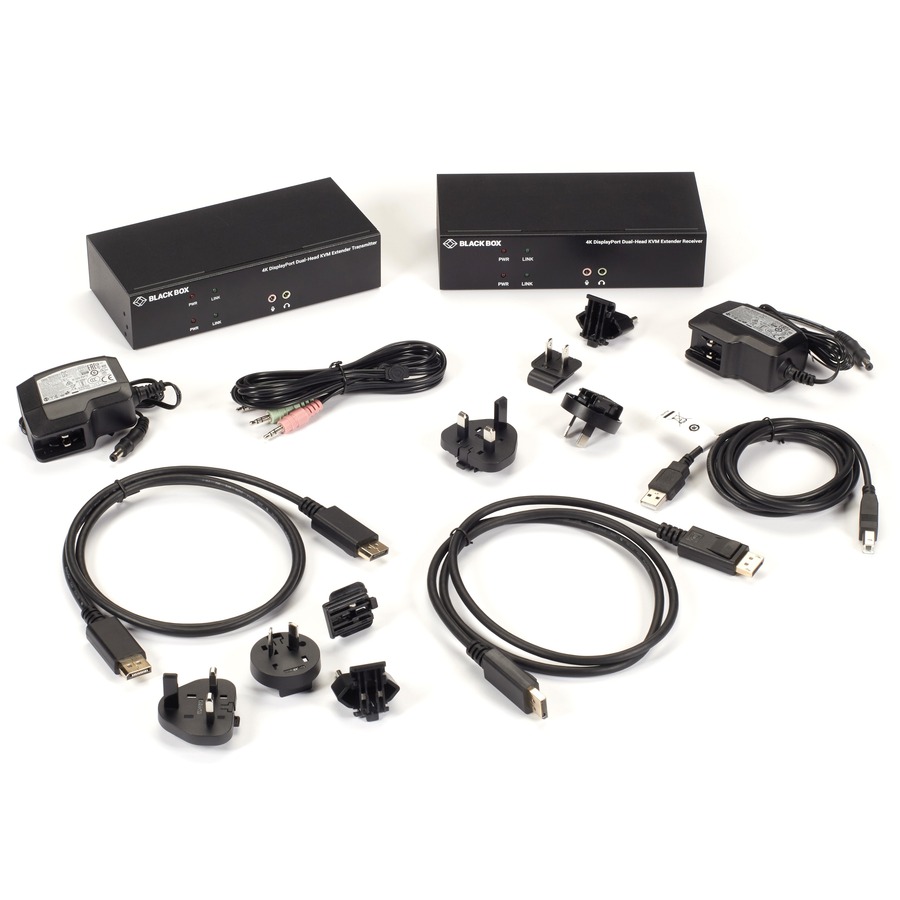

Package Contents
  • 1 x Transmitter
  • 1 x Receiver
  • 2 x 5V, 2A Power Supplies (includes US, EU, UK plug types)
  • 2 x DisplayPort Cables 1.2m (4 ft.)
  • 1 x USB Type A To B Cable, M/M 1.8m (6 ft.)
  • 1 x3.5-mm Dual Audio/Mic Cable, M/M 1.8m (6 ft.)
  • 2 x Deskmounting brackets (with screws)
Product TypeVideo Extender Transmitter/Receiver
Manufacturer Part NumberKVXLCDPF-200
Limited Warranty2 Year
Connectivity TechnologyWired
ManufacturerBlack Box Corporation
Product ModelKVXLCDPF-200
Product NameKVX KVXLCDPF-200 Video Extender Transmitter/Receiver
Product SeriesKVX
Brand NameBlack Box
Country of OriginTaiwan
Graphics Modes4K UHD
Environmentally FriendlyYes
Maximum Video Resolution3840 x 2160
Maximum Operating Distance98425.20 ft
USBYes
Number of USB Ports5
DisplayPortYes
Media Type SupportedOptical Fiber
Number of Output Devices Supported2
Number of Input Devices Supported2
Transmitter Height0.83"
Transmitter Width3.27"
Transmitter Depth7.09"
Receiver Height0.83"
Receiver Width3.27"
Receiver Depth7.09"
Transmitter Weight (Approximate)13.60 oz
Receiver Weight (Approximate)13.60 oz
TAA CompliantYes
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS)
