SIIG 4K60Hz HDMI over Cat6 Extender with Loopout & IR - 50m- HDMI Extender- Auto Downscaling
4K HDMI Extender, Easily extends HDMI 4K60Hz signals up to 164ft (50m) over a single Cat6/7 networking cable with a local HDMI output for monitoring the extended display - 18Gbps bandwidth - HDCP 2.2 / HDR 10 / 5.1CH audio - Nearly zero latency - Auto Downscaling - IR Control - Metal Housing - ESD Protection - 2 years warranty
- SKU
- CE-H27K11-S1
- Category
- Audio & Video Consoles/Extenders
MSRP$139.99
$100.13
Save 28%In stock: 1
Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- CE-H27K11-S1
- Category
- Audio & Video Consoles/Extenders
Highlights
- Extends HDMI signals from DVD players, game consoles, or HDMI-equipped computers up to 164 ft (50 meters) via Cat6/7 networking cable, ideal for home theater, conference room or other audio/video applications that require remote location setup
- Supports Ultra High-Definition video resolution up to 4K@60Hz, HDCP 2.2, YUV 4:4:4, 8-bit, HDR 4:2:0 10-bit to deliver a crystal-clear picture quality, Deep color and 3D

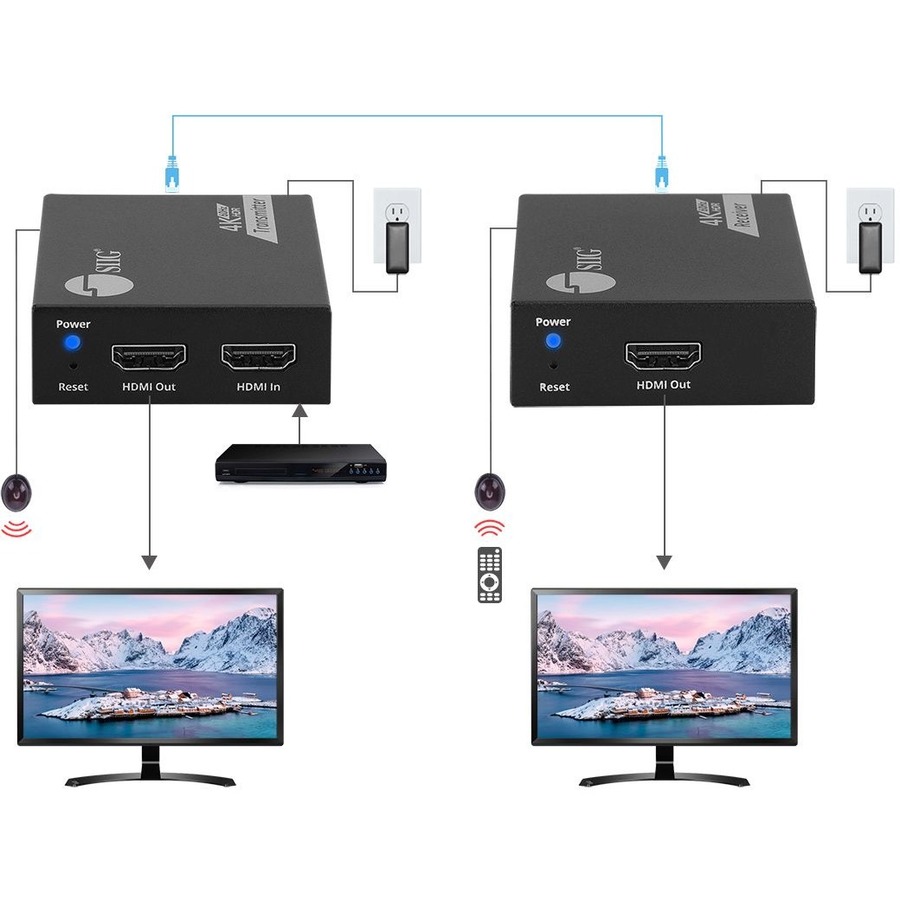

- The transmitter can work as an HDMI splitter with the additional HDMI output design and allows screen mirroring to the extended display
- Supports EDID passthrough and auto downscaling, detects and configures video resolution from 4K to 1080p to the capabilities of each connected monitor.
- Audio supports PCM / DTS-HD/ Dolby Digital 5.1ch, support IR passthrough for 20KHz to 60KHz
- Lightning Protection, Surge Protection, ESD Protection provides durability and minimizes EMI/RFI noise interference.
- Premium metal housing offers excellent heat dissipation further enhances durability for dependable performance and long life
- Plug-n-Play, no driver and software installation or hardware setup is required
Specifications
| Application/Usage | Lecture Hall, Educational Facilities, Multimedia, Home Theater, Restaurant, Shopping Center, Digital Signage System |
|---|---|
| Package Contents |
|
| Product Type | Video Extender Transmitter/Receiver |
| Manufacturer Part Number | CE-H27K11-S1 |
| Limited Warranty | 2 Year |
| Connectivity Technology | Wired |
| Manufacturer | SIIG, Inc |
| Product Name | 4K60Hz HDMI over Cat6 Extender with Loopout & IR - 50m |
| Brand Name | SIIG |
| Country of Origin | China |
| Graphics Modes | 4K |
| Environmentally Friendly | Yes |
| Maximum Video Resolution | 3840 x 2160 |
| Twisted Pair Cable Standard | Category 7 |
| Maximum Operating Distance | 164 ft |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 2 |
| HDMI In | Yes |
| HDMI Out | Yes |
| Media Type Supported | Twisted Pair |
| Number of Output Devices Supported | 2 |
| Number of Input Devices Supported | 1 |
| Transmitter Height | 0.83" |
| Transmitter Width | 2.95" |
| Transmitter Depth | 2.36" |
| Receiver Height | 0.83" |
| Receiver Width | 2.95" |
| Receiver Depth | 2.36" |
| Transmitter Weight (Approximate) | 4.64 oz |
| Receiver Weight (Approximate) | 4.64 oz |
| Product Color | Black |
| Supported Video Modes | 1080p, 1080i, 720p, 480i, 480p |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
