100M Over CAT5e/6 - Bi-directional IR Sensors - TAA Compliant
MSRP$599.99
$489.40
Save 18%In stock: 1
Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

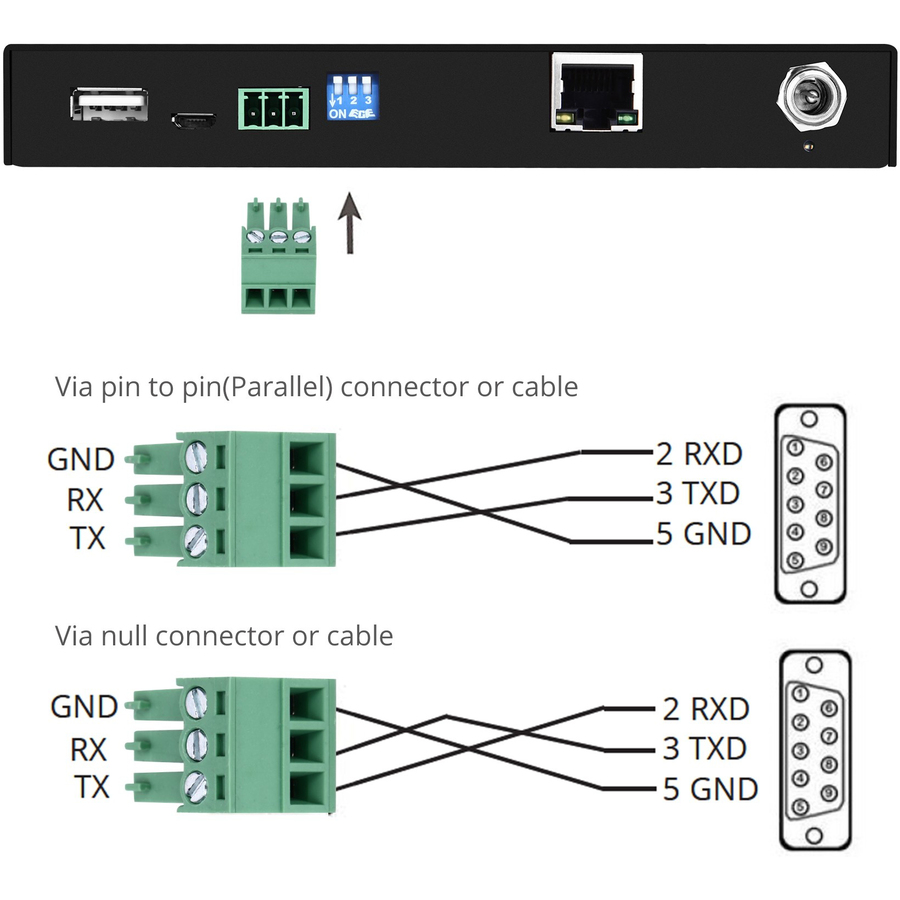

Extends HDMI audio and video signals, USB 2.0, RS232 control, IR control up to 100 meters over a single CAT5e/6 cable with industry recognized HDBaseT technology
• Extends HDMI 2.0 audio and video signal from your HDMI source to a remote HDMI display up to 330ft (100m) away at Full HD 1080p, or 230ft (70m) at 3840x2160@60Hz (4:4:4 8bit/HDR10 4:2:0 10bit) through a single premium quality CAT5e/6 cable
• Delivers crystal clear picture quality with resolution up to 3840x2160 @60Hz YUV444 8bit and HDR 3840x2160 @60Hz YUV420 10bit
• Pure unaltered uncompressed 7.1ch digital HDMI over CAT cable transmission, DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
• Supports USB 2.0 data transmission between the receiver and transmitter

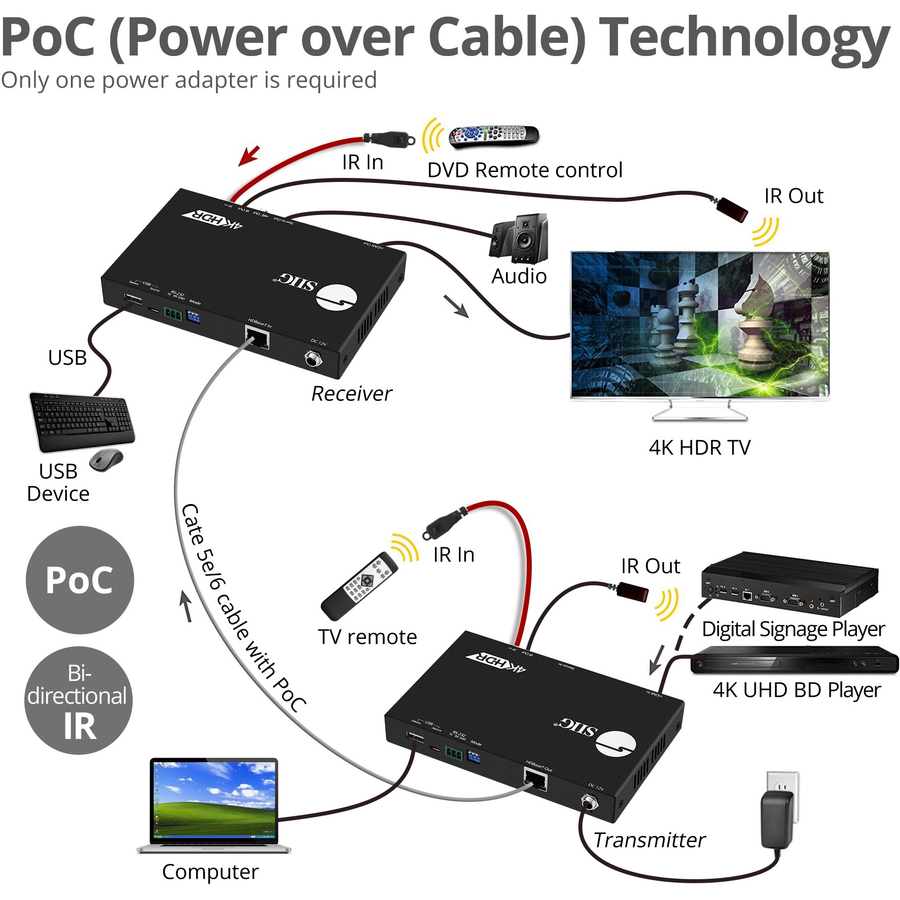

• Supports PoC (Power over Cable) technology which allows both the transmitter and receiver units to be powered through only one power adapter
• Bi-directional IR sensors allow you to remotely control the HDMI source device from the remote display side or control the remote display from the source device side
• High quality metal housing with cooling slots provide excellent ESD and electromagnetic protection plus excellent heat dissipation and cooling for stable operation during extended hours of use
• Slim profile design easily adopts into versatile application environment, wall mountable housing for easy and varied installation requirements
More from the Manufacturer
4K HDR HDMI 2.0 & USB 2.0 Extender Over HDBaseT with RS-232 & IR
Extends HDMI 2.0 audio and video signal from your HDMI source to a remote HDMI display up to 330ft (100m) away at Full HD 1080p, or 230ft (70m) at 3840x2160@60Hz (4:4:4 8bit/HDR10 4:2:0 10bit) through a single premium quality CAT5e/6 cable
Delivers crystal clear picture quality with resolution up to 3840x2160 @60Hz YUV 4:4:4 8bit and HDR 3840x2160 @60Hz YUV 4:2:0 10bit
Pure unaltered uncompressed 7.1ch digital HDMI over CAT cable transmission, DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
Supports USB 2.0 data transmission between the receiver and transmitter
Supports PoC (Power over Cable) technology which allows both the transmitter and receiver units to be powered through only one power adapter
Supports ARC on the receiver unit
Bi-directional IR sensors allow you to remotely control the HDMI source device from the remote display side or control the remote display from the source device side
High quality metal housing with cooling slots provide excellent ESD and electromagnetic protection plus excellent heat dissipation and cooling for stable operation during extended hours of use
Slim profile design easily adopts into versatile application environment, wall mountable housing for easy and varied installation requirements
Extends HDMI audio and video signals, USB 2.0, RS232 control, IR control up to 100 meters over a single CAT5e/6 cable with industry recognized HDBaseT technolog
Limited Warranty: 3 Year
About Us Since 1985, SIIG Inc. lead the way in connectivity solution you can trust for IT and AV. Built on core values of professional integrity with customer satisfaction as the focus point, we are committed to providing excellent service, support, and solutions. We want to enhance your audiovisual and information technology experience with innovative product solutions. © 2020 SIIG Inc., All rights reserved.

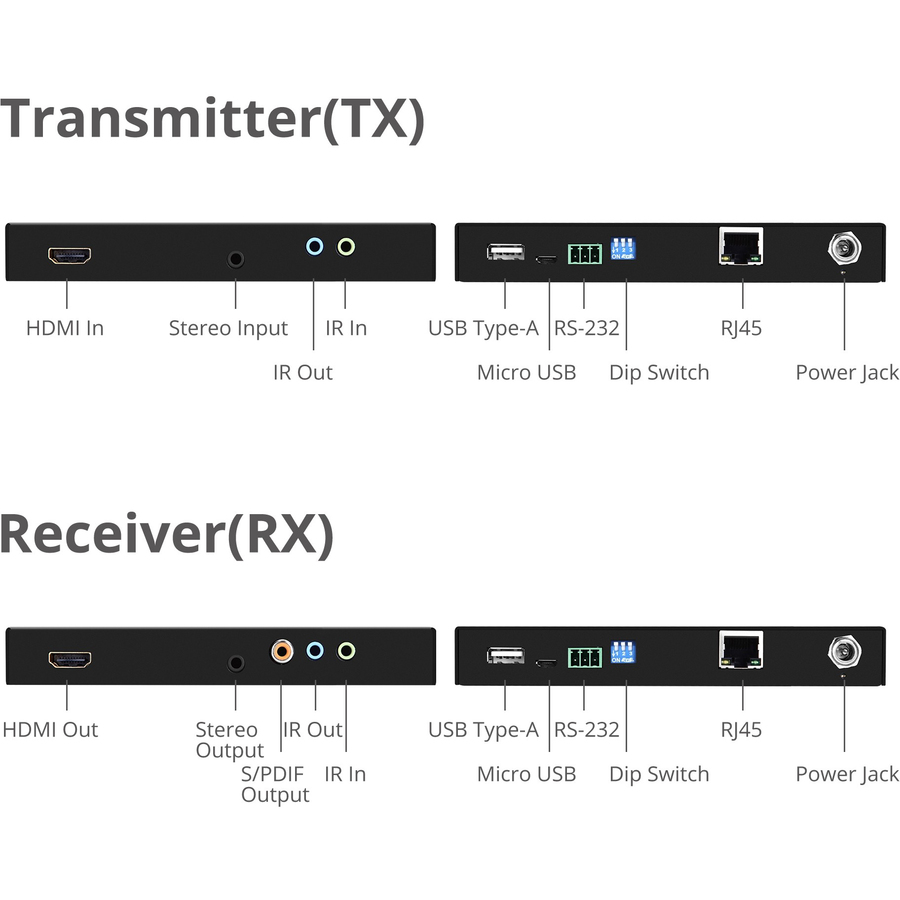

| General Information | |
|---|---|
| Manufacturer | SIIG, Inc |
| Manufacturer Part Number | CE-H23411-S1 |
| Brand Name | SIIG |
| Product Name | 4K HDR HDMI 2.0 & USB 2.0 Extender Over HDBaseT with RS-232 & IR |
| Product Type | Video Extender Transmitter/Receiver |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| HDMI Out | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 4 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 6 |
| Physical Characteristics | |
| Transmitter Height | 0.79" |
| Transmitter Width | 3.74" |
| Transmitter Depth | 5.91" |
| Form Factor | Wall Mountable |
| Transmitter Weight (Approximate) | 1.74 lb |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 328.08 ft |
| Video | |
| Graphics Modes | 4K |
| Maximum Video Resolution | 3840 x 2160 |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
