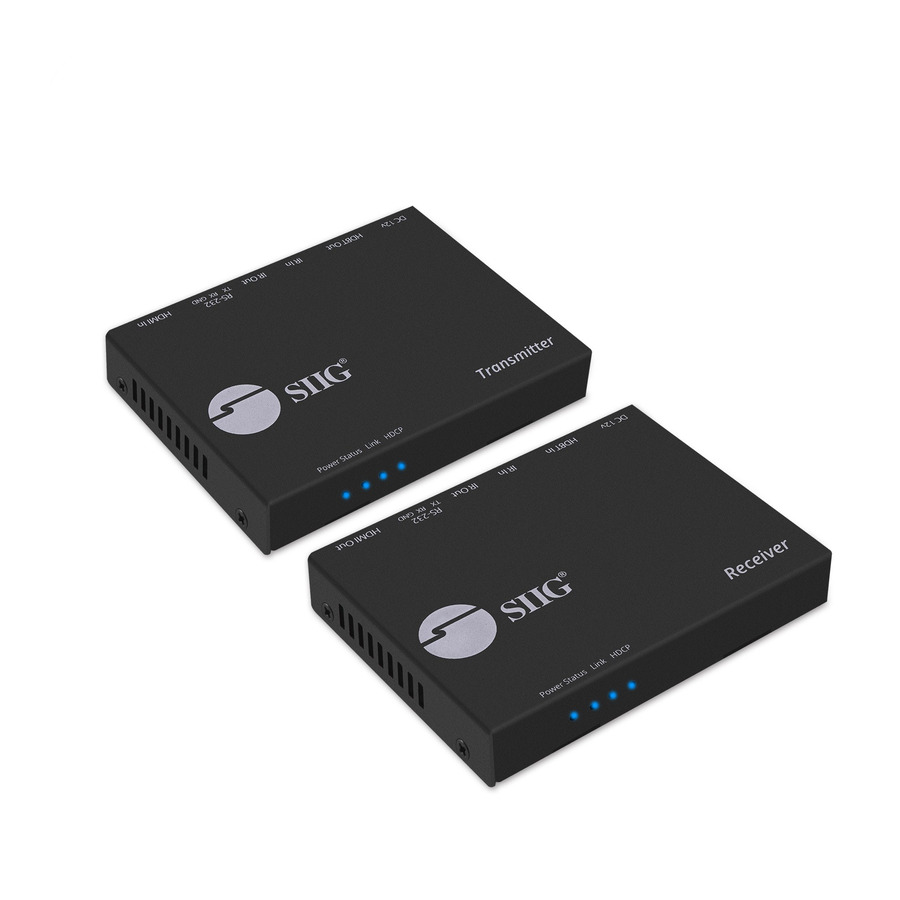

SIIG 4K HDMI HDBaseT Extender Over Single Cat5e/6 with RS-232, IR & PoC - 100m
Extends HDMI 1.4 - Distance video 4K30Hz up to 230ft/70m - 1080p60Hz up to 330ft/100m - HDCP 2.2- HDBaseT transmission protocol technology - Supports EDID pass-through / CEC / Bi-directional IR - ESD protection - 7.1 ch audio - Power over Cable - Using only a power adapter - RS-232 control - Metal housing - Wall mountable - TAA compliant - 3 years warranty& Video Signal - TAA Compliant
- SKU
- CE-H23F11-S1
- Category
- Audio & Video Consoles/Extenders
MSRP$349.99
$318.88
Save 9%Back ordered — ships when restocked.
Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- CE-H23F11-S1
- Category
- Audio & Video Consoles/Extenders
Overview
Extends HDMI 1.4 audio and video signals, RS232 control, IR control, and Power over Cable (PoC) up to 100 meters over a single CAT5e/6 cable with industry recognized HDBaseT technology
• Extends HDMI 1.4 audio and video signal from your HDMI source to a remote HDMI display up to 330ft (100m) at Full HD 1080p, up to 230ft (70m) at UHD 4K (3840x2160) through a single premium quality CAT5e/6 cable
Note : The transmission distance will vary depending on cable quality, 100% copper and IEEE-568B wiring standard recommended
• Delivers crystal clear picture quality with resolution up to 3840x2160@30Hz (YUV 4:4:4 8-bit / YUV 4:2:0 10-bit)
• Pure unaltered uncompressed 7.1ch digital HDMI over CAT cable transmission, DTS-HD Master Audio and Dolby TrueHD high bit rate audio support

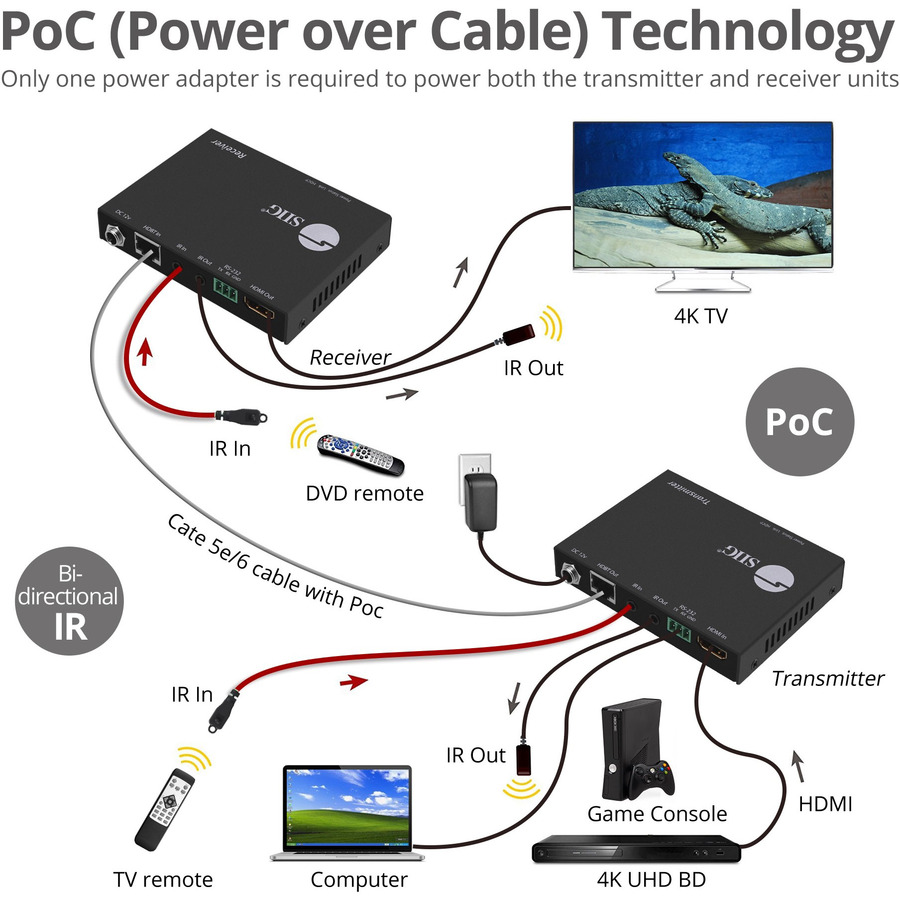

• Supports PoC (Power over Cable) technology which allows both the transmitter and receiver units to be powered using only one power adapter connected to either unit
• Bi-directional IR sensors allow you to remotely control the HDMI source device at the remote display side or control the remote display at the source device side
• High quality metal housing with cooling slots provide excellent ESD and electromagnetic protection plus excellent heat dissipation and cooling for stable operation during extended hours of use
• Slim profile design easily adopts into versatile application environment, wall mountable housing for easy and varied installation requirements
More from the Manufacturer
Highlights
- Video Extender Transmitter/Receiver is all you need for dependable and productive audio/video transmission
- 3840 x 2160 maximum video resolution for a vivid, crystal clear display with added productivity
- HDMI in allows convenient transfer of content and data to video extender transmitter/receiver to ensure maximum dependability
- HDMI out enables you to transfer data from your devices to video extender transmitter/receiver with added efficiency
- Twisted pair media type is very easy to connect and can carry both analog and digital data at the same time for maximum connection efficiency
- The CE-H23F11-S1 video extender transmitter/receiver provides plenty of freedom with wired connectivity
- 1 input devices supported for maximum feasibility and usage convenience
- 1 output devices supported to better accommodate your specific requirements
- 328.08 ft maximum operating distance for reliable coverage and maximum portability
- 4K graphics mode provides optimal video output with remarkable picture clarity
Specifications
| Package Contents |
|
|---|---|
| Product Type | Video Extender Transmitter/Receiver |
| Manufacturer Part Number | CE-H23F11-S1 |
| Limited Warranty | 3 Year |
| Connectivity Technology | Wired |
| Form Factor | Wall Mountable |
| Manufacturer | SIIG, Inc |
| Product Model | CE-H23F11-S1 |
| Product Name | 4K HDMI HDBaseT Extender Over Single Cat5e/6 with RS-232, IR & PoC - 100m |
| Brand Name | SIIG |
| Country of Origin | Taiwan |
| Graphics Modes | 4K |
| Environmentally Friendly | Yes |
| Maximum Video Resolution | 3840 x 2160 |
| Twisted Pair Cable Standard | Category 6 |
| Maximum Operating Distance | 328.08 ft |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| HDMI In | Yes |
| HDMI Out | Yes |
| Media Type Supported | Twisted Pair |
| Number of Output Devices Supported | 1 |
| Number of Input Devices Supported | 1 |
| Transmitter Height | 0.83" |
| Transmitter Width | 2.87" |
| Transmitter Depth | 4.06" |
| Transmitter Weight (Approximate) | 8 oz |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
