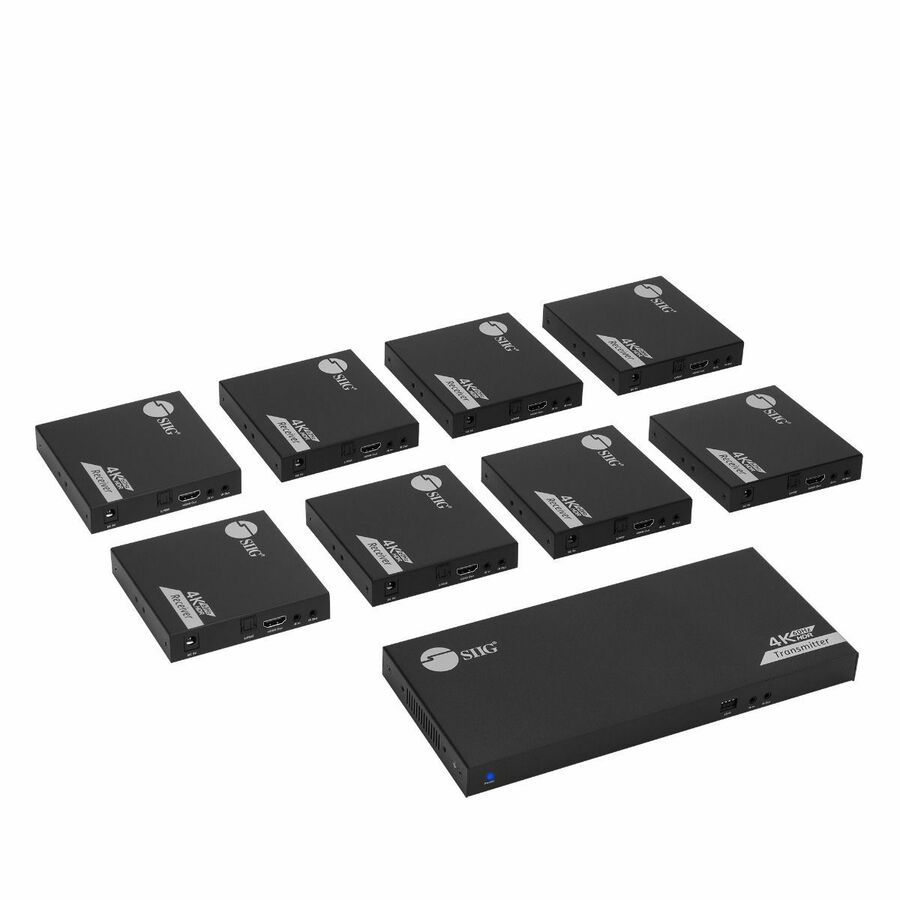

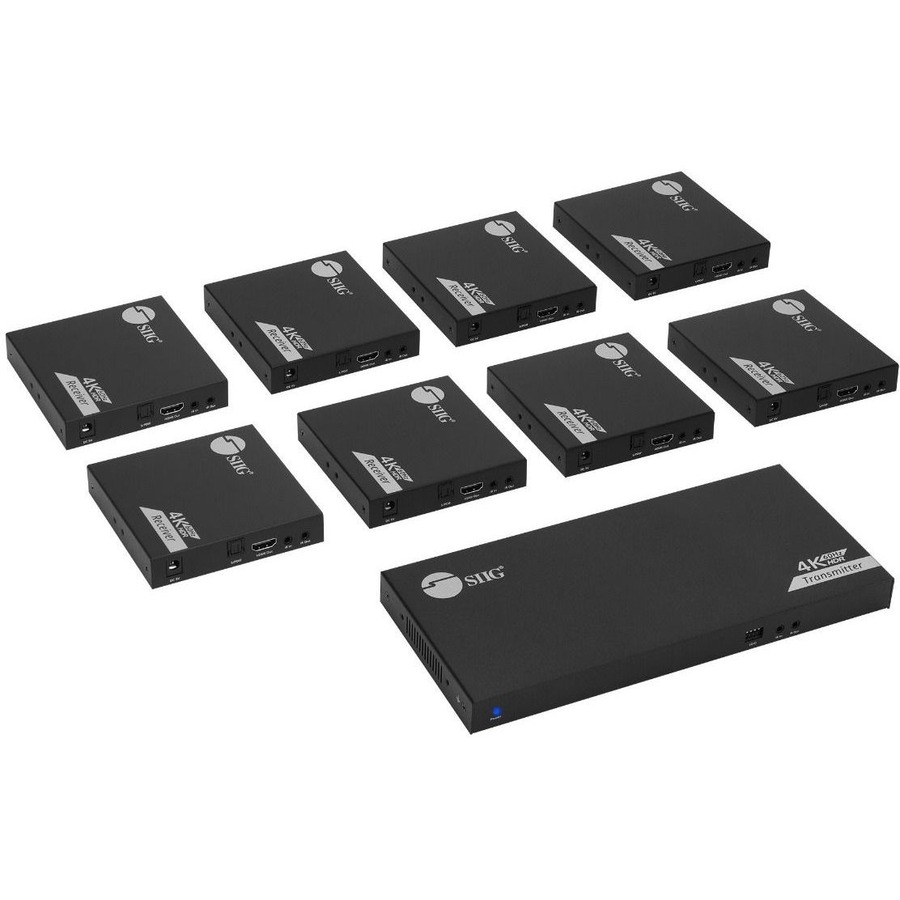

SIIG 1x8 4K 60Hz HDMI Splitter Over Cat6 Extender with Loopout/IR/ARC & RS-232 - Up to 230ft (70m) - Near Zero Latency
HDMI 1 in 1 out & 8 Ext - 1x4 HDMI 4K60Hz Splitter - 8 port HDMI Splitter - HDMI over Cat6/7 Extender - HDR - HDCP 2.2 - 7.1ch audio- HDMI Loopout - Bi-directional IR Extension - S/PDIF audio extraction or ARC audio - DIP Switch - RE-232 Control - EDID Management - Wall mountable - Power adapter / IR cable included - ESD protection - Metal housing - 2 years warranty
- SKU
- CE-H27B11-S1
- Category
- Audio & Video Consoles/Extenders
MSRP$1,799.99
$1,394.40
Save 23%In stock: 29
Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- CE-H27B11-S1
- Category
- Audio & Video Consoles/Extenders
Overview
Multiple Connectivity Ports
Comes with one HDMI video input port, one HDMI video loop-out port, eight HDMI video output ports, sixteen RJ45 network ports, nine 3.5mm IR emitter ports, nine 3.5mm IR receiver ports, eight S/PDIF ports, one RS-232 terminal block, one DIP switch, nine reset buttons, eight audio slide switches, one DC power jack (12V/2A) for TX, eight DC power jacks (5V/2A) for RXs
Applications
• Meeting room
• Lecture hall
• Educational facilities
• Multimedia education
• Home theater
• Restaurant
• Shopping center
• Library
• Show room
Highlights
- 4K HDMI Extension - Easily extends UHD 4K@60Hz HDMI signals up to 230ft (70m) over economical Cat6/7 cabling to up to 8 displays
- Advanced Transmission Technology - Unique ultra-high-definition video digital transmission and connection extender technology, can extend and transmit 4K@60Hz YUV 4:4:4 video and audio, with zero latency, HDR
- HDMI Loopout + Extend 8 Displays - Supports one HDMI loop-out for additional local display connections and extender 8 receivers for HDTV or Projector via Cat6/7 cable
- EDID Management - Support EDID management capability to controls the resolution output to the display(s)
- Audio Extraction - Extracts digital audio from the HDMI signal and routes it through the receiver's digital S/PDIF port via PCM2, Dolby 5.1, DTS 5.1 audio signal
- IR Control - Built-in bi-directional IR provides full remote control capabilities, control the HDMI source device at the remote display location and vice versa
- ARC and Audio Extraction - Through the Toslink connection of the Receiver (RX)
- RS-232 Control - Support RS-232 command control in the Transmitter
- Protection - Lightning Protection, Surge Protection, ESD Protection
- High Quality Wall mount Design - High quality metal housing improve heat dissipation and ensure system stability during long hours of operation
Specifications
| Package Contents |
|
|---|---|
| Product Type | Video Extender Transmitter/Receiver |
| Manufacturer Part Number | CE-H27B11-S1 |
| Limited Warranty | 2 Year |
| Connectivity Technology | Wired |
| Manufacturer | SIIG, Inc |
| Product Name | 1x8 HDMI Splitter Over Cat6 Extender with Loopout, IR, ARC & RS-232 |
| Brand Name | SIIG |
| Country of Origin | China |
| Graphics Modes | 4K |
| Environmentally Friendly | Yes |
| Maximum Video Resolution | 3840 x 2160 |
| Twisted Pair Cable Standard | Category 7 |
| Maximum Operating Distance | 229.66 ft |
| Number of Network (RJ-45) Ports | 16 |
| Network (RJ-45) | Yes |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 9 |
| HDMI In | Yes |
| HDMI Out | Yes |
| Media Type Supported | Twisted Pair |
| Number of Output Devices Supported | 8 |
| Number of Input Devices Supported | 1 |
| Transmitter Height | 0.91" |
| Transmitter Width | 10.39" |
| Transmitter Depth | 4.72" |
| Receiver Height | 0.79" |
| Receiver Width | 4.15" |
| Receiver Depth | 4.04" |
| Transmitter Weight (Approximate) | 1.61 lb |
| Receiver Weight (Approximate) | 8.64 oz |
| Product Color | Black |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
