SIIG 1x4 4K 60Hz HDMI Splitter Over Cat6 Extender with Loopout/IR/ARC…
& RS-232 - Up to 230ft (70m) - Near Zero Latency
HDMI 1 in 1 out & 4 Ext - 1x4 HDMI 4K60Hz Splitter - 4 port HDMI Splitter - HDMI over Cat6/7 Extender - HDR - HDCP 2.2 - 7.1ch audio- HDMI Loopout - Bi-directional IR Extension - S/PDIF audio extraction or ARC audio - DIP Switch - RE-232 Control - EDID Management - Wall mountable - Power adapter / IR cable included - ESD protection - Metal housing - 2 years warranty
SKU
Category
Audio & Video Consoles/Extenders
$999.80
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 25 and Nov 29, then process your delivery right after.
Genuine SIIG through authorized distribution — NDAA §889 screened before checkout.
SKU
Category
Audio & Video Consoles/Extenders
Country of origin
China
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview
Multiple Connectivity Ports

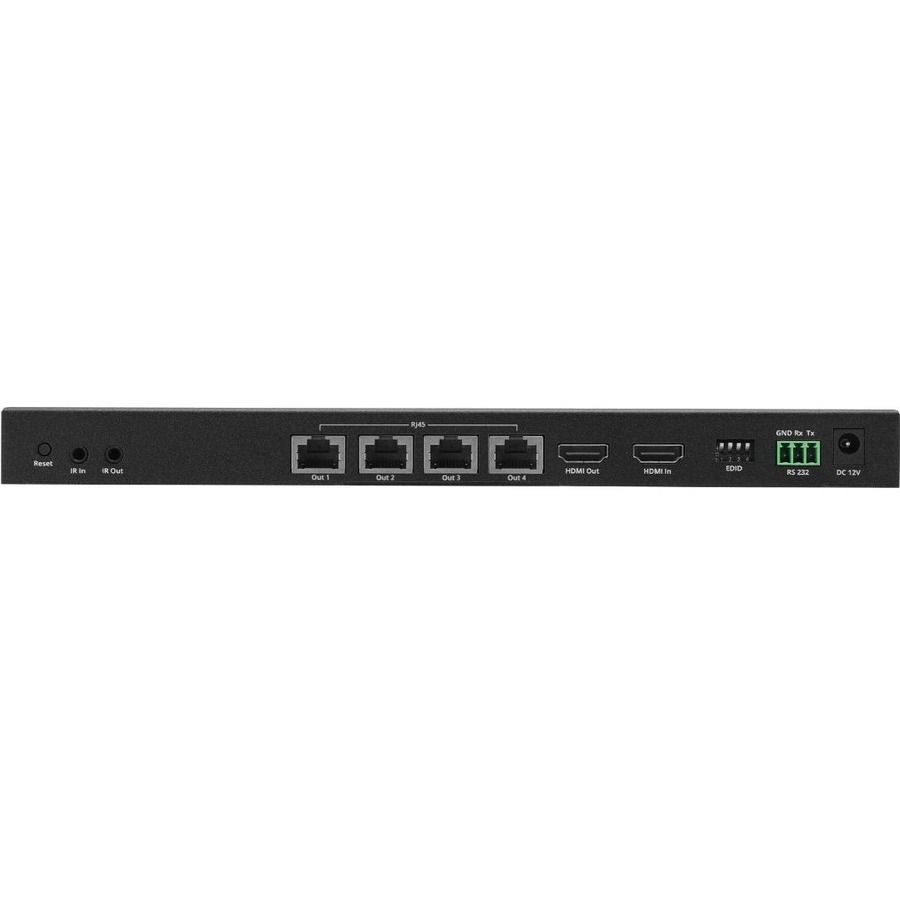

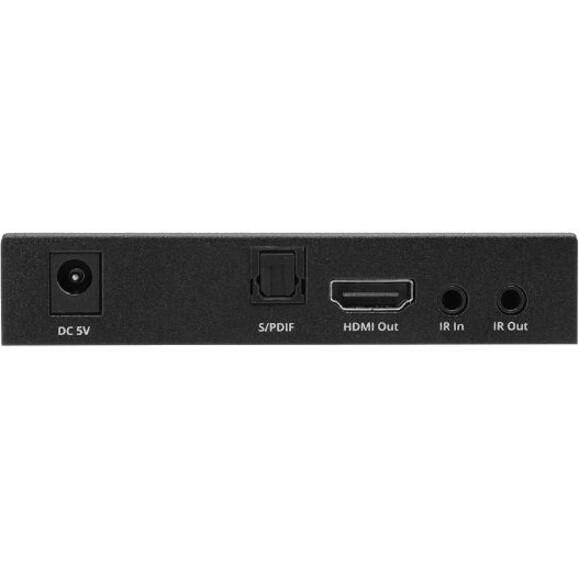

Comes with one HDMI video input port, one HDMI video loop-out port, four HDMI video output ports, eight RJ45 network ports, five 3.5mm IR emitter ports, five 3.5mm IR receiver ports, four S/PDIF ports, one RS-232 terminal block, one DIP switch, five reset buttons, four audio slide switches, one DC power jack (12V/2A) for TX, four DC power jacks (5V/2A) for RXs
4K HDMI Extension - Easily extends UHD 4K@60Hz HDMI signals up to 230ft (70m) over economical Cat6/7 cabling to up to 4 displays
Advanced Transmission Technology - Unique ultra-high-definition video digital transmission and connection extender technology, can extend and transmit 4K@60Hz YUV 4:4:4 video and audio, with zero latency, HDR

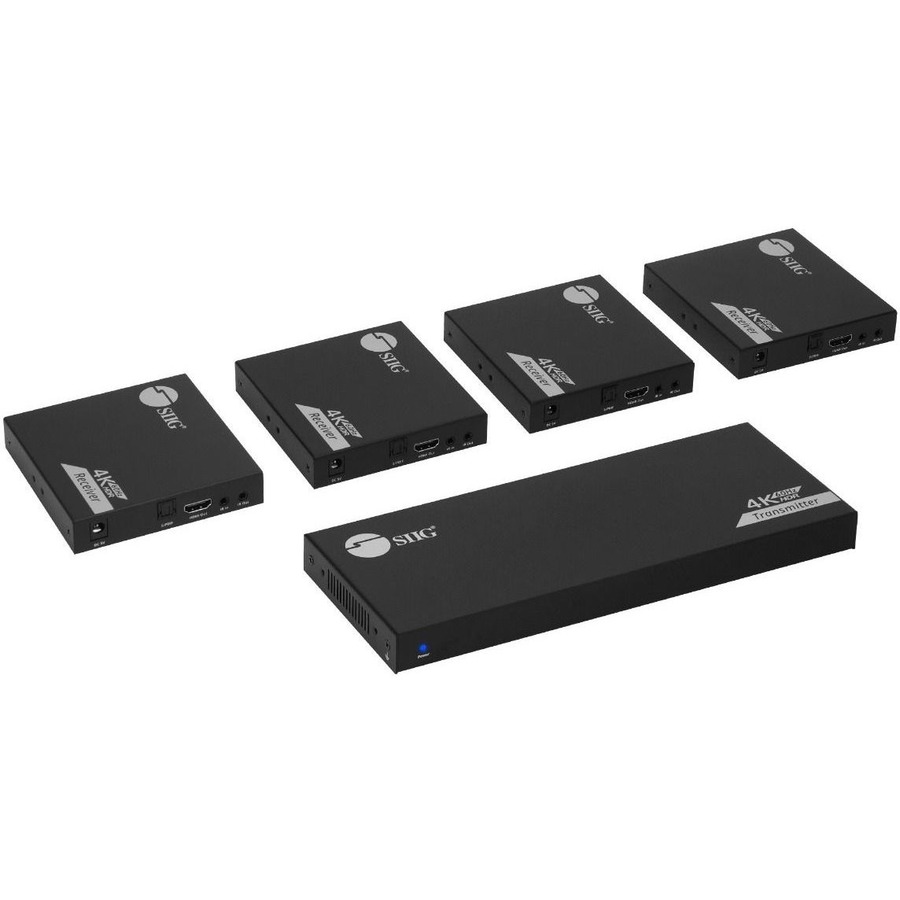

HDMI Loopout + Extend 4 Displays - Supports one HDMI loop-out for additional local display connections and extender 4 receivers for HDTV or Projector via Cat6/7 cable
EDID Management - Support EDID management capability to controls the resolution output to the display(s)
Audio Extraction - Extracts digital audio from the HDMI signal and routes it through the receiver's digital S/PDIF port via PCM2, Dolby 5.1, DTS 5.1 audio signal
IR Control - Built-in bi-directional IR provides full remote control capabilities, control the HDMI source device at the remote display location and vice versa
ARC and Audio Extraction - Through the Toslink connection of the Receiver (RX)
RS-232 Control - Support RS-232 command control in the Transmitter
