Black Box VX1000 Series Extender - 4K, HDMI, CATx, USB
Black Box

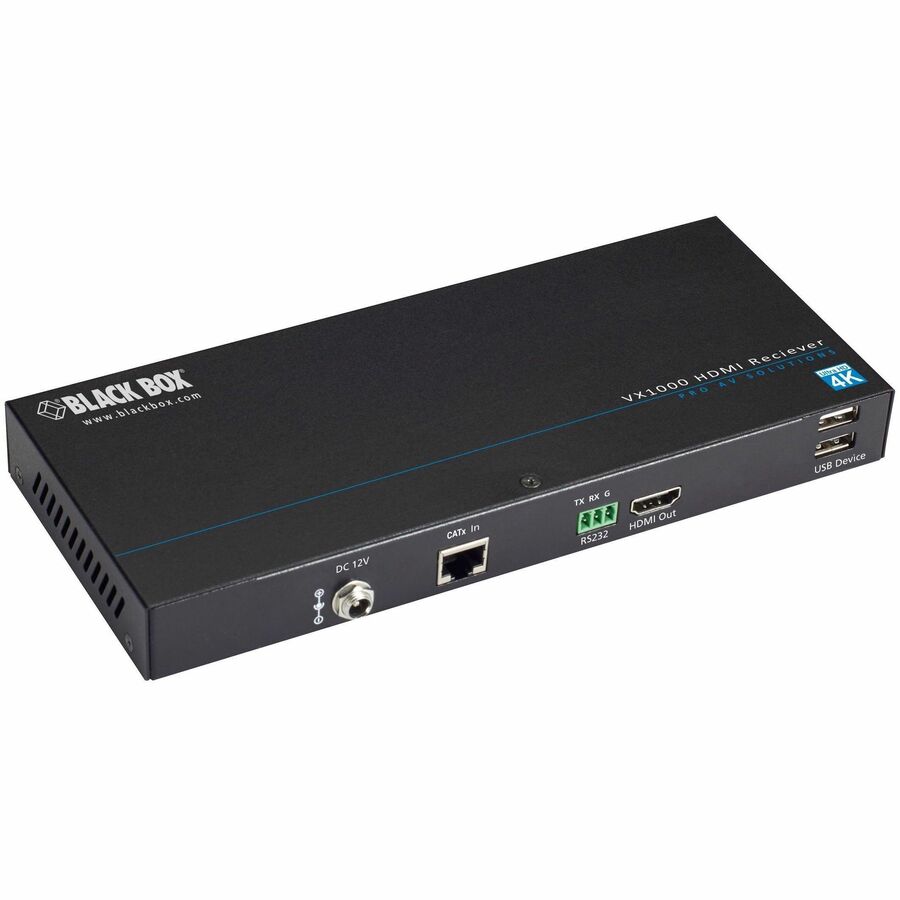

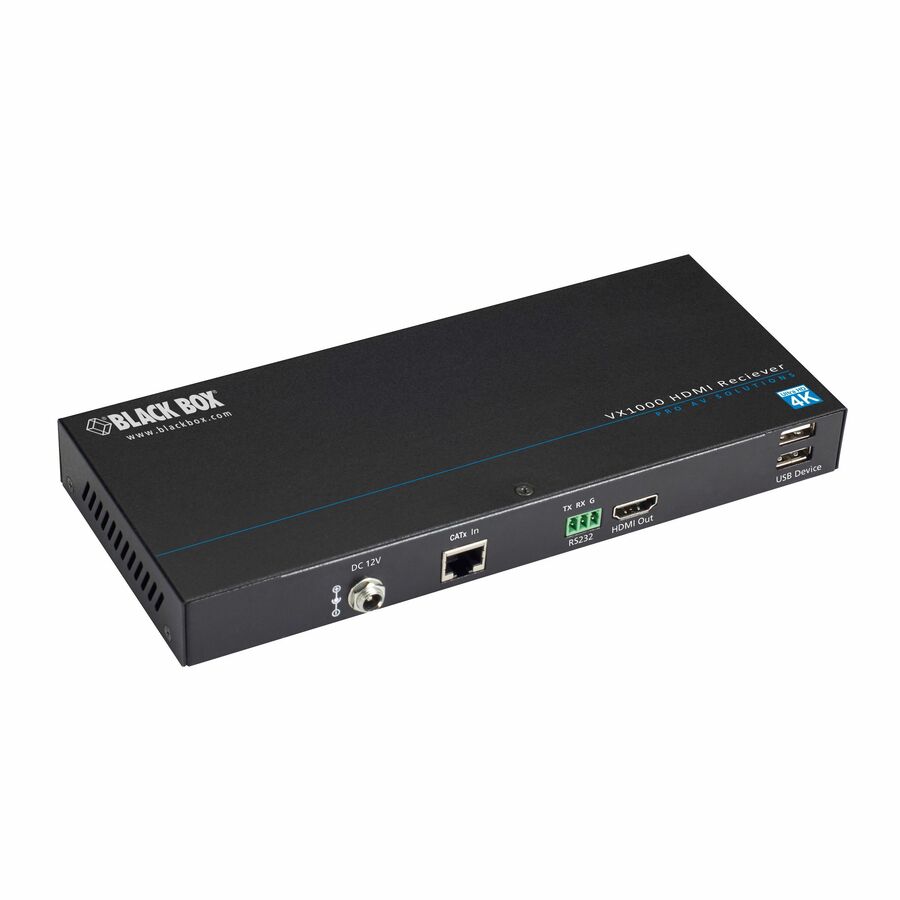

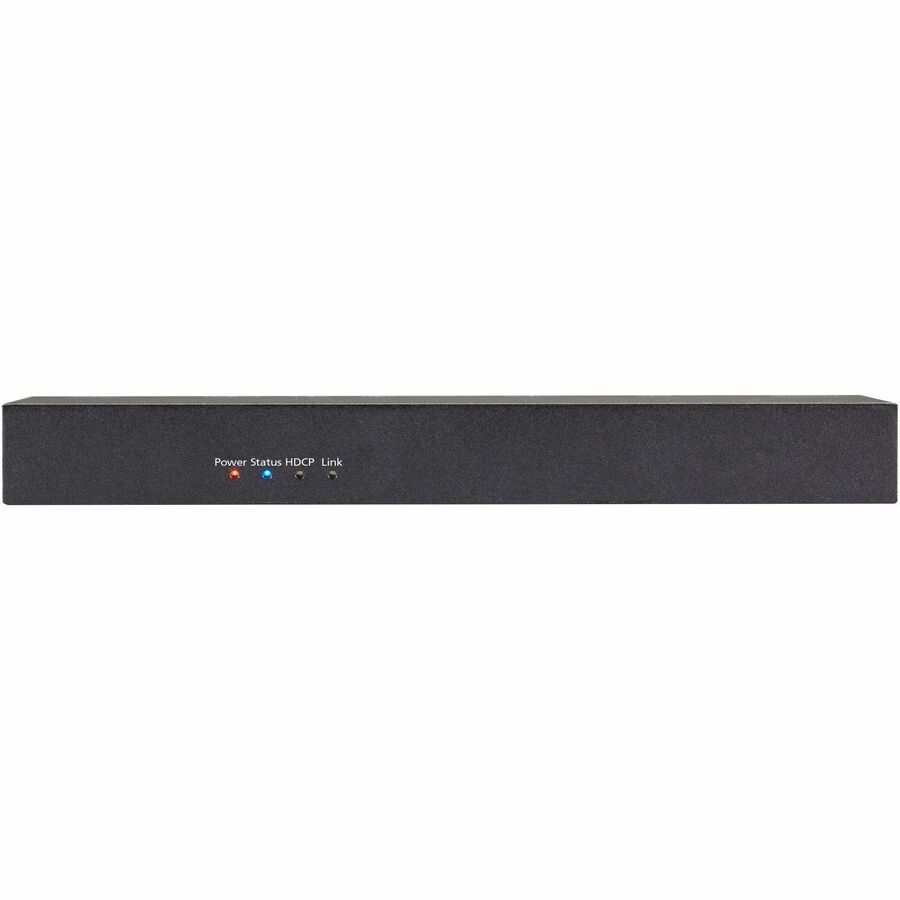

Black Box VX1000 Series Extender - 4K, HDMI, CATx, USB

330 ft Range - 2 x Network (RJ-45) - 2 x USB - 1 x HDMI Out - 4K, 4K UHD - 3840 x 2160 - Twisted Pair

SKU
VX-1001-RX-R2
Category
Audio & Video Consoles/Extenders

MSRP$346.34

$313.44

Save 9%

In stock: 42

Get a quote

Genuine Black Box through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
VX-1001-RX-R2
Category
Audio & Video Consoles/Extenders

Overview

Extend HDMI audio and video, RS-232, and USB up to 330 ft. The extender includes a transmitter and receiver pair that supports up to 4K (UHD) resolutions and uses CATx cable for reliable connection and video quality. True 48V Power over CATx (PoC) only requires a single power supply.

Highlights

  • Supports up to 4K (UHD) resolutions
  • Reliable connection with the highest video quality
  • True 48V PoC powering only requires a single power supply
  • USB support for keyboard and mouse
  • Automatic HDMI EDID management
  • HDCP 2.2 compliance
  • RS-232 and passthrough

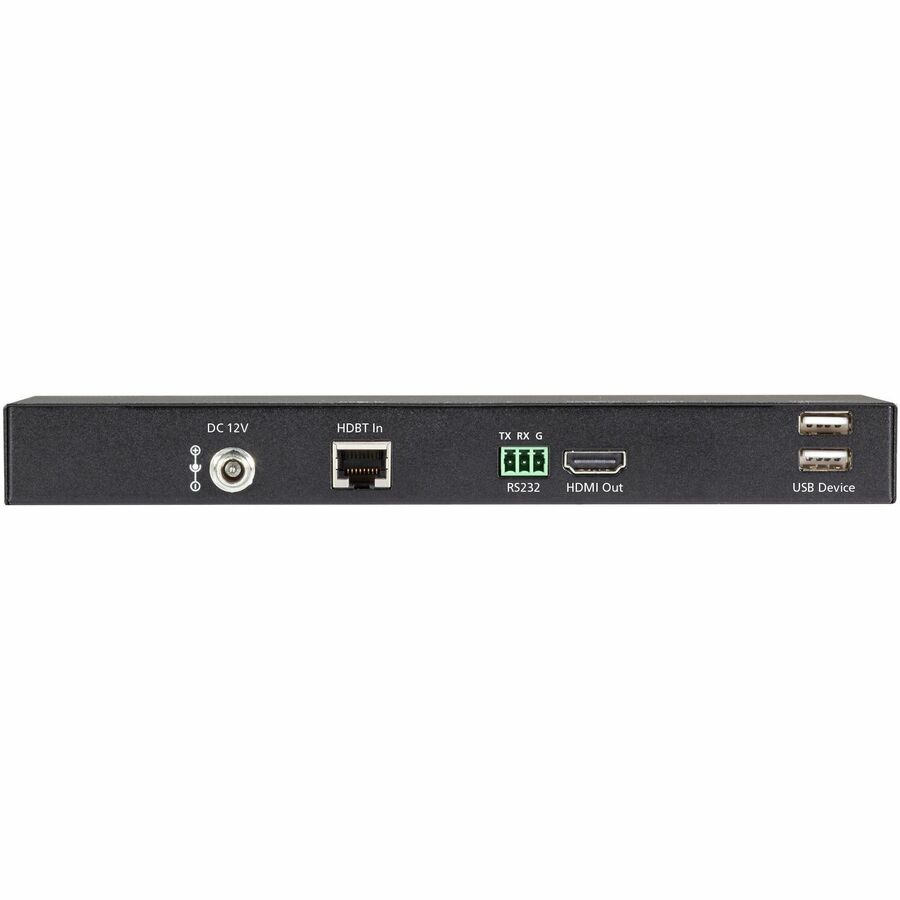

  • All connections on the same side of device
  • Works with 4 x 1 and 8 x 2 Presentation Switchers (AVSC-0401H-R2, AVSC-0802H)

Specifications

Package ContentsVX1000 Series Extender - 4K, HDMI, CATx, USB 1 x 12-VDC, 1.5-A Power Supply with US, EU, UK, and AU Power Clips 1 x 3.5-mm 3-pin Phoenix Male Connector 2 x Mounting Brackets User Manual
Product TypeVideo Extender Receiver
Manufacturer Part NumberVX-1001-RX-R2
Limited Warranty2 Year
Connectivity TechnologyWired
ManufacturerBlack Box Corporation
Product NameVX1000 Series Extender - 4K, HDMI, CATx, USB
Brand NameBlack Box
Graphics Modes4K, 4K UHD
Maximum Video Resolution3840 x 2160
Maximum Operating Distance330 ft
USBYes
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
Number of USB Ports2
Number of HDMI Outputs1
HDMI OutYes
Media Type SupportedTwisted Pair
Receiver Height0.98"
Receiver Width8.66"
Receiver Depth3.67"
Receiver Weight (Approximate)1.80 lb
Environmental ComplianceRestriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
