Black Box KVXLCH-100 Video Extender Transmitter/Receiver
Black Box

Black Box KVXLCH-100 Video Extender Transmitter/Receiver

1 Input Device - 1 Output Device - 328 ft Range - 2 x Network (RJ-45) - 5 x USB - 1 x HDMI In - 2 x HDMI Out - 4K UHD - 3840 x 2160 - Twisted Pair - Category 6 - Desktop - TAA Compliant

SKU
KVXLCH-100
Category
Audio & Video Consoles/Extenders

MSRP$724.97

$568.47

Save 22%

In stock: 187

Get a quote

Genuine Black Box through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
KVXLCH-100
Category
Audio & Video Consoles/Extenders

Overview

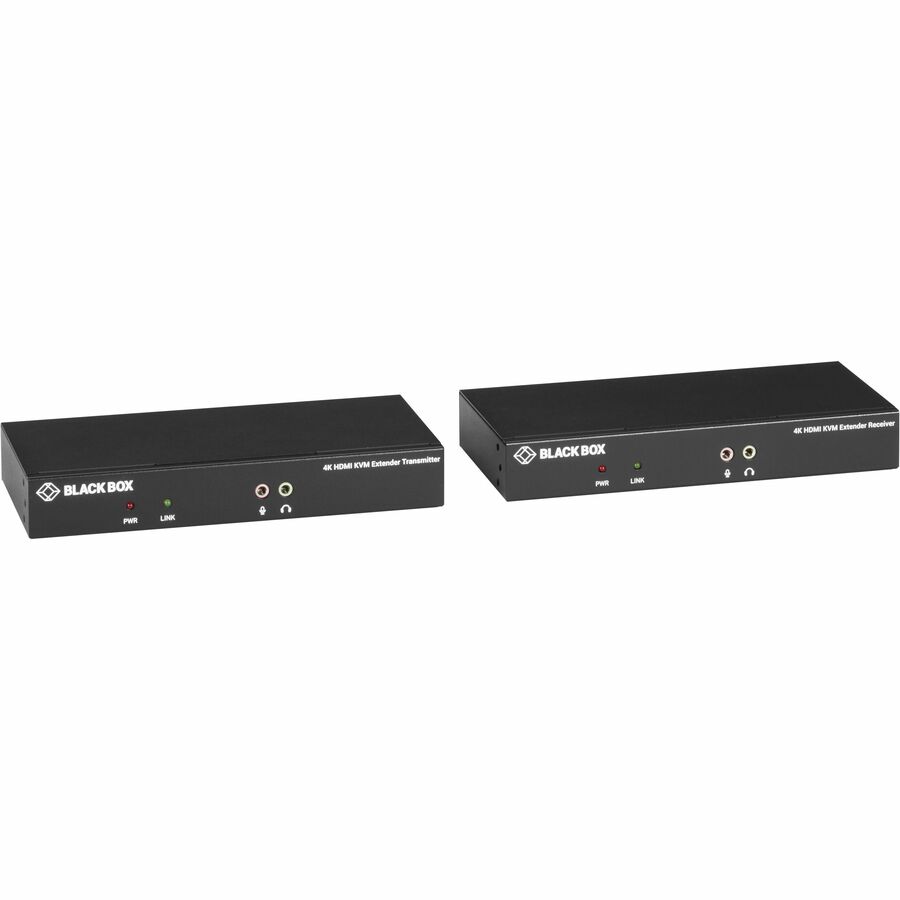

The KVX HDMI KVM Extender lets you control a server or computer over a standard CAT5 or CAT6 UTP network cable connection at distances of up to 328 feet (100 meters). PC connection cables are included with this product, making it a solution that is ready to use right out of the box.

You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console. KVX is the perfect low-cost solution for transportation control centers, medical facilities, industrial warehouses, and extended workstations.

KVX Series Extenders also includes local video allowing access to an additional monitor at the Transmitter side. Perfect for any situation that requires monitoring of connected PCs.

KVX is TAA compliant and backed by free lifetime technical support.

KVX is a perfect fit for cost-conscious users in search of a feature-rich solution allowing them to operate servers or PCs from remote locations. Or, customers who require control of systems that are physically inaccessible, placed in secure locations, or in otherwise harsh environments. This can include command and control operations, server management, distribution monitoring, or utilities process control centers.

Highlights

  • HDMI video resolution up to UHD 4K (3840x2160 at 30Hz)
  • Remote access up to 100 meters over CAT5/6
  • Transparent USB 2.0 extension supports HID devices, mass storage devices
  • Supports RS-232 peripheral (serial) devices
  • Bi-directional audio via speaker/mic connection
  • Local video port loopback for monitoring on transmitter (TX) unit
  • Supports EDID pass-through

Specifications

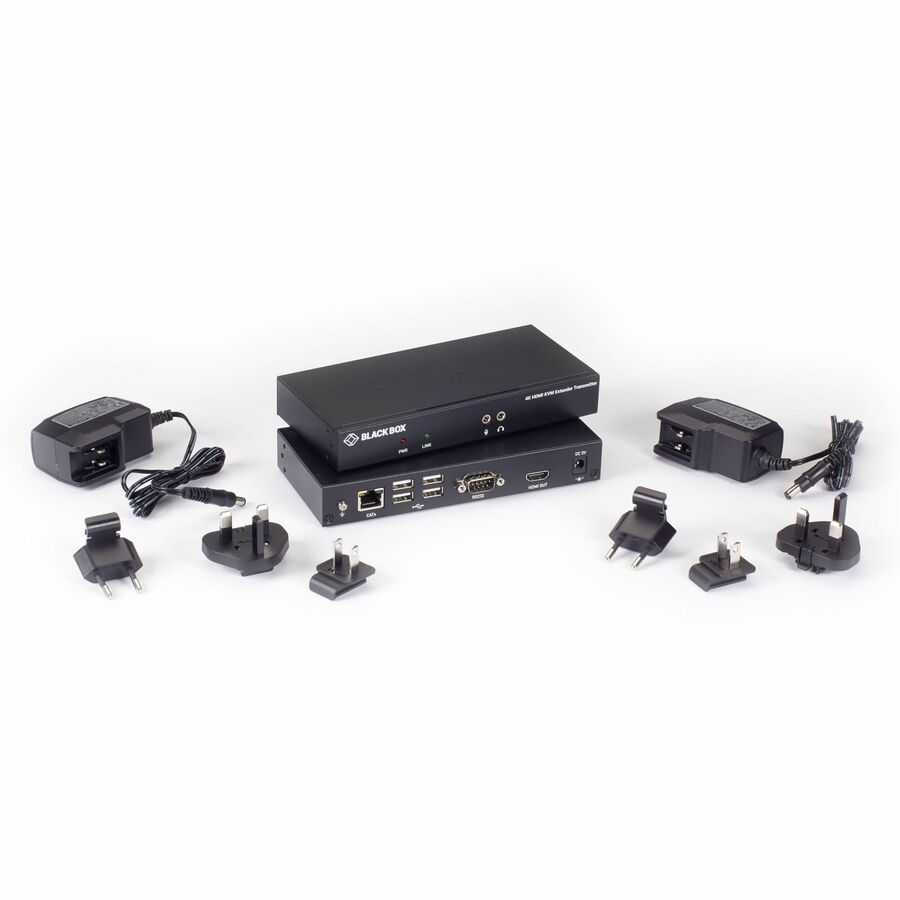

Package Contents
  • 1 x Transmitter
  • 1 x Receiver
  • 2 x 5V, 2A Power Supplies (includes US, EU, UK plug types)
  • 1 x HDMI cable 1.2m (4 ft.)
  • 1 x 3.5mm audio cable 1.8m (6 ft.)
  • 1 x USB-B to USB-A cable 1.8m (6 ft.)
  • 2 x Deskmounting brackets (with screws)
Product TypeVideo Extender Transmitter/Receiver
Manufacturer Part NumberKVXLCH-100
Limited Warranty2 Year
Connectivity TechnologyWired
Form FactorDesktop
ManufacturerBlack Box Corporation
Product ModelKVXLCH-100
Product NameKVXLCH-100 Video Extender Transmitter/Receiver
Product SeriesKVX
Brand NameBlack Box
Country of OriginUnited States
Graphics Modes4K UHD
Environmentally FriendlyYes
Maximum Video Resolution3840 x 2160
Twisted Pair Cable StandardCategory 6
Maximum Operating Distance328 ft
USBYes
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
Number of USB Ports5
Number of HDMI Inputs1
Number of HDMI Outputs2
HDMI InYes
HDMI OutYes
Media Type SupportedTwisted Pair
Number of Output Devices Supported1
Number of Input Devices Supported1
Transmitter Height0.83"
Transmitter Width3.27"
Transmitter Depth7.09"
Receiver Height0.83"
Receiver Width3.27"
Receiver Depth7.09"
Transmitter Weight (Approximate)13.12 oz
Receiver Weight (Approximate)13.28 oz
TAA CompliantYes
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS)
