SIIG HDMI 2.0 4K HDR over HDBaseT Receiver 198ft
SIIG

SIIG HDMI 2.0 4K HDR over HDBaseT Receiver 198ft

Auto Scaling - PoC - TAA Compliant

SKU
CE-H24P11-S1
Category
Audio & Video Consoles/Extenders

MSRP$259.99

$183.50

Save 29%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
CE-H24P11-S1
Category
Audio & Video Consoles/Extenders

Overview

Receives HDMI signals over CAT5e/6 cable up to 198ft with resolution auto-scaling, IR control, and Power over Cable support

• Receives Full HD 1080p HDMI signals up to 198ft (60m) and 4K@60Hz signals up to 114ft (35m) over CAT5e/6 cable

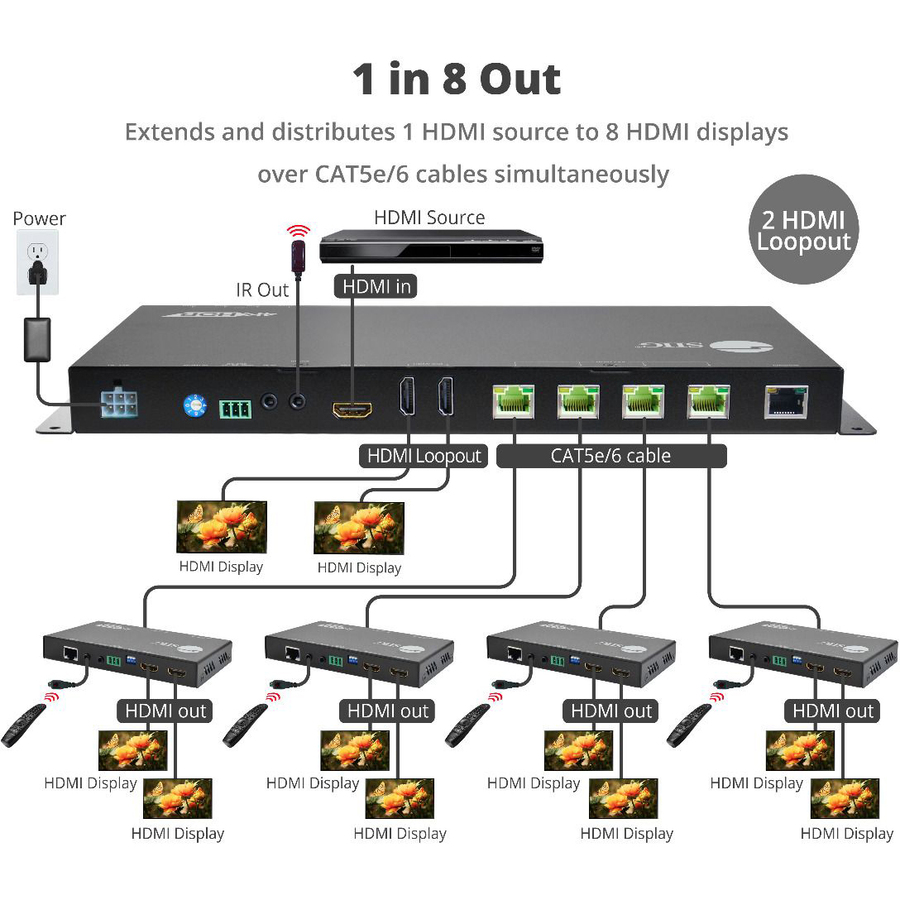

• Provides additional receiver unit for HDMI 2.0 4K HDR 1x4 Splitter HDBaseT Extender with Auto-scaling (part# CE-H24N11-S1) sold separately

• Supports 4K@60Hz YUV 4:4:4 8-bit, 4K@60Hz HDR YUV 4:2:0 10-bit resolutions

• Supports PoC (Power over Cable) technology which allows the transmitter and receiver unit(s) to be powered by only one power supply connected to the transmitter unit

• Receiver unit supports 2 HDMI outputs for more display connections

• Supports EDID management for increased device compatibility

• Supports resolution auto-down scaling from 4K to 1080p allowing displays of different capabilities to be connected simultaneously

• Pure unaltered uncompressed 7.1ch digital HDMI over CAT5e/6 cable transmission offers the best audio signal

• DTS-HD Master Audio and Dolby TrueHD high bit rate audio for true sound compatibility

• Supports full bi-directional IR pass-through signal from 30KHz to 56KHz frequency

Highlights

  • Video Extender Receiver provides efficient and feasible audio/video transmission, decoding, and extending
  • 3840 x 2160 maximum video resolution for a spectacular, sharp display with added reliability
  • HDMI out enables you to transfer data from your devices to video extender receiver with added efficiency
  • Twisted pair media type helps minimize electromagnetic radiation and it also effectively resist external interference
  • 2 output devices supported for maximum feasibility and usage convenience
  • 198 ft maximum operating distance for reliable coverage and maximum portability
  • 4K graphics mode for stunning, lively video quality

Specifications

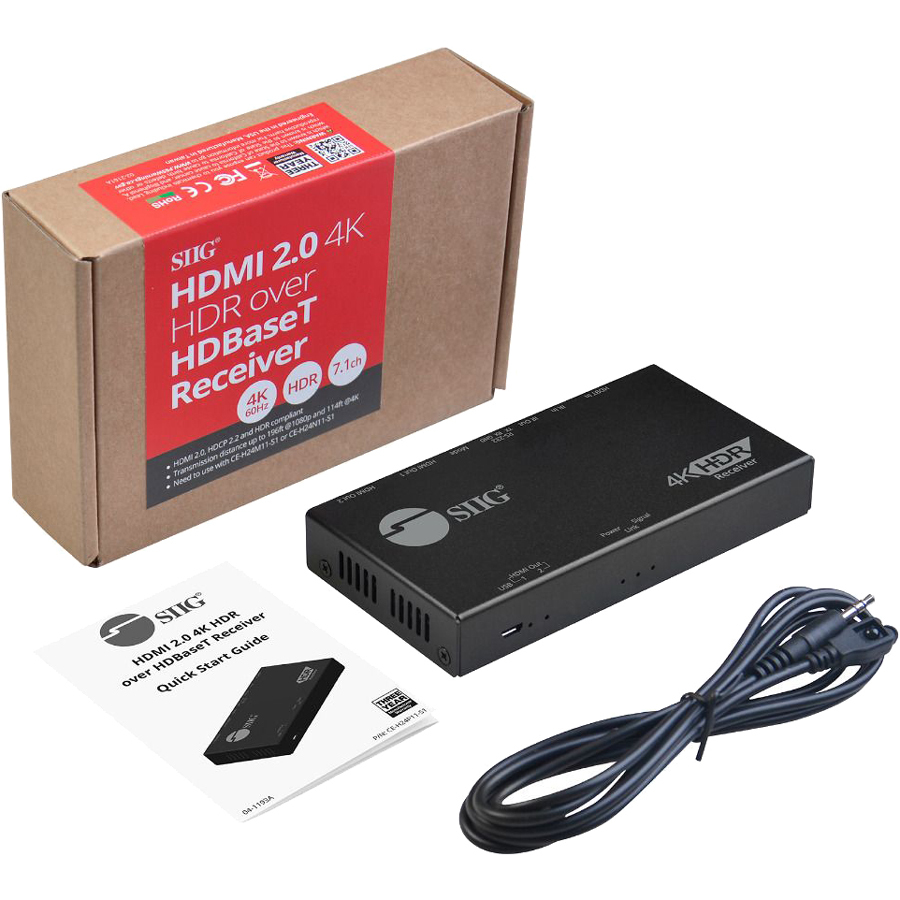

Package Contents
  • HDMI 2.0 4K HDR over HDBaseT Receiver
  • IR Receiver Cable
  • Terminal Block
  • Mounting Kit (Screw kit: 4x20 mm 2pcs, Mounting ears 2pcs, Screw kit: 3x4 mm 4pcs)
  • Quick Start Guide
Product TypeVideo Extender Receiver
Manufacturer Part NumberCE-H24P11-S1
Limited Warranty3 Year
Connectivity TechnologyWired
ManufacturerSIIG, Inc
Product NameHDMI 2.0 4K HDR over HDBaseT Receiver
Brand NameSIIG
Country of OriginTaiwan
Graphics Modes4K
Environmentally FriendlyYes
Maximum Video Resolution3840 x 2160
Twisted Pair Cable StandardCategory 6
Maximum Operating Distance198 ft
USBYes
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of USB Ports1
Number of HDMI Outputs2
HDMI OutYes
Media Type SupportedTwisted Pair
Number of Output Devices Supported2
Receiver Height0.75"
Receiver Width2.76"
Receiver Depth5.47"
Receiver Weight (Approximate)6.24 oz
TAA CompliantYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
