SKU
999-1105-143
Category
Audio & Video Consoles/Extenders
Overview
Extends power, HDMI video and control to your Vaddio HDBaseT camera over a single Cat-5e cable. Compatible with RoboSHOT 12 HDBT, RoboSHOT 12E HDBT, RoboSHOT 30 HDBT, RoboSHOT 30E HDBT, RoboSHOT 20 UHD, RoboSHOT 40 UHD, RoboSHOT IW and DocCAM 20 HDBT cameras.
Key Features:
• Simple, clutter-free camera extension with HDBaseT technology
• Power, video and control over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6 cable up to 328 ft. (100m)
More Flexibility for Room Design and Installation
• More flexibility in camera placement
• HDBaseT interface extends power, video and control up to 328 ft (100 m)
• Plug and play usability
• Intuitive browser-based user interface for configuration and system administration
Warranty
Limited Warranty: 3 Year
About Legrand
Vaddio designs, develops, and manufactures professional audio and video equipment for the audiovisual, collaboration and production markets. Vaddio solutions combine enterprise class performance with system-configured design and are easy to install and easy to use. Backed by industry-leading support, Vaddio products enhance any collaboration experience by elevating the science of communication with the Art of Easy.
Highlights
Video Extender Receiver provides efficient and feasible audio/video transmission, decoding, and extending
3840 x 2160 maximum video resolution for a spectacular, sharp display with added reliability
HDMI out enables you to transfer data from your devices to video extender receiver with added efficiency
328.08 ft maximum operating distance for reliable coverage and maximum portability
4K UHD graphics mode provides optimal video output with remarkable picture clarity
Video Extender Receiver with camera application/usage to ensure maximum dependability and optimal performance
Specifications
General Information
Manufacturer
Legrand Group
Manufacturer Part Number
999-1105-143
Brand Name
Vaddio
Product Line
OneLINK
Product Name

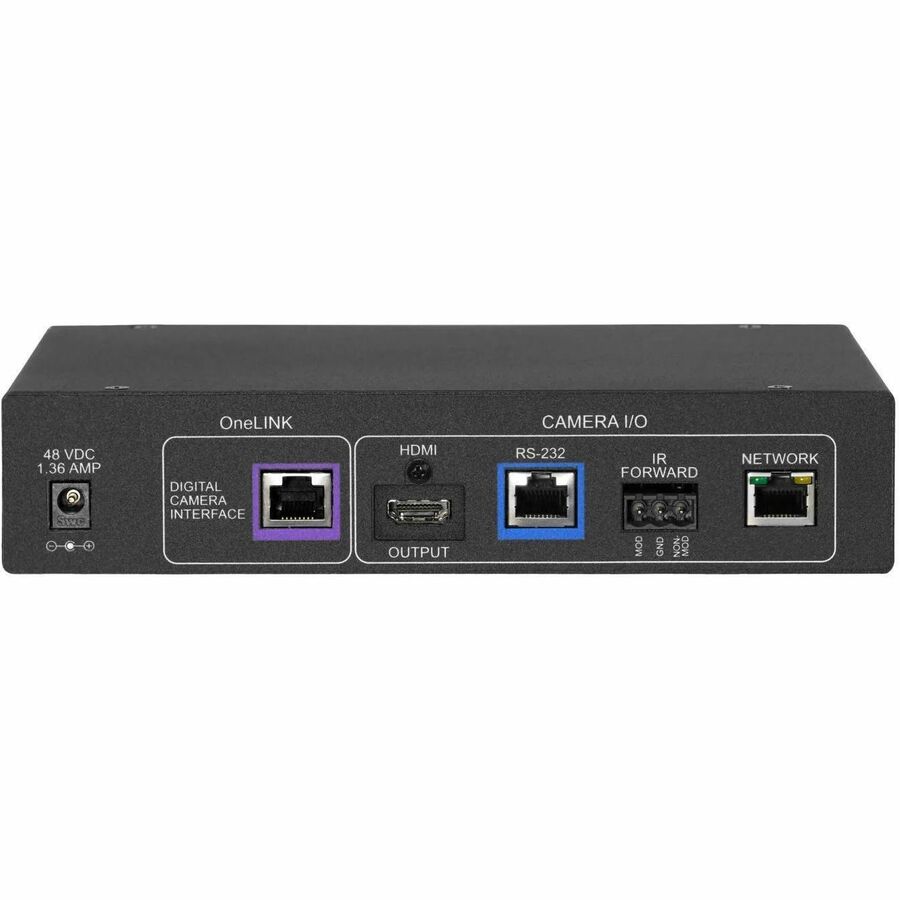

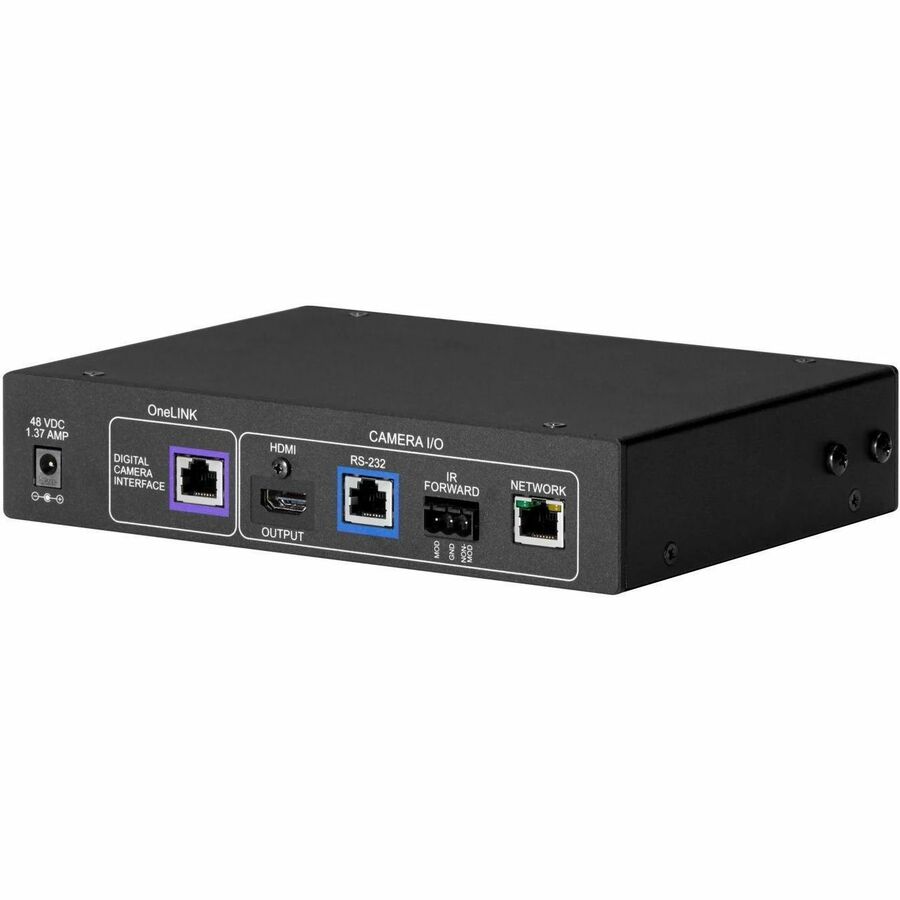

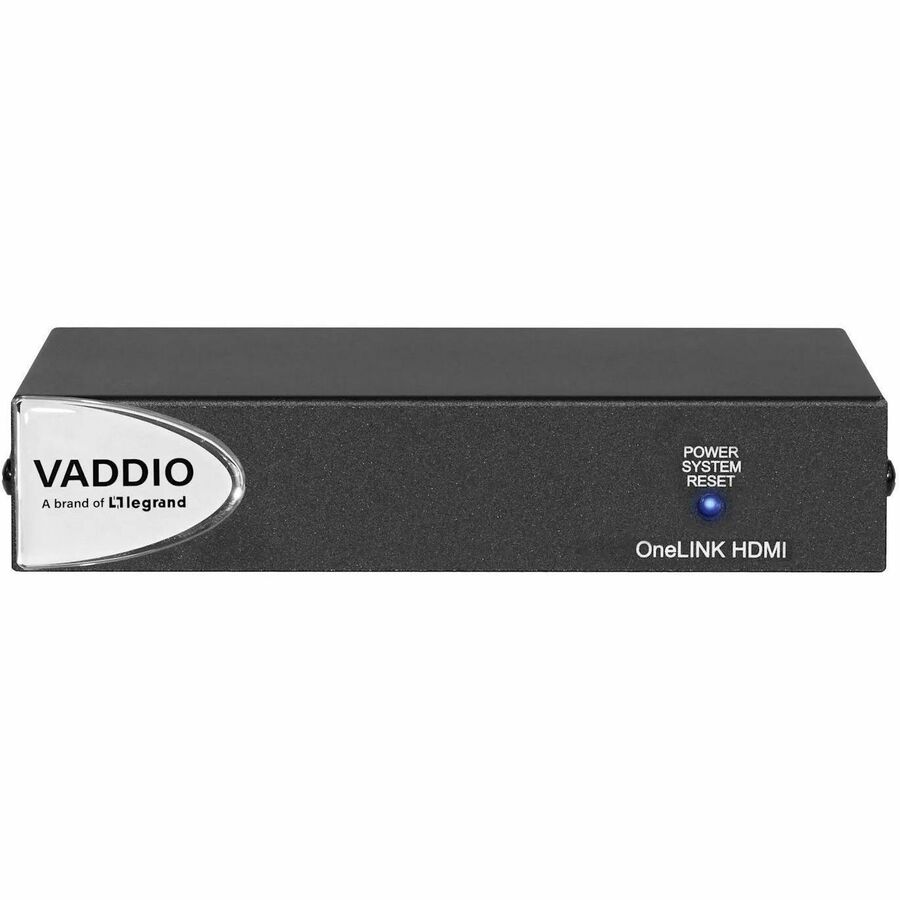

OneLINK HDMI Extension for Vaddio HDBaseT Cameras
Product Type
Video Extender Receiver
Interfaces/Ports
Network (RJ-45)
Yes
HDMI Out
Yes
Number of Network (RJ-45) Ports
2
Number of HDMI Outputs
1
Media & Performance
Twisted Pair Cable Standard
Category 5e, Category 6
Physical Characteristics
Color Family
Black
Product Color
Black
Receiver Height
1.72"
Receiver Width
8.38"
Receiver Depth
6"
Receiver Weight (Approximate)
1.55 lb
Technical Information
Connectivity Technology
Wired
Maximum Operating Distance
328.08 ft
HDBase-T
Yes
Video
Graphics Modes
4K UHD
Maximum Video Resolution
3840 x 2160
Warranty
Limited Warranty
3 Year
Miscellaneous
Package Contents
OneLINK HDMI Interface Quick-start card 48V power supply with AC cord set(s) EZCamera RS-232 Control Adapter
