1 Output Device - 230 ft Range - 1 x Network (RJ-45) - 1 x USB - 1 x HDMI In - 1 x VGA In - 1080p - 4K - 3840 x 2160 - Twisted Pair - Category 7 - TV - Wall Plate
MSRP$345.99
$301.17
Save 13%In stock: 237
Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

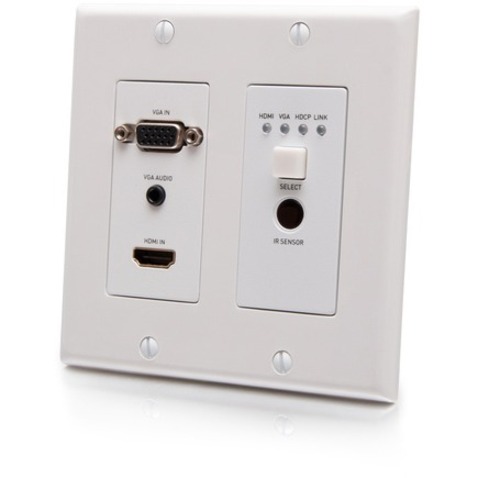

The HDMI HDBaseT + VGA, 3.5mm, RS232, and IR over Cat Extender Dual Gang Wall Plate Transmitter - 4K 60Hz allows 4K HDMI or VGA sources to be extended using a single Cat6a Ethernet cable. This is an ideal solution where video and audio needs to be extended to displays in conference rooms, classrooms, lecture halls, and many other installation needs that are far beyond the length limitations of standard cabling.
This transmitter extends HDMI and VGA signals over a single network patch cable. Extend 4K HDMI up to 115 feet and 1080p VGA up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances, extend 4K HDMI or up to 130 feet using a Cat6a cable.

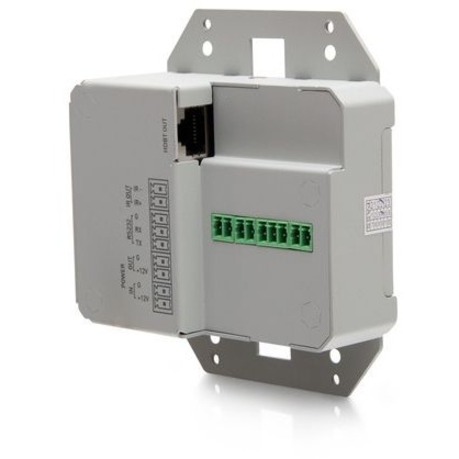

This HDMI HDBaseT transmitter is HDCP 2.2 compliant, making sure that the connection from the source is secure. The transmitter supports PoC PD to receive power from an HDBaseT receiver with PSE module. It can also be powered by local 12V power supply and share power with the receiver via the 3-pin phoenix power out connector, so no additional power adapter is required, allowing for greater flexibility in installations. Advanced users can control IR and RS232 pass through.

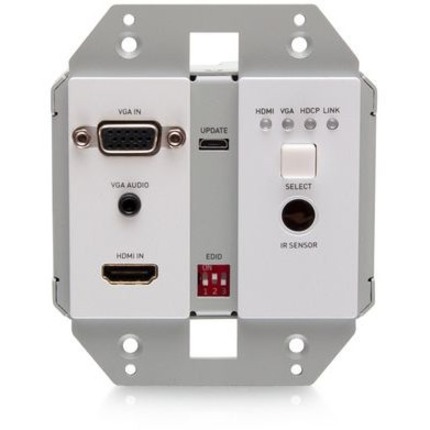

Support this HDBaseT system that is already deployed in the field by upgrading firmware through the Micro-USB port on front panel of the wall plate transmitter, and upgrade the firmware through the RS232 port on rear panel of the receiver.
This HDBaseT transmitter works with C2G30016, & C2G31015 receivers.
Note: Ensure a solid reliable connection between the 4K HDMI HDBaseT Extender and critical equipment. We suggest using HDMI Cables with gripping connectors that provide greater port retention than standard HDMI connectors.
Limited Warranty: 5 Year
C2G is an industry leader in high performance cabling and connectivity solutions. Our mission is to simplify connectivity through innovative products and services. Founded in 1984 as Cables To Go, C2G provides end–to–end connectivity solutions serving a variety of markets — including hospitality, education, healthcare, corporate, home theater and digital signage. C2G also delivers customized connectivity products and solutions renowned for superior quality, value, and innovation using premium components and the latest technologies to maximize cable performance and ensure compliance with industry specifications for each cable and its designated application. We are a company focused on delivering unique connectivity products and solutions to our partners while providing unparalleled service and value-added solutions. Our employees and their dedication to providing our customers with superior cable products and superior service to support those products are what sets C2G apart from the competition. Our organization is dedicated to going beyond basic fulfillment by creating lasting partnerships where your specific needs are addressed through both products and services. Offering both broad line products and market–specific solutions, we have more than 6,000 connectivity products across 75 lines. With a focus on education, healthcare, digital signage and hospitality, our solutions range from A/V and PC Cabling to specific market solutions such as the TruLink A/V Classroom Controller and RapidRun®. And with a lifetime warranty on all cables, you can be sure your investment is protected for the long run. We also make custom cabling simple and quick. Offering both custom design and cost effective manufacturing techniques (whether domestic short-run or off–shore large volume production), we ensure you get the right solution, right on time. All our custom products are backed by a LIFETIME GUARANTEE against defects in workmanship.
| General Information | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | C2G31017 |
| Brand Name | C2G |
| Product Model | C2G31017 |
| Product Name | HDBaseT HDMI Extender + VGA, 3.5mm, RS232, and IR over Cat Transmitter |
| Product Type | Video Extender Transmitter |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| VGA In | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of USB Ports | 1 |
| Number of HDMI Inputs | 1 |
| Number of VGA Inputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 7 |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Transmitter Height | 1.51" |
| Transmitter Width | 3.50" |
| Transmitter Depth | 4.16" |
| Form Factor | Wall Plate |
| Transmitter Weight (Approximate) | 10.58 oz |
| Technical Information | |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 230 ft |
| Video | |
| Graphics Modes | 4K |
| Supported Video Modes | 1080p |
| Maximum Video Resolution | 3840 x 2160 |
| Warranty | |
| Limited Warranty | 5 Year |
| Miscellaneous | |
| Package Contents | 1 x Wall Plate Transmitter 1 x Wall Plate Plastic Panel (2-Gang US |
| Application/Usage | TV |
| Country of Origin | China |
