Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
999-9530-000
Category
Audio & Video Consoles/Extenders
Overview
OneLINK Digital Camera Interface | Vaddio OneLINK System for Sony® and Panasonic® HDMI Cameras | HDBaseT Video, Power and Control Extension over a Single Cat-5e or Better Cable
Part Numbers: 999-9530-000 North America, 999-9530-001 International
Vaddio's OneLINK System for Sony and Panasonic HDMI Cameras is a digital camera extension system that extends HDMI video, power, network and RS232 control on a single Cat-5e/6 cable at distances of up to 328' (100m). Without any doubt, this new OneLINK system allows for easier, simpler and faster installations. The OneLINK system sends and regulates power to the camera, provides a bidirectional control channel for Ethernet and RS-232 and transmits/receives uncompressed HDMI video up to 1080p/60 and up to 2160p/30 for the future.

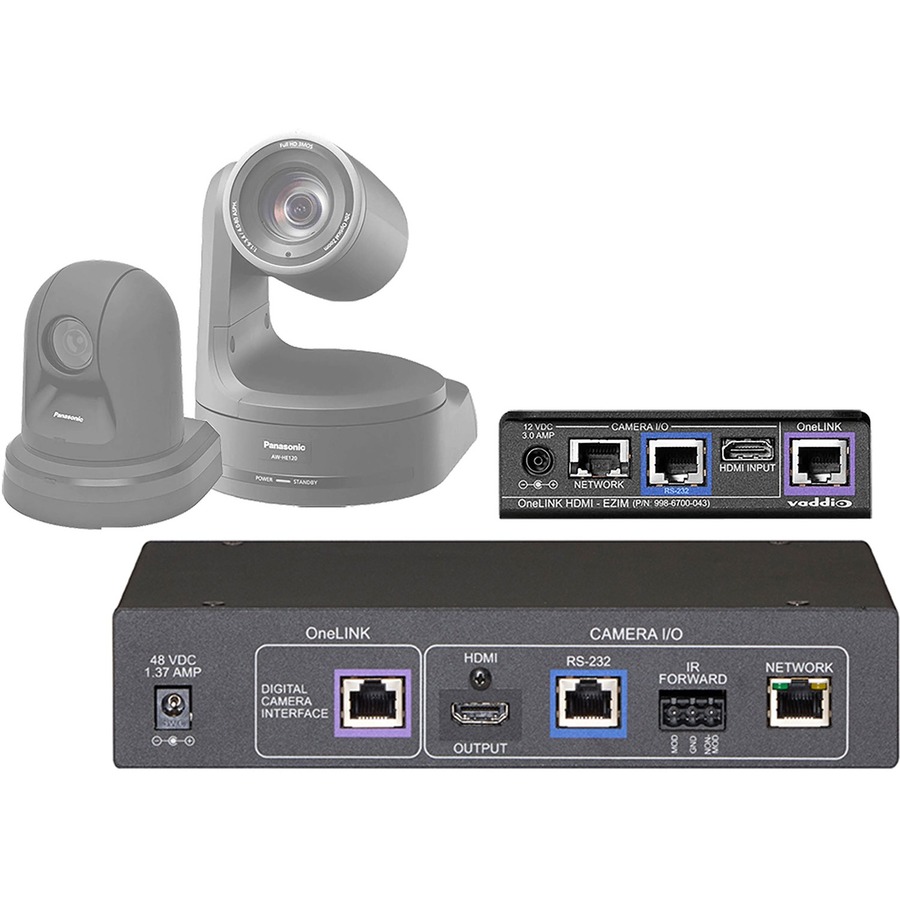

The system consists of the small OneLINK EZIM (EZCamera Interface Module) camera interface at the camera location and the OneLINK HDMI Interface. The EZIM provides the required camera connectivity and is mounted to the underside of the included Thin Profile Wall Mount with two 6-32 x .188" black mounting screws. All the 12" (305mm) patch cables on the camera end are provided with the OneLINK system including an HDMI cable, a power cable and two Cat-5e cables for network and RS-232. The Thin Profile Wall Mount can be mounted directly to a 2- gang sized electrical box for conduit installations or directly to the dry wall with wall anchors.
From one end to the other, the OneLINK system provides system integrators with an easy to install, simple and elegant, single cable camera extension solution, which exemplifies Vaddio's main tenet; The Art of Easy.
About Legrand
Vaddio designs, develops, and manufactures professional audio and video equipment for the audiovisual, collaboration and production markets.
Vaddio solutions combine enterprise class performance with system-configured design and are easy to install and easy to use. Backed by industry-leading support, Vaddio products enhance any collaboration experience by elevating the science of communication with the Art of Easy.
Highlights
Quick, clutter-free camera installation - power, control, video, and network connectivity over single cable
Extends camera installation distance up to 328 ft. (100 m) using Cat-6 cable; 230 ft (70 m) using Cat-5e
Passes uncompressed HDMI® video up to 2160p/29.97
Administrative control via web interface; passes web, Telnet, and RS-232 serial control to connected devices
Compatible with legacy RoboSHOT HDMI and other HDMI cameras
Available in system configurations with Vaddio cameras; kits available for use with Polycom and Cisco codecs and HDMI cameras
Specifications
General Information
Manufacturer
Legrand Group
Manufacturer Part Number
999-9530-000
Brand Name
Vaddio
Product Line
OneLINK
Product Name
OneLINK System for Sony & Panasonic HDMI Cameras
Product Type
Video Extender Transmitter/Receiver
Interfaces/Ports
Network (RJ-45)
Yes
HDMI In
Yes
HDMI Out
Yes
Number of Network (RJ-45) Ports
2
Number of HDMI Inputs
1
Number of HDMI Outputs
1
Media & Performance
Media Type Supported
Twisted Pair
Twisted Pair Cable Standard
Category 6
Physical Characteristics
Transmitter Height
3.86"
Transmitter Width
4.31"
Transmitter Depth
1.24"
Receiver Height
1.72"
Receiver Width
8.38"
Receiver Depth
6"
Form Factor
Wall Mountable
Transmitter Weight (Approximate)
8.85 oz
Receiver Weight (Approximate)
1.55 lb
Technical Information
Connectivity Technology
Wired
Number of Input Devices Supported
1
Number of Output Devices Supported
1
Maximum Operating Distance
328.08 ft
Video
Graphics Modes
4K
Supported Video Modes
2160p
Maximum Video Resolution
3840 x 2160
Miscellaneous
Package Contents

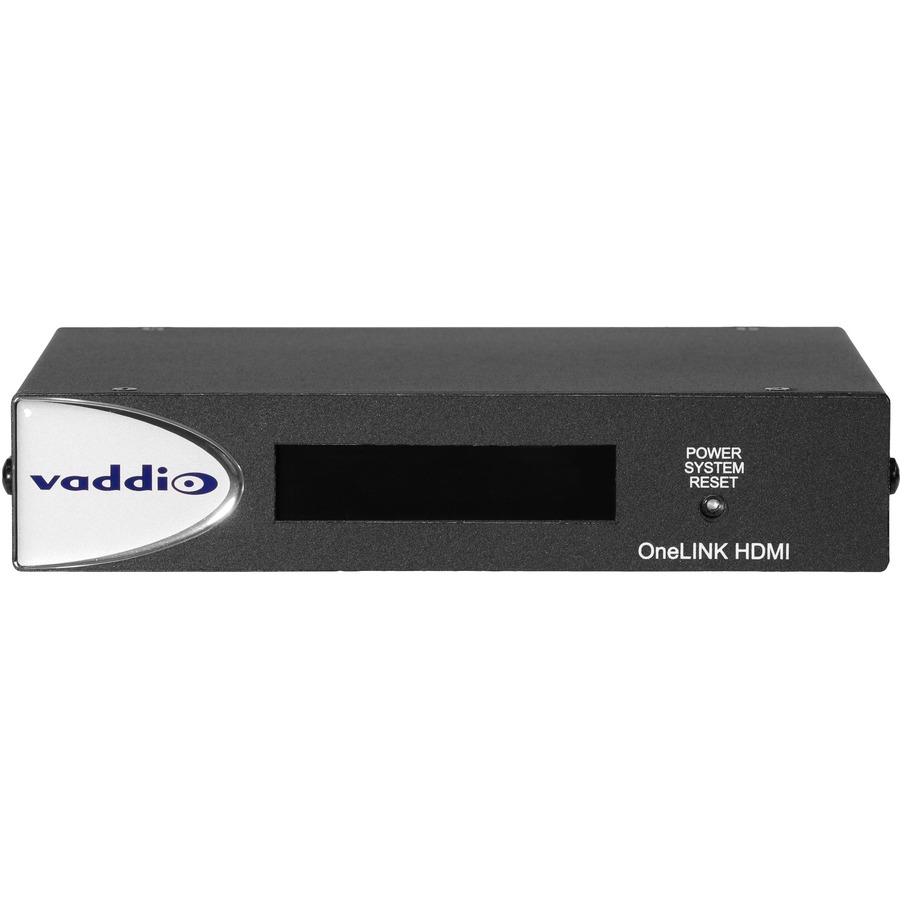

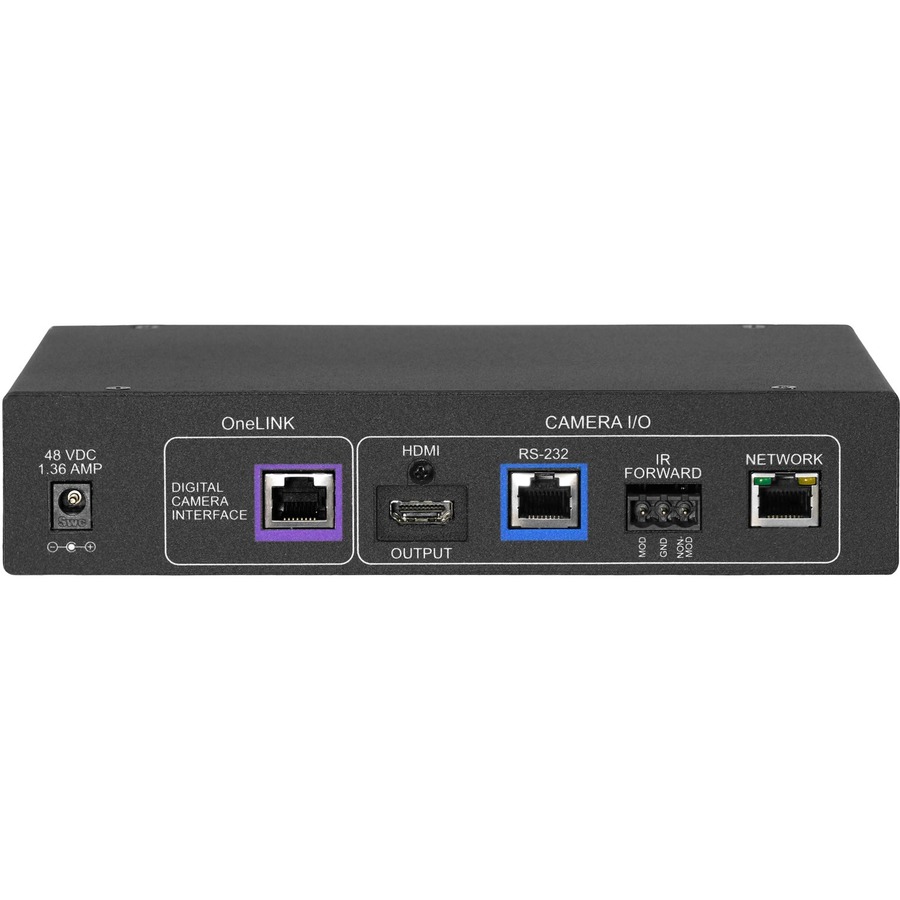

1 x OneLINK HDMI Interface
1 x OneLINK EZIM for the Camera Side
1 x 48 VDC, 1.36 Amp Switching Power Supply
1 x AC Cord Set
1 x 12" (305mm) HDMI Cable
1 x 12" (305mm) Sony 12 VDC Power Cable
1 x 12" (305mm) Panasonic 12 VDC Power Cable
1 x 12" (305mm) Cat-5e Patch Cable for Network
1 x 12" (305mm) RJ-45 to 8-Pin Mini Din for RS-232

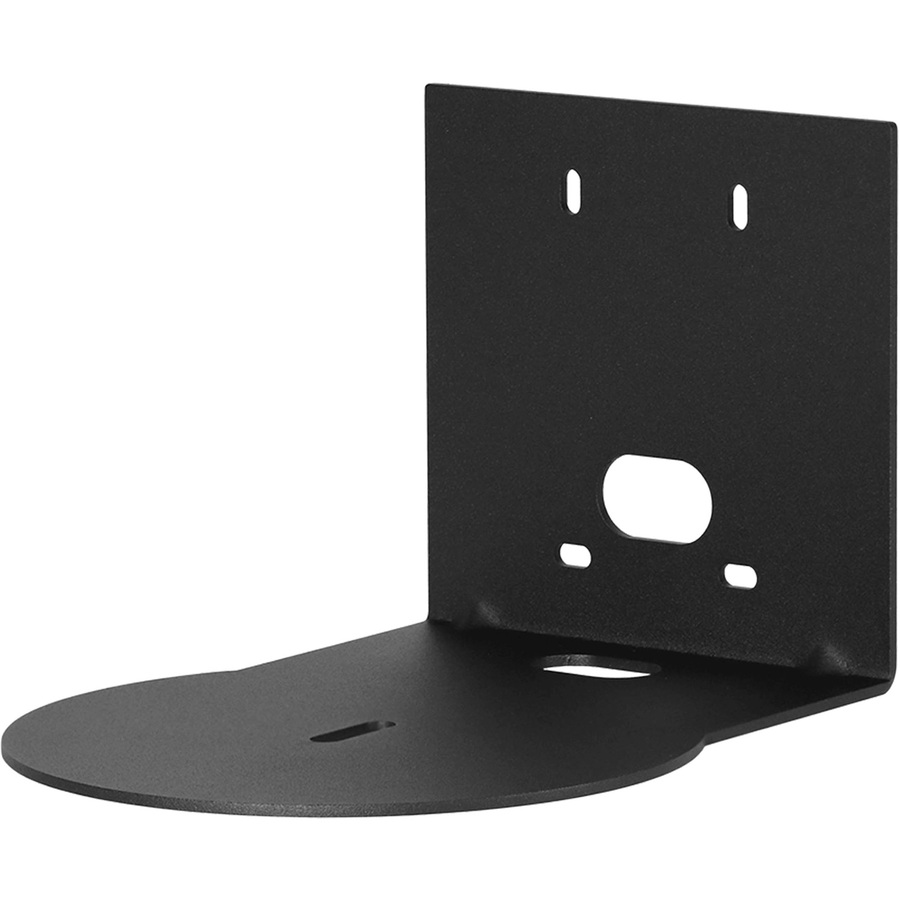

1 x Thin Profile Wall Mount (black) that fits Sony SRG120DH, SRG-300H and Panasonic AW-HE40H
