Eaton Tripp Lite Series 1 x 2 HDMI over Cat5/6 Extender Kit, Box-Style Transmitter/Receiver for Video/Audio, Up to 150 ft. (45 m), TAA

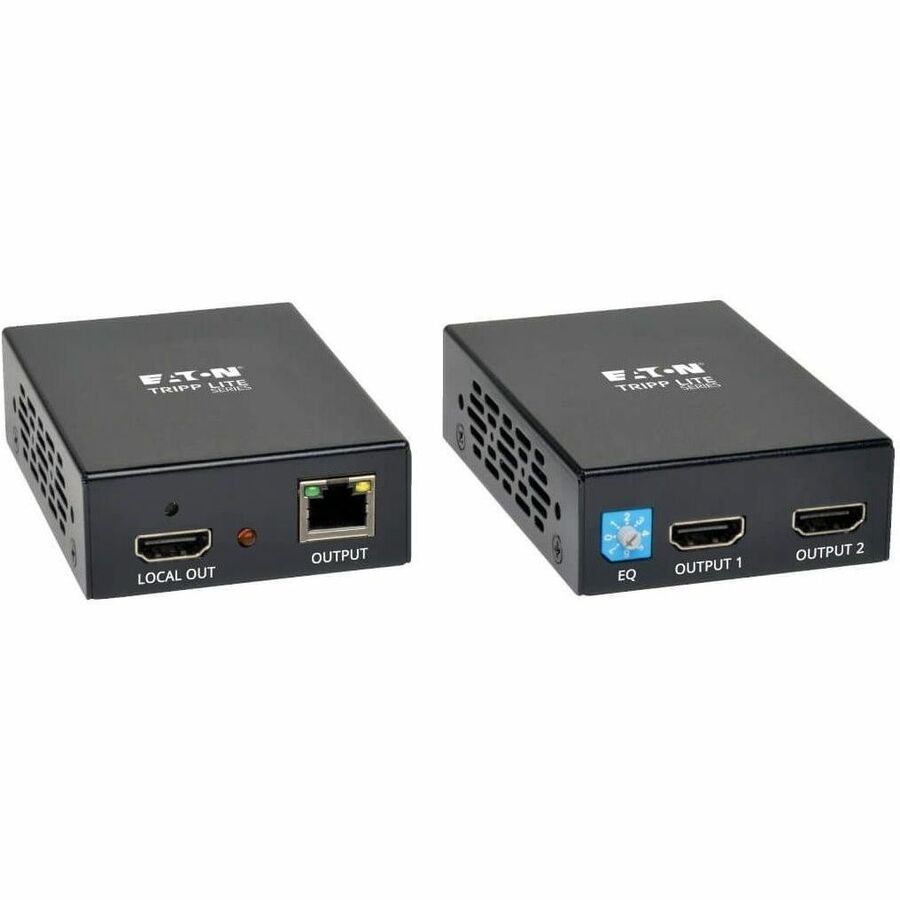

The B126-2A1 HDMI over Cat5/Cat6 Extender Kit includes a transmitter unit and a receiver unit that work in tandem to extend an HDMI signal to two projectors, monitors or televisions. The kit is ideal for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow or that require multiple displays connected to one source.

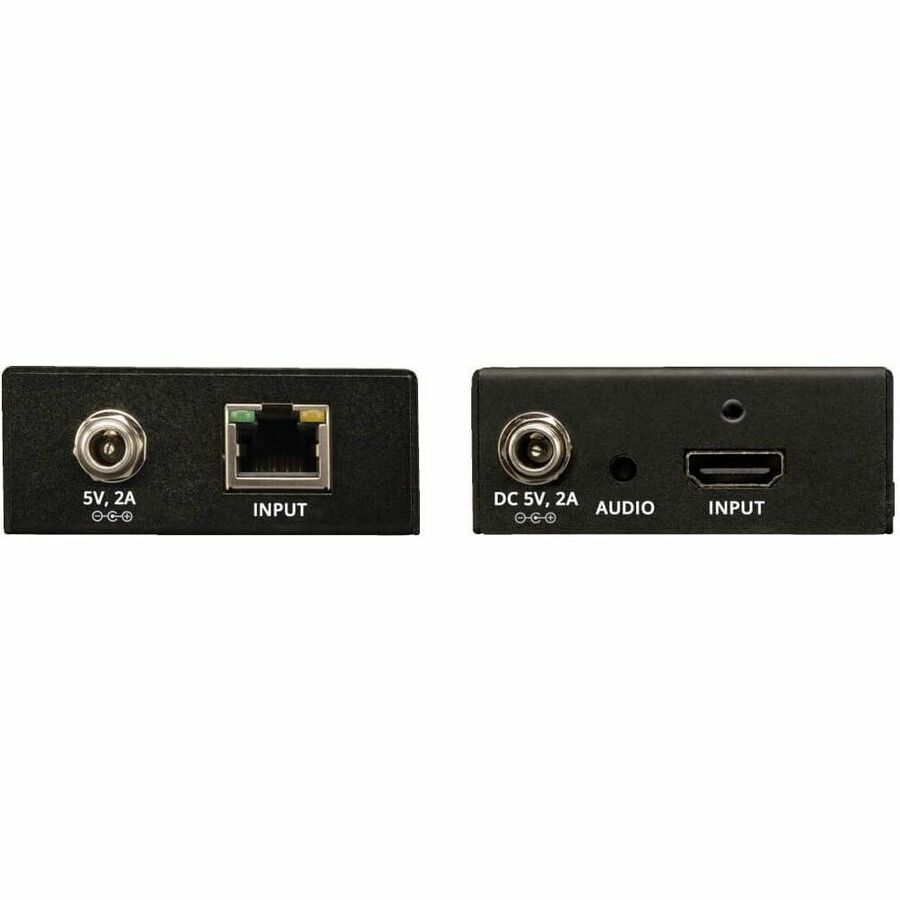

HDMI cable (see Tripp Lite's P568-Series) connects the local monitor and the audio/video source to the transmitter's HDMI ports and two monitors to the receiver. Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series) connects the two units.

The B126-2A1 can extend a 1080i (60 Hz) signal up to 200 feet, a 1080p (60 Hz) signal up to 150 feet and a 3D signal up to 125 feet. You can connect up to three B126-110 remote repeaters in the chain for a maximum of six HDMI displays and full signal extension of 700 feet (1080i), 500 feet (1080p) or 400 feet (3D).

In addition to crystal-clear video, the B126-2A1 delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio. Built-in equalization control lets you fine-tune the image quality at each remote display. Supports 24-bit True Color (8 bits per channel) and HDCP compatibility. Easy to set up with no software or drivers to install. Mounts to a wall, rack or pole using the included hardware.

Features

Extends High-Definition Signals

• Extends a 1080i (60 Hz) signal up to 200 ft., a 1080p (60 Hz) signal up to 150 ft. and a 3D signal up to 125 ft.

• Connect up to 3 B126-110 remote repeaters to the chain for maximum signal range of 700 feet (1080i), 500 feet (1080p) and 400 feet (3D)

• Transmitter and receiver connect with one Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series)

Supports the Latest Video and Audio Resolutions

• Works with all operating systems and HDMI video sources

• Supports HD resolutions up to 1080p (60 Hz)

• Supports stereo and 7.1-channel surround sound (multi-channel or PCM) audio

• Supports 24-bit True Color (8 bits per channel) and HDCP

• Built-in equalization control lets you adjust the image on the local monitor

Easy to Set Up and Use

• Plug-and-play engineering-no software or drivers to download and install

• Units connect quickly to monitors with HDMI cable, such as Tripp Lite's P568-Series

• LEDs indicate at a glance when the unit is receiving power and a signal from the previous link in the chain

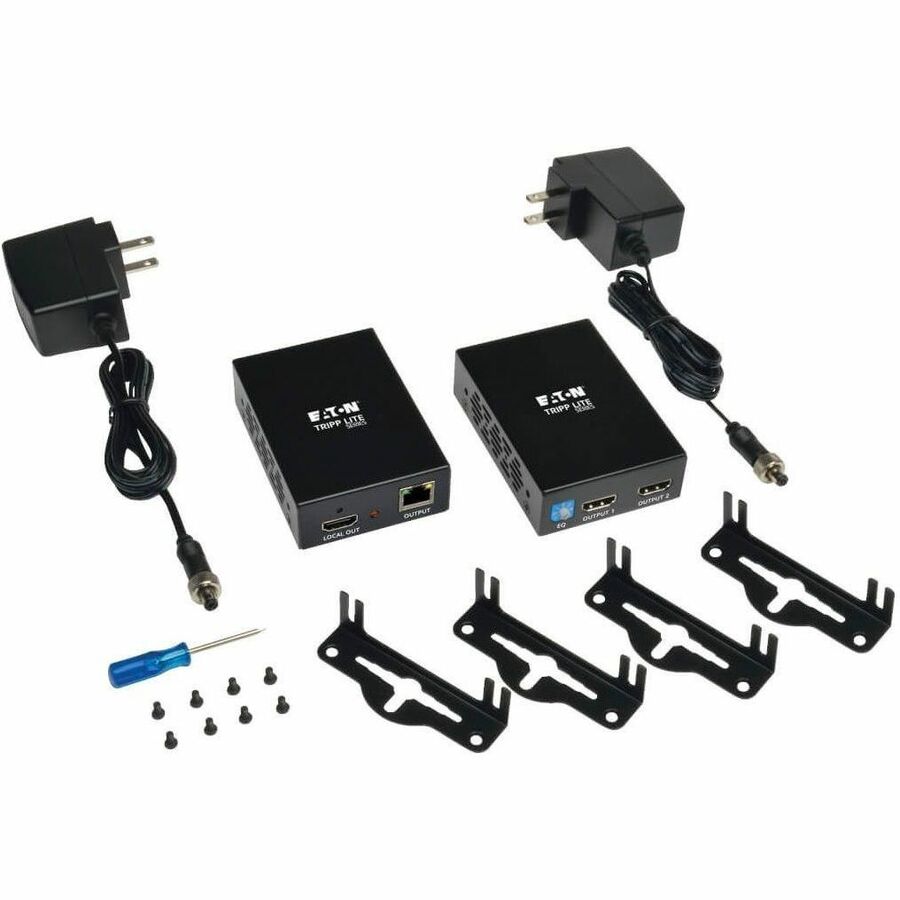

• Included mounting hardware lets you install the units on a wall, rack or pole

TAA-Compliant

• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

More from the Manufacturer

Kit for Extending an HDMI Signal to 2 Monitors Up to 200 Feet Away

Extend an HDMI signal to 2 monitors up to 200 feet from the source! Tripp Lite’s B126-2A1 HDMI over Cat5 1x2 Extender Kit delivers peak video performance by HDMI-enabled digital video components, assuring that you enjoy a crystal-clear picture and full, rich sound. The B126-2A1 extender kit includes a transmitter and a receiver unit. With the B126-2A1, you can extend an HDMI signal to 2 monitors up to 200 ft. at 1080i (60Hz) and up to 150 ft. at 1080p (60Hz) when using 24 AWG solid-wire Cat5e/6 cable (Tripp Lite N202-series). It also extends a 3D signal up to 125 ft. With no software or drivers to install, the B126-2A1 has plug-and-play convenience. Mounting hardware is included for a variety of installation options. The B126-2A1 has a green, RoHS-compliant design and is TAA-compliant for GSA

Solution for Digital Signage Applications & Greater Distance

The B126-2A1 extends an HDMI signal up to 200 ft., making it ideal for digital signage applications requiring distance between the video source and monitors, such as retail and point-of-sale displays and trade show presentations. The B126-2A1 allows the video source to be in a secure, remote location for controlled access while still delivering a signal to devices in another area.

The B126-2A1 extends an HDMI signal beyond the 15-ft. (5-meter) distance limitation. It can extend a 1080i (60Hz) signal up to 200 ft., a 1080p (60Hz) signal up to 150 ft., and a 3D signal up to 125 ft. You can add up to three B126-110 repeater units on each Cat5e/6 channel for a total of 4 displays per channel (an active remote receiver should be the last unit in a channel). For each repeater added into a channel, a 1080i (60Hz) signal can extend up to 175 ft. and a 1080p (60Hz) signal can extend up to 125 ft. Additionally, the B126-2A1 is compatible with both stereo and 7.1 channel surround sound audio, delivering premium sound quality to every point of your application. For optimal distance and resolution, use 24 AWG solid-wire Cat5e/6 cable (Tripp Lite N202-series).

Built-In Image Equalization, Stereo Audio & Plug-&-Play

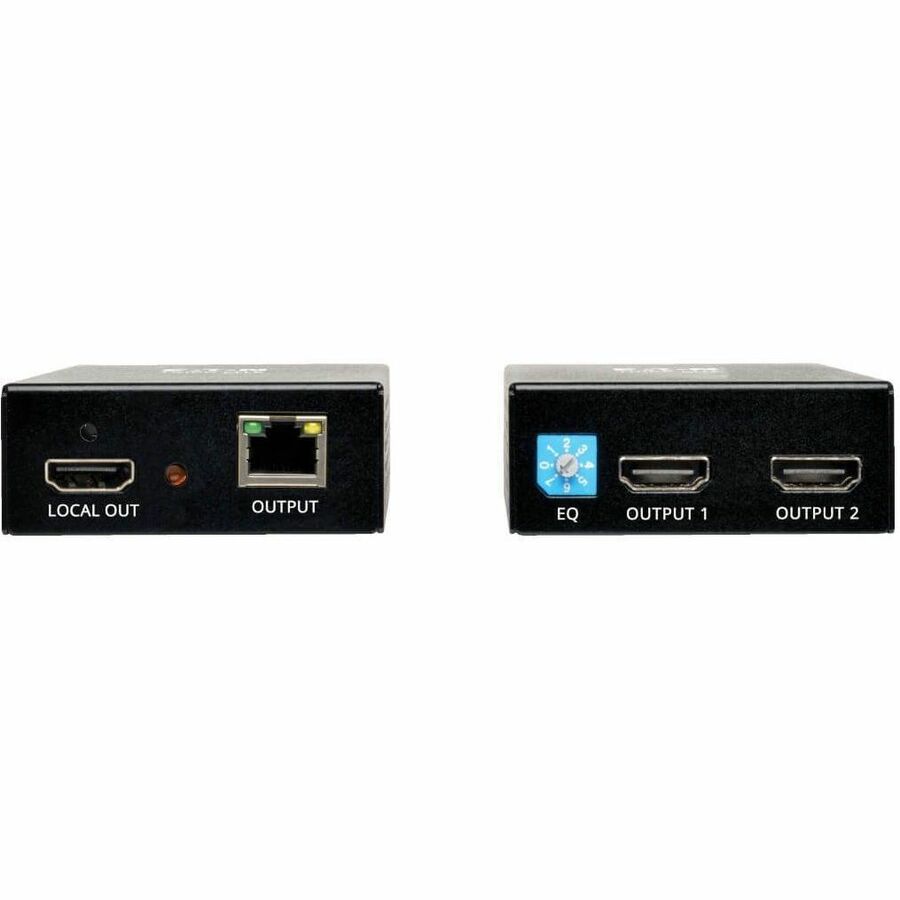

The B126-2A1 features built-in image equalization, allowing you to control the way the image appears on your remote HD displays. There are 7 equalization settings and the unit comes with a screwdriver for easy and convenient adjustment.

The B126-2A1 is compatible with both stereo and 7.1 channel surround sound (7.1 channel surround sound signal will be Multi-Channel or PCM). This delivers premium sound quality to every point of your application and adds greater functionality to your displays.

With no software or drivers to install, the B126-2A1 has plug-and-play convenience to get your application up and running faster. First, connect your transmitter to an HDMI source using HDMI cable (Tripp Lite P568 series). Connect the receiver unit to the RJ45 port on the transmitter unit using a Cat5e/6 cable, and connect the receiver unit to your two displays using HDMI cable (Tripp Lite P568 series). The B126-2A1 is compatible with all HDMI video sources and computer operating systems.
