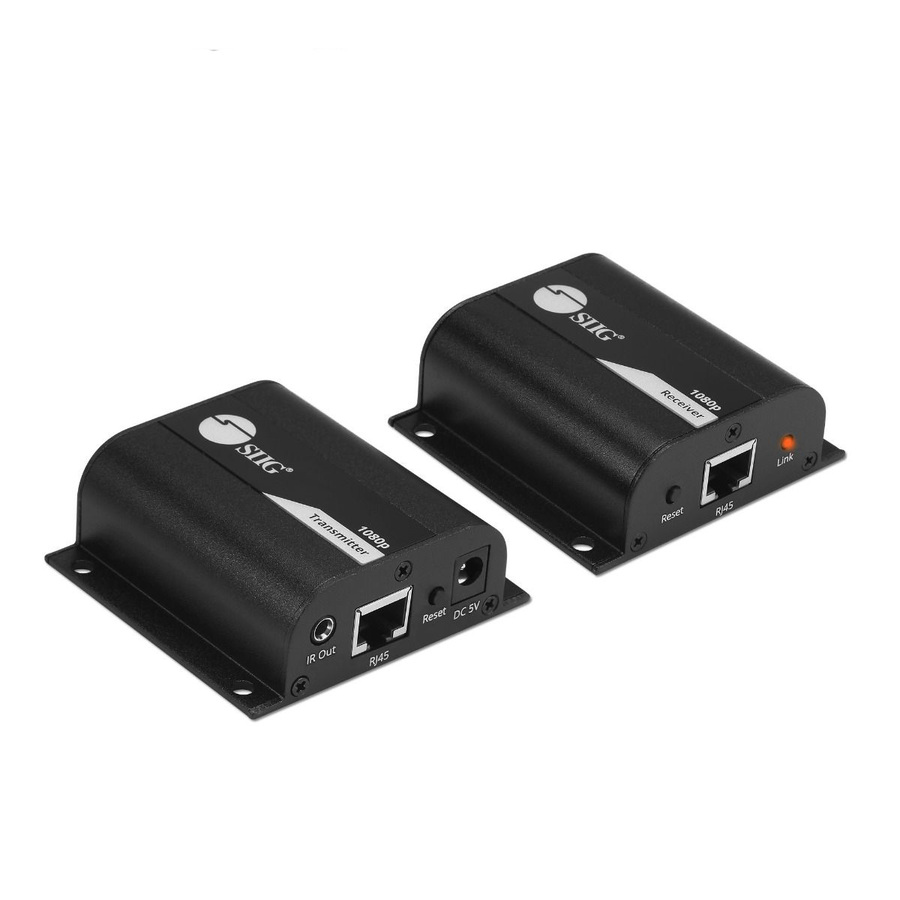

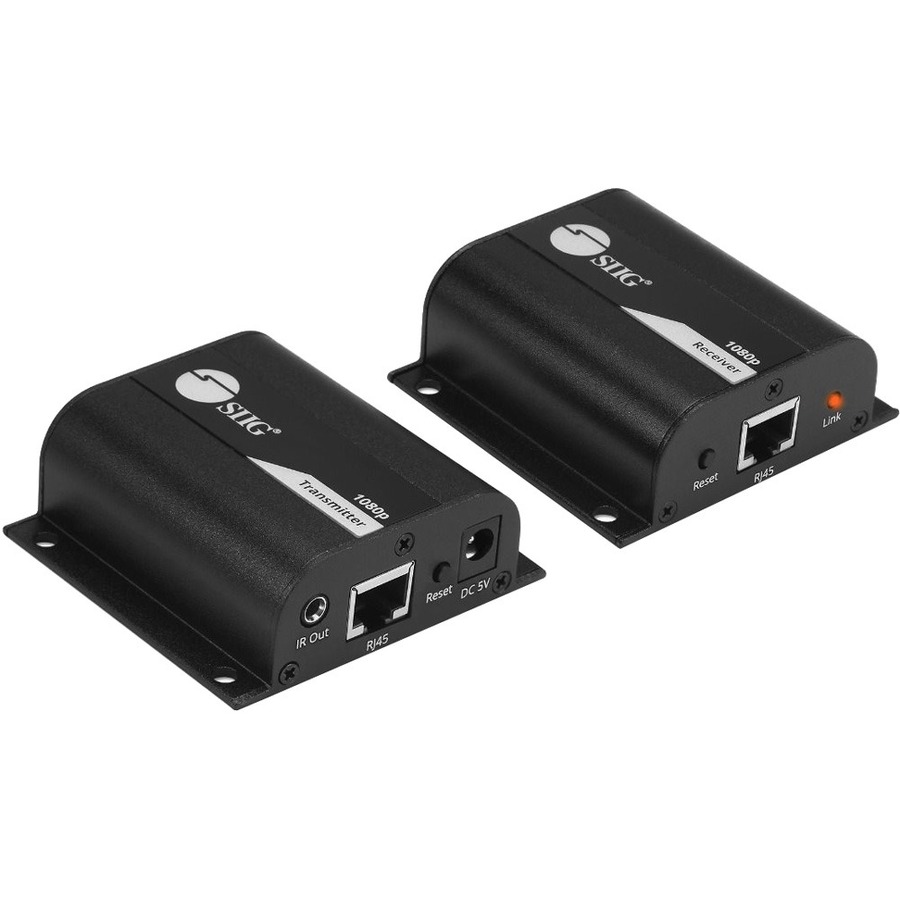

SIIG Full HD HDMI Extender over Cat5e/6 with IR - 164ft
HDMI Extender over Cat5e/6 Extender Kit- Full HD 1080p up to 50m (164ft) - TX & RX - HDMI 1080p Extender over Cat5e Cat6 with IR - Support HDMI Loopout - 10.2Gbps video bandwidth- HDCP 1.2- EDID Passthrough- IR Extension- Reset Button- 7.1-ch Audio- Wall Mountable- Aliminum Metal Housing - 2 years warranty
- SKU
- CE-H26011-S1
- Category
- Audio & Video Consoles/Extenders
MSRP$119.99
$86.99
Save 28%In stock: 36
Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- CE-H26011-S1
- Category
- Audio & Video Consoles/Extenders
Overview

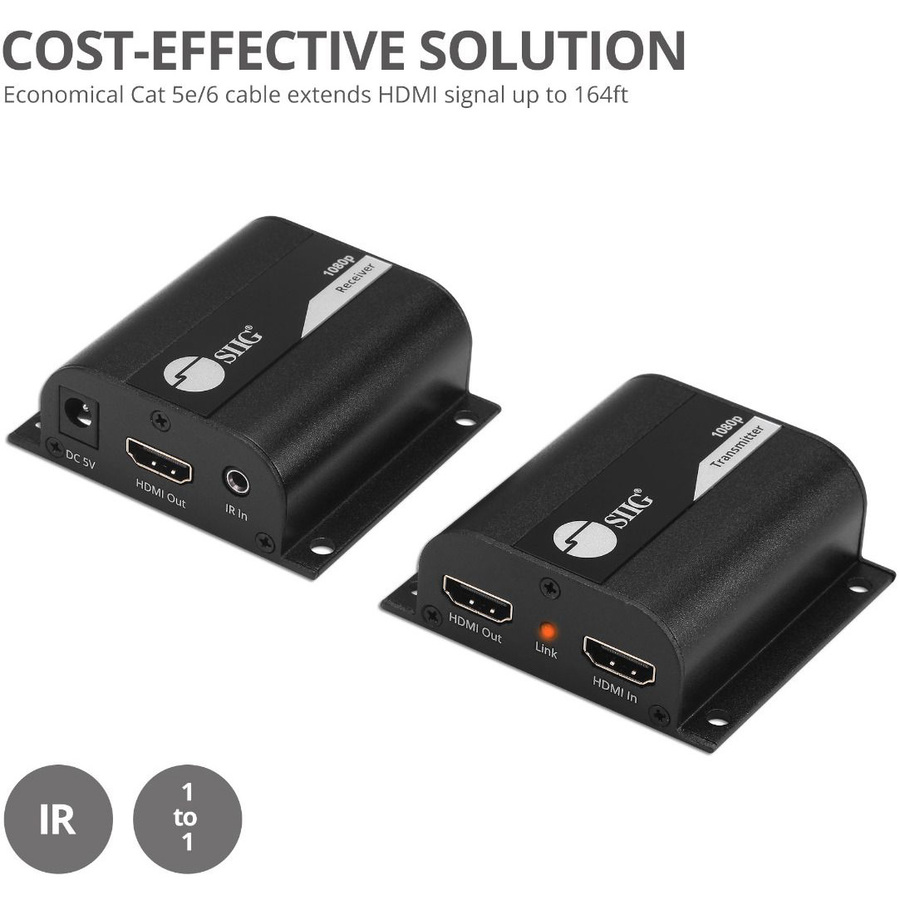

Extends HDMI signals up to 164ft over a single CAT5e/6 cable with a local HDMI output for monitoring the extended display
• Extends HDMI signals from DVD players, game consoles, or HDMI-equipped computers up to 164ft via Cat5e/6 networking cable, ideal for home theater, conference room or other audio/video applications that require remote location setup

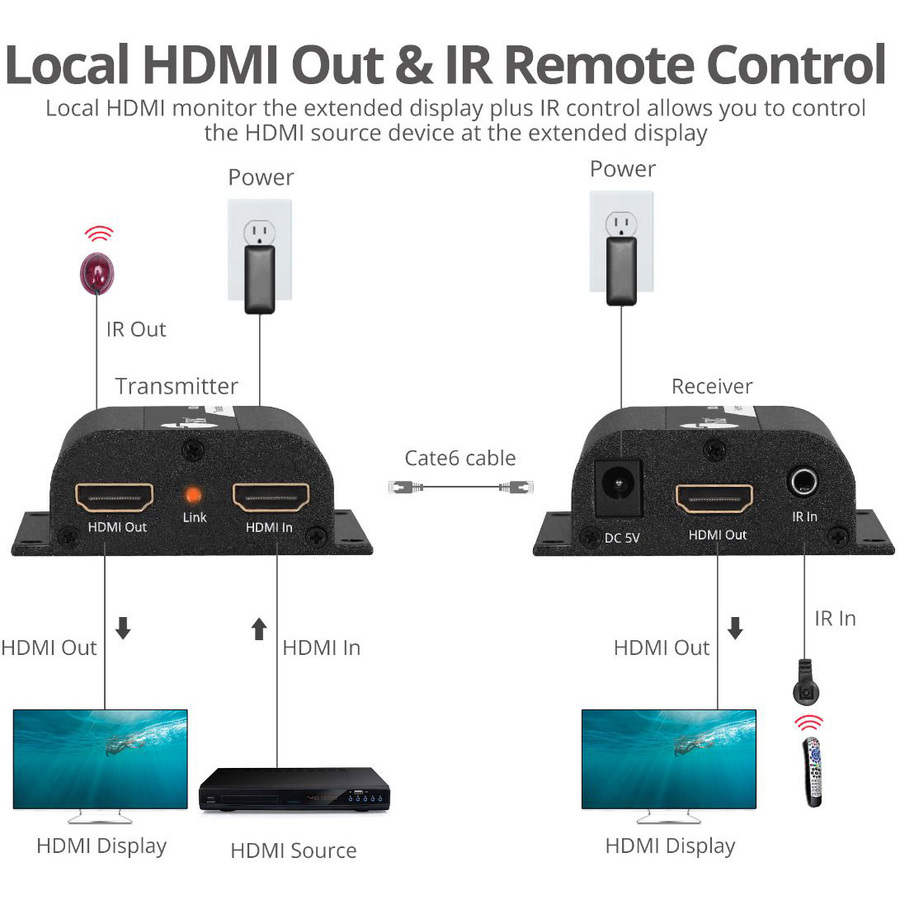

• IR remote control through CAT5e/6 allows you to control the HDMI source device at the extended display location

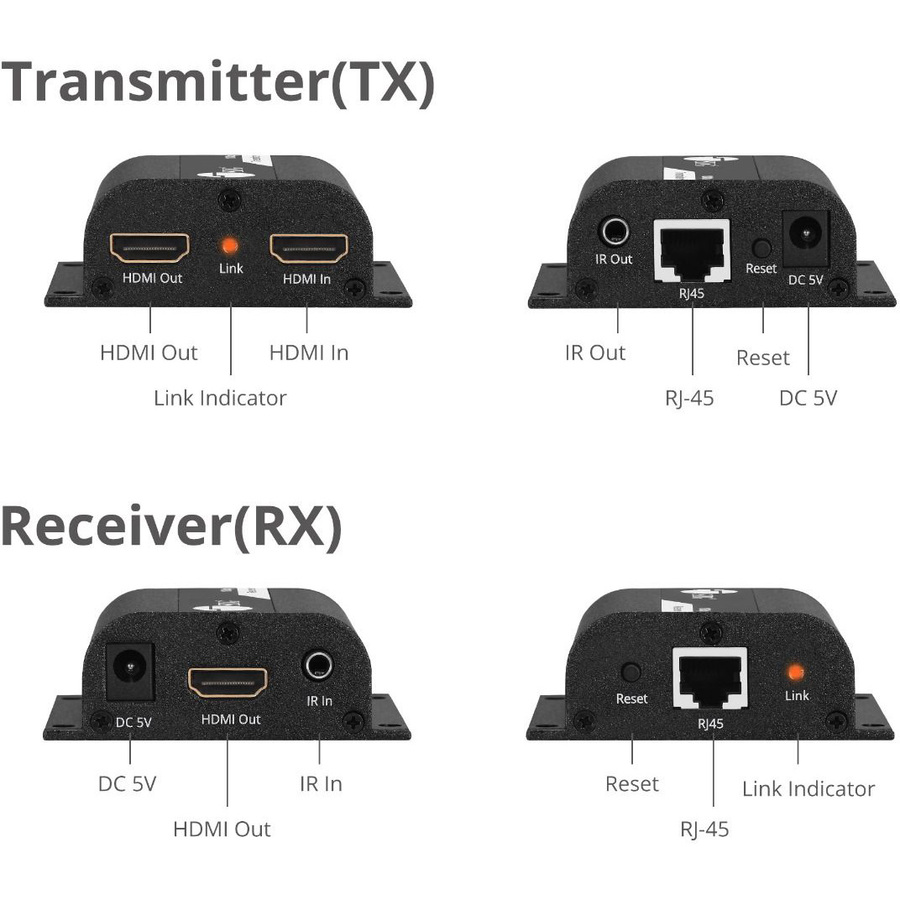

• Built-in HDMI output on the transmitter allows for local monitoring of the extended display
• Delivers high-quality audio/video transmission without compression for optimal performance, supports video resolution up to 1080p (Full HD) and 3D
• Premium metal housing offers excellent heat dissipation further enhances durability for dependable performance and long life
• Plug-n-Play installation, no software installation or hardware setup is required
Compatibility:
Replaces CE-H22E11-S1
More from the Manufacturer
Highlights
- Video Extender Transmitter/Receiver is all you need for dependable and productive audio/video transmission
- 1920 x 1080 maximum video resolution for a vivid, crystal clear display with added productivity
- HDMI in allows convenient transfer of content and data to video extender transmitter/receiver to ensure maximum dependability
- Twisted pair media type is very easy to connect and can carry both analog and digital data at the same time for maximum connection efficiency
- 1 input devices supported for maximum feasibility and usage convenience
- 1 output devices supported for maximum feasibility and usage convenience
- 164 ft maximum operating distance for feasible operation and optimal coverage
- Full HD graphics mode provides optimal video output with remarkable picture clarity
Specifications

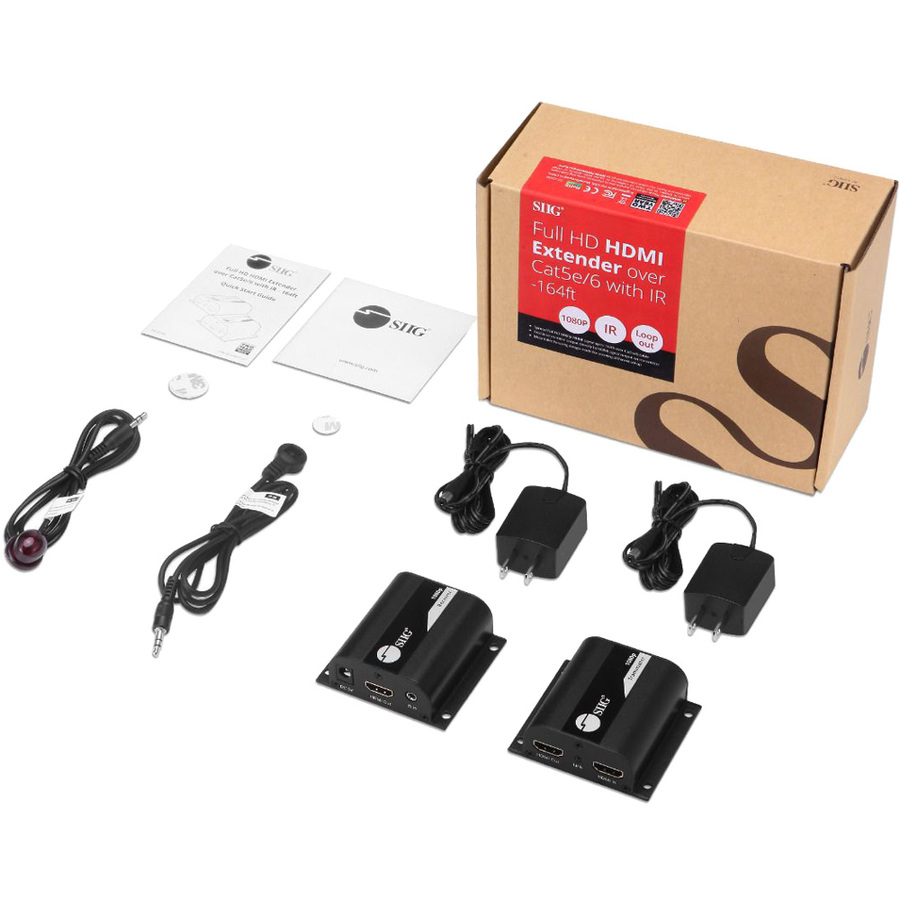

| Package Contents |
|
|---|---|
| Product Type | Video Extender Transmitter/Receiver |
| Manufacturer Part Number | CE-H26011-S1 |
| Limited Warranty | 2 Year |
| Connectivity Technology | Wired |
| Manufacturer | SIIG, Inc |
| Product Name | Full HD HDMI Extender over Cat5e/6 with IR - 164ft |
| Brand Name | SIIG |
| Country of Origin | China |
| Graphics Modes | Full HD |
| Environmentally Friendly | Yes |
| Maximum Video Resolution | 1920 x 1080 |
| Twisted Pair Cable Standard | Category 6 |
| Maximum Operating Distance | 164 ft |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 2 |
| HDMI In | Yes |
| HDMI Out | Yes |
| Media Type Supported | Twisted Pair |
| Number of Output Devices Supported | 1 |
| Number of Input Devices Supported | 1 |
| Transmitter Height | 0.97" |
| Transmitter Width | 2.60" |
| Transmitter Depth | 2.80" |
| Receiver Height | 0.97" |
| Receiver Width | 2.60" |
| Receiver Depth | 2.80" |
| Transmitter Weight (Approximate) | 3.04 oz |
| Receiver Weight (Approximate) | 2.88 oz |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
