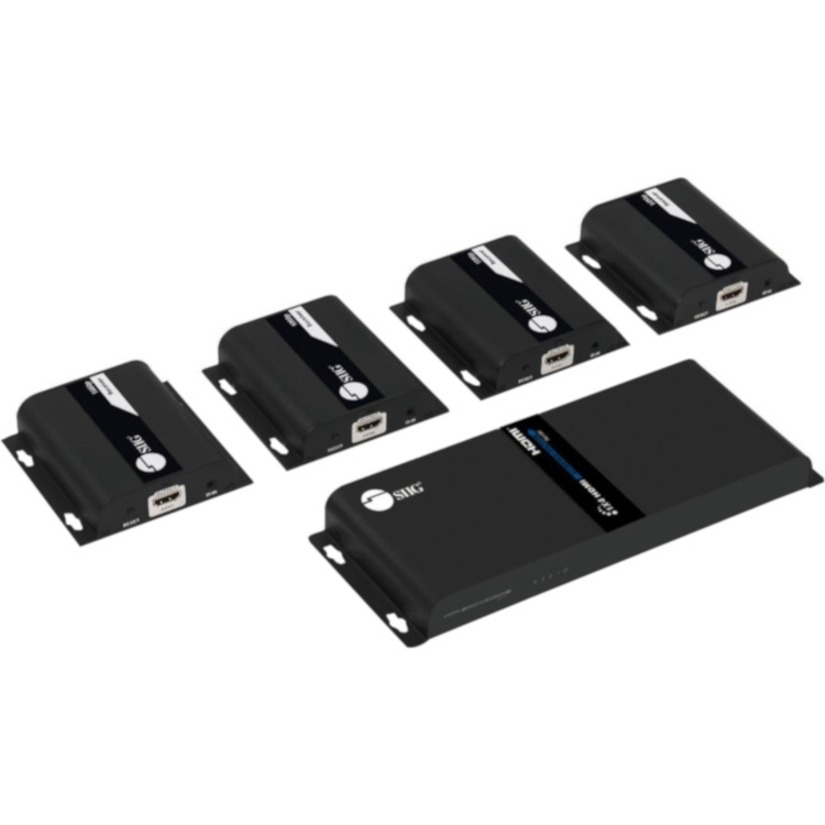

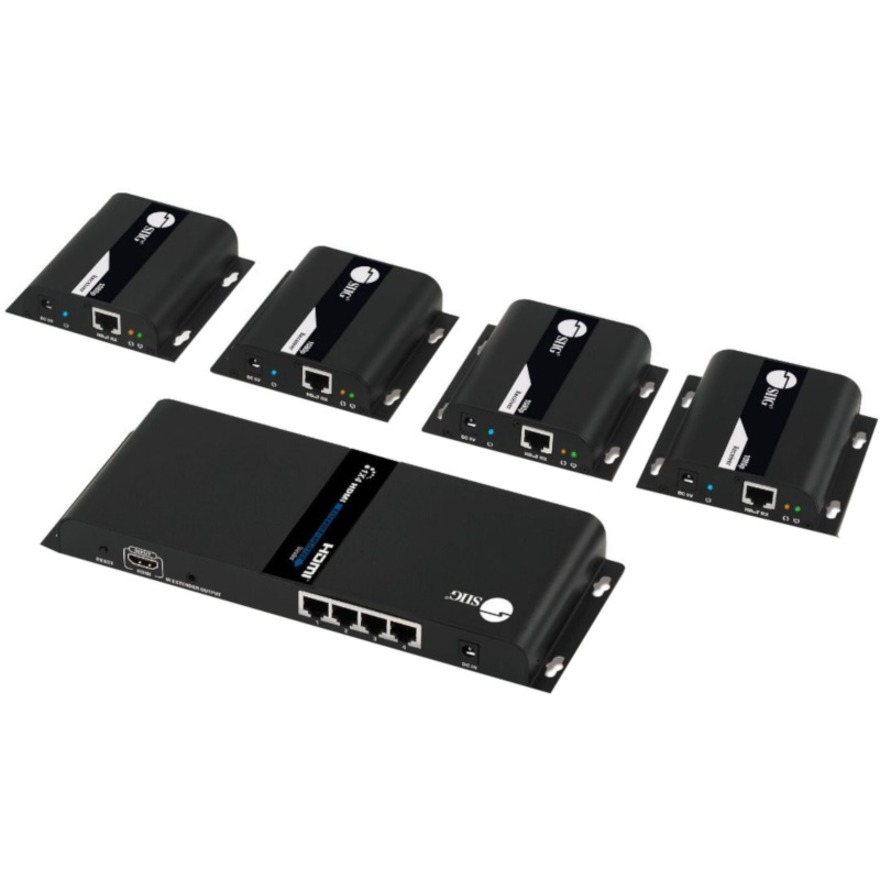

Extends HDMI Signal up to 394ft (120m) over CAT6 Cable with Cascade Feature - 4 Port HDMI Splitter - Full HD 1080p - 1x4 HDMI Splitter over Cat6 cable - HDMI HDbitT over IP Extender Kit - 1 TX 4 RX- HDCP 1.2 - 1 in 4 out Extender over Cat6 - One to Many / Many to Many Connection - Support VLAN & Cascade - IR Extension - Reset Button - Aliminum Metal Housing - 5x IR Extension Cable - Wall Mountable - 2 years warranty
MSRP$839.99
$748.80
Save 11%In stock: 100
Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Extends 1080p HDMI signal up to 394ft over Cat6 cable to up to 4 displays, IR control, works with dedicated Gigabit network switches for more displays and extension
• With a single Cat6 cable, you can easily extend HDMI audio/video signals up to 394ft (120m) with our 1x4 HDMI Splitter HDbitT over IP Extender Kit - 120m. Direct 1-to-1 connection, 1-to-Many through Gigabit network switches. Additional receivers, part# CE-H26U11-S1), are sold separately
• Features cascade connection of up to 30 receivers per transmitter. 1-to-many configuration through 1) Unmanaged/Dedicated Gigabit switches, 2) Smart Gigabit switches with VLAN to segregate video traffic from the rest of the LAN. Many-to-many configuration is also supported via VLAN setups. Note that each VLAN can only accommodate 1 transmitter (TX). Note: We recommend using SIIG's 24-port AV Over IP Smart Ethernet Switch, part# CE-SW0111-S1, sold separately
• Delivers crystal clear Full HD content up to 1080p@60Hz resolution. Supports up to 1080p; supports 408i/480p @60Hz, 576i/576p @50Hz, 720p @50/60Hz, 1080i/1080p @50/60Hz; Auto adjustment for different cable lengths to produce the best video/audio experience. Supports 2-channel Stereo Audio. * Note: There's a 250ms or less delay/latency due to data compression. Not recommended for real-time applications, such as PC gaming

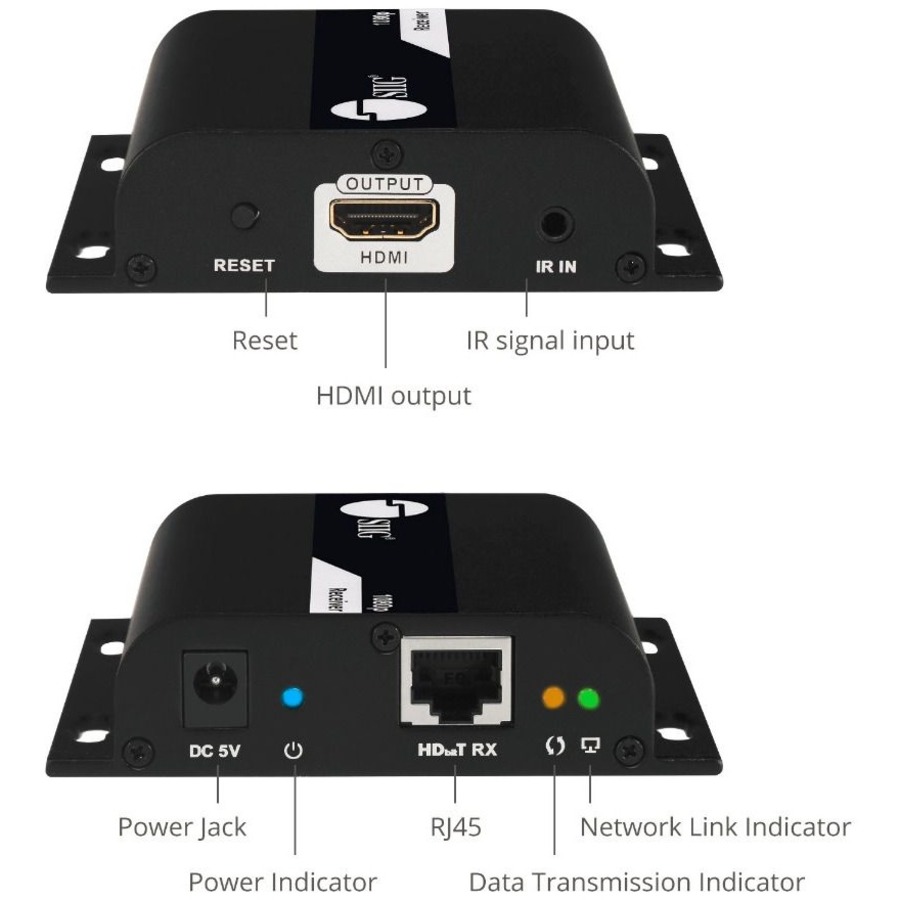

• IR remote control through Cat6 cable allow source device to recognize remote commands; You can control the HDMI source device at a secondary location with the included IR cables that forward commands over a Cat6 cable for convenience. We recommend using high performance pure COPPER Cat6 cables to ensure reliable performance
• High quality durable surface mountable metal housing with ventilation panels provides excellent heat dissipation and a higher level of RF/EMI shielding to ensure reliable performance and system stability during long hours of non-stop operation
• Plug-n-Play installation, no software installation required, backed by a 2-year limited warranty
Limited Warranty: 2 Year
About Us Since 1985, SIIG Inc. lead the way in connectivity solution you can trust for IT and AV. Built on core values of professional integrity with customer satisfaction as the focus point, we are committed to providing excellent service, support, and solutions. We want to enhance your audiovisual and information technology experience with innovative product solutions. © 2020 SIIG Inc., All rights reserved.
| General Information | |
|---|---|
| Manufacturer | SIIG, Inc |
| Manufacturer Part Number | CE-H26V11-S1 |
| Brand Name | SIIG |
| Product Name | 1x4 HDMI Splitter HDbitT over IP Extender Kit - 120m |
| Product Type | Video Extender Transmitter/Receiver |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| HDMI Out | Yes |
| Number of Network (RJ-45) Ports | 8 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 4 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 7 |
| Physical Characteristics | |
| Transmitter Height | 0.98" |
| Transmitter Width | 3.82" |
| Transmitter Depth | 9.92" |
| Receiver Height | 0.93" |
| Receiver Width | 3.70" |
| Receiver Depth | 3.81" |
| Form Factor | Wall Mountable, Surface-mountable |
| Transmitter Weight (Approximate) | 1.34 lb |
| Receiver Weight (Approximate) | 5.28 oz |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 4 |
| Maximum Operating Distance | 393.70 ft |
| Video | |
| Graphics Modes | Full HD |
| Maximum Video Resolution | 1920 x 1080 |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
