SIIG 1x8 HDMI Splitter HDbitT over IP Extender - 120m
SIIG

SIIG 1x8 HDMI Splitter HDbitT over IP Extender - 120m

1 Input Device - 8 Output Device - 393.70 ft Range - 16 x Network (RJ-45) - 1 x HDMI In - 8 x HDMI Out - Full HD - 1920 x 1080 - Twisted Pair - Category 7 - Wall Mountable

SKU
CE-H25G11-S1
Category
Audio & Video Consoles/Extenders

MSRP$1,099.99

$922.34

Save 16%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
CE-H25G11-S1
Category
Audio & Video Consoles/Extenders

Overview

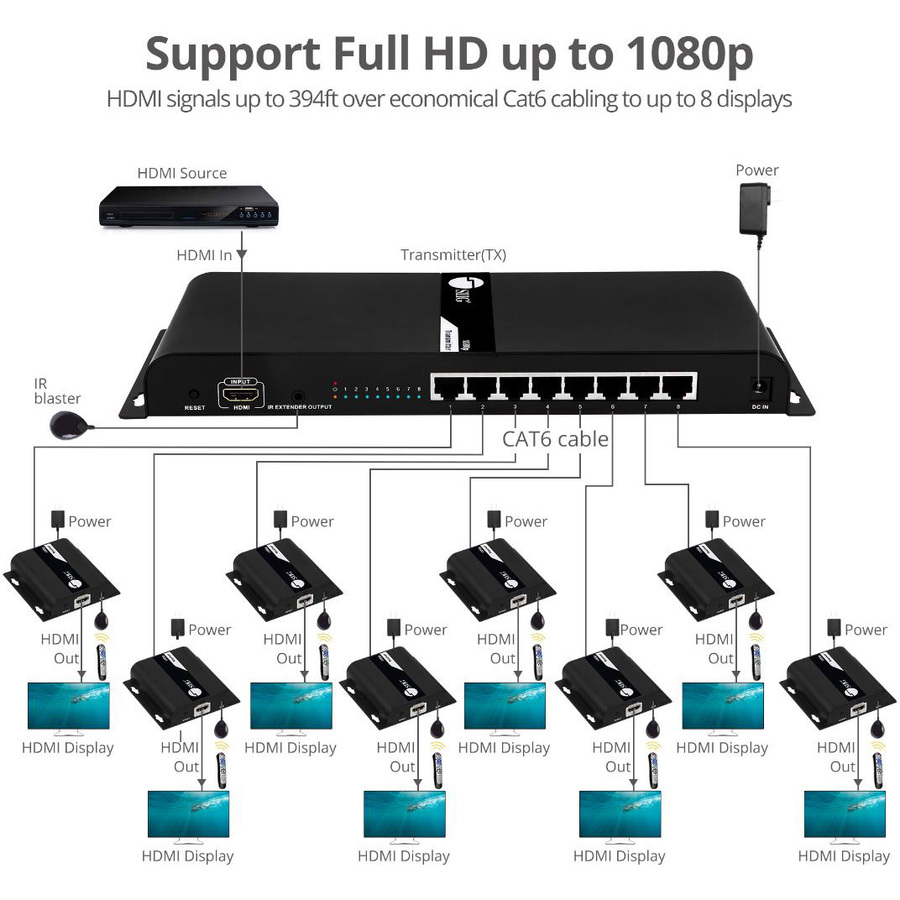

Extends 1080p HDMI signals up to 120m (394ft) over economical Cat6 cabling to up to 8 displays

• Extends HDMI signals up to 120m (394ft) over economical Cat6 cabling to up to 8 displays

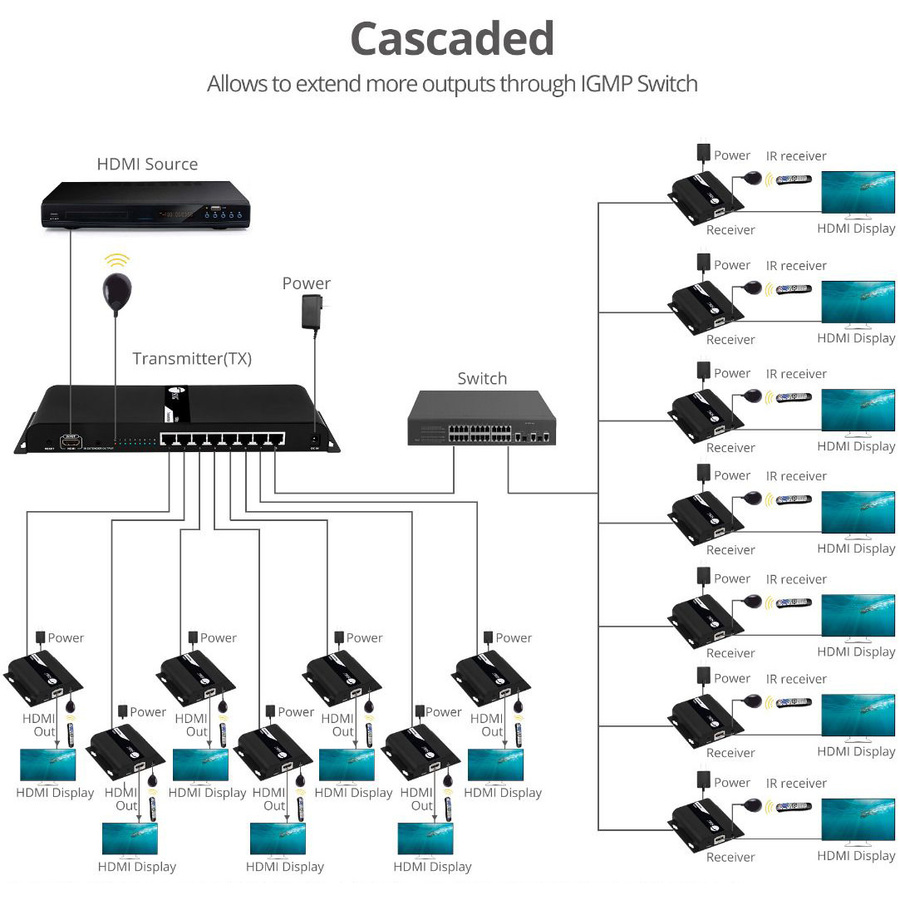

• Features Cascade connection extends HDMI signal through unmanaged Gigabit network routers or switches, With HDBitT® transport protocol, you can not only extend but split HDMI signals to additional displays

• Note : Additional receivers, HDMI Extender over CAT6 with IR - Receiver, part # CE-H23U11-S1, sold separately

• Delivers crystal clear Full HD content up to 1080p@60Hz resolution

• IR remote control through Cat6 cable allows you to control the HDMI source device at the remote display location

• High quality durable metal housing with ventilation panels provides excellent heat dissipation to ensure reliable performance and system stability during long hours of operation

• Plug-n-Play installation, no software installation required

Specifications

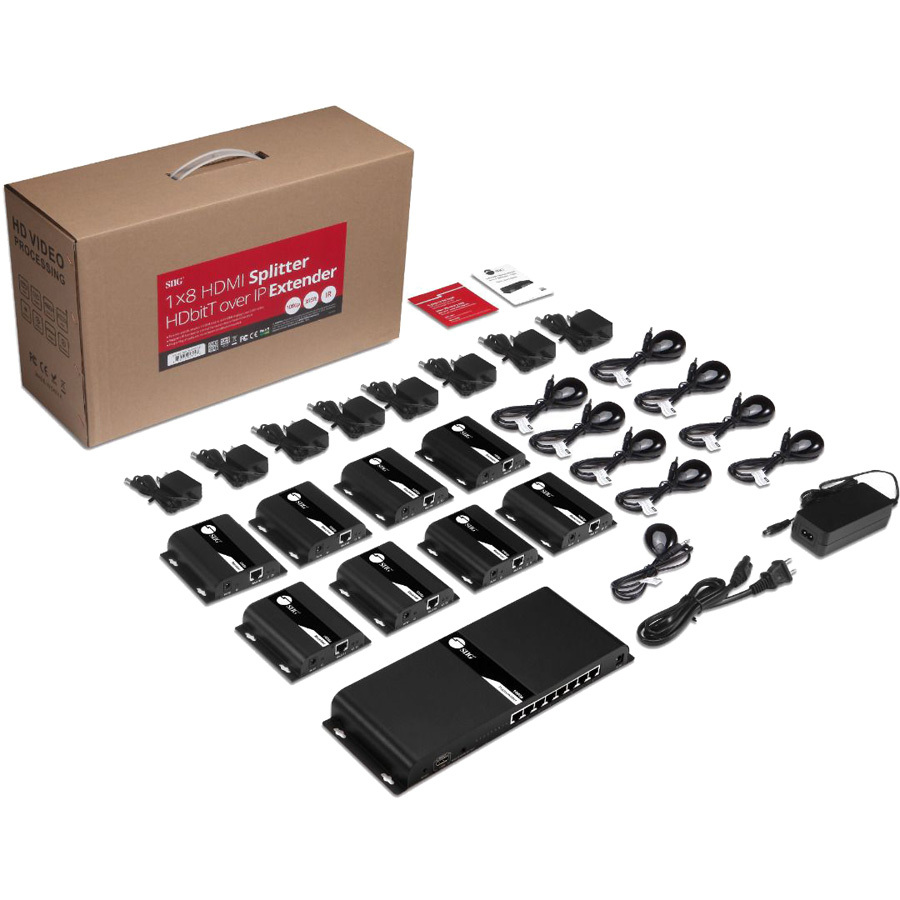

Package Contents

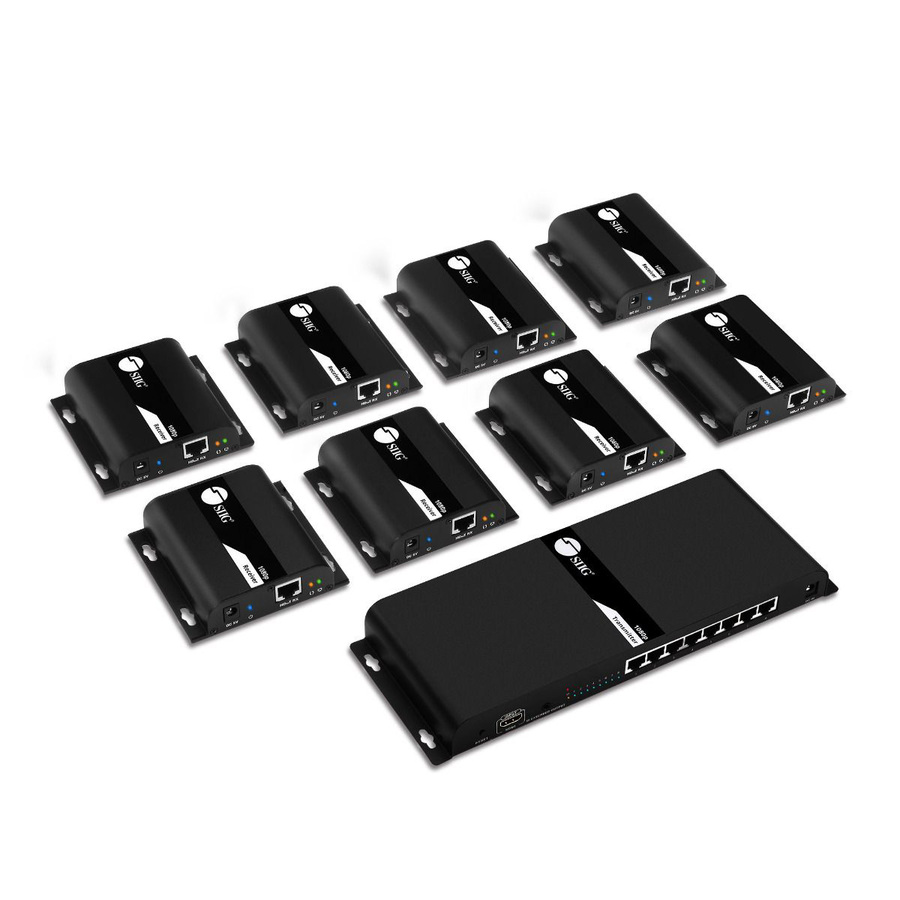

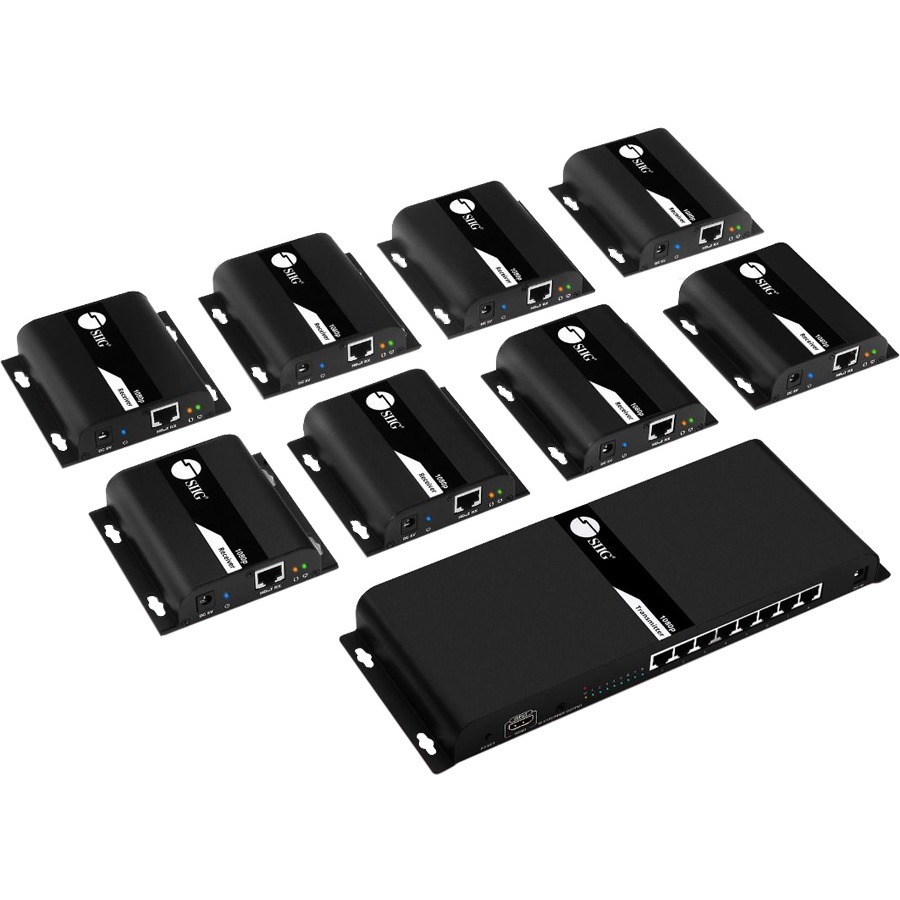

  • 1 x Transmitter
  • 8 x Receivers
  • 9 x Power Adapter
  • 1 x IR Blaster Extension Cable
  • 8 x IR Receiver Extension Cable
  • Screw kit
  • Quick Start Guide
Product TypeVideo Extender Transmitter/Receiver
Manufacturer Part NumberCE-H25G11-S1
Limited Warranty6 Year
Connectivity TechnologyWired
Form FactorWall Mountable
ManufacturerSIIG, Inc
Product Name1x8 HDMI Splitter HDbitT over IP Extender - 120m
Brand NameSIIG
Country of OriginChina
Graphics ModesFull HD
Environmentally FriendlyYes
Maximum Video Resolution1920 x 1080
Twisted Pair Cable StandardCategory 7
Maximum Operating Distance393.70 ft
Number of Network (RJ-45) Ports16
Network (RJ-45)Yes
Number of HDMI Inputs1
Number of HDMI Outputs8
HDMI InYes
HDMI OutYes
Media Type SupportedTwisted Pair
Number of Output Devices Supported8
Number of Input Devices Supported1
Transmitter Height1.18"
Transmitter Width4.37"
Transmitter Depth11.81"
Receiver Height0.93"
Receiver Width3.70"
Receiver Depth3.81"
Transmitter Weight (Approximate)1.83 lb
Receiver Weight (Approximate)5.28 oz
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
