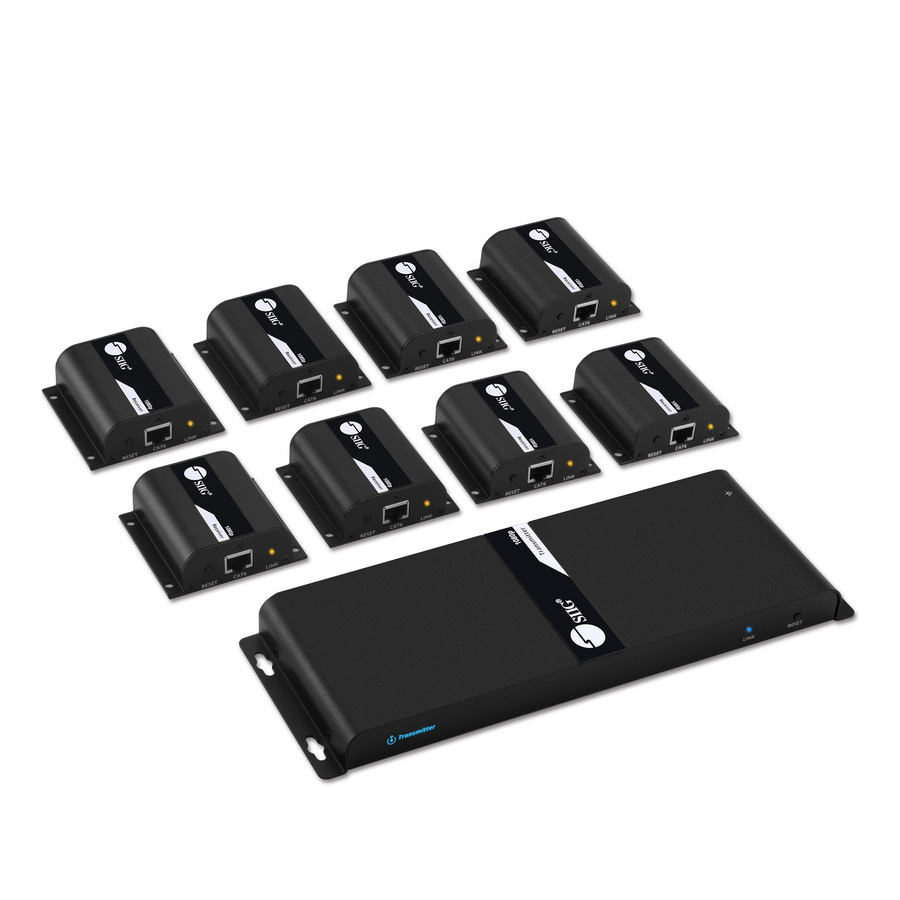

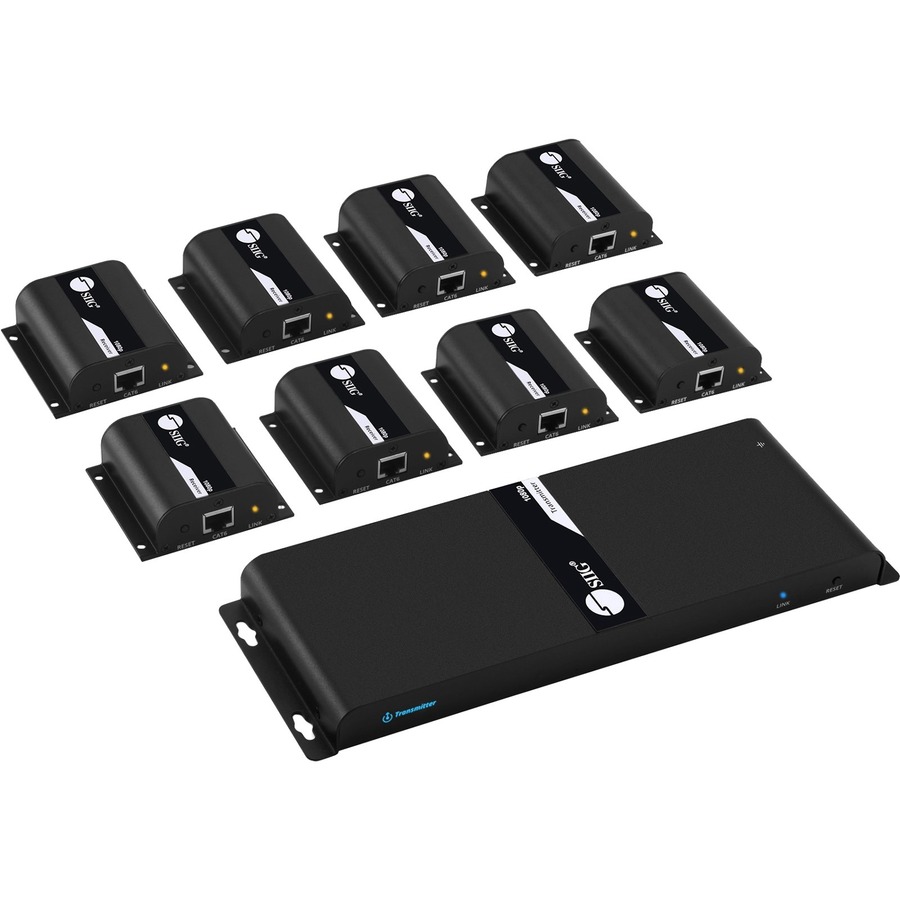

SIIG 8-Port HDMI Splitter Over Cat6 Extender with IR - 40M

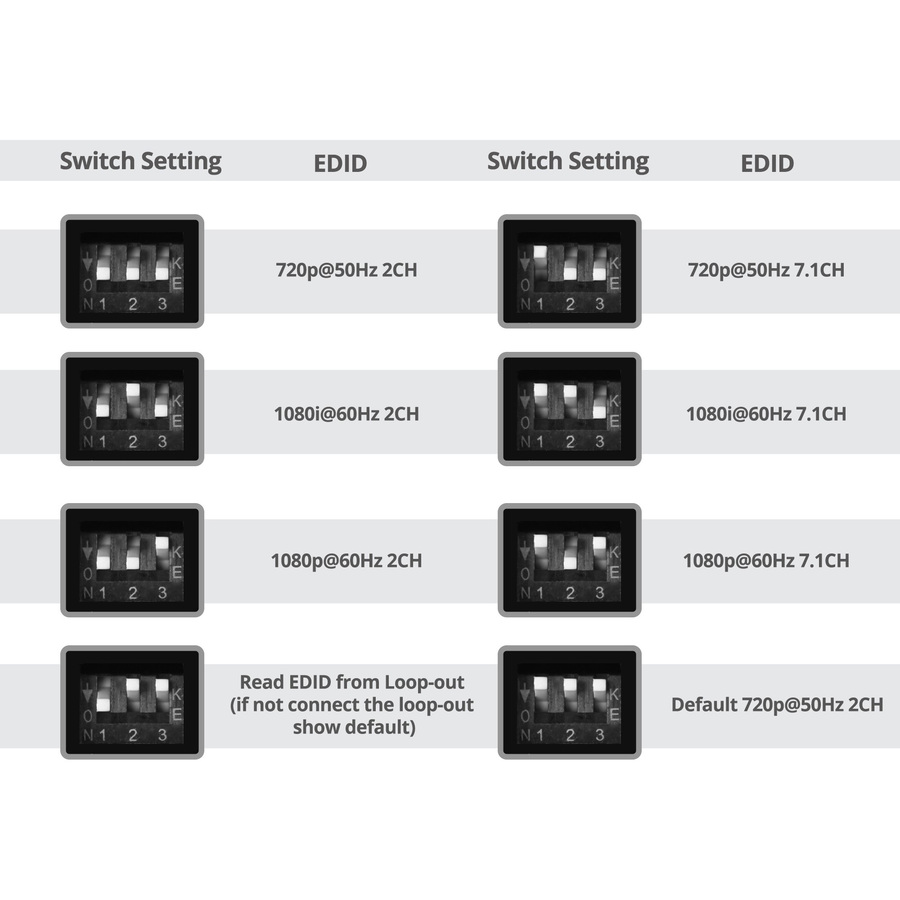

8 port HDMI over Cat6 Extender Kit- 130ft (40m) - HDMI over IP Extender 1 in 8 out - Full HD 1080p@60 - HDCP - 1x8 HDMI Splitter over Cat6 Extender - 1920x1080 60Hz - local HDMI output- One to Many Connection- IR Extension- EDID management Switch- Reset Button - Aliminum Metal Housing- Link LED Indicator- 9x IR Extension Cable - Wall Mountable - 2 years warranty
- SKU
- CE-H24811-S1
- Category
- Audio & Video Consoles/Extenders
MSRP$539.99
$416.10
Save 23%In stock: 20
Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- CE-H24811-S1
- Category
- Audio & Video Consoles/Extenders
Overview

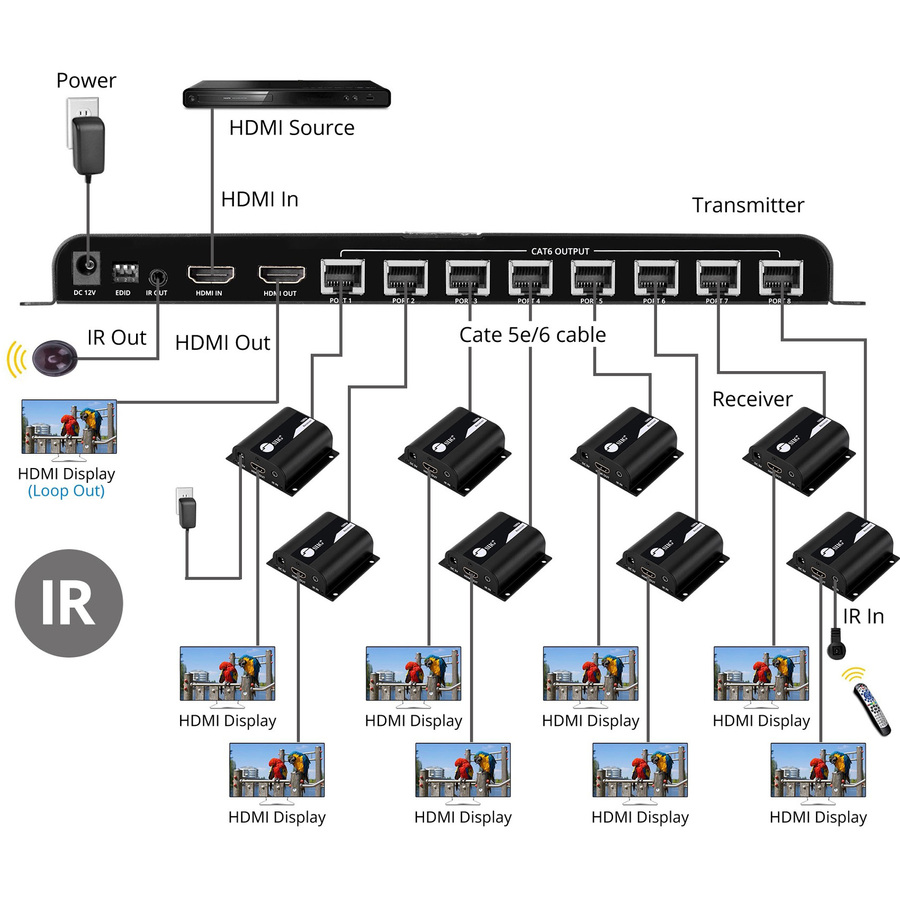

Extends 1080p signals up to 130 feet to eight HDMI displays over a single Cat6 cable
• Extends high definition video signals up to 130ft (40m) over economical Cat6 cabling to up to eight HDMI displays
• Delivers crystal clear Full HD content up to 1080p@60Hz resolution
• IR control through Cat6 allows you to control the HDMI source device at the remote display location
• High quality durable metal housing with ventilation panels provides excellent heat dissipation to ensure reliable performance and system stability during long hours of operation
• Plug-n-Play installation, no software installation or hardware setup is required
More from the Manufacturer
Highlights
- Video Extender Transmitter/Receiver is a reliable audio/video transmission extending solution
- 1920 x 1080 maximum video resolution for a spectacular, sharp display with added reliability
- HDMI in allows convenient transfer of content and data to video extender transmitter/receiver to ensure maximum dependability
- HDMI out enables you to transfer data from your devices to video extender transmitter/receiver with added efficiency
- Twisted pair media type is very easy to connect and can carry both analog and digital data at the same time for maximum connection efficiency
- 1 input devices supported to better accommodate your specific requirements
- 8 output devices supported to better accommodate your specific requirements
- 131.23 ft maximum operating distance to allow efficient coverage and maximum usability
- Full HD graphics mode for an immersive and sharp viewing experience
- Wall mountable video extender transmitter/receiver encourages collaboration, and interactivity with maximum productivity
Specifications

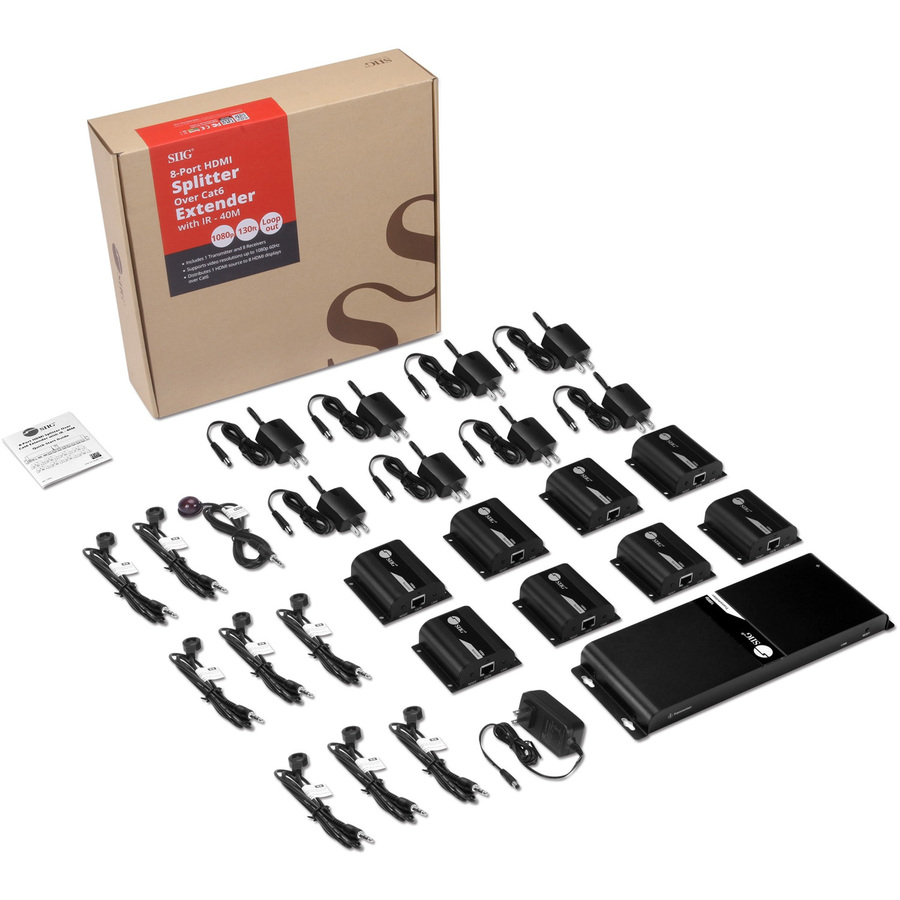

| Package Contents |
|
|---|---|
| Product Type | Video Extender Transmitter/Receiver |
| Manufacturer Part Number | CE-H24811-S1 |
| Limited Warranty | 2 Year |
| Connectivity Technology | Wired |
| Form Factor | Wall Mountable |
| Manufacturer | SIIG, Inc |
| Product Name | 8-Port HDMI Splitter Over Cat6 Extender with IR - 40M |
| Brand Name | SIIG |
| Country of Origin | China |
| Graphics Modes | Full HD |
| Environmentally Friendly | Yes |
| Maximum Video Resolution | 1920 x 1080 |
| Twisted Pair Cable Standard | Category 7 |
| Maximum Operating Distance | 131.23 ft |
| Number of Network (RJ-45) Ports | 16 |
| Network (RJ-45) | Yes |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 9 |
| HDMI In | Yes |
| HDMI Out | Yes |
| Media Type Supported | Twisted Pair |
| Number of Output Devices Supported | 8 |
| Number of Input Devices Supported | 1 |

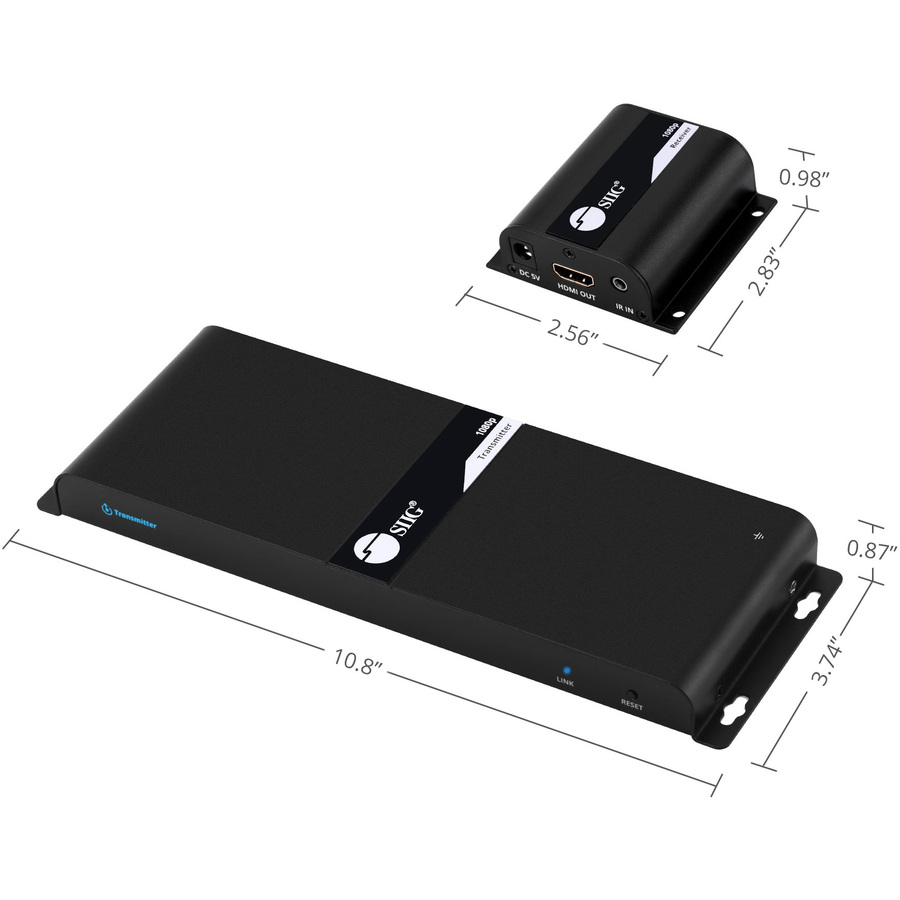

| Transmitter Height | 0.91" |
| Transmitter Width | 3.82" |
| Transmitter Depth | 10.87" |
| Receiver Height | 0.98" |
| Receiver Width | 2.64" |
| Receiver Depth | 2.81" |
| Transmitter Weight (Approximate) | 1.33 lb |
| Receiver Weight (Approximate) | 3.04 oz |
| Product Color | Black |
| Color Family | Black |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
