Eaton Tripp Lite Series HDMI over Cat5/6 Extender Kit, Transmitter/Receiver for Video/Audio, PoC, Up to 100 ft. (30 m), TAA

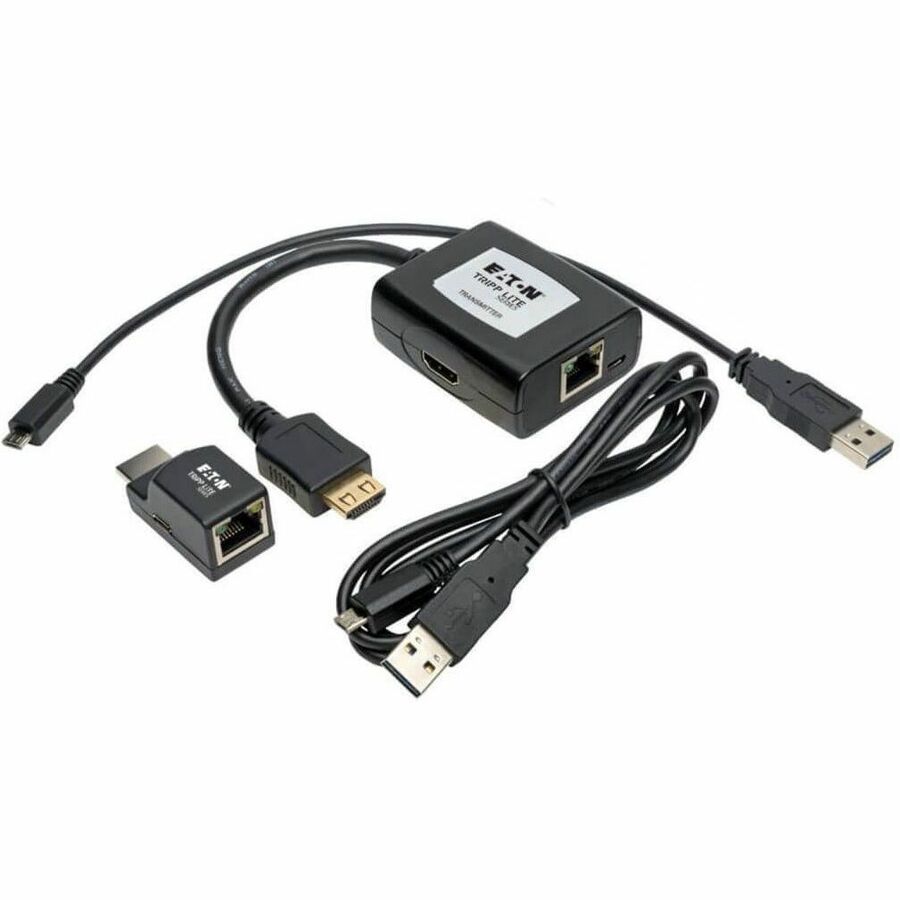

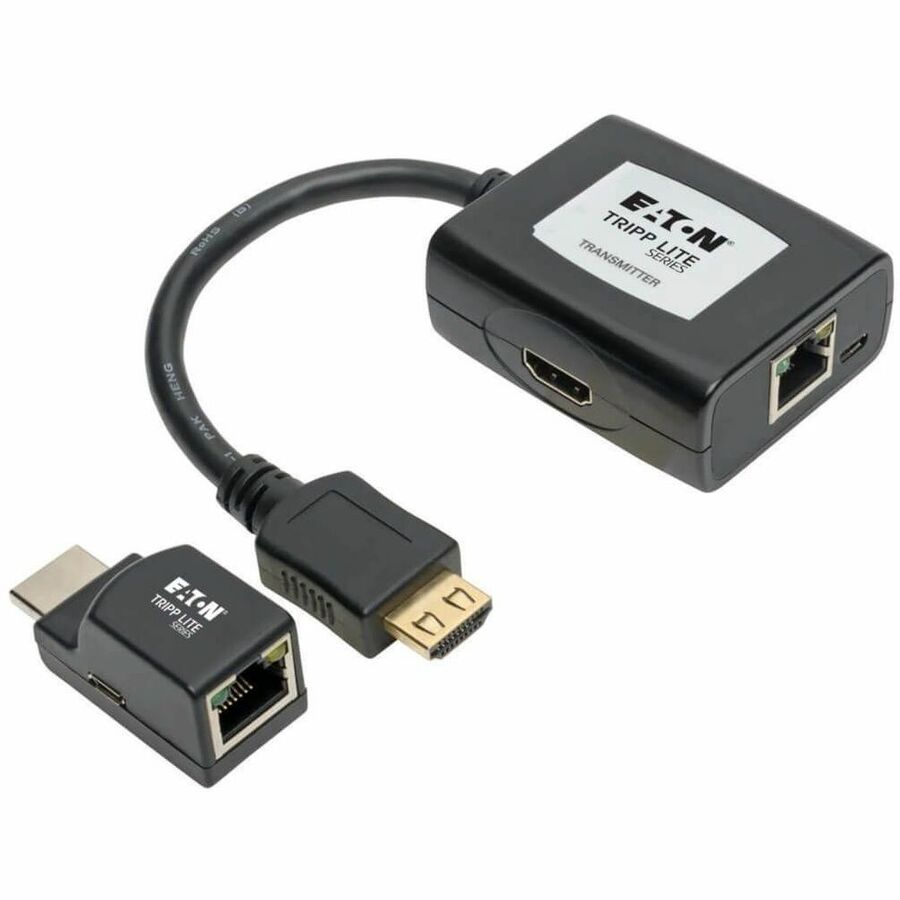

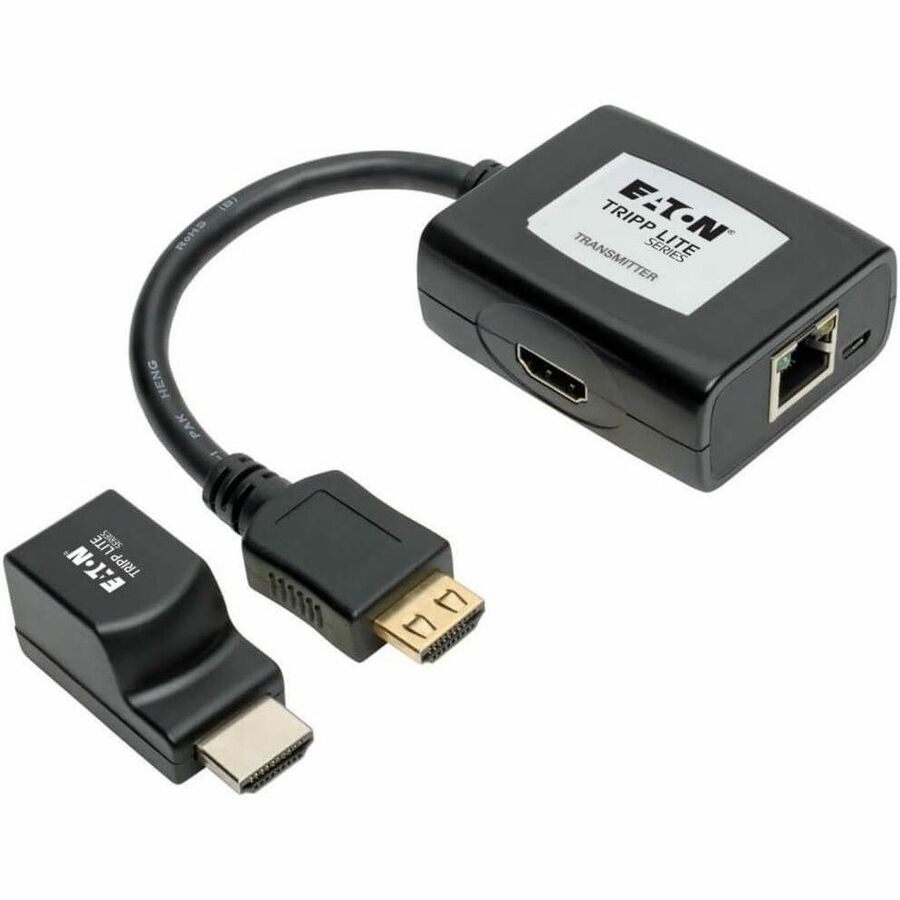

The B126-1P1M-U-POC HDMI over Cat5/Cat6 Extender Kit includes a transmitter and a low-profile receiver that work in tandem to extend an HDMI audio/video signal to a projector, monitor or television. The kit is recommended for digital signs, trade shows, classrooms, churches, offices, retail settings and other applications where the source is located farther than conventional cables allow.

HDMI cable (see Tripp Lite's P568-Series) connects the audio/video source, such as a Blu-ray player, and optional local display to the transmitter's HDMI ports. Cat5e/6/6a cable connects the transmitter to the receiver's RJ45 port (for best results, use 24 AWG solid-wire Cat6 cable, such as Tripp Lite's N202-Series). The receiver plugs directly into the display's HDMI input port. Built-in PoC technology powers the receiver over Cat5e/6/6a cable, so no external power supply on the display side is needed.

The B126-1P1M-U-POC can extend a high-definition 1080p (at 60 Hz) signal up to 50 feet and a 1080i signal up to 100 feet. In addition to crystal-clear video, the B126-1P1M-U-POC delivers full, rich audio up to 7.1-channel surround sound (multi-channel or PCM) and supports 3D and HDCP standards. Easy to set up with no software or drivers to install. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. More from the Manufacturer

Delivers Bold, Bright Video Quality and Full, Rich 7.1 Audio

The B126-1P1M-U-POC can extend a high-definition 1080p (at 60 Hz) signal up to 50 feet and a 1080i signal up to 100 feet. In addition to crystal-clear video, the extender kit distributes audio up to 7.1-channel surround sound (multi-channel or PCM) and supports 3D and HDCP standards.

Works Right Out of the Box with Easy Setup

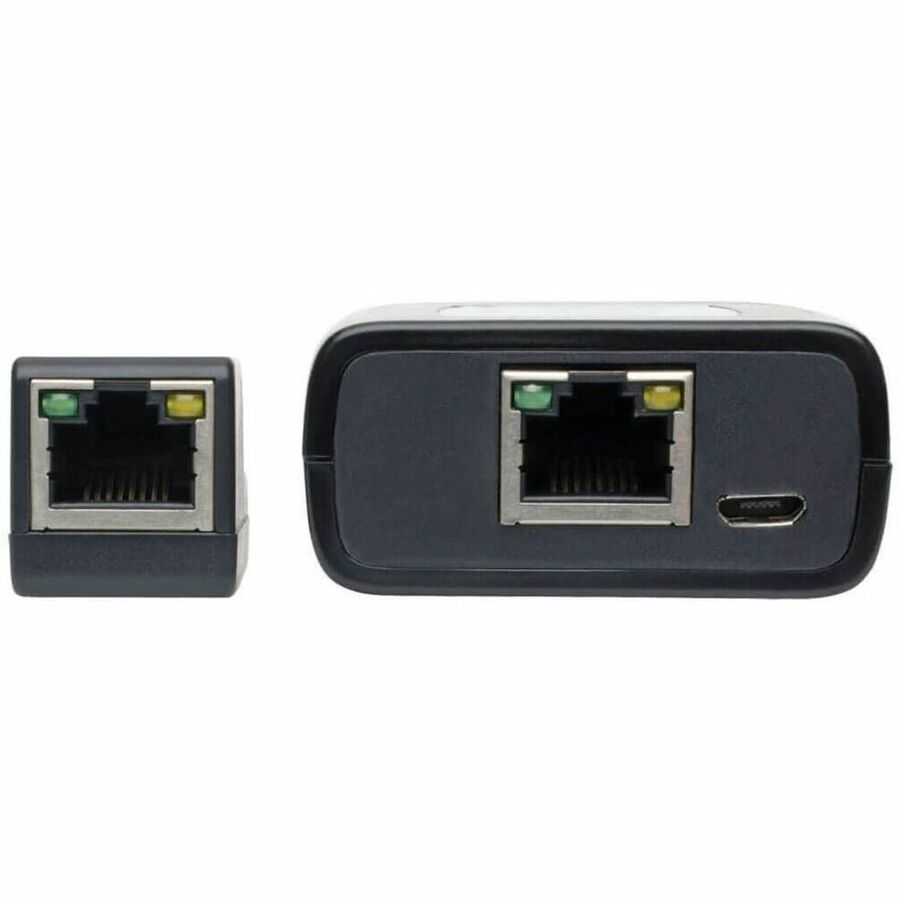

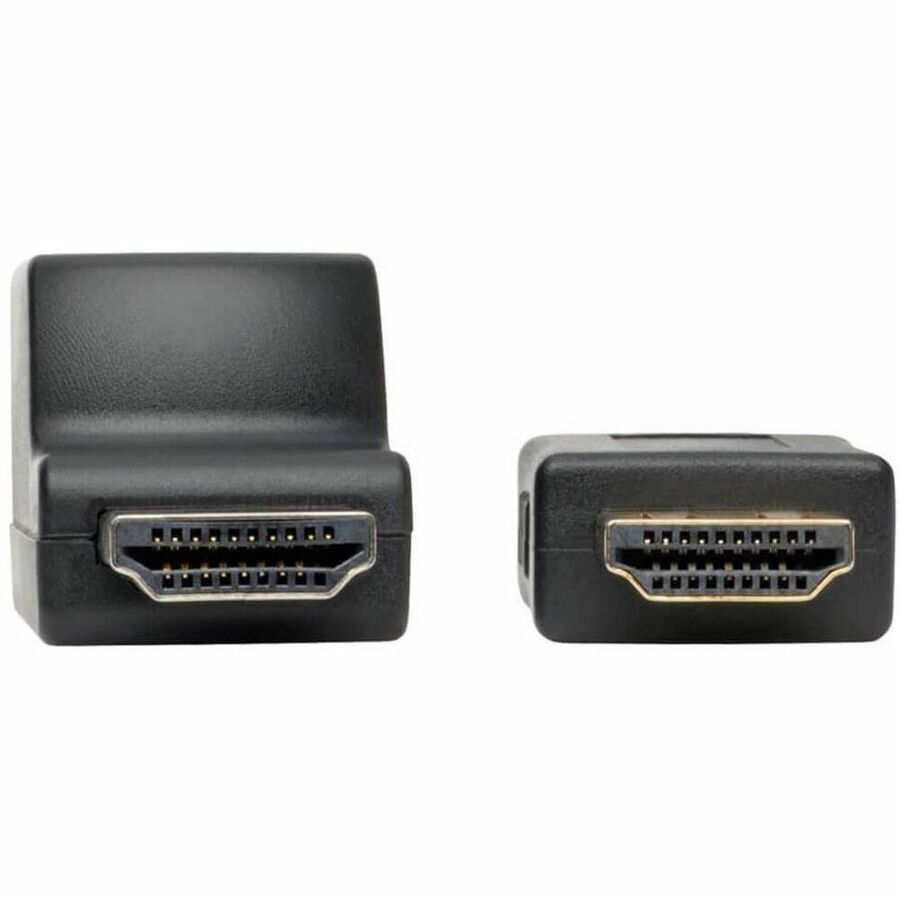

This plug-and-play B126-1P1M-U-POC requires no software or drivers to install. The transmitter’s built-in HDMI cable connects to the source device, such as a Blu-ray player or computer. The transmitter’s orange LED indicates it is receiving an HDMI signal from the source device. Cat5e/6/6a cable connects the transmitter to the receiver’s RJ45 port. The receiver’s orange LED indicates it is connected to a transmitter that is powered on. The compact receiver plugs directly into the display’s HDMI input port. You may use an HDMI cable (sold separately) to connect an optional local display to the transmitter’s HDMI port.

Built-In PoC Technology Provides Receiver Power

Built-in Power over Cable (PoC) technology powers the low-profile receiver over Cat5e/6/6a cable, so no external power supply on the display side is needed. An included USB Micro-B cable supplies power to the transmitter. Green LEDs on the transmitter and receiver indicate the units are receiving power.
