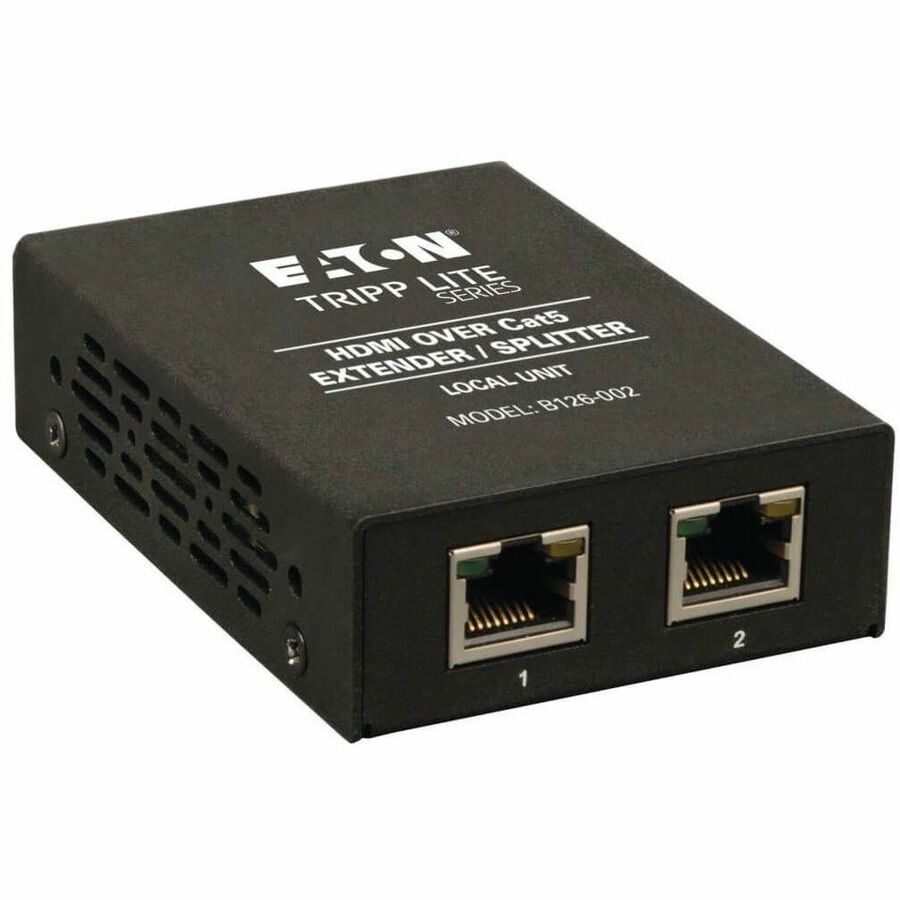

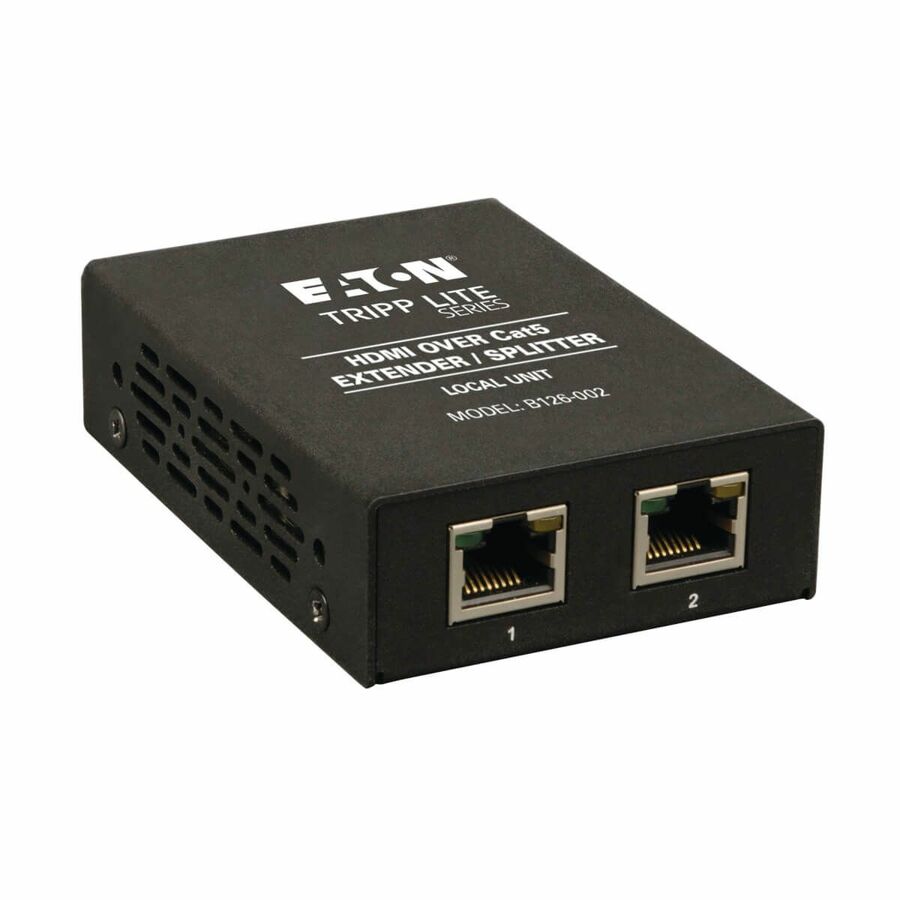

Eaton Tripp Lite Series 2-Port HDMI over Cat5/6 Extender/Splitter, Box-Style Transmitter for Video/Audio, Up to 150 ft. (45 m), TAA

The B126-002 2-Port HDMI over Cat5/Cat6 Extender/Splitter works with Tripp Lite B126-Series remote receivers to split a single HDMI audio/video signal into two separate signals. It's ideal for digital signs, trade shows, presentations, retail settings and other applications where the video source is located farther than conventional cables allow or that require multiple displays connected to one source. It uses HDMI cable (see Tripp Lite's P568-Series) to connect to the source and Cat5e/6 cable to transmit to the remote monitors (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series).

When used with Tripp Lite's B126-1A0 or B126-1A0-WP-1 active remote receivers, the Extender/Splitter can extend a 1080i (60 Hz) signal up to 200 ft., a 1080p signal (60 Hz) up to 150 ft. and a 3D signal up to 125 ft. With a B126-1P0 or B126-1P0-WP-1 passive remote receiver, it can extend a 1080i (60 Hz) signal up to 100 ft. and a 1080p (60 Hz) signal up to 50 ft. Add up to three B126-110 remote repeaters to each channel to fully extend the signal range or add more displays.

In addition to crystal-clear video, the B126-002 delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio. Easy to set up with no software or drivers to install. Mounts to a wall, rack or pole using the included hardware.

Features

Extends High-Definition Signals

• Extends a 1080i (60 Hz) signal up to 175 ft., a 1080p (60 Hz) signal up to 125 ft. and a 3D signal up to 100 ft. with each optional Tripp Lite B126-110 remote repeater

• Extends a 1080i (60 Hz) signal up to 200 ft., a 1080p (60 Hz) signal up to 150 ft. and a 3D signal up to 125 ft. with Tripp Lite B126-1A0 or B126-1A0-WP-1 active remote receiver

• Extends a 1080i (60 Hz) signal up to 100 ft. and a 1080p (60 Hz) signal up to 50 ft. with Tripp Lite B126-1P0 or B126-1P0-WP-1 passive remote receiver

• Add up to 3 remote repeaters on each channel for maximum signal range

• Connects to next link in the chain with one Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series)

Supports the Latest Video and Audio Resolutions

• Works with all operating systems and HDMI video sources

• Supports HD resolutions up to 1080p (60 Hz)

• Supports stereo and 7.1-channel surround sound (multi-channel or PCM) audio

• Supports 24-bit True Color (8 bits per channel) and HDCP

Easy to Set Up and Use

• Plug-and-play engineering-no software or drivers to download and install

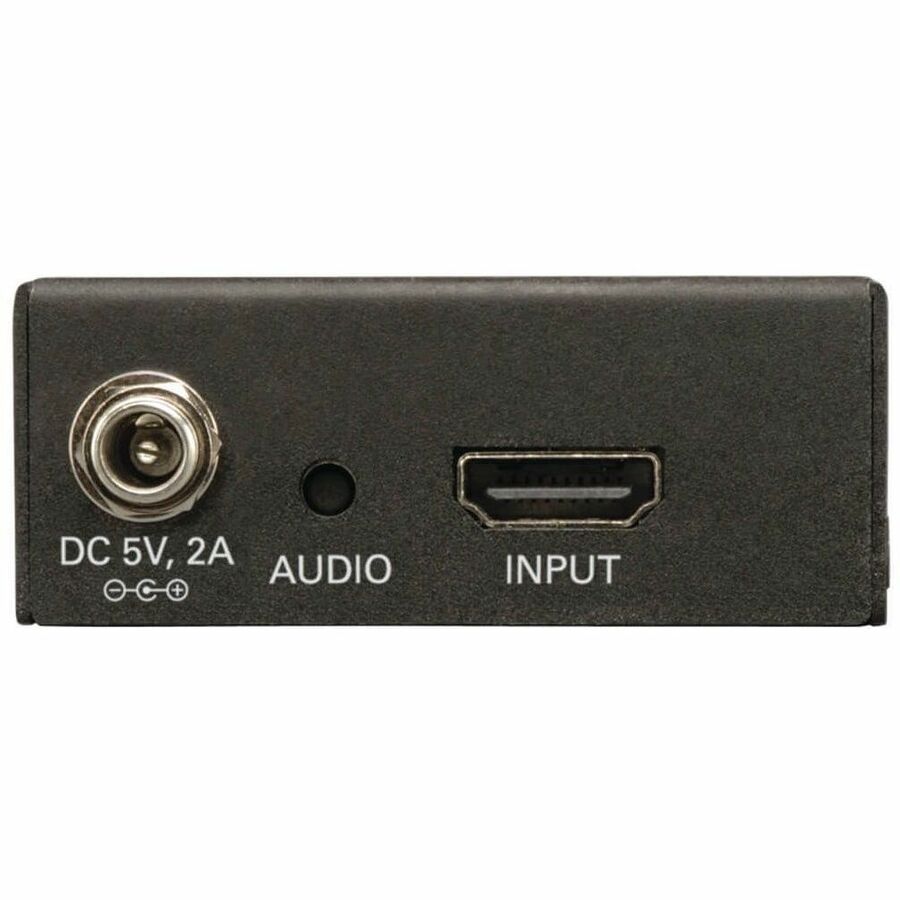

• Connects quickly to source with HDMI cable, such as Tripp Lite's P568-Series

• LEDs indicate at a glance when the unit is receiving power and an HDMI signal from the source

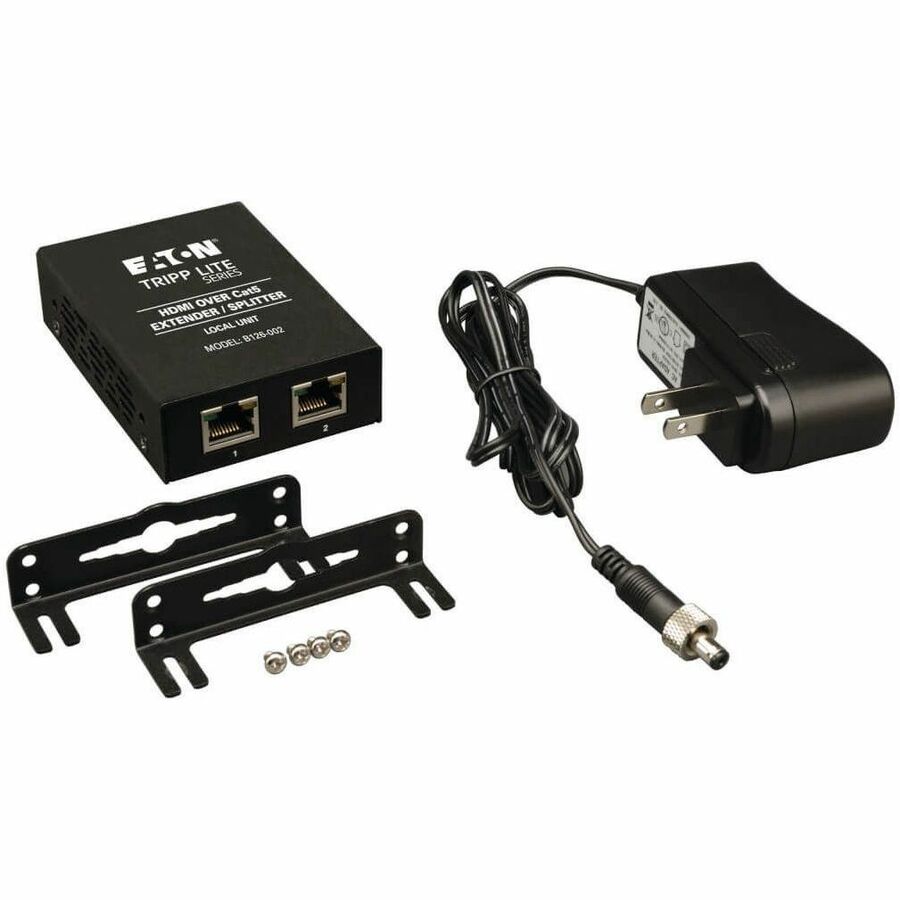

• Included mounting hardware lets you install the unit on a wall, rack or pole

TAA-Compliant

• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

System Requirements

• For international use, the B110-INT power supply can be purchased separately; it features plugs for the UK, Europe, and Australia

More from the Manufacturer

Split a Single HDMI Signal into Two Separate Signals

Spread your message far and wide—extend an HDMI signal up to 200 feet! This Tripp Lite 2-Port HDMI over Cat5/6 Extender/Splitter delivers peak video performance by HDMI-enabled digital video components, assuring that you enjoy the crystal-clear picture and full, rich sound that you paid for. When used with an active remote unit (Tripp Lite B126-1A0 or B126-1A0-WP), the B126-002 can extend a 1080i (60Hz) signal up to 200 ft. and a 1080p (60Hz) signal up to 150 ft. Using a passive remote unit (Tripp Lite B126-1P0 or B126-1P0-WP) still delivers premium performance by extending a 1080i (60Hz) signal up to 100 ft. and a 1080p (60Hz) signal up to 50 ft. The included hardware provides you with a variety of installation options and the plug-and-play convenience makes for an easy, efficient setup.

Sed bibendum ullamcorper efficitur

Aenean mollis id sem quis porttitor. Aliquam dignissim magna vel enim dignissim vehicula. Maecenas efficitur urna vitae egestas congue. Nam semper molestie velit, ut congue nulla dignissim quis. Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Suspendisse efficitur ante.

The Smart Solution for Digital Signage Applications

The B126-002 splits a single HDMI signal into two separate signals, making it the ideal solution for digital signage applications requiring multiple displays connected to one source, ranging from retail and point-of-sale displays to trade show presentations. The B126-002 allows for the video source to be in a secure, remote location for controlled access while still delivering signal to devices in another area.

Greater Distance—Greater Flexibility

This Tripp Lite 2-Port HDMI over Cat5/6 Extender/Splitter allows extension of an HDMI signal beyond the 15-ft. (5-meter) distance limitation. The B126-002 can extend a 1080i (60Hz) resolution up to 200 ft. and a 1080p (60Hz) resolution up to 150 ft. when used with an active remove unit (Tripp Lite B126-1A0 or B126-1A0-WP). When used with a passive remote unit (Tripp Lite B126-1P0 or B126-1P0-WP), it can extend a 1080i (60Hz) resolution up to 100 ft. and a 1080p (60Hz) resolution up to 50 ft. And, we haven't forgotten the sound! The B126-002 is compatible with both stereo and 7.1 channel surround sound audio delivering premium sound quality to every point of your application. For maximum distance performance, always use 24 AWG Solid Wire Cat5e/6 cable (Tripp Lite N202-series).

Convenient Plug-and-Play Setup

With no software or drivers to install, the B126-002's plug-and-play setup gets your application up and running faster. Simply connect the unit to the video source and remote receiver, connect the remote receiver to the HD display and watch as the B126-002 provides crystal clear resolution. The B126-002 is compatible with all HDMI video sources and all computer operating systems.

Versatile Installation Options

The B126-002 includes mounting hardware enabling it to be installed in any venue. Mounting options include wall-mount, rackmount and pole mount.
