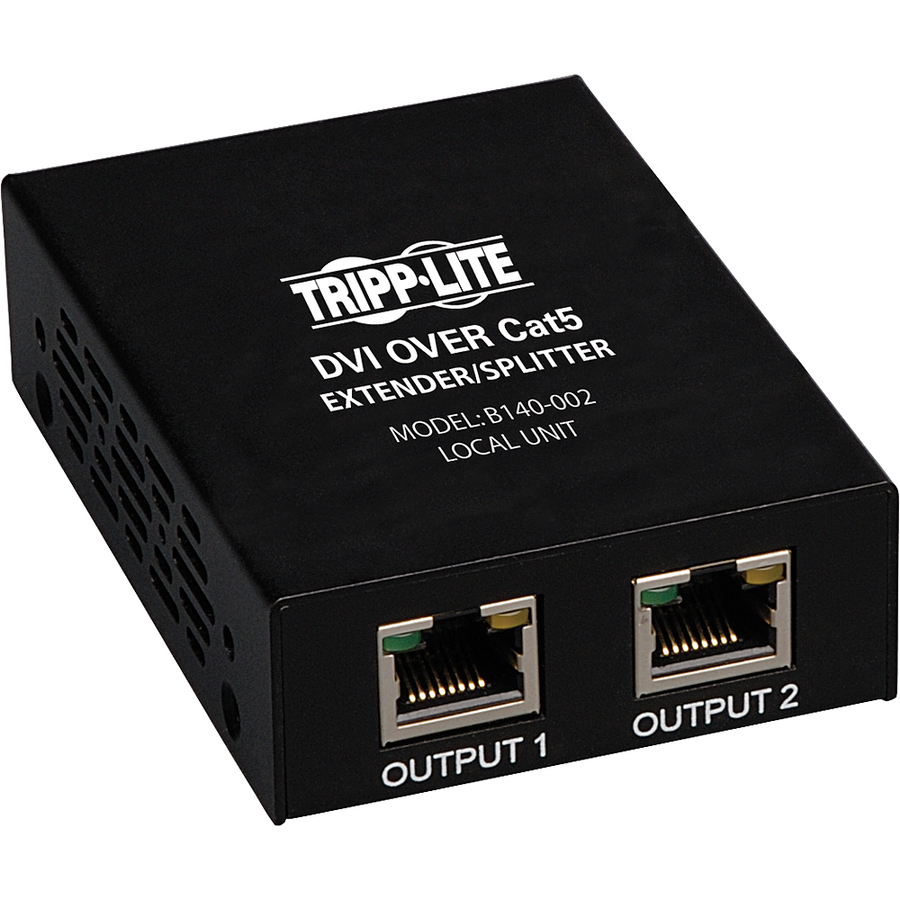

Eaton Tripp Lite Series 2-Port DVI over Cat5/6 Splitter/Extender, Box-Style Transmitter for Video, DVI-D Single Link, 200 ft. (60 m), TAA

The B140-002 transmits a DVI-D Single-Link signal to two monitors up to 200 ft. away using a single Cat5e/6 patch cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable (Tripp Lite's N202-Series). The B140-002 is compatible with all operating systems, and is plug and play, with no software or drivers required. It also comes with mounting hardware that allows it to be wallmounted, rackmounted, or pole-mounted. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

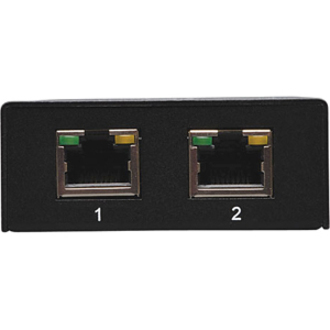

Installation is simple. Connect the B140-002 transmitter to a DVI source using a Tripp Lite P561-Series DVI cable (not included). Connect a Tripp Lite B140-series receiver (not included) to each display using a Tripp Lite P561-Series DVI cable (not included). Finally, each remote receiver is connected to an RJ45 port on the B140-002 using a single Cat5e/6 cable.

For longer extension distances, use a B140-1A0 or B140-1A0-WP active receiver unit to extend a 1920 x 1080 @ 60Hz signal up to 150 ft., or a 1024 x 768 @ 60Hz signal up to 200 ft..

For shorter extension distances, use a B140-1P0 or B140-1P0-WP passive receiver unit to extend a 1920 x 1080 @ 60Hz signal up to 50 ft., or a 1024 x 768 @ 60Hz signal up to 100 ft..

Further expand the range and number of monitors by using a B140-110 repeater unit. Add up to four remote units (three repeaters and one active receiver) to each channel of the B140-002, for a total of 4 displays per channel. (An active receiver should be the last unit in a channel) A 1920 x 1080 @ 60Hz signal can be extended up to 125 ft. from each repeater to the next unit in the channel, or a 1024 x 768 @ 60Hz signal can be extended up to 175 ft..

More from the Manufacturer

DVI over Cat5/6 Transmitter Extends and Splits a Single Video Signal to Two Monitors

Tripp Lite’s B140-002 DVI over Cat5 Extender allows you to split a single DVI signal and extend it to two monitors up to 200 ft. away using inexpensive Cat5/6 cabling (Tripp Lite B140-Series active or passive remote units required, sold separately). The B140-002 is ideal for digital signage applications in schools, churches, retail, point-of-sale displays, trade show presentations, business conference rooms and any other venue that requires sending video to more than one DVI-enabled digital video component over a long distance. With no software or drivers to install, the B140-002 provides total plug-and-play convenience. For peace of mind, the B140-002 comes backed by a one-year warranty and is TAA-compliant for GSA Schedule purchases.

Extend a DVI Signal up to 200 ft. Away

This Tripp Lite 2-Port DVI over Cat5/6 extender/splitter allows extension of a DVI signal beyond the 15 ft. distance limitation. The B140-002 can extend a 1024 x 768 (60Hz) resolution up to 200 ft. and a 1920 x 1080 (60Hz) resolution up to 150 ft. when used with an active remote unit (Tripp Lite B140-1A0 or B140-1A0-WP). When used with a passive remote unit (Tripp Lite B140-1P0 or B140-1P0-WP-1), it can extend a 1024 x 768 (60Hz) resolution up to 100 ft. and a 1920 x 1080 (60Hz) resolution up to 50 ft. For maximum distance performance, always use 24 AWG Solid Wire Cat5e/6 cable (Tripp Lite N202-series).

Convenient Plug-and-Play Setup

With no software or drivers to install, the B140-002’s plug-and-play setup gets your application up and running faster. Simply connect the unit to the video source and remote receiver, connect the remote receiver to the display and enjoy crystal clear resolution. The B140-002 is compatible with all DVI video sources and all computer operating systems.

Versatile Installation Options

Unit includes mounting hardware for wall-mount, rackmount and pole mount installations.

TAA-Compliant for GSA Schedule Purchases

The B140-002 is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

One-Year Warranty and Environmentally Responsible Design

The B140-002 comes backed by a one-year warranty. As part of Tripp Lite’s commitment to environmental responsibility, it is manufactured in compliance with strict RoHS specifications.

Typical Applications

• Digital signage applications in schools, churches, retail, point-of-sale displays, trade show presentations, business conference rooms and any other application that requires sending video to more than one DVI-enabled digital video component

• Extends a video signal to a DVI-enabled monitor at distances up to 200 ft. away

What’s in the Box

DVI Over Cat5 Extender/Splitter Local (Transmitter) Unit, 2-Port

Mounting Hardware

External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)

Owner’s Manual
