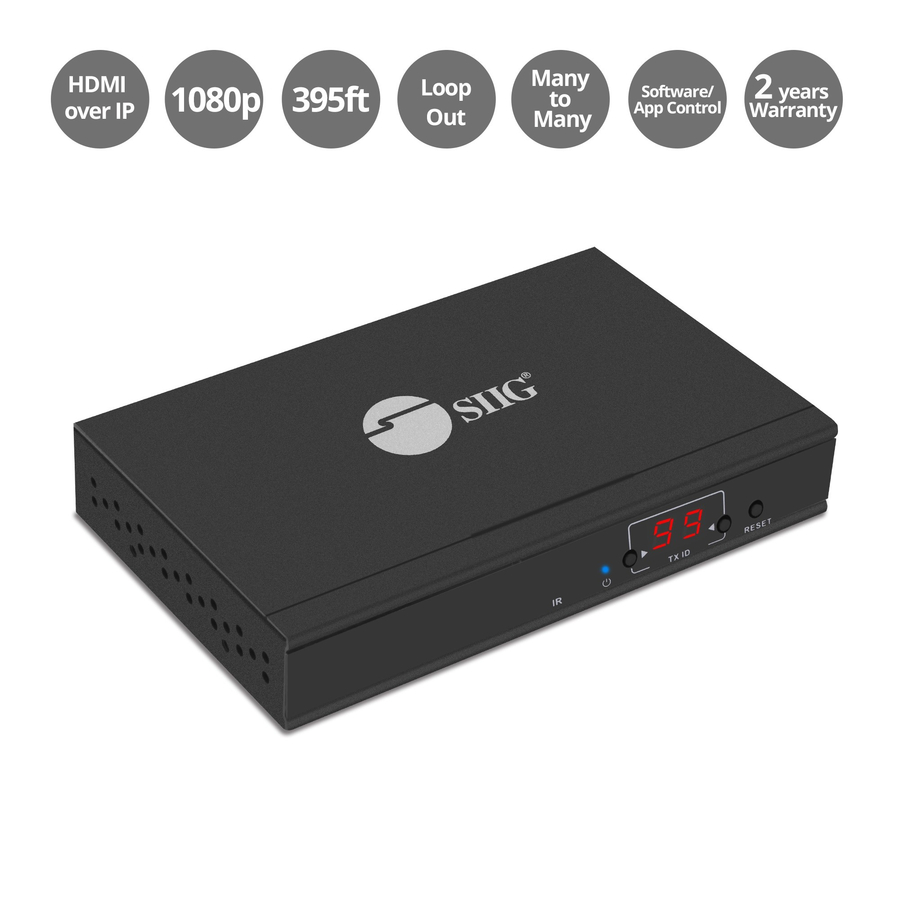

SIIG HDMI Over IP Extender / Matrix with IR - Transmitter
1080p - Through CAT5e/6 up to 120M
- SKU
- CE-H23B11-S1
- Category
- Audio & Video Consoles/Extenders
MSRP$199.99
$146.64
Save 27%Back ordered — ships when restocked.
Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- CE-H23B11-S1
- Category
- Audio & Video Consoles/Extenders
Overview
Receives high definition 1080p HDMI signals from a source device and extends the signal through economical CAT5e/6 cabling to a HDMI display device up to 120 meters using advanced HDBitT technology, use with HDMI Over IP Extender with IR - Receiver (part # CE-H23C11-S1) sold separately
• Receives HDMI signals with stereo audio and transmitts it to a remote display over UTP CAT5e/6 cabling up to 120 meters, requires HDMI Over IP Extender with IR - Receiver (part # CE-H23C11-S1) sold separately

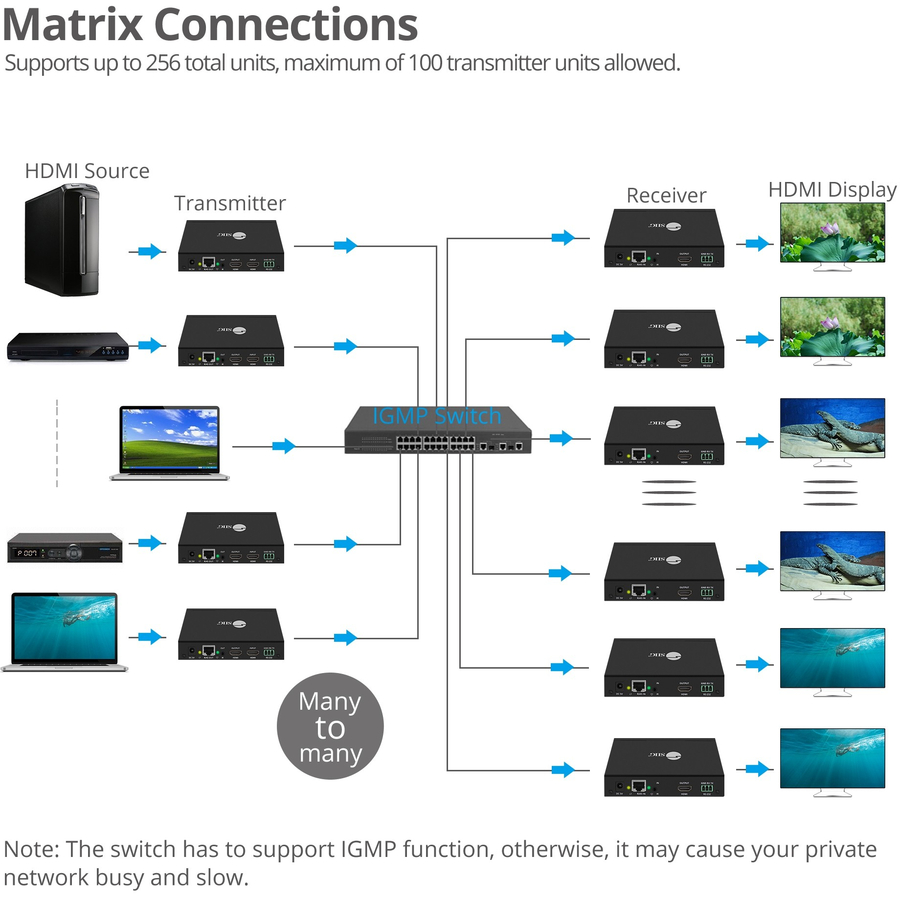

• Works as a scalable TX/RX Matrix over dedicated IP network, allows up to 256 total units, limited to 100 transmitters. Additional transmitter units (part# CE-H23B11-S1) and receiver units (part# CE-H23C11-S1) sold separately
• Supports up to 1080p @60Hz video resolution to deliver stunning and crystal clear images
• Supports IR pass back function to control the source device from RX location
• Supports computer control software to select and switch between source devices (Matrix only)
• Supports HDbit-T protocol with H.264 compression over IP

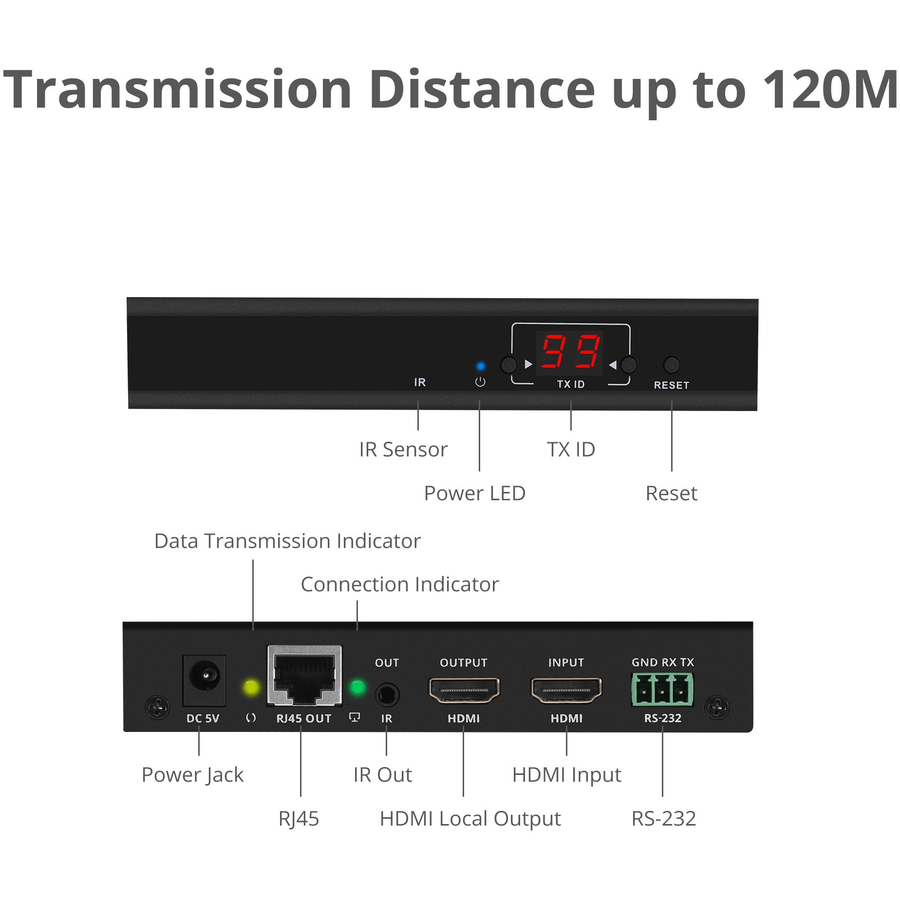

• HDMI output on the transmitter allows you to monitor the HDMI signal at the source location
• RS-232 pass-through connection to control RS-232 enabled devices at either direction
Highlights
- Video Extender Transmitter is a reliable audio/video transmission extending solution
- 1920 x 1080 maximum video resolution for a vivid, crystal clear display with added productivity
- HDMI in allows convenient transfer of content and data to video extender transmitter to ensure maximum dependability
- HDMI out enables you to transfer data from your devices to video extender transmitter with added efficiency
- Twisted pair media type is very easy to connect and can carry both analog and digital data at the same time for maximum connection efficiency
- The CE-H23B11-S1 video extender transmitter provides plenty of freedom with wired connectivity
- 1 input devices supported for maximum productive usability
- 393.70 ft maximum operating distance for reliable coverage and maximum portability
- Full HD graphics mode for stunning, lively video quality
- Rack-mountable video extender transmitter allows a clutter-free, convenient coding/decoding with increased efficiency
Specifications
| Package Contents |
|
|---|---|
| Product Type | Video Extender Transmitter |
| Manufacturer Part Number | CE-H23B11-S1 |
| Limited Warranty | 2 Year |
| Connectivity Technology | Wired |
| Form Factor | Rack-mountable |
| Manufacturer | SIIG, Inc |
| Product Model | CE-H23B11-S1 |
| Product Name | HDMI Over IP Extender / Matrix with IR - Transmitter |
| Brand Name | SIIG |
| Country of Origin | China |
| Graphics Modes | Full HD |
| Environmentally Friendly | Yes |
| Maximum Video Resolution | 1920 x 1080 |
| Twisted Pair Cable Standard | Category 6 |
| Maximum Operating Distance | 393.70 ft |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| HDMI In | Yes |
| HDMI Out | Yes |
| Media Type Supported | Twisted Pair |
| Number of Input Devices Supported | 1 |

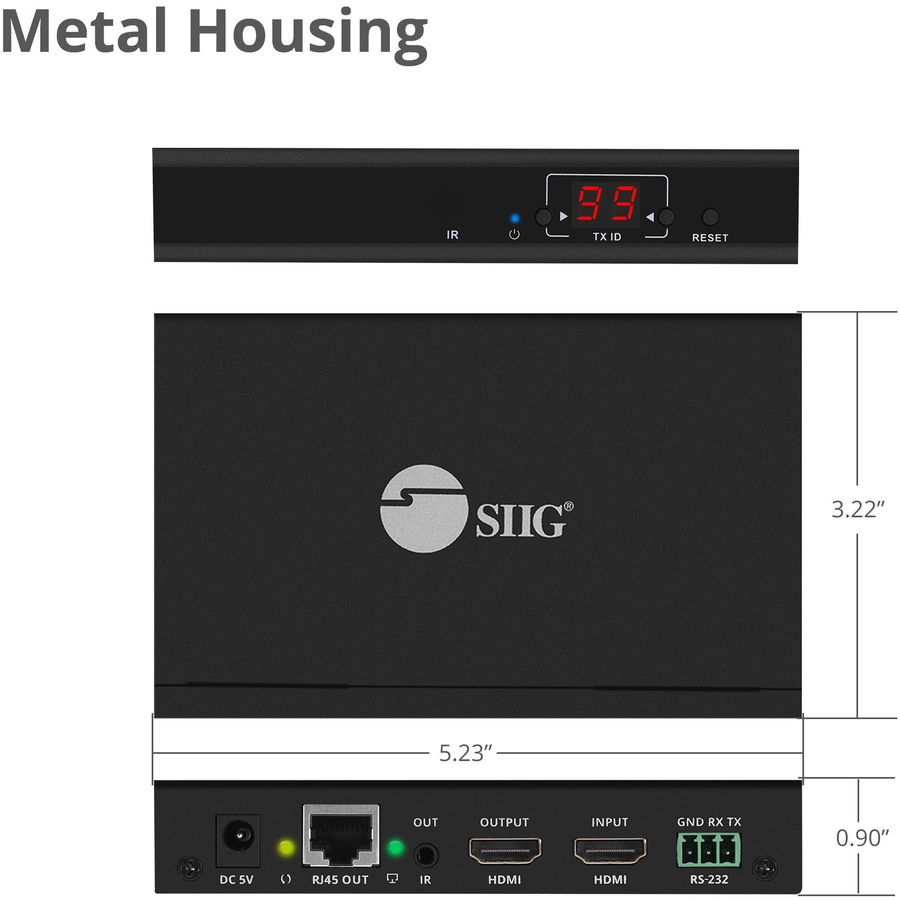

| Transmitter Height | 0.94" |
| Transmitter Width | 3.27" |
| Transmitter Depth | 5.24" |
| Transmitter Weight (Approximate) | 9.60 oz |
| Product Color | Black |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
