Server Technology PRO2 STV-4501A 30-Outlet PDU
Server Technology

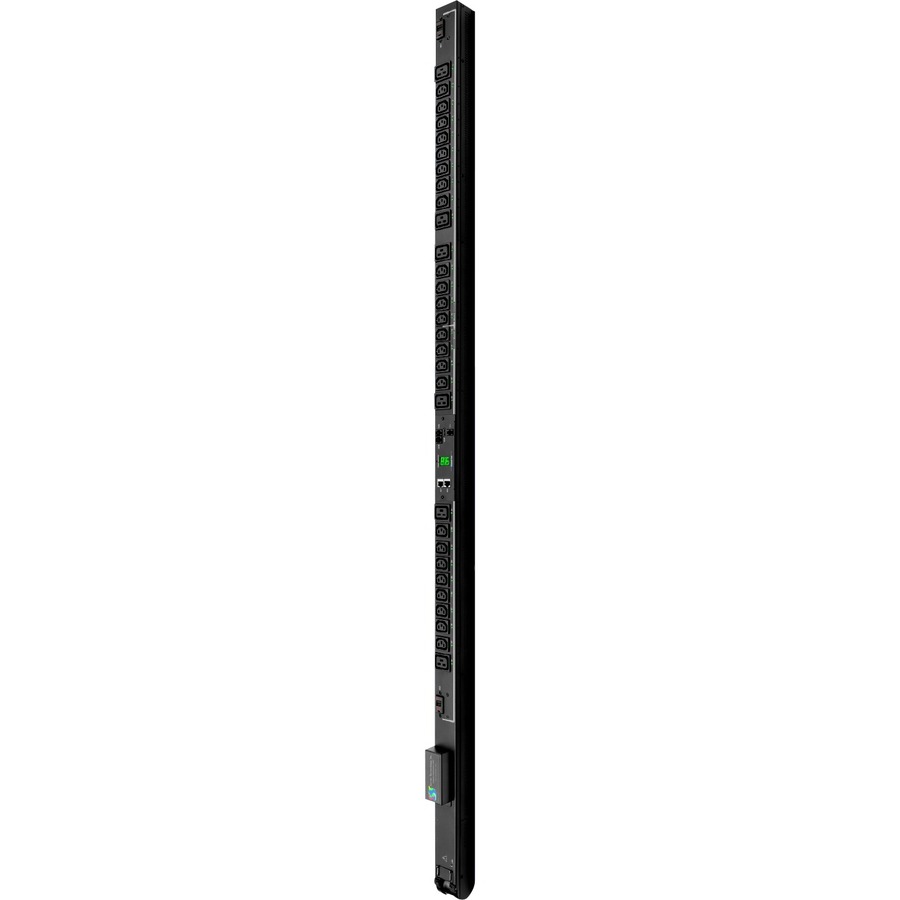

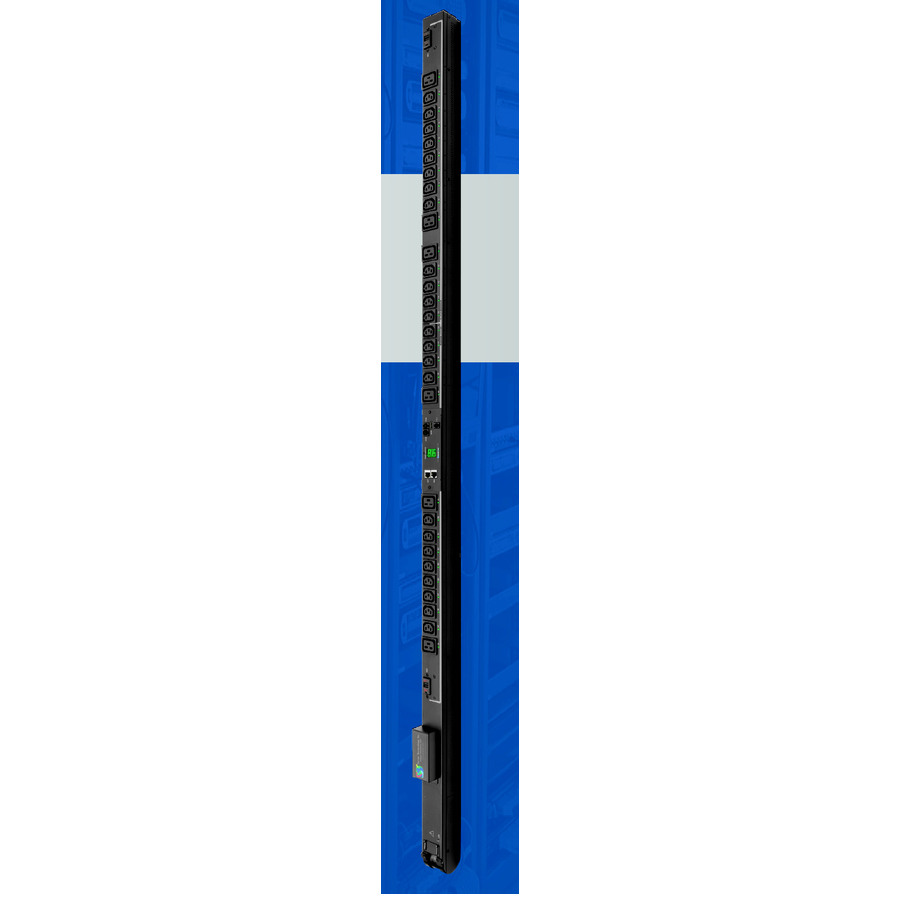

Server Technology PRO2 STV-4501A 30-Outlet PDU

IEC 60320 C20 - 24 x IEC 60320 C13, 6 x IEC 60320 C19 - 230 V AC - Network (RJ-45) - Rack-mountable

SKU
STV-4501A
Category
PDUs

MSRP$2,075.00

$1,958.23

Save 6%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Server Technology through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
STV-4501A
Category
PDUs

Overview

The Server Technology® PRO2 Switched PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO2 Switched "Master" PDU can be connected to as many as three (with optional module) PRO2 Switched "Link" PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration.

Highlights

  • Provide circuit protection and easy configuration for trouble-free access
  • IEC 60320 C13 receptacle type to ensure maximum productivity with added feasibility
  • IEC 60320 C20 plug/connector type for better, dependable connectivity and desired power output
  • 230 V AC input voltage for better reliance and maximum dependability
  • 208 V AC output voltage for better reliance and maximum usability

Specifications

Package Contents
  • PRO2 STV-4501A 30-Outlet PDU
  • 1 x Probe
  • Mounting Brackets (Buttons)
Product TypePDU
Input Voltage230 V AC
Manufacturer Part NumberSTV-4501A
Limited Warranty2 Year
Output Voltage208 V AC
Input Current20 A
Management
  • HTTP/HTTPS
  • TLSv1
  • SSHv2
  • Telnet
  • SNMPv2c and v3 (GET, SET, Traps)
  • IPv4 and IPv6
  • LDAPv3/LDAPS
  • TACACS+
  • RADIUS
  • FTP/SFTP
ManufacturerLegrand Group
Product ModelSTV-4501A
Product NamePRO2 STV-4501A 30-Outlet PDU
Mount TypeRack-mountable
Protection TypeCircuit Protection
Product SeriesPRO2
Brand NameServer Technology
Plug/Connector TypeIEC 60320 C20
Height69"
Width2.2"
Depth2.3"
Receptacle TypeIEC 60320 C13, IEC 60320 C19
Environmentally FriendlyYes
Network (RJ-45)Yes
Receptacle Detail24 x IEC 60320 C13, 6 x IEC 60320 C19
Environmental ComplianceRestriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
