SKU
C1S24SP-EPAA4A6
Category
PDUs
Overview

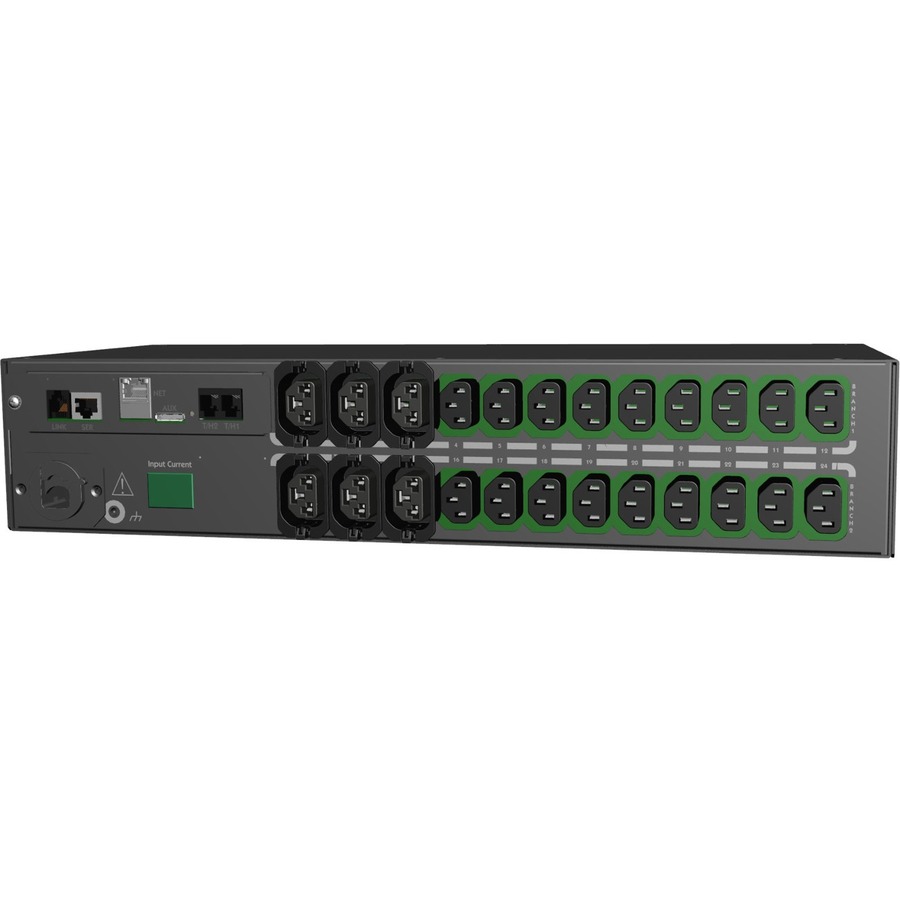

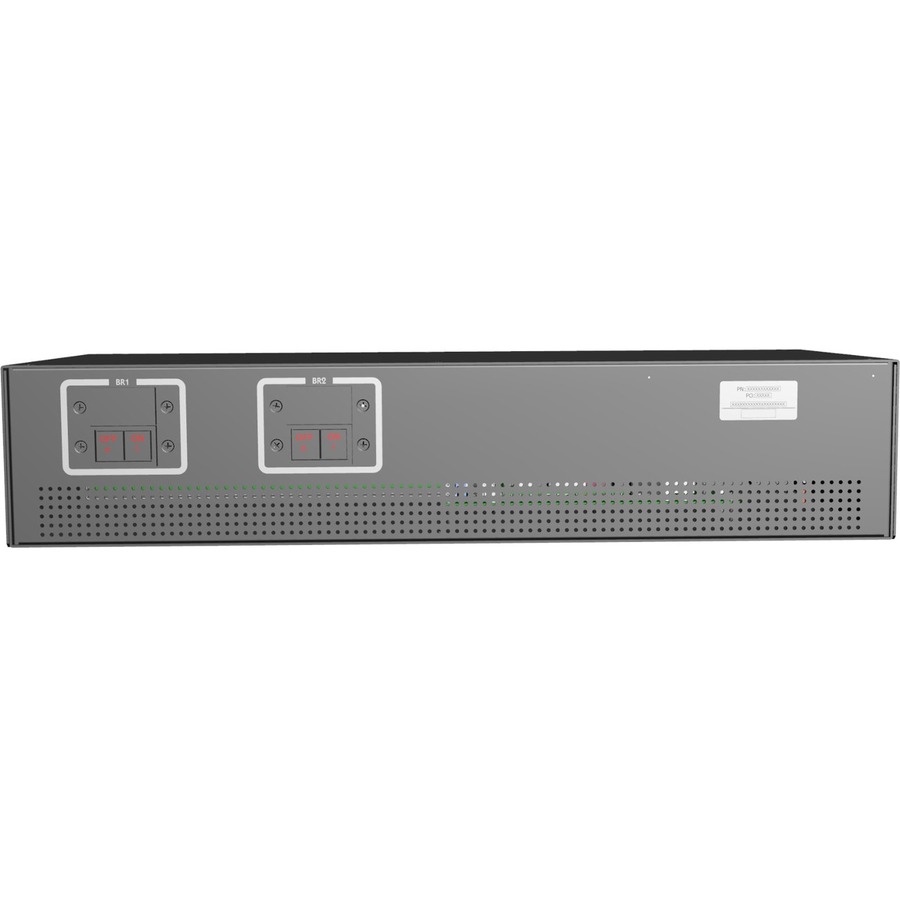

The Server Technology® PRO1 Switched Rack PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO1 Switched "Master" PDU can be connected to as many as three PRO1 Switched "Link" PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration.
Warranty
Limited Warranty: 2 Year
Highlights
Network Monitoring
Temperature/ Humidity Monitoring
Branch Circuit Protection
Color Identification
Hot-Swap Network Card
Auto-Flip Current Display
High-Density Outlet Technology
Star Multi-Linking
Per-Inlet Power Sensing
High Retention Locking Outlets
Specifications
General Information
Manufacturer
Legrand Group
Manufacturer Part Number
C1S24SP-EPAA4A6
Brand Name
Server Technology
Product Series
PRO1
Product Model
C1S24SP-EPAA4A6
Product Name
PRO1 C1S24SP-EPAA4A6 24-Outlets PDU
Product Type
PDU
Interfaces/Ports
Network (RJ-45)
Yes
Management
Management
SSH
SMTP
Syslog
HTTP/HTTPS
TLSv1.2
SSHv2
Telnet
SNMPv2c and v3 (GET, SET, Traps)
IPv4 and IPv6
LDAPv3/LDAPS
TACACS+
RADIUS
FTP/SFTP
Physical Characteristics
Mounting Orientation
Horizontal
Mount Type
Rack-mountable
Rack Height
2U
Height
3.5"
Width
17.2"
Depth
7"
Power Description
Input Voltage
230 V AC
Power Rating (Watt)
7300 W
Input Current
32 A
Technical Information
PDU Type
Switched
Phase
Single Phase
Plug/Connector Type
IEC 2P+PE 6Hr 230V/32A
Receptacle Type
IEC 60320 C13, IEC 60320 C19
Receptacle Detail
18 x IEC 60320 C13, 6 x IEC 60320 C19
Protection Type
Overcurrent Protection, Double Pole
Warranty
Limited Warranty
2 Year
Miscellaneous
Package Contents
PRO1 C1S24SP-EPAA4A6 24-Outlets PDU
Mounting Brackets
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
